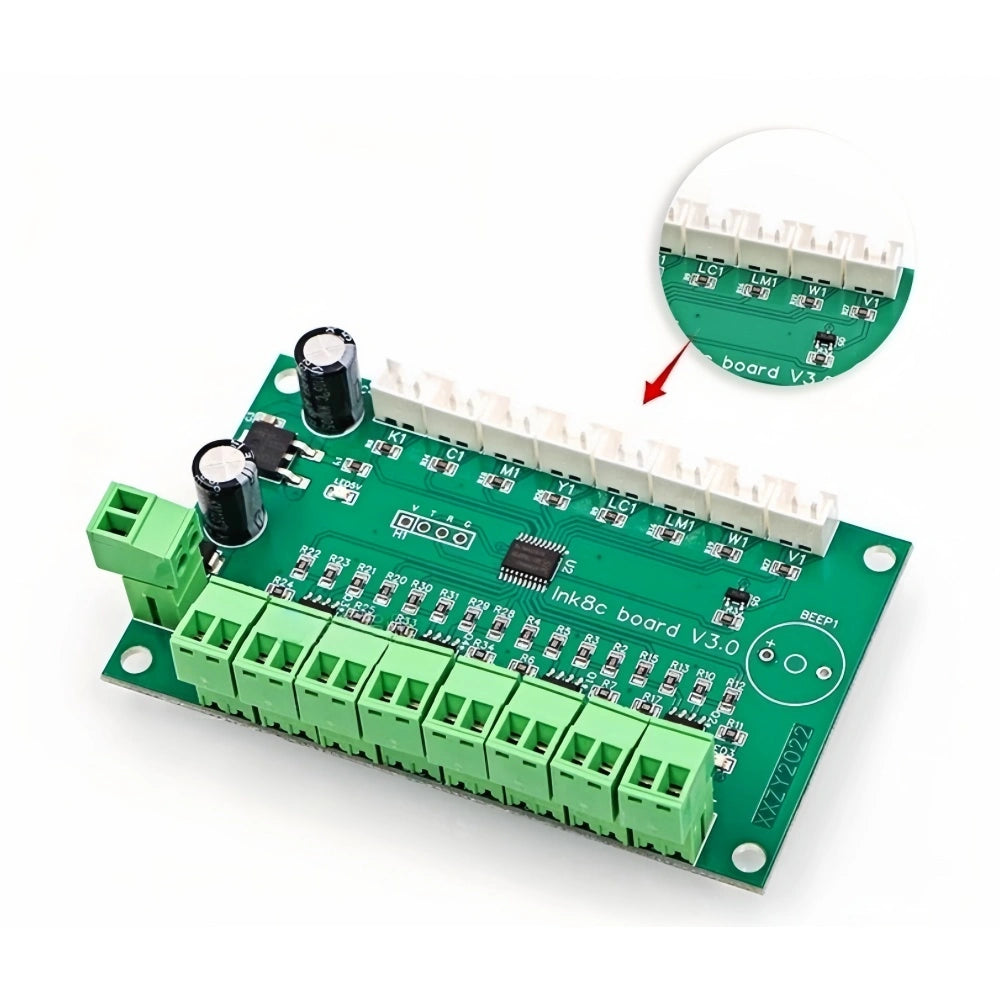

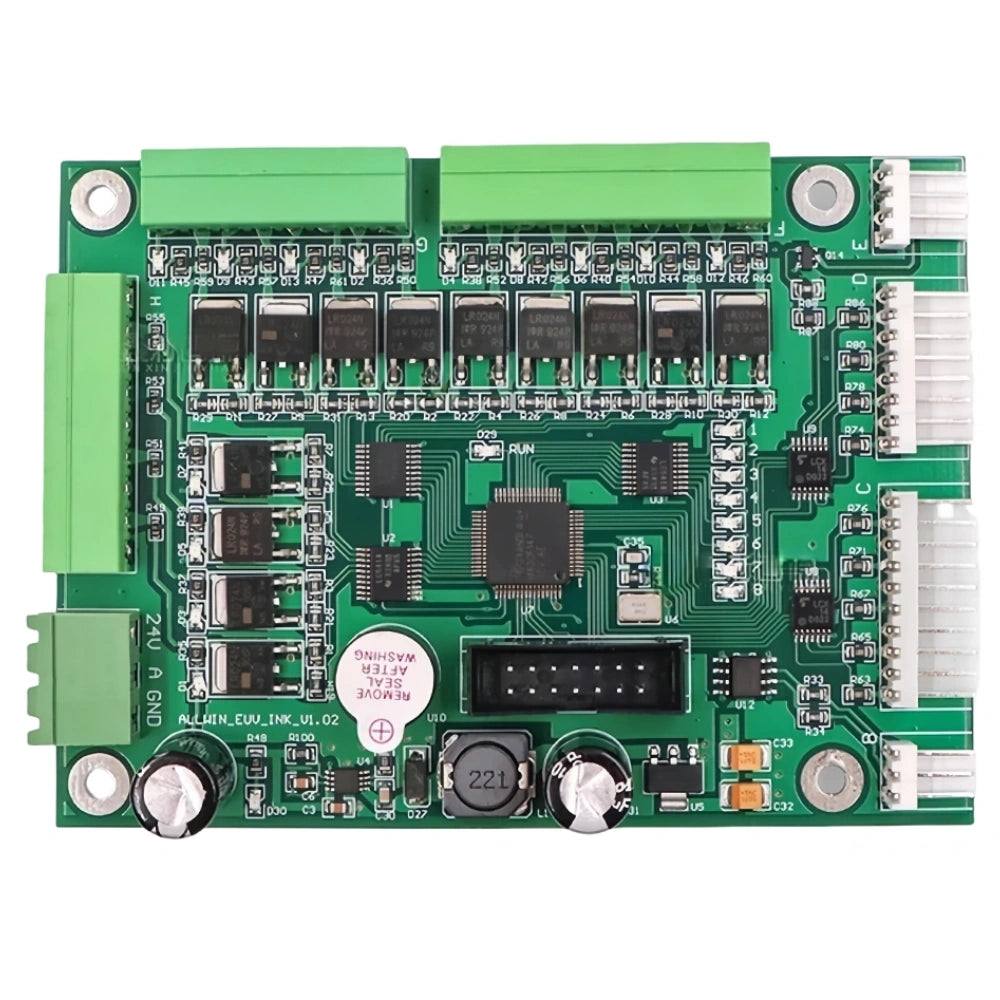

x24V 8-Channel Ink Supply Board for UV Printers – A/B/C/D/E/F/G/512i Models
The 8-Channel Ink Supply Board is a key component of UV printers, designed to manage ink circulation and maintain consistent pressure for stable printing performance. Compatible with multiple configurations, it provides precise ink control and automatic supply for CMYK + White + Varnish systems.
Key Features
- 24V power input with intelligent pressure and ink flow management.
- Supports up to 8 independent color channels.
- Compatible with various UV printer platforms and mainboards.
- Stable operation for continuous industrial printing.
- High-quality electronic components ensure long lifespan and reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage | DC 24V |
| Channels | 8 Channels (CMYK + White + Varnish) |
| Control Type | Automatic Ink Supply and Negative Pressure Control |
| Connector Type | Flat Cable / Plug Connector (depending on model) |
| Supported Inks | UV Ink, Soft UV Ink, Hard UV Ink |
| Application | UV Flatbed Printers / Roll-to-Roll Printers |
Model Comparison Table
| Model | Description | Cable Length | Feature |
|---|---|---|---|
| A Model | 8-Channel Ink Supply Board | – | Standard version for most UV printers. |
| B Model | 8-Channel Ink Supply Board | – | Enhanced stability and upgraded connectors. |
| C Model | 8-Channel Ink Board + 6.1M Cable Set | 6.1 meters | Complete assembly for integrated systems. |
| D Model | 8-Channel Ink Board + 9M Cable Set | 9 meters | Extended cable version for large printers. |
| E Model | 8-Channel Ink Supply Board | – | High-end version with optimized current stability. |
| F Model | Multi-Color Negative Pressure Ink Board | – | Supports multi-color ink circulation and pressure control. |
| G Model | Single or Dual Ink Supply Board | – | Designed for compact or dual-channel printers. |
| 512i Model | Ink Supply Board for Seiko 512i Printheads | – | Customized version for Seiko 512i systems. |
Applications
- UV flatbed printers
- Roll-to-roll UV printers
- Hybrid UV printers with 6–8 color channels
Advantages
- Stable 24V power ensures precise ink supply control.
- High-performance board design prevents ink starvation or overflow.
- Multiple versions available for different printer configurations.
- Supports automatic ink detection and negative pressure regulation.
