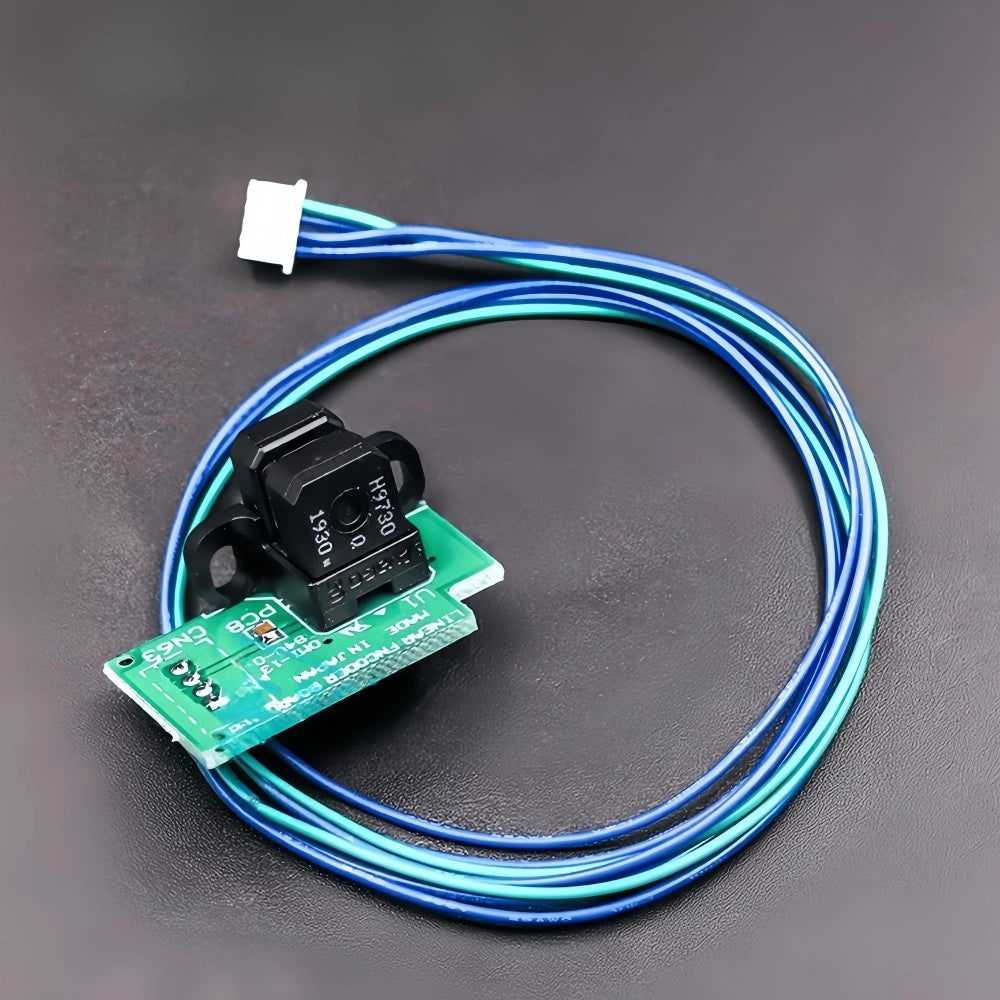

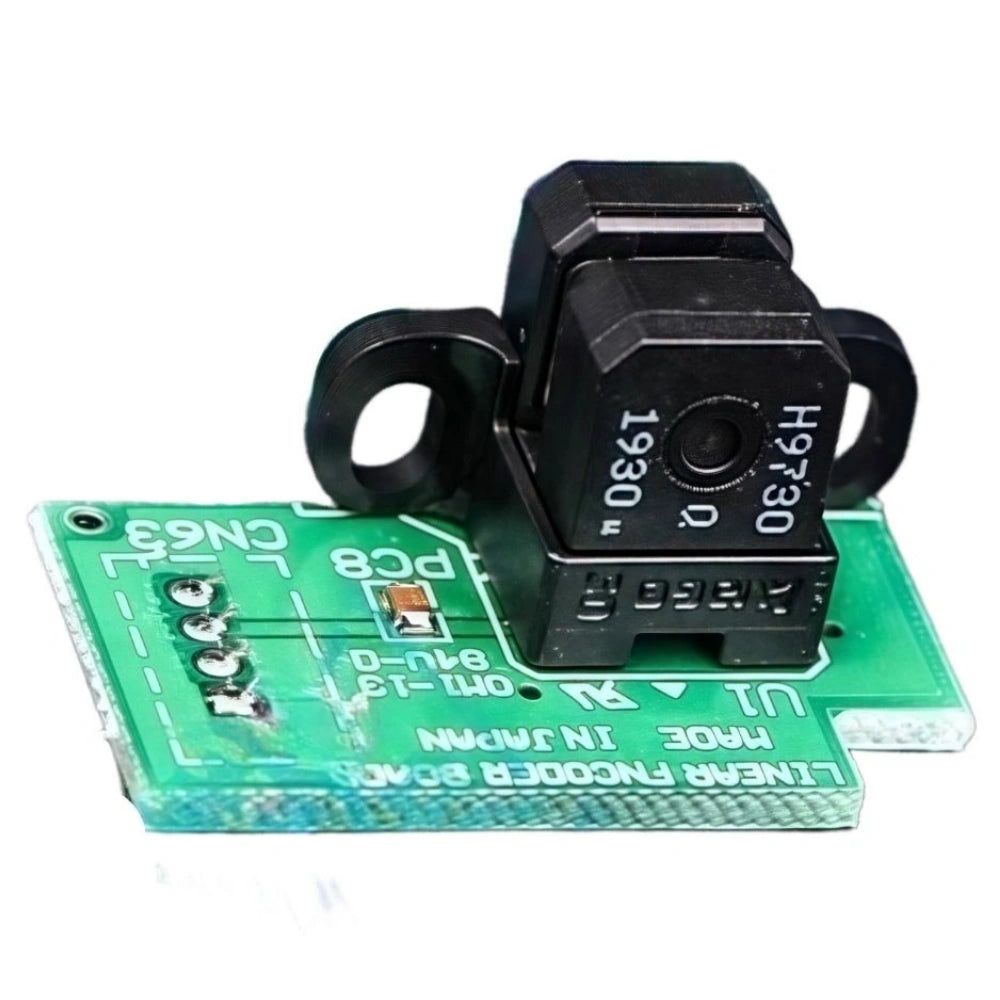

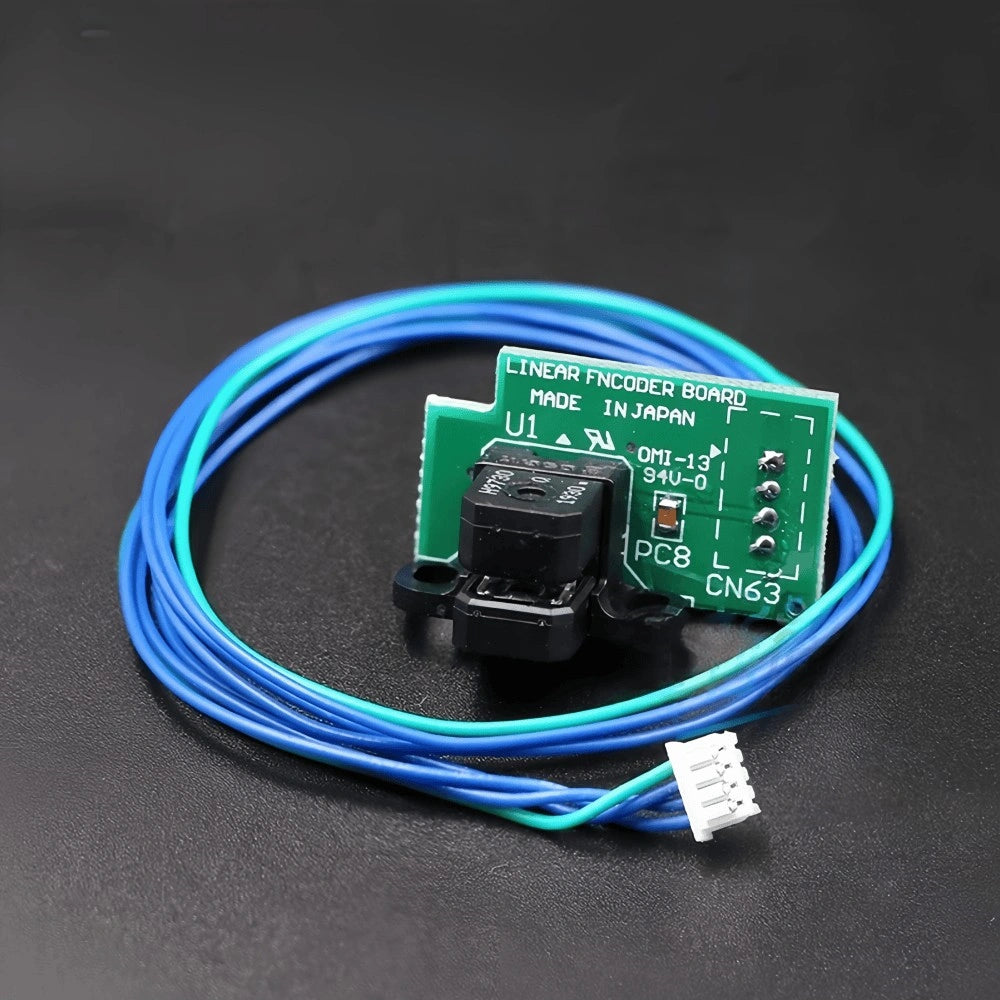

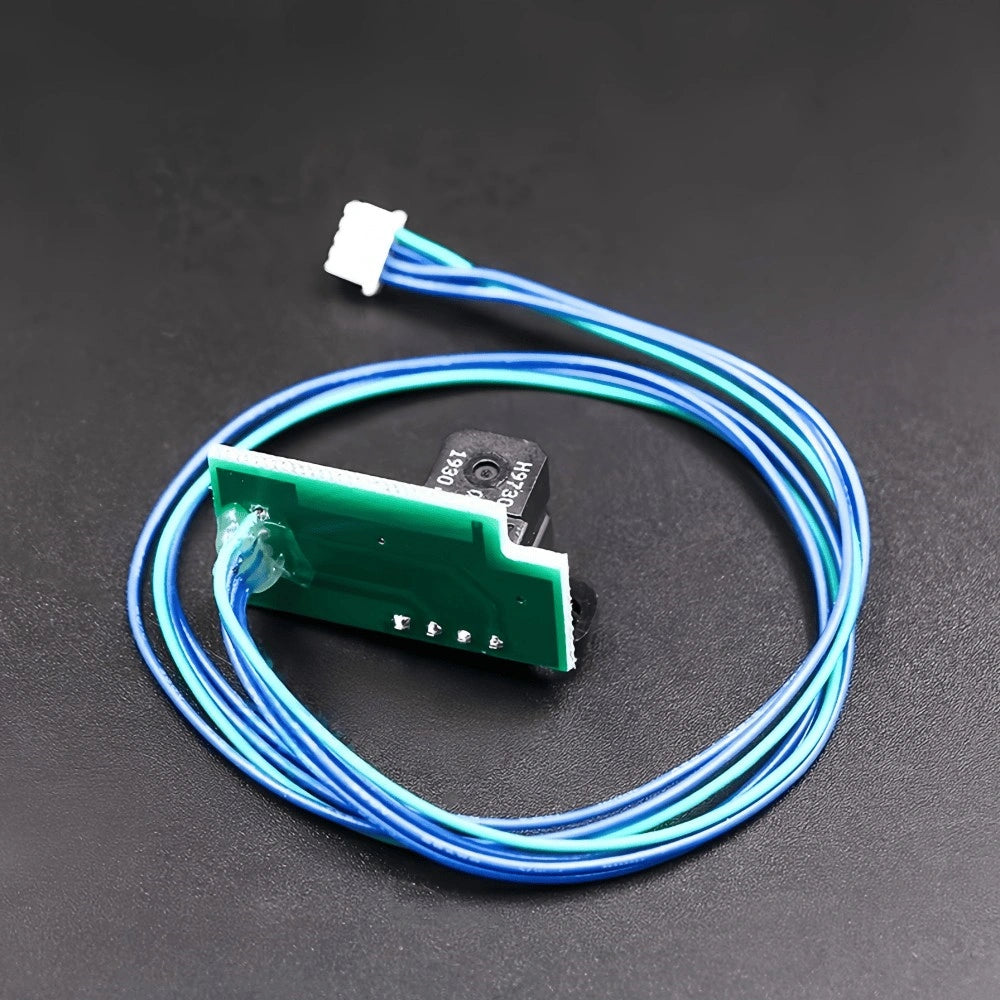

xEncoder Sensor H9730 1930 – For VP540 and FP740 Printers
Product Overview
The H9730 1930 Encoder Sensor is designed for use in wide-format printers such as VP540 and FP740. It ensures precise reading of the grating strip for smooth carriage movement, improving print stability and color alignment accuracy.
Key Features
- Stable signal output for accurate carriage positioning.
- High-precision optical sensing suitable for high-speed printing.
- 60 cm fixed cable for easy plug-and-play installation.
- Compatible with multiple large-format printers of similar structure.
- Durable construction for extended lifespan in continuous operation.
Technical Specifications
| Model | H9730 1930 |
| Working Voltage | DC 5V |
| Cable Length | 60 cm |
| Signal Output | Dual-channel quadrature A/B signal |
| Compatible Grating | 150–180 LPI strip |
| Application | VP540 / FP740 large format printers |
Type Comparison
| Type | Description | Typical Use |
|---|---|---|
| Standard Type | Compact circuit board with direct cable connector. Suitable for most large-format printer carriages using front-mounted sensors. | VP540 / FP740 / J740 / RS640 printers |
| Extended Cable Type | Longer cable for flexible routing in tight spaces or rear-mounted configurations. | Machines requiring rear-side cable exit. |
Installation Notes
- Disconnect power before replacing the sensor.
- Align the optical window parallel to the encoder strip.
- Maintain 0.3–0.6 mm clearance between sensor and strip surface.
- Ensure grating strip is free of dust or ink residue.
- Perform a test print to verify consistent carriage movement.
Package Includes
- 1 × Encoder Sensor H9730 1930
- 1 × 60 cm Cable
- Protective packaging
Note: Please confirm the connector type and cable length before purchase. This model is intended for VP540 and FP740 printer systems using standard 4-pin connections.
