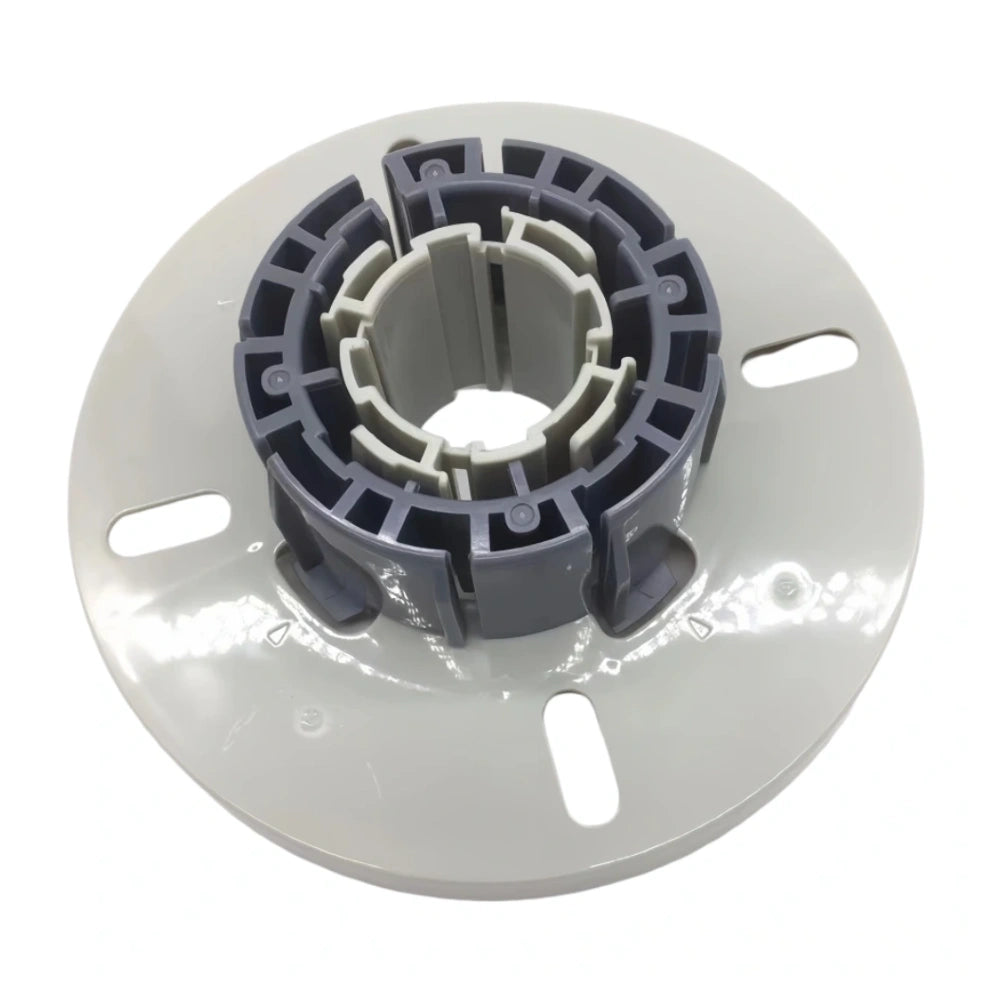

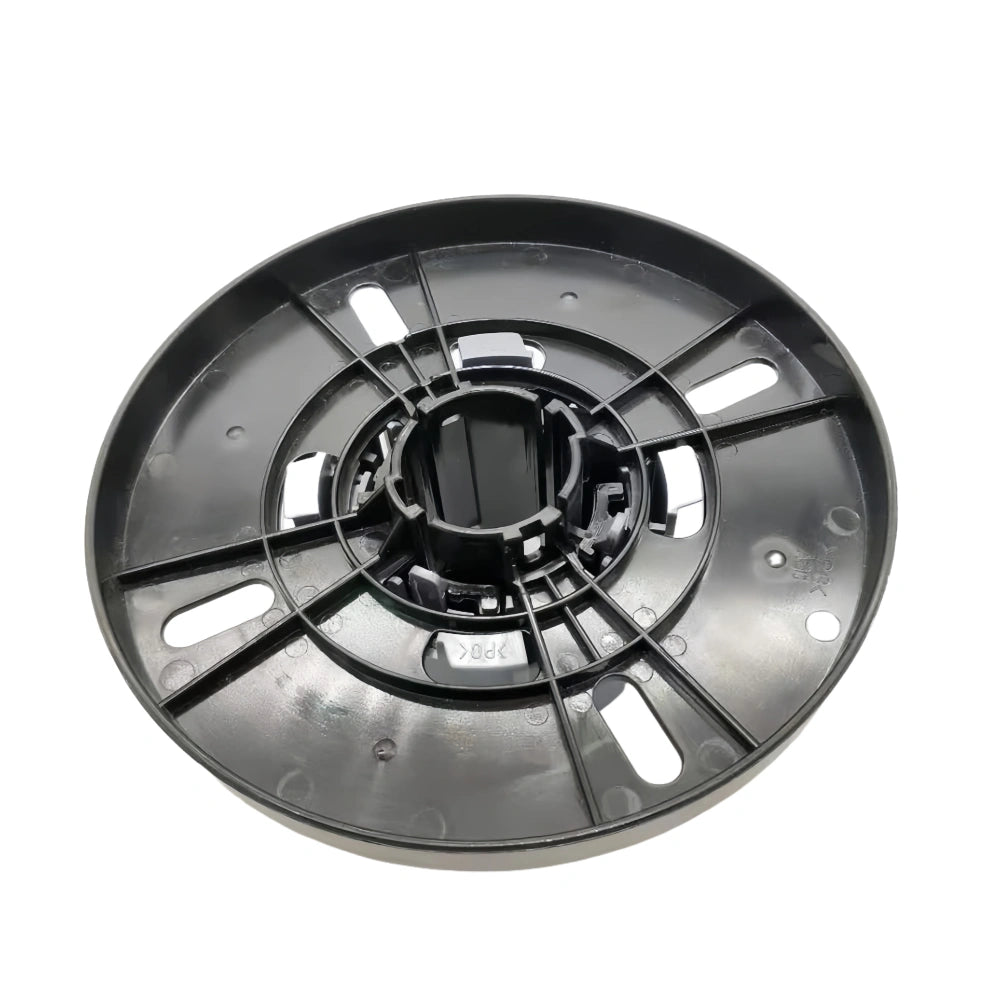

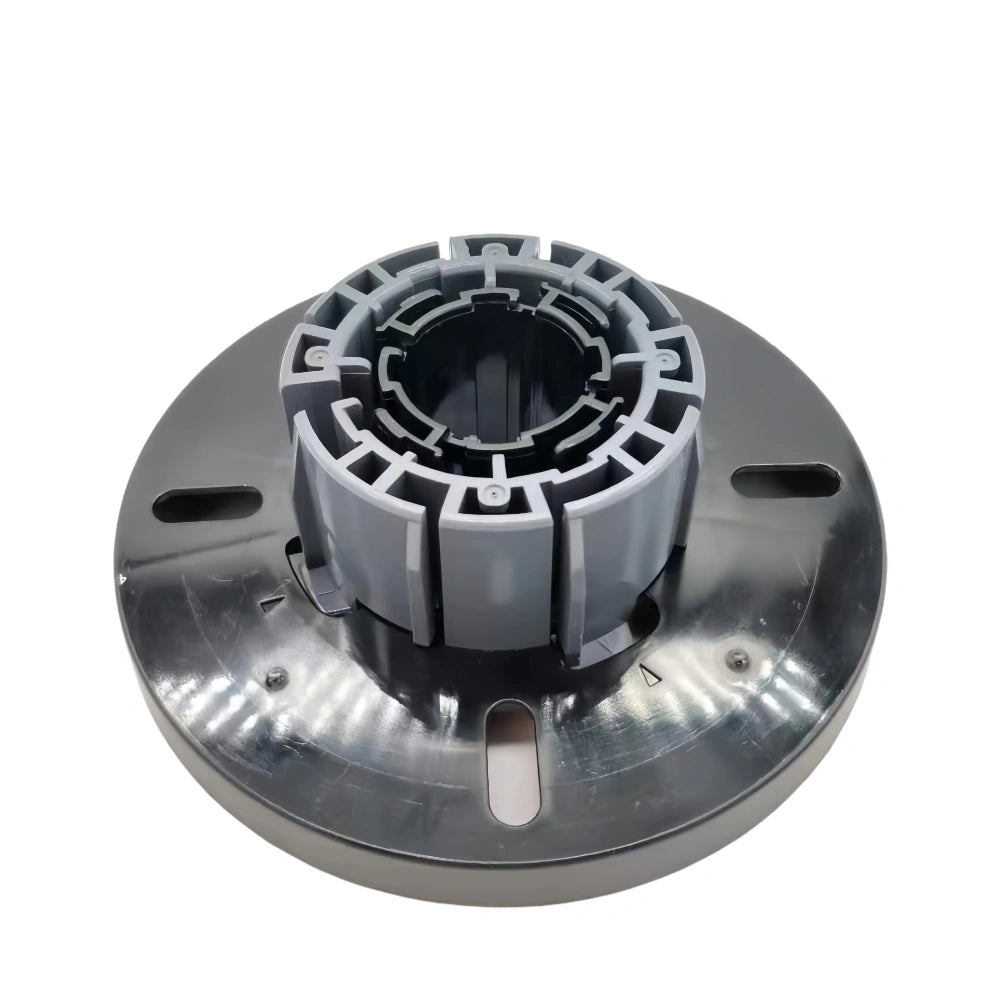

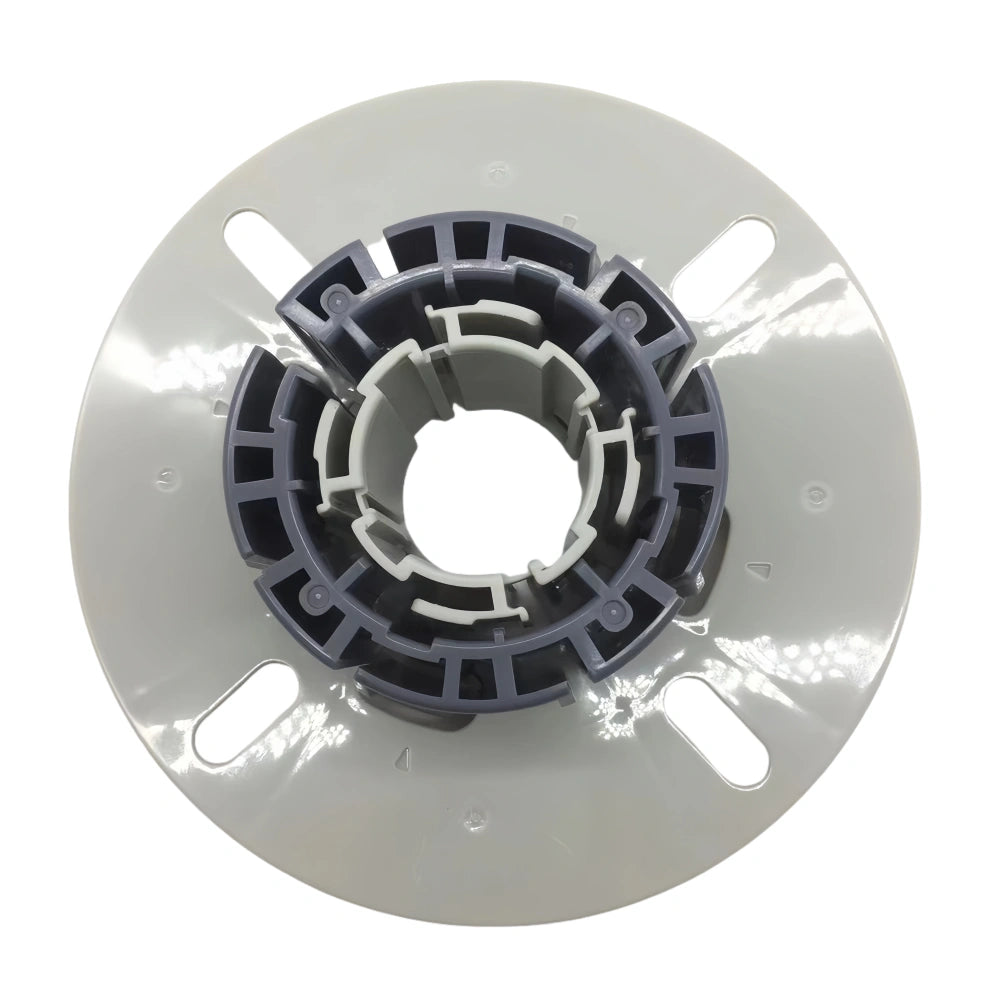

xMUTOH Drafstation Flange Right for Scroller Bar - S-1104330
The MUTOH Flange Right (Part No. S-1104330) is an original replacement component for the scroller bar of Mutoh Drafstation printers and Winder 30 TC take-up units. This right-side flange securely holds the media roll in position, ensuring smooth rotation, precise feeding, and balanced roll tension during long print runs. It provides reliable performance and perfect fit for original Mutoh take-up systems.
Key Features
- Original Mutoh part number S-1104330
- Designed for Drafstation printers and Winder 30 TC take-up units
- Ensures smooth roll feeding and stable media alignment
- Durable and precision-molded structure for long service life
- Easy installation and perfect mechanical compatibility
Description
This right-side flange is part of the scroller bar assembly used in Mutoh take-up systems. It securely locks the media roll core in place and maintains even tension during operation. The S-1104330 model is compatible with Winder 30 TC units (ZMY-14810, ZMY-14800) and various Mutoh printer models. Its high-strength construction ensures stability and minimizes vibration for consistent print output quality.
Printer Compatibility
| Mutoh RJ-900C (Draftstation) Mutoh ValueJet 1204 Mutoh ValueJet 1324 Mutoh ValueJet 1608HS |
Mutoh RJ-900X (Draftstation) Mutoh ValueJet 1304 Mutoh ValueJet 1604 Mutoh ValueJet 1638 |
Mutoh RJ-901C (Draftstation Pro) Mutoh ValueJet 1304W Mutoh ValueJet 1604W Mutoh ValueJet 1638W |
Product Specifications
| Type | Flange – Right Side for Scroller Bar |
|---|---|
| Part Number | S-1104330 |
| Compatible Take-Up Units | Winder 30 TC (ZMY-14810 / ZMY-14800) |
| Material | High-strength polymer with precision metal inserts |
| Function | Locks and stabilizes media roll core during take-up operation |
| Position | Right side of the scroller/take-up shaft |
Installation Tips
- Ensure the left and right flanges are aligned evenly before tightening.
- Clean the roll shaft to prevent slippage during installation.
- Do not overtighten locking screws to avoid deformation.
Why Choose iColorPro
iColorPro supplies genuine Mutoh spare parts and durable compatible components for professional printing systems. Each flange undergoes dimensional accuracy testing to guarantee precise fitting, stable operation, and long-term durability in heavy-duty printing environments.
