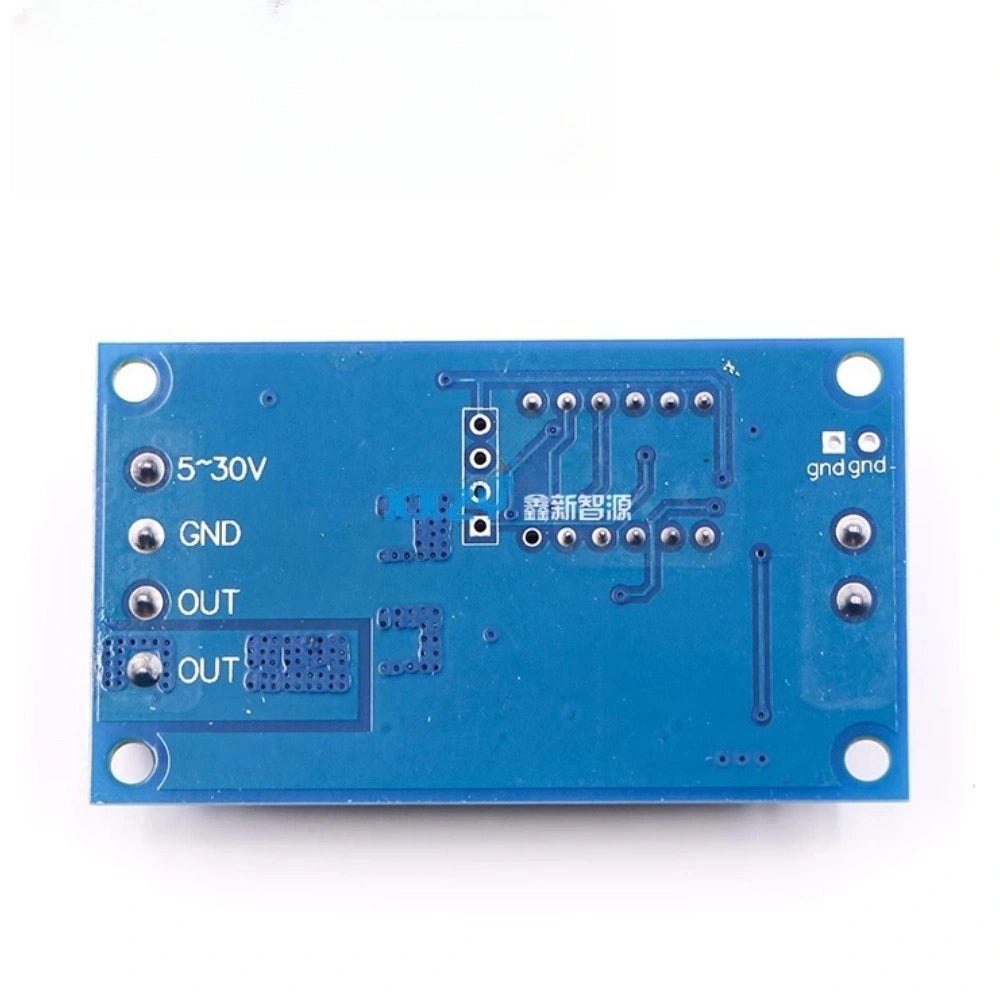

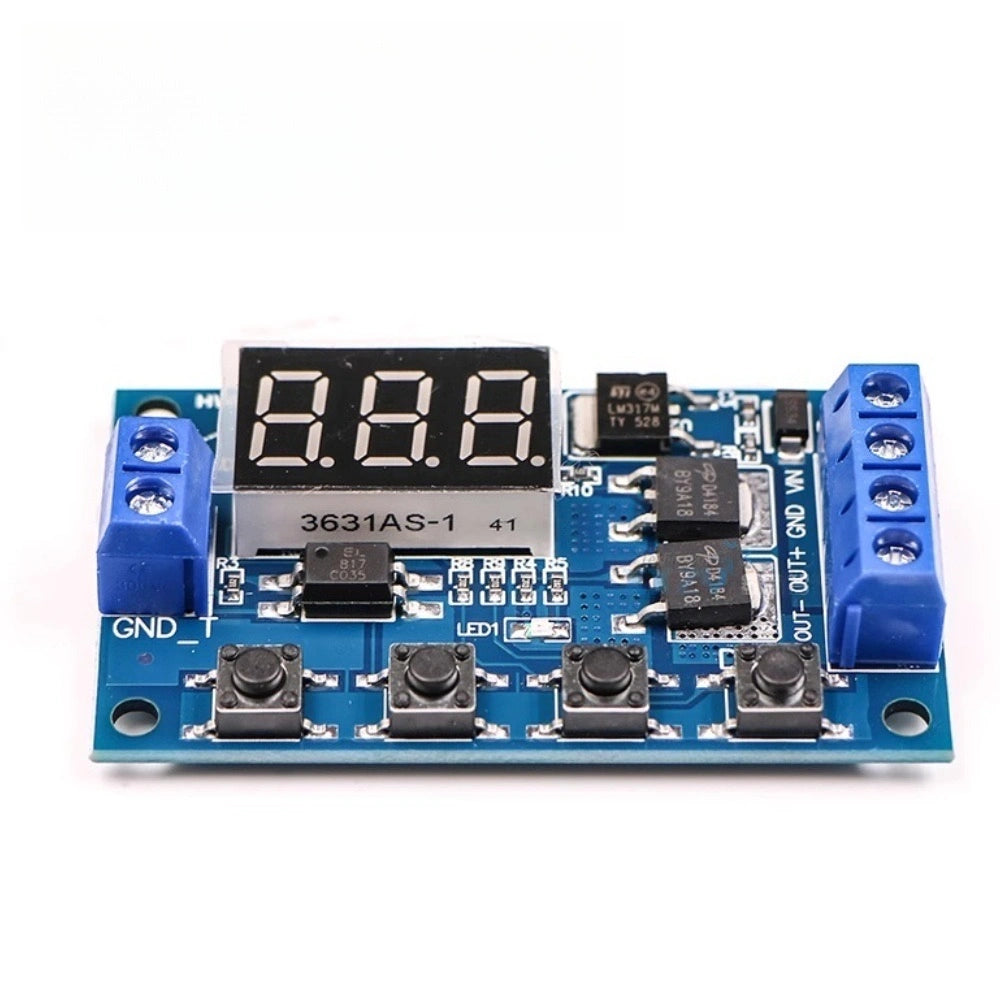

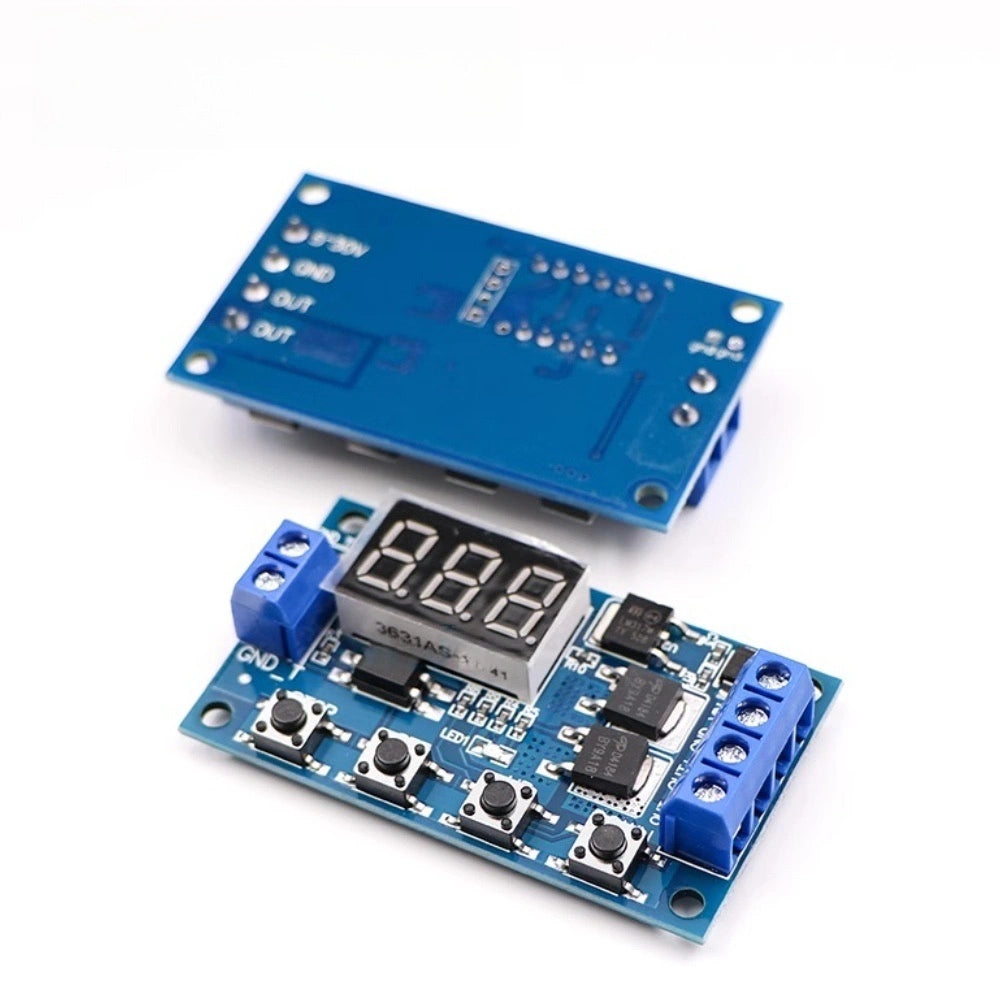

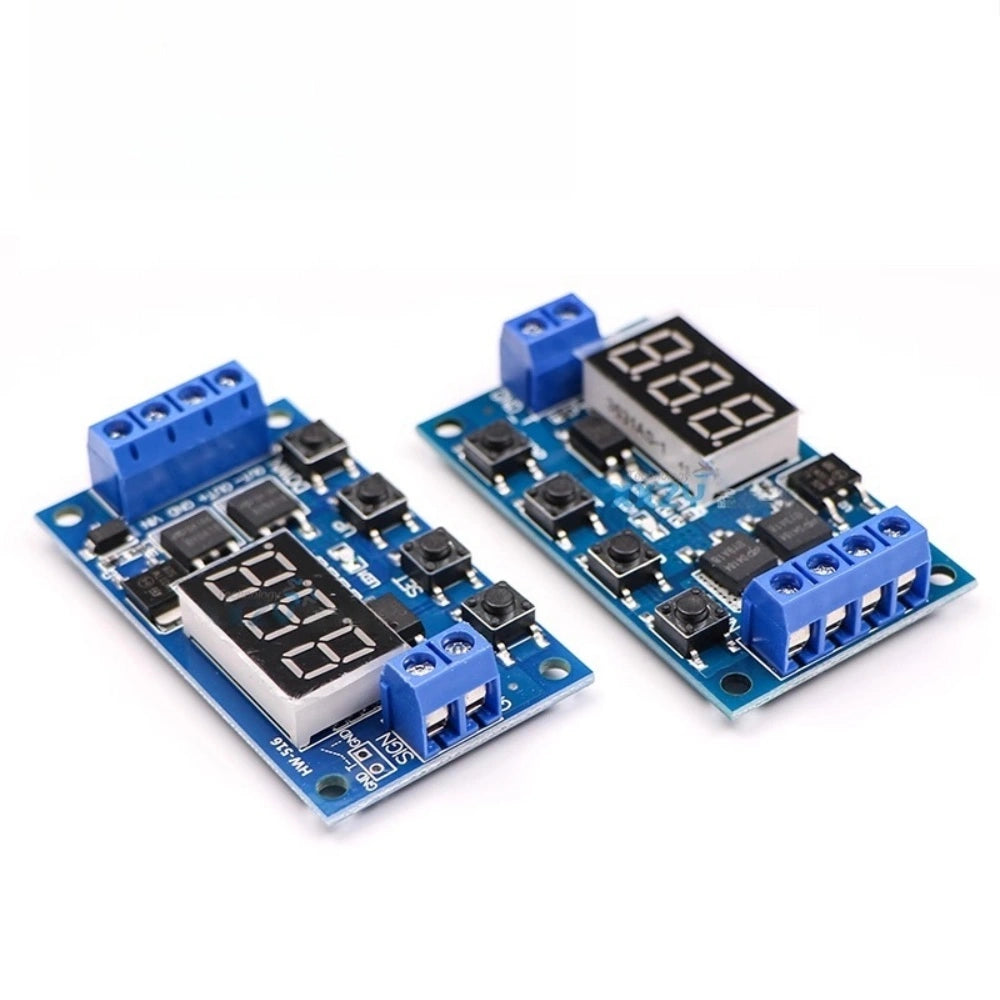

xThis 24V Dual MOS Trigger Delay Timer Module (Model: HW-316) is designed for precise timing control in industrial automation systems. Ideal for UV flatbed printers, laser engraving machines, and wide-format eco-solvent or photo printers, it replaces traditional relay modules with more efficient, contactless switching.
Key Features:
-
Dual MOSFET Design: Ensures fast response and long service life with low internal resistance and high current capability.
-
Adjustable Timing Range: Supports delay ON/OFF, cyclic timing, and trigger control modes for customized automation.
-

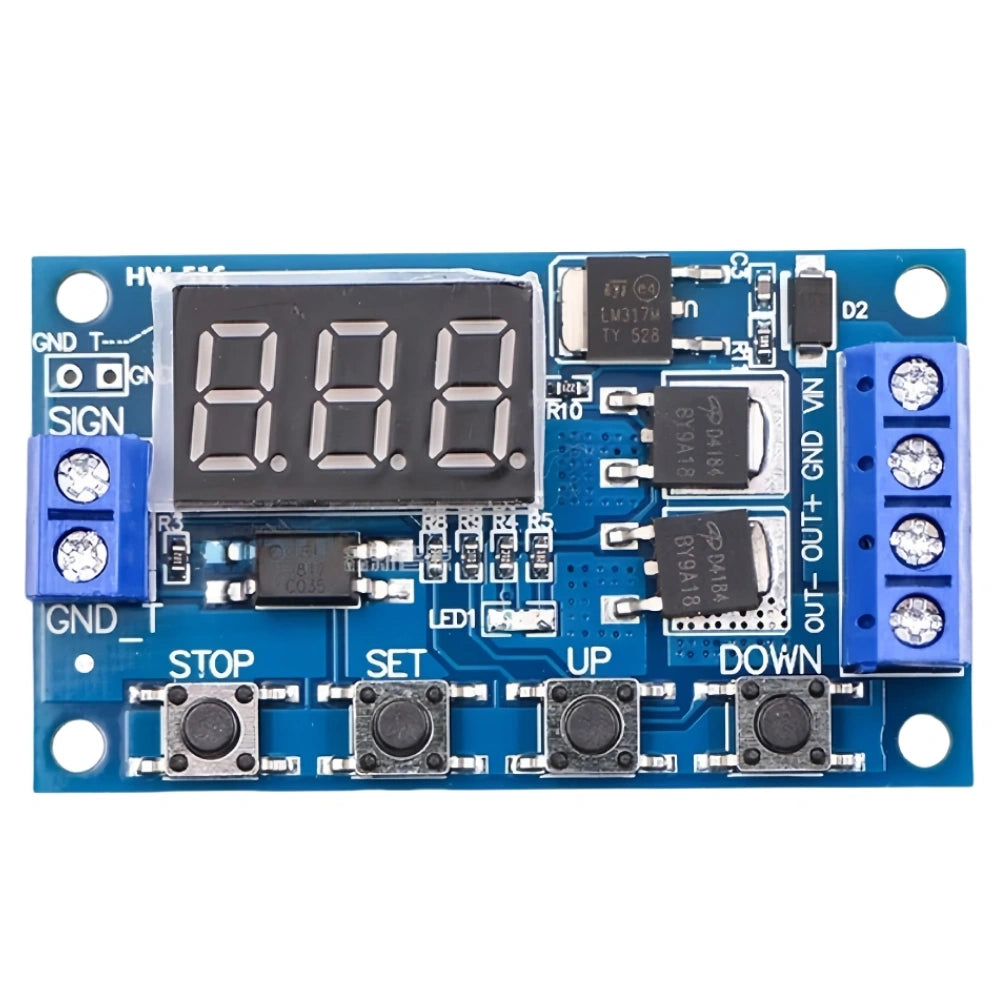

Digital Display Interface: 3-digit LED display provides accurate time readout and intuitive programming via onboard buttons (STOP, SET, UP, DOWN).
-
Wide Voltage Input: Operates on 24V DC, compatible with most industrial printing and cutting equipment.
-
Multi-mode Functionality: Includes delay start, delay stop, and cycle timing with memory function after power-off.
Typical Applications:
-
Laser cutting/engraving machines
-
UV flatbed printers
-
Large-format solvent/eco-solvent printers
-
Automated mechanical equipment timing circuits
Specifications:
-
Input Voltage: DC 24V
-
Control Type: Dual N-channel MOS
-
Output Load: ≤15A (with heatsink)
-
Time Range: 0.1s–999s
-
Dimensions: Approx. 64mm x 39mm
