xDX5 to Multi-Model Adapter Board – DX7 / XP600 / TX800 Compatible
The DX5 Adapter Board Series allows seamless conversion between different Epson printhead interfaces, including DX7 (F189 / F196), XP600, and TX800. It provides stable signal communication and ensures full compatibility with large-format inkjet printers.
Key Features
- Supports multiple printer head conversions: DX5 → DX7 / XP600 / TX800.
- High-precision PCB design ensures stable and accurate signal transmission.
- Enables easy replacement or upgrade between different Epson printheads.
- Gold-plated contact pins for reliable connection and extended service life.
- Compact and durable design, ideal for photo printers and UV flatbed systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Epson Printhead Adapter Board |
| Compatible Models | DX5 → DX7 (F189 / F196) / XP600 / TX800 |
| Connector Type | FPC 32-pin to 40-pin (varies by model) |
| Material | High-density fiberglass PCB with gold-plated contacts |
| Application | Eco-Solvent / UV / Sublimation Printers |
| Operating Voltage | 5V / 24V Signal Control (depends on printer board) |

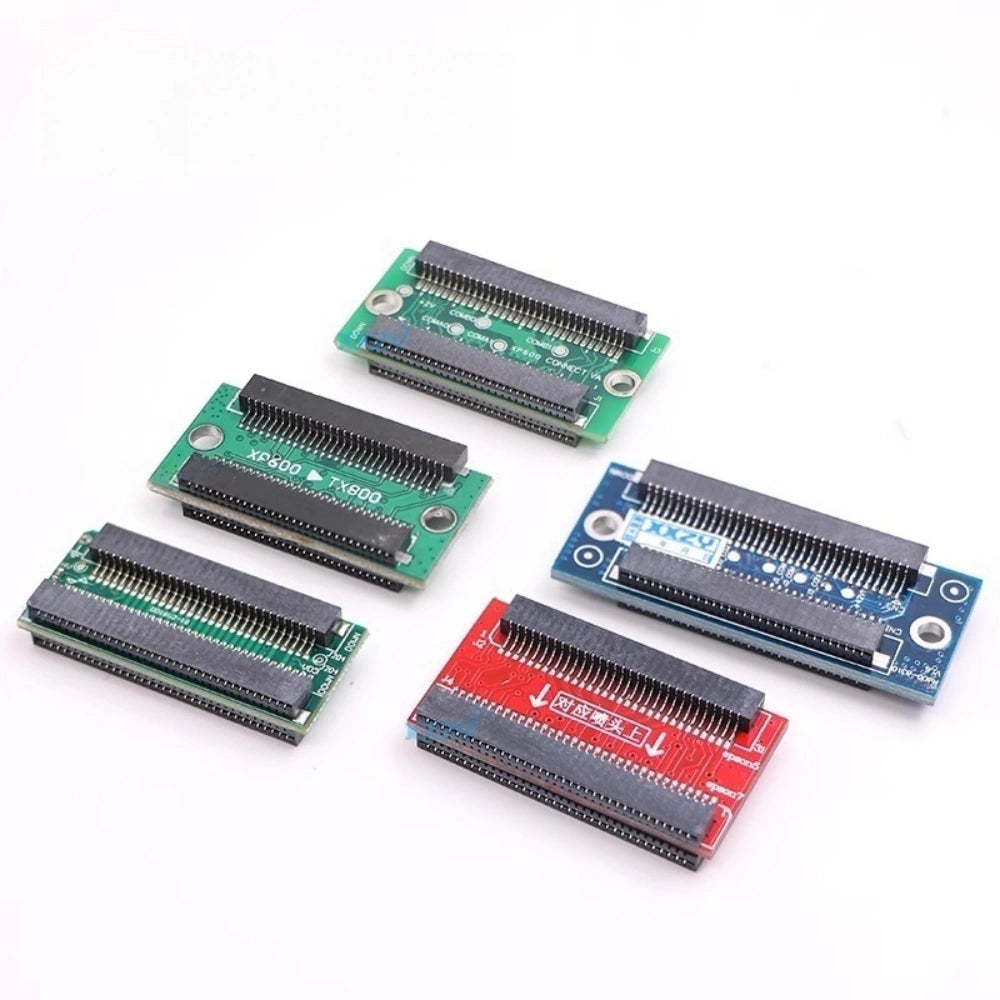

Model Comparison Table
| Model | Conversion | Color | Main Feature |
|---|---|---|---|

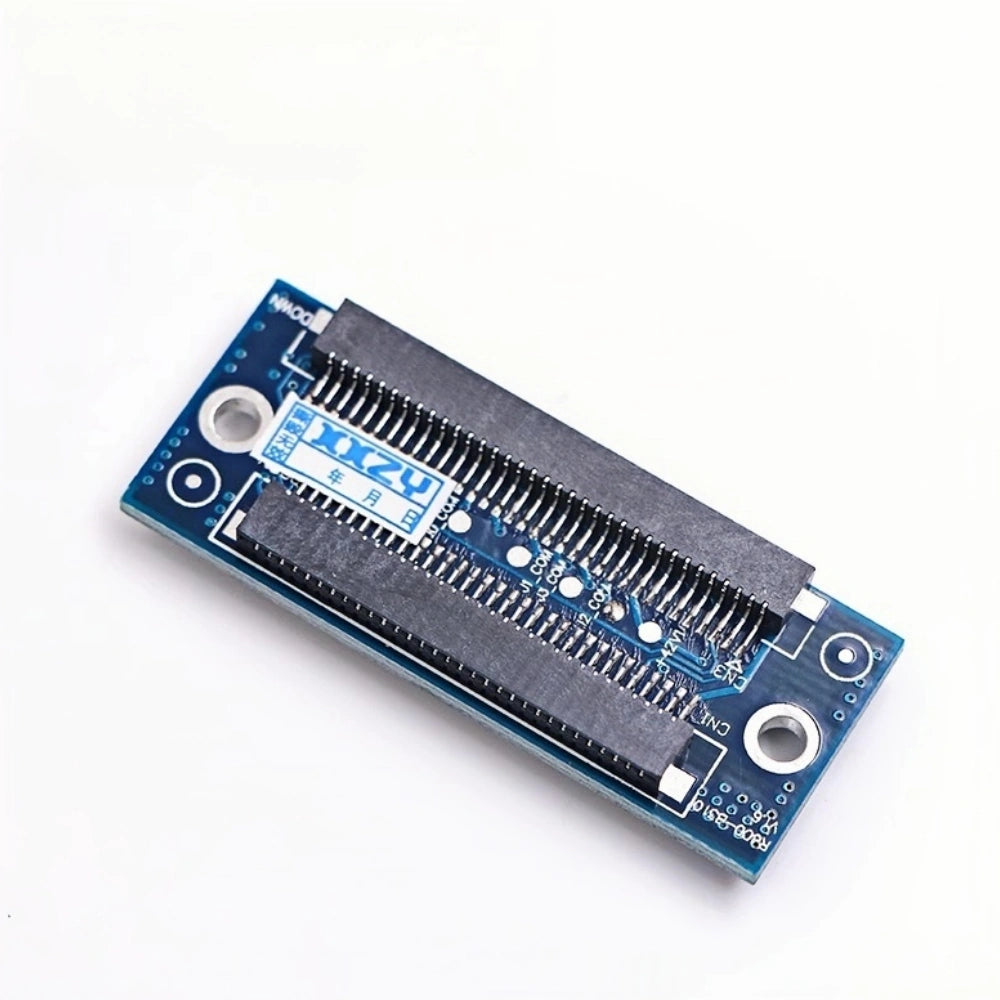

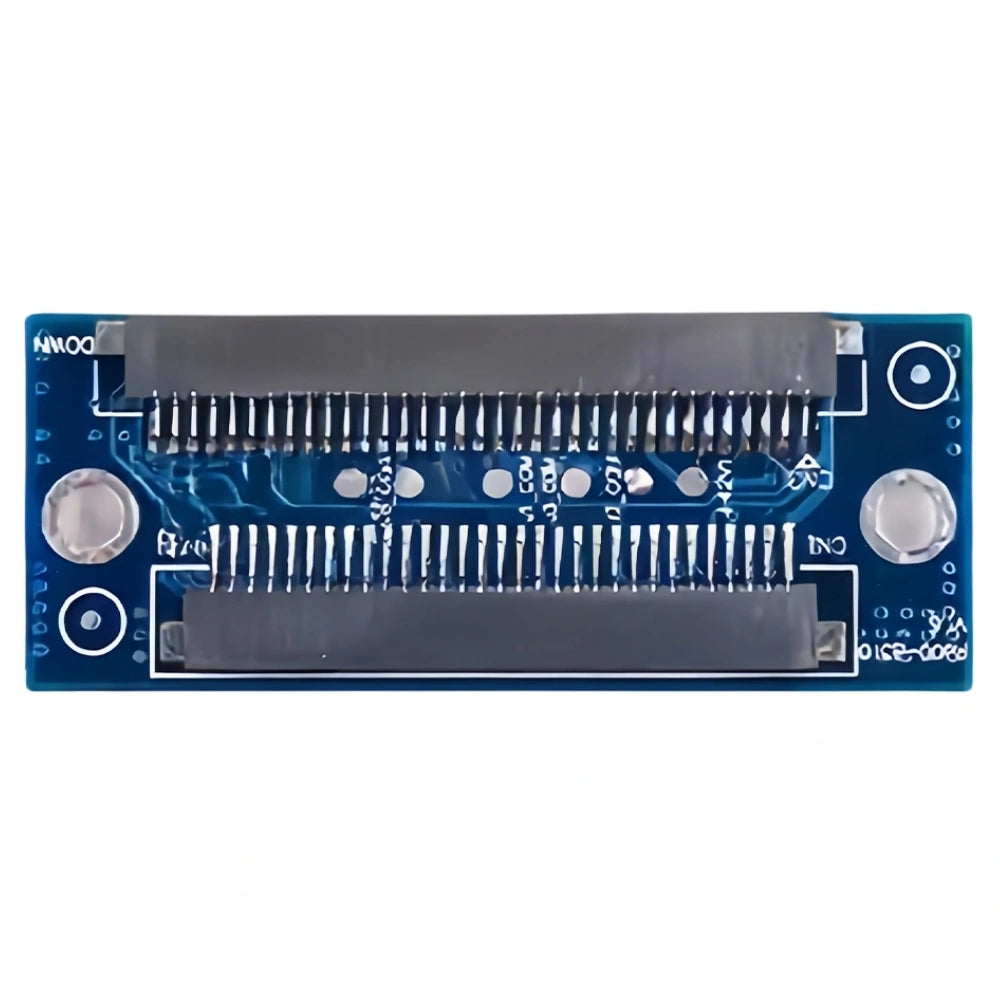

| DX5 to DX7 (F189) | 5th Gen → 7th Gen | Blue | Standard version for DX7 F189 printheads. |
| DX5 to DX7 (F196) | 5th Gen → 7th Gen | Green | Upgraded version with enhanced compatibility. |
| DX5 to XP600 | 5th Gen → XP600 | Red | Supports XP600 head upgrade on DX5 printers. |

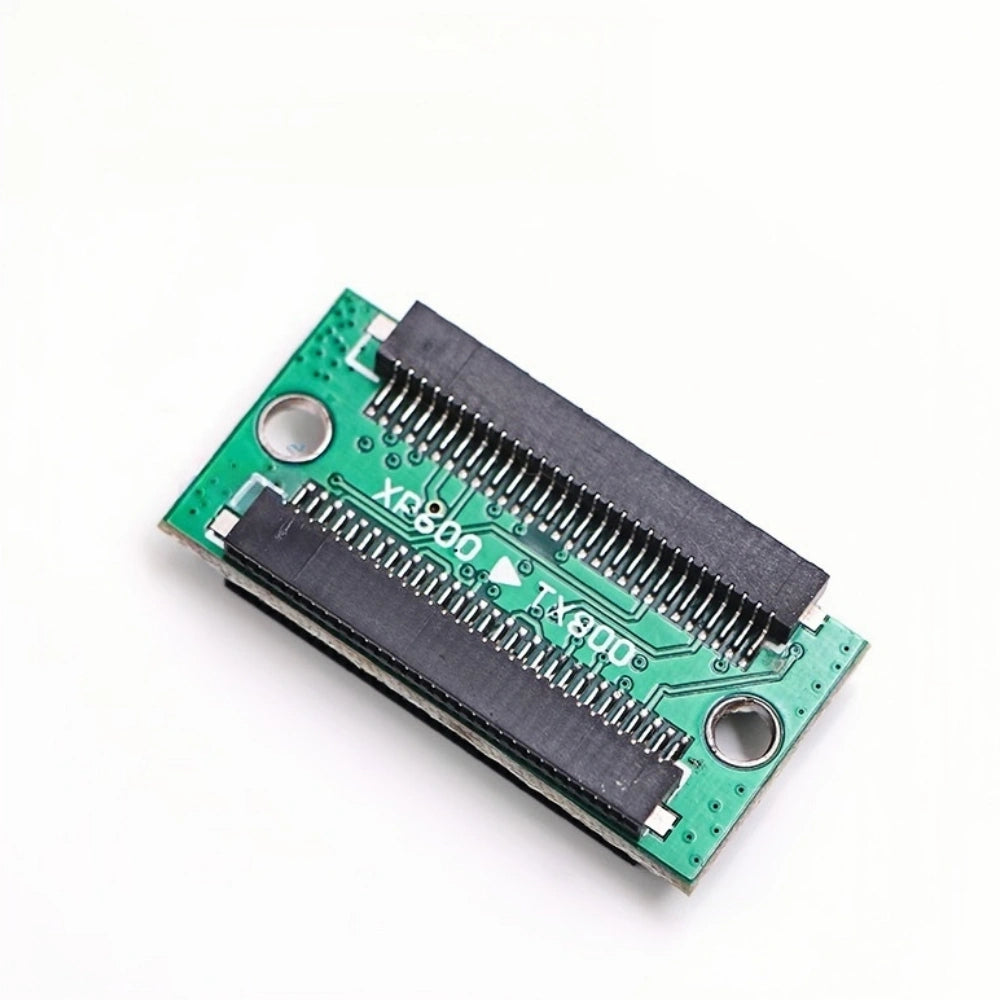

| DX5 to TX800 | 5th Gen → TX800 | Black | Ideal for TX800 high-speed printers. |
Advantages
- Plug-and-play design with stable signal conversion.
- Reduces cost by allowing head interchange without replacing the mainboard.
- Compatible with most wide-format printers using Epson technology.
- Durable PCB with high heat and corrosion resistance.
Applications
- UV, Eco-solvent, and Sublimation large-format printers
- Photo printing, textile printing, and signage production
