xEncoder Sensor H9720 (1821) – 4-Pin Optical Decoder for UV Flatbed Printers
The H9720 Encoder Sensor is an advanced 4-pin optical grating decoder widely used in UV flatbed, roll-to-roll, and eco-solvent printers. It provides precise position feedback for the print carriage, ensuring stable and accurate motion control, reducing print banding, and maintaining smooth operation during high-speed printing.
Key Features
- High-accuracy optical sensing for precise carriage movement detection.
- Stable output signal with minimal interference.
- Durable circuit board with anti-oxidation coating for long service life.
- Plug-and-play design compatible with multiple printer brands.
- Supports 4-pin standard and upgraded 6-pin board-set versions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | H9720 (1821) |
| Connector Type | 4-Pin or 6-Pin (depending on version) |
| Voltage | 5V DC |
| Cable Length | Standard 60cm (customizable) |
| Application | UV Flatbed Printers / Roll-to-Roll Printers / Eco-Solvent Printers |
Available Versions
| Version | Description |
|---|---|

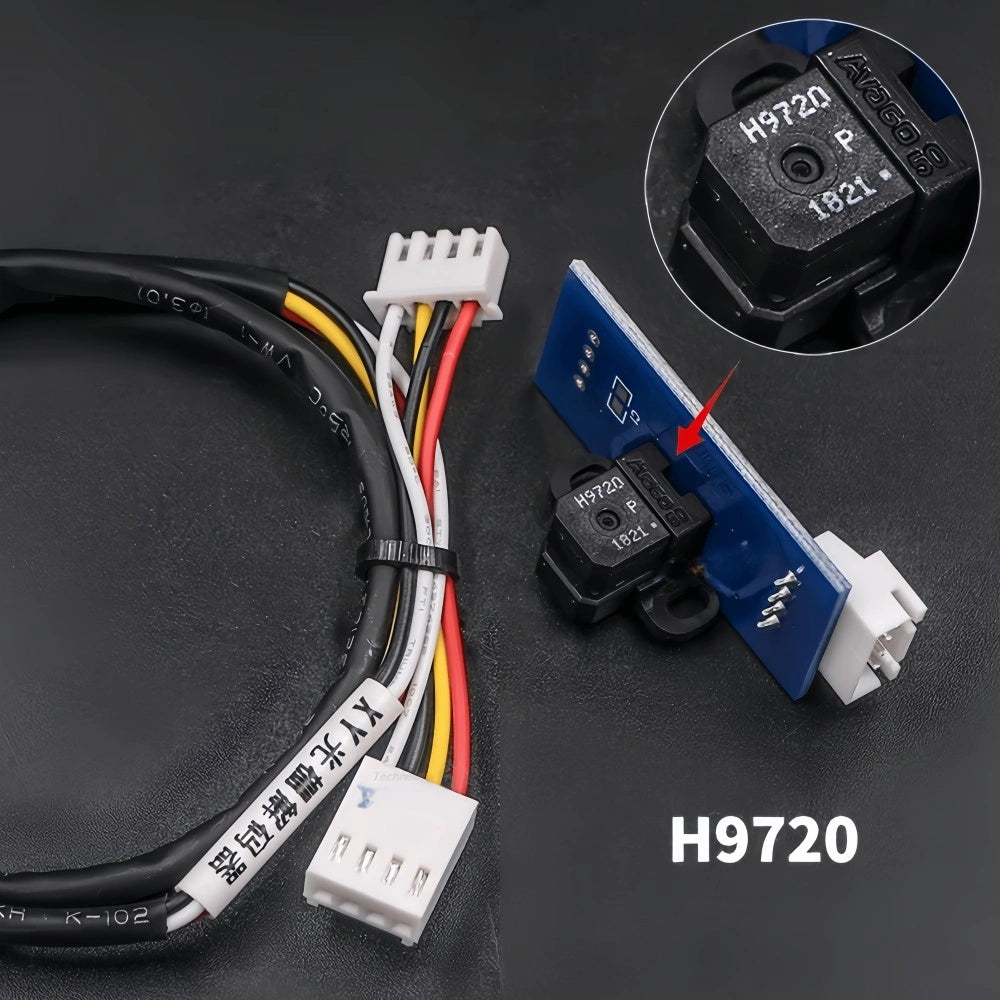

| H9720 Model (4-Pin) | Standard 4-pin encoder sensor suitable for most UV flatbed printers. |
| H9720 Model (4-Pin) + Cable | Includes signal cable for direct installation and replacement. |

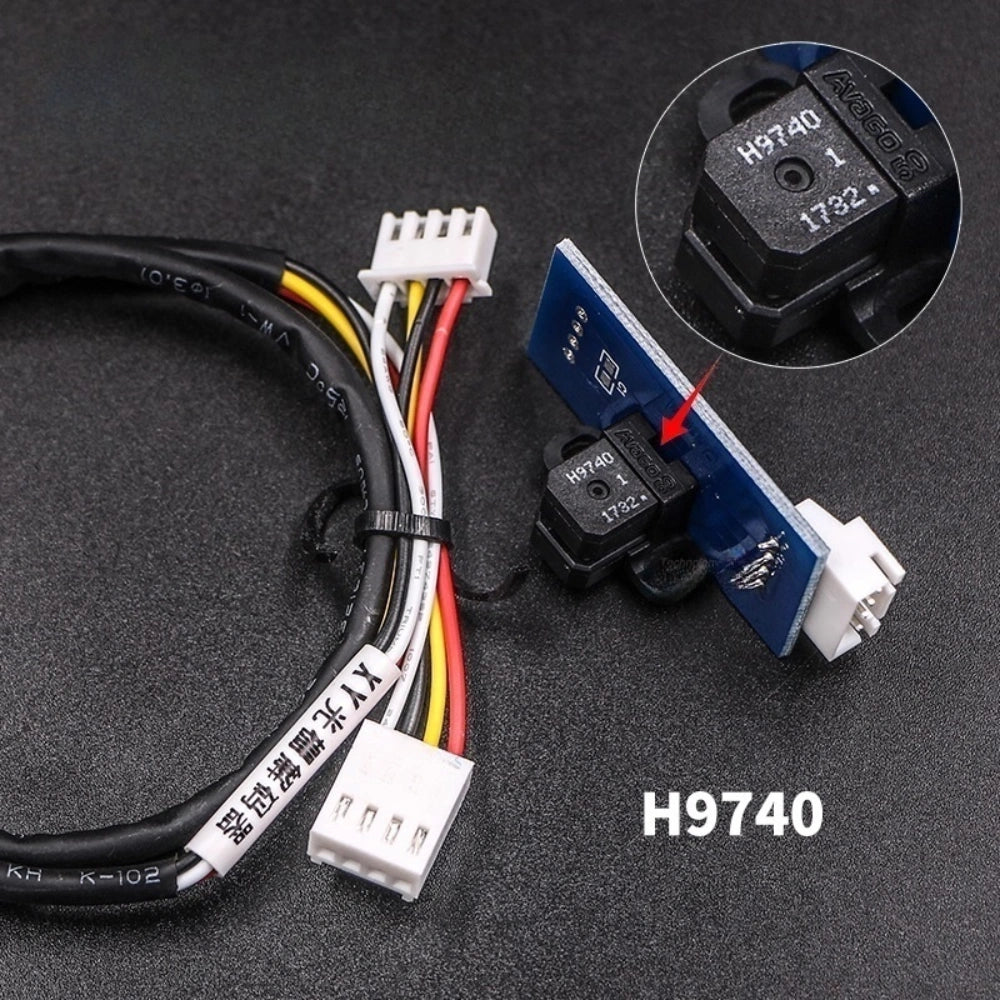

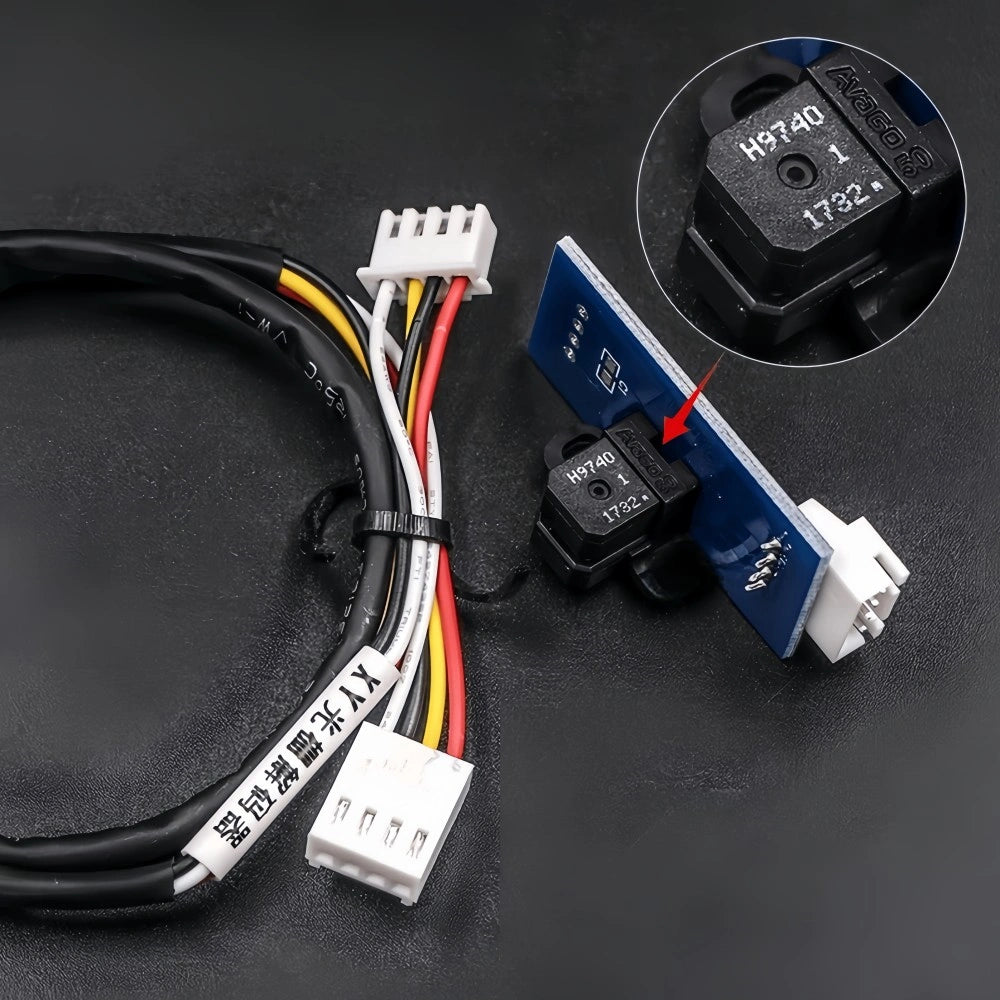

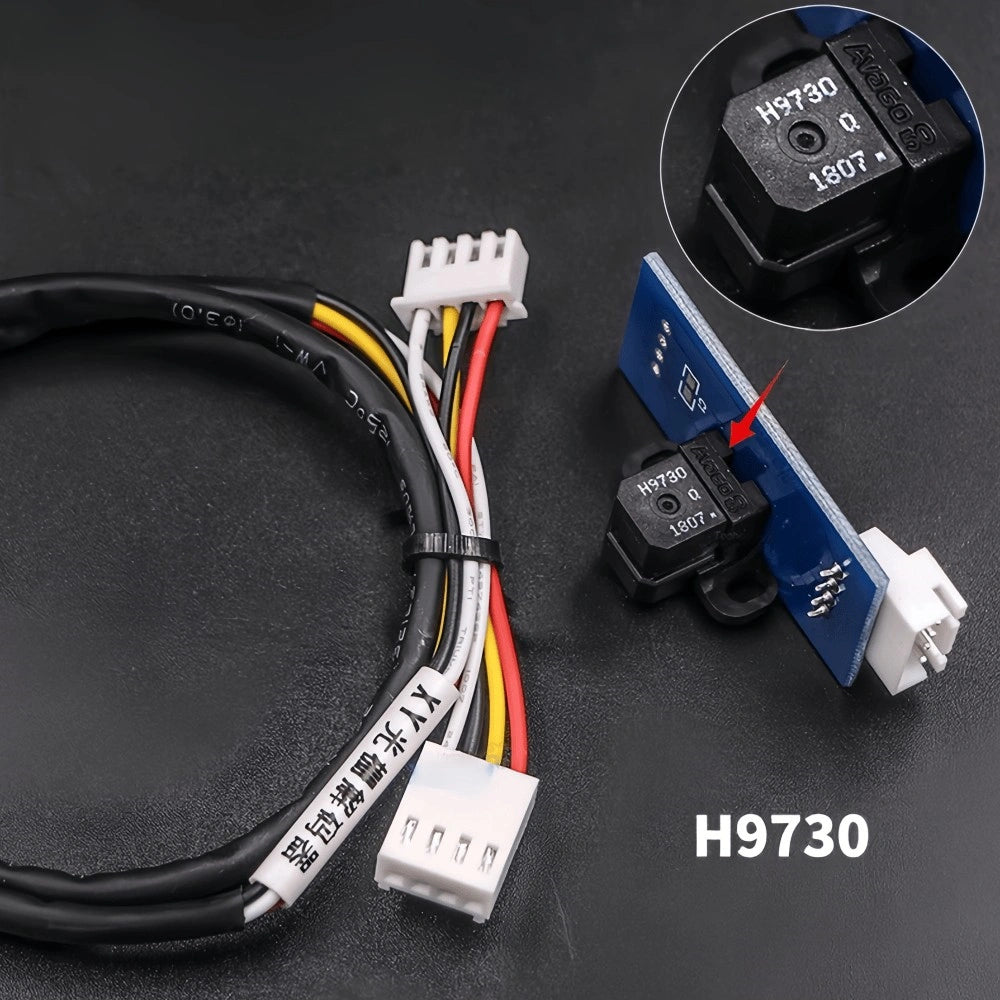

| H9730 / H9740 Model (4-Pin) + Cable | Optional models with similar pin configuration and compatibility for other UV printers. |

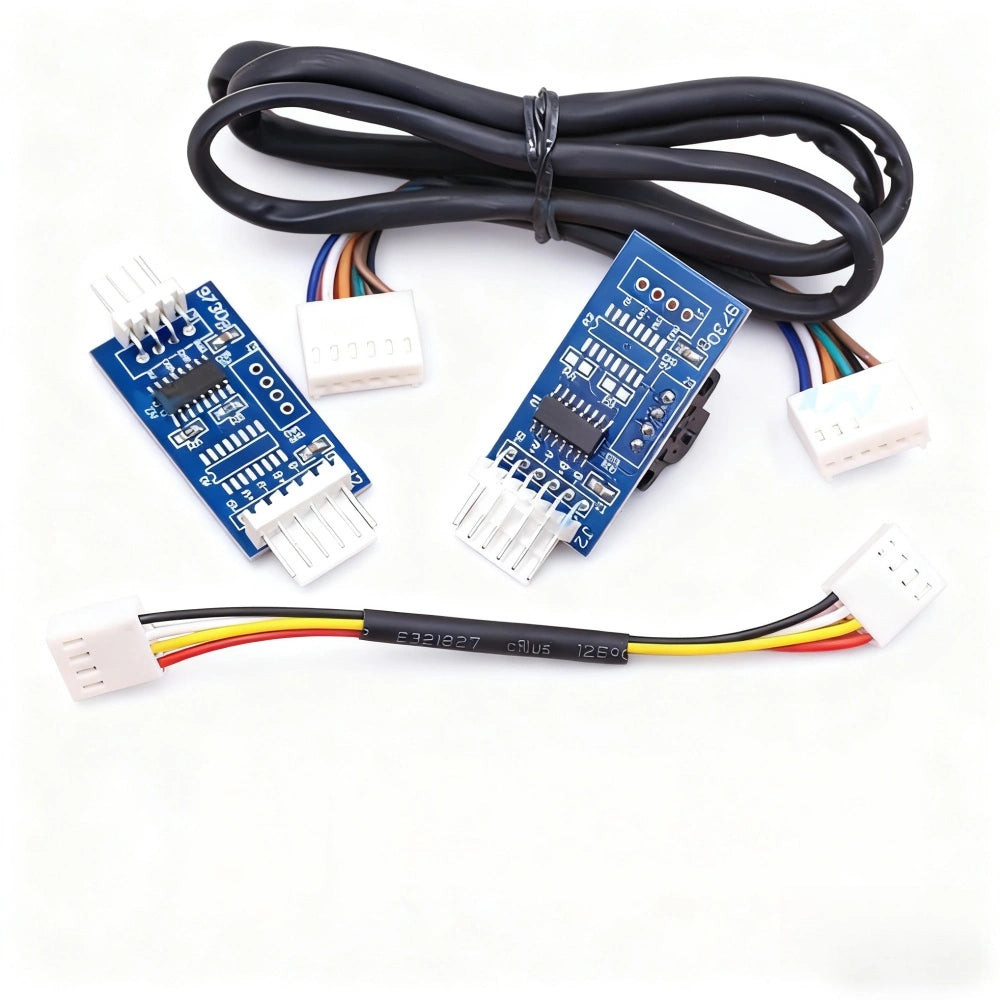

| New H9720 Full Cable + Board Set (6-Pin) | Upgraded version with integrated board and cable, providing stronger signal stability and easier installation. |
| Decoder-Only Cable | Replacement cable for decoder connection maintenance. |
Applications
- UV flatbed printers
- UV hybrid printers
- Eco-solvent and solvent printers
- Konica 512 / 512i series printing systems
Advantages
- Ensures precise motion feedback and consistent print alignment.
- Strong anti-interference performance and stable signal output.
- Compact design suitable for multiple UV printer models.
- Durable PCB material for enhanced heat and wear resistance.
Included Items
- 1 × H9720 Encoder Sensor (1821)
- 1 × Signal Cable (optional)
- Optional: Full board set (
