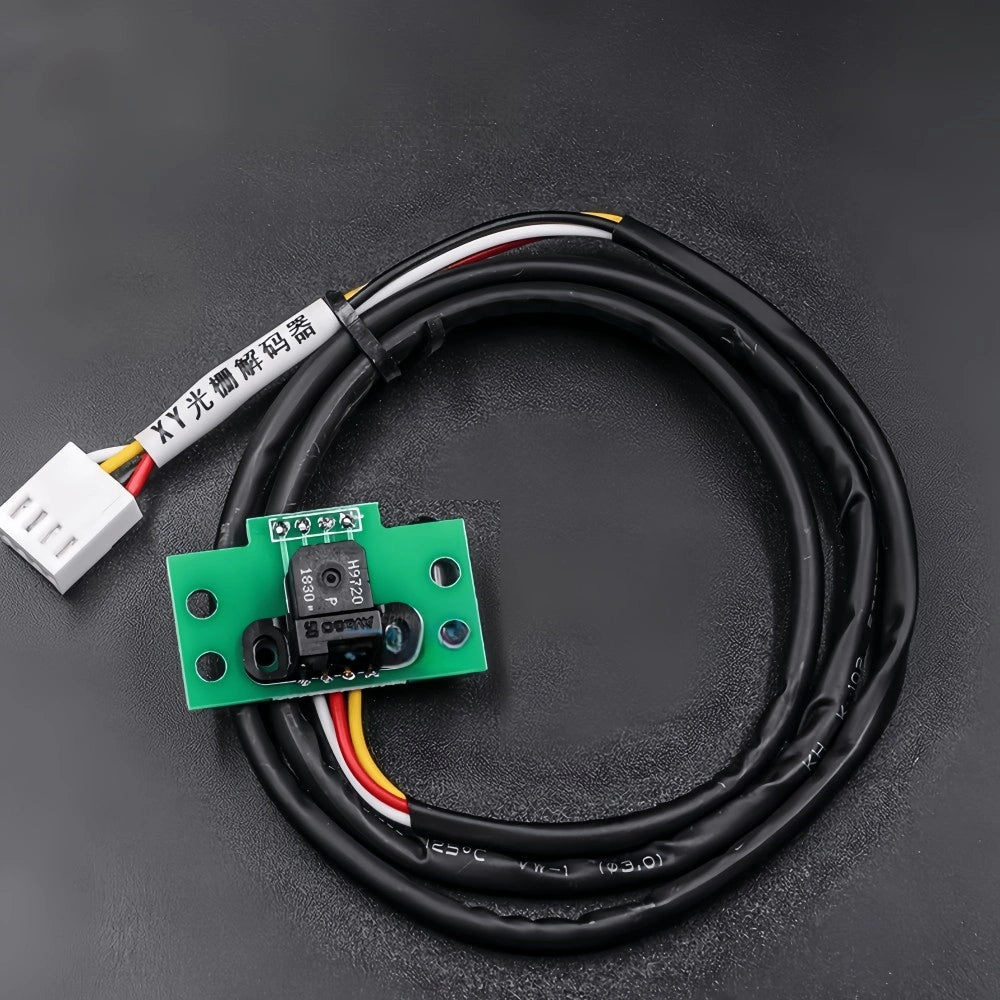

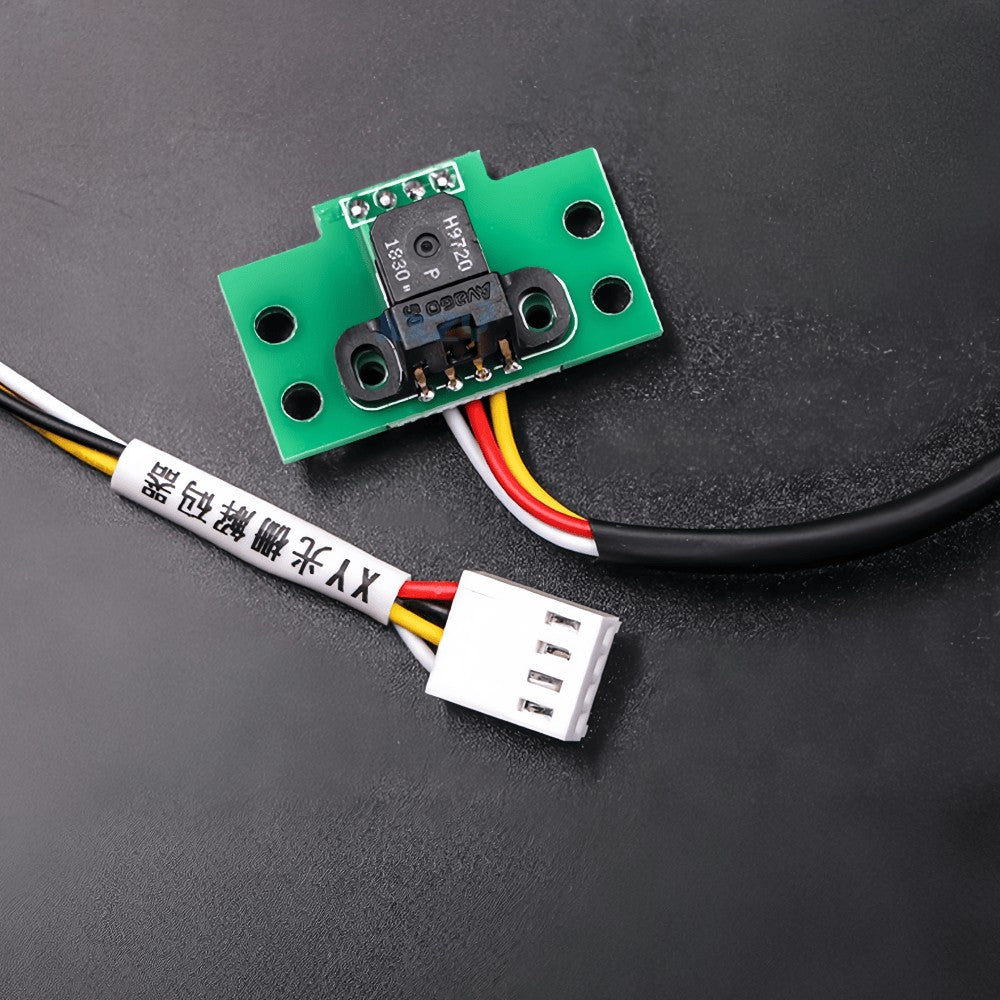

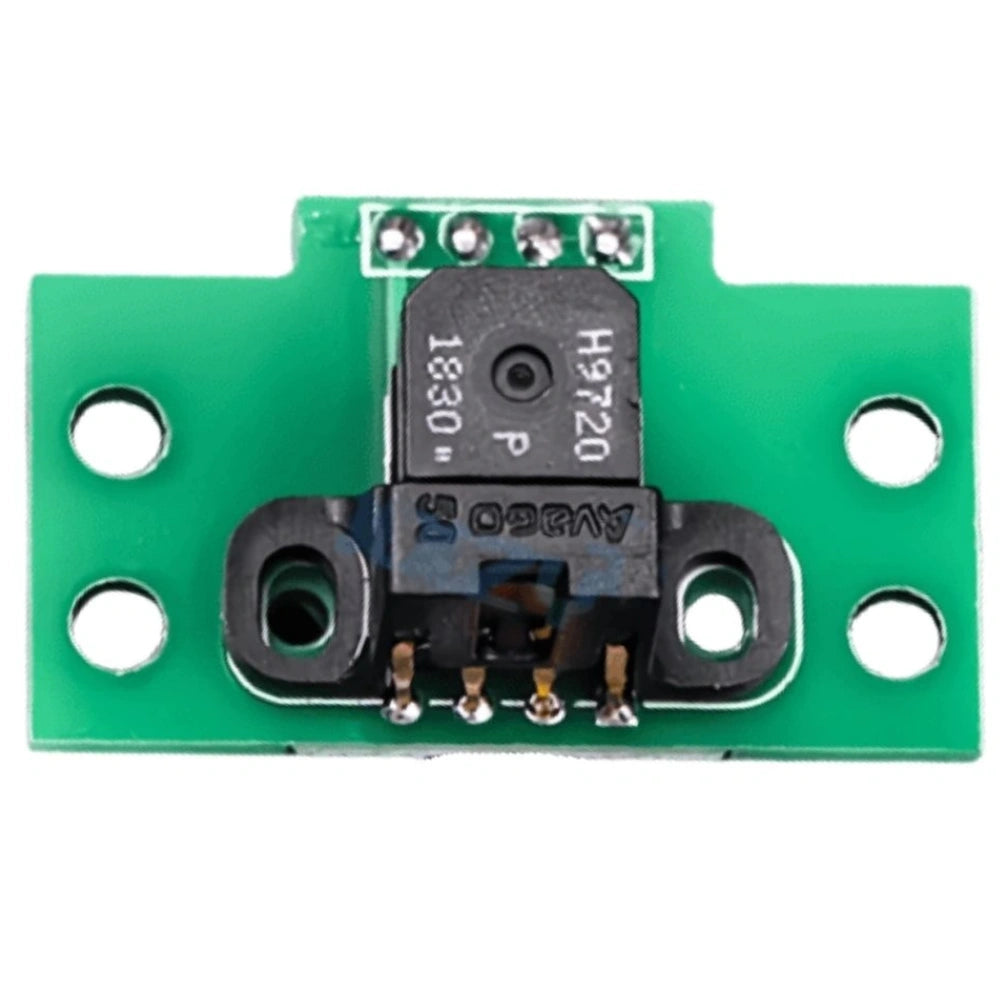

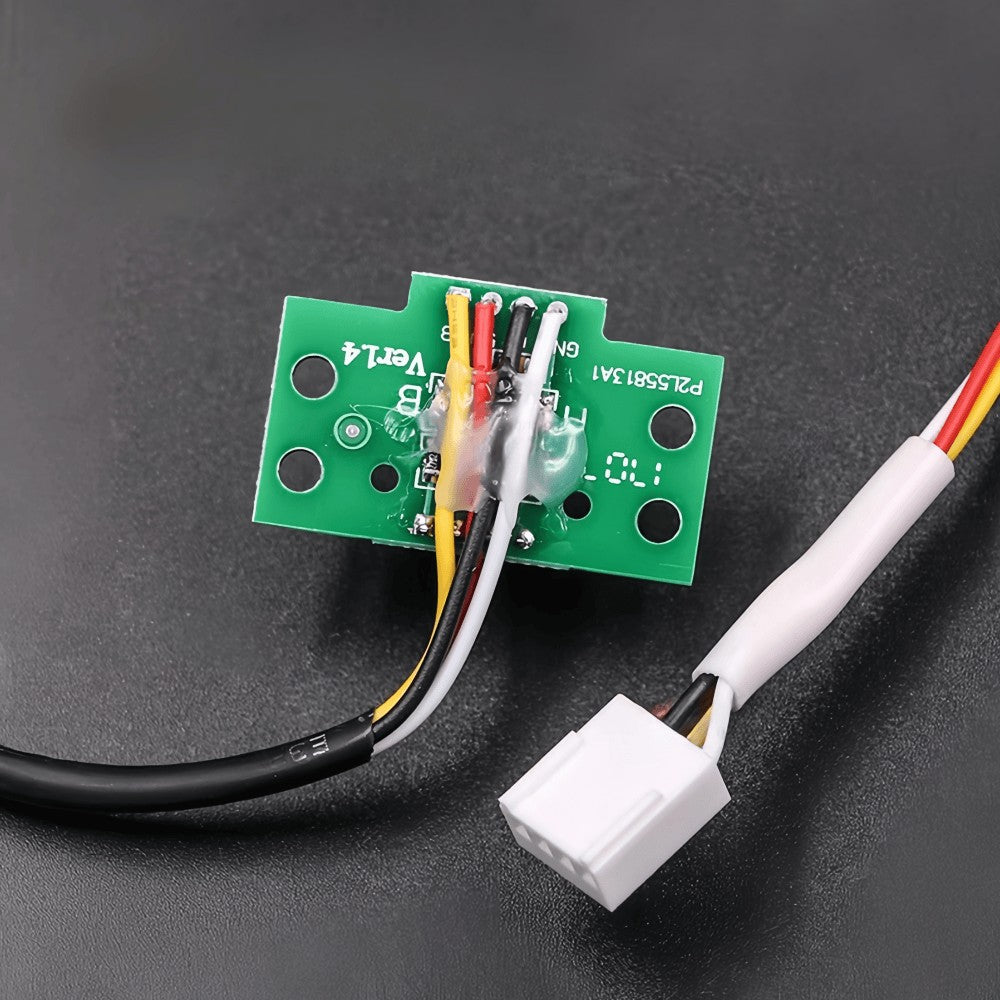

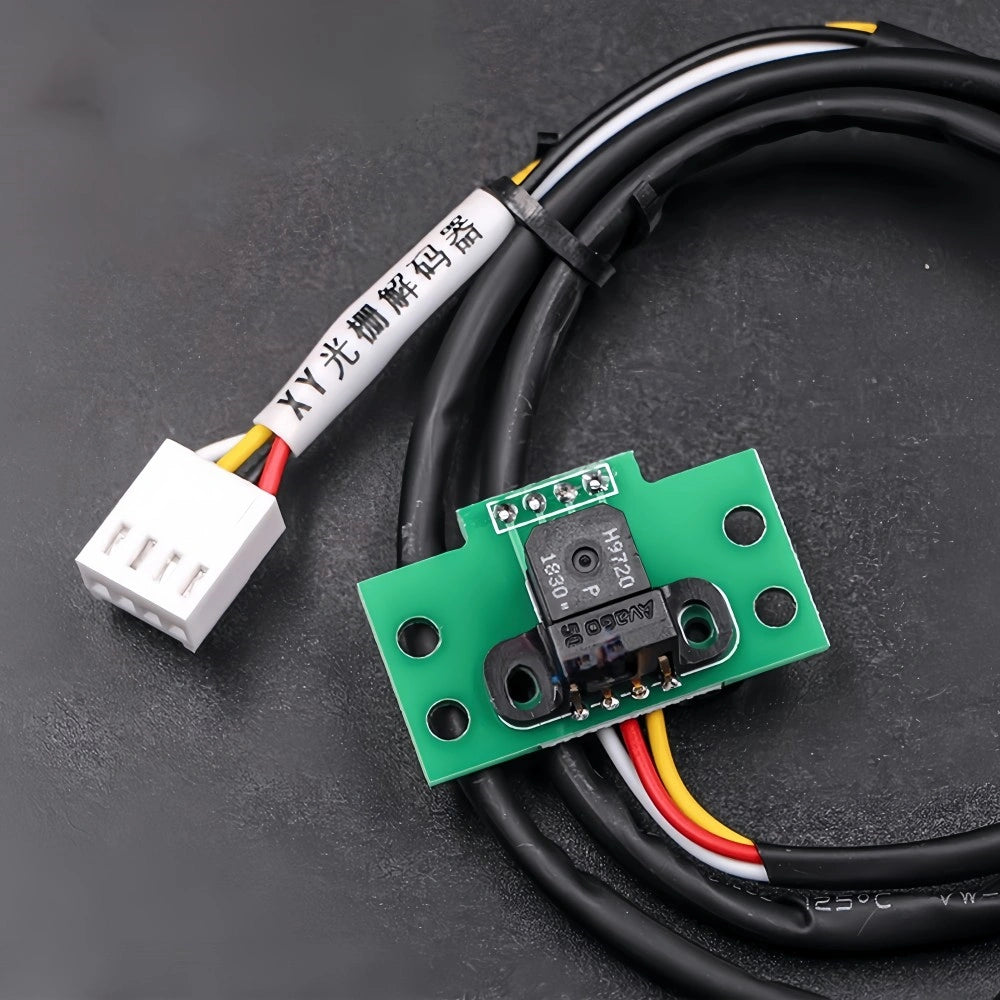

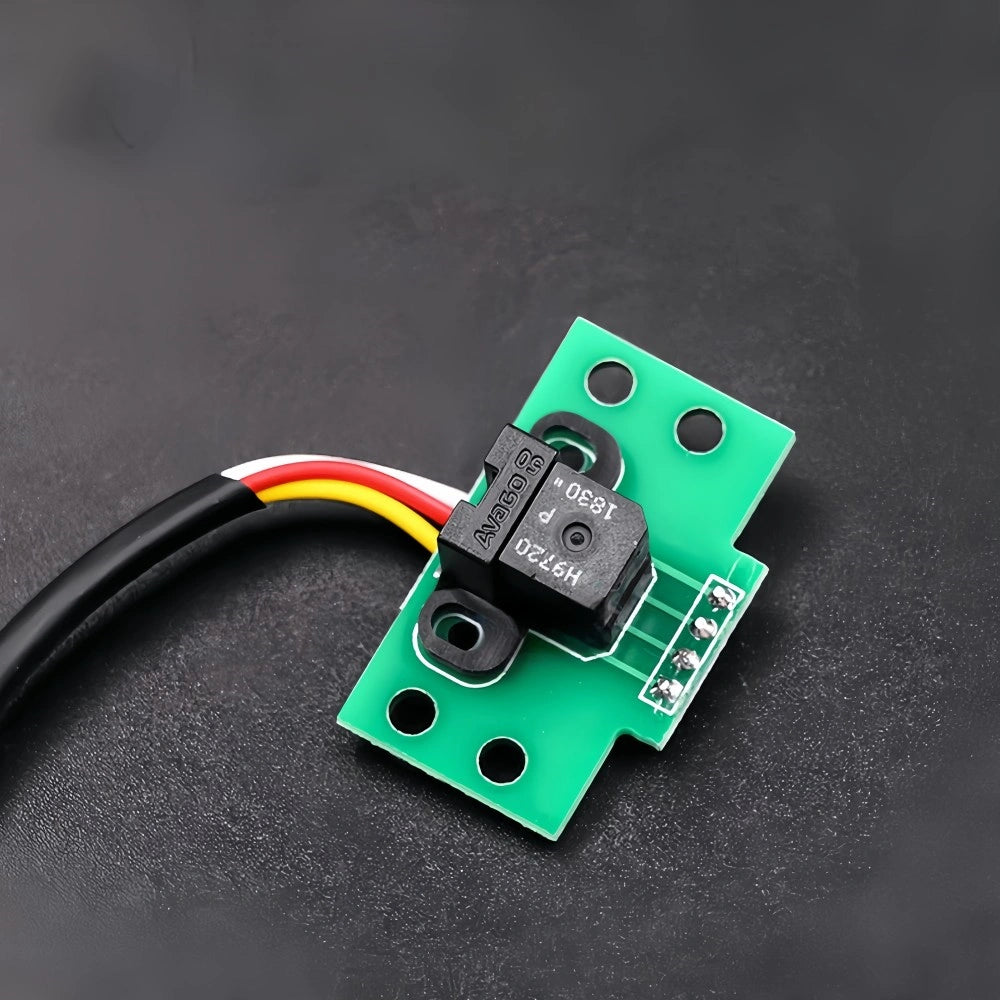

xEncoder Sensor H9720 (1830) – For Seiko 3204 / 3206SG / 1024 Printers
The H9720 Encoder Sensor is a high-precision optical component used in Seiko 3204, 3206SG, and 1024 series printers. It accurately detects the position of the print carriage, providing stable signal feedback and ensuring consistent print quality during high-speed operation.
Key Features
- High-resolution 150 LPI optical grating for accurate motion tracking.
- Stable output signal with low interference and high reliability.
- Durable construction and stable performance under long-term use.
- Compatible with a wide range of Seiko and Polar Star printhead machines.
- Available with different cable lengths for flexible installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | H9720 (1830) |
| Compatible Printers | Seiko 3204 / 3206SG / 1024 |
| Resolution | 150 LPI (Lines Per Inch) |
| Output Type | Digital pulse output |
| Voltage | 5V DC |
| Cable Length | 60cm (optional) |
Model Variants
| Version | Description |
|---|---|
| 3204 / 3206SG Seiko 1024 | Compatible with Seiko 1024 printheads in 3204 and 3206SG printers, offering stable carriage signal detection. |
| 3204AU / 3208AU Polar Star Printhead | Designed for Polar Star printheads with high-precision signal reading and improved print stability. |

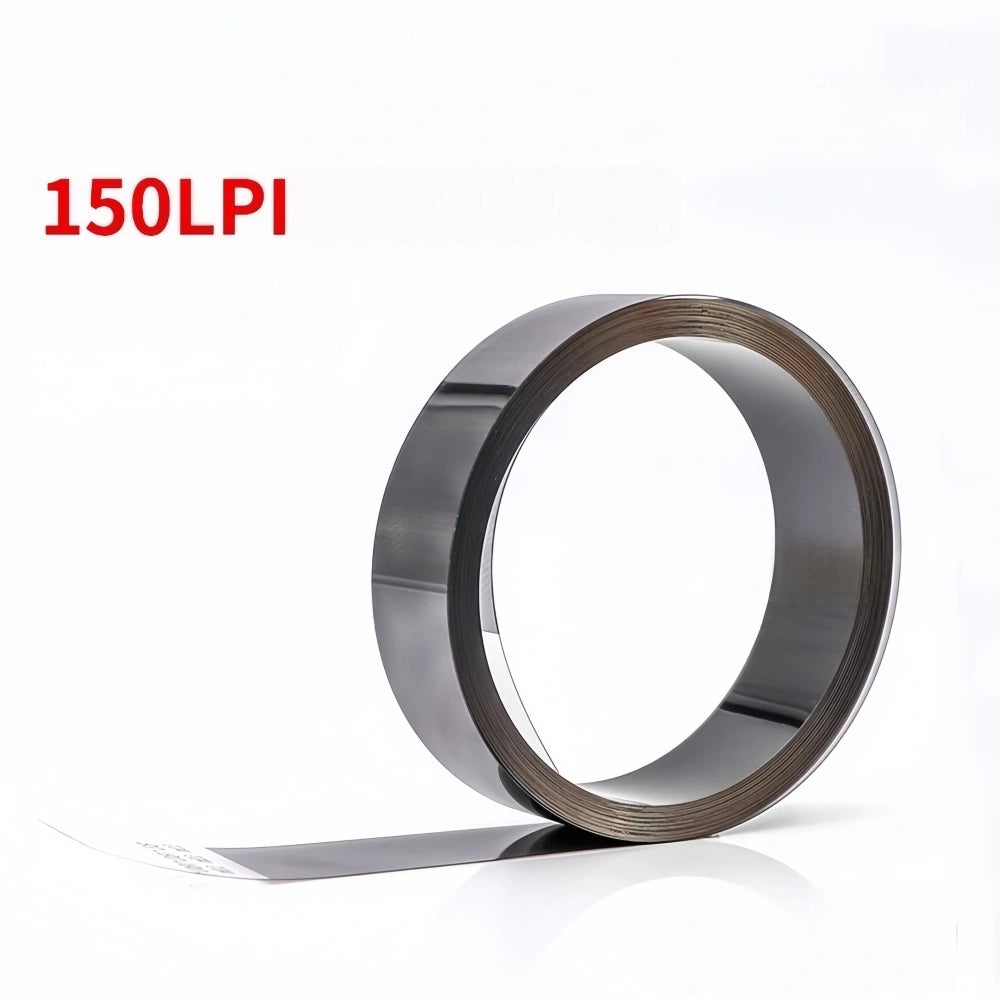

| 150 LPI Encoder Strip | High-quality grating strip matched with H9720 sensor for accurate optical detection. |
| H9730 Model Cable Length 60CM | Extended cable version for flexible printer installation or maintenance use. |
Applications
- Seiko 3204 / 3206SG large-format printers
- Polar Star 3204AU / 3208AU printhead systems
- Industrial solvent or UV printing equipment
Advantages
- Provides precise position feedback for stable printing accuracy.
- Durable and anti-interference design for reliable performance.
- Plug-and-play replacement, easy to install and maintain.
- Compatible with multiple grating resolutions and head types.
Included Items
- 1 × Encoder Sensor H9720 (1830)
- 1 × Signal Cable (60cm)
- Optional: 150LPI Encoder Strip
- Protective packaging for safe transport
