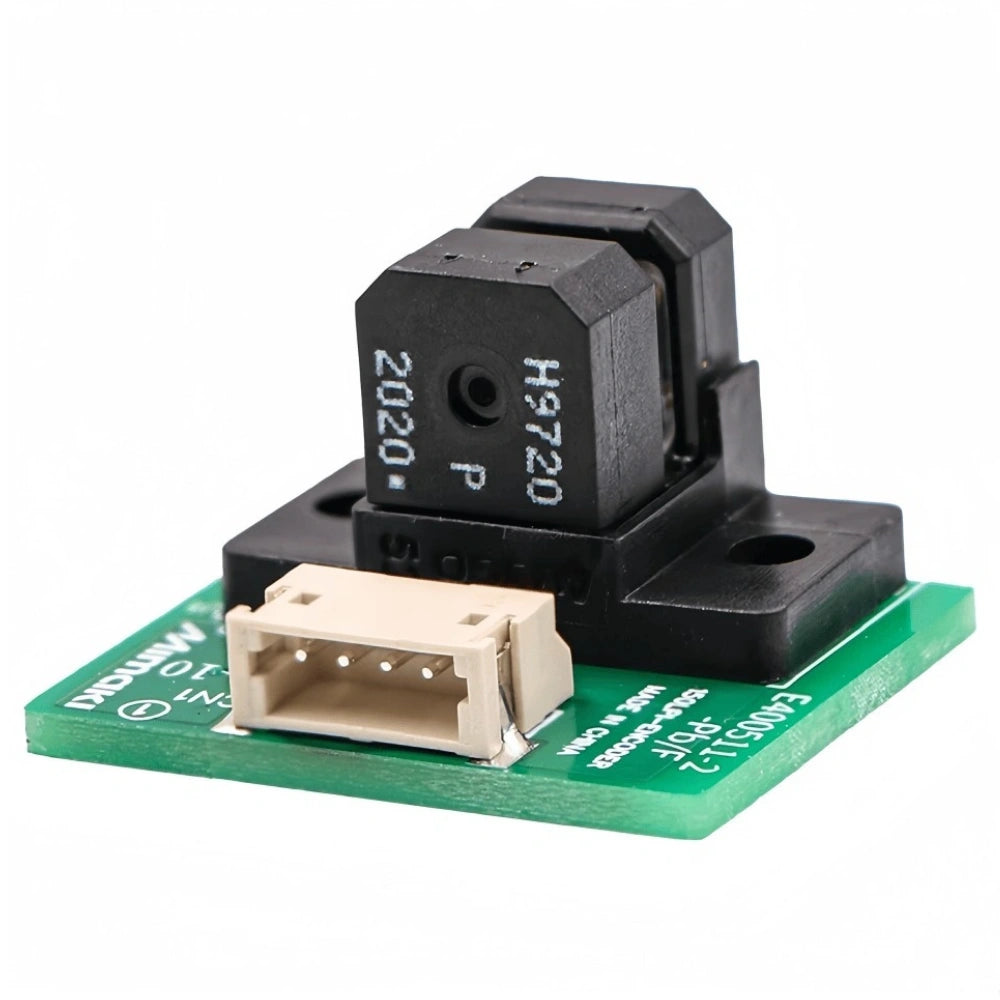

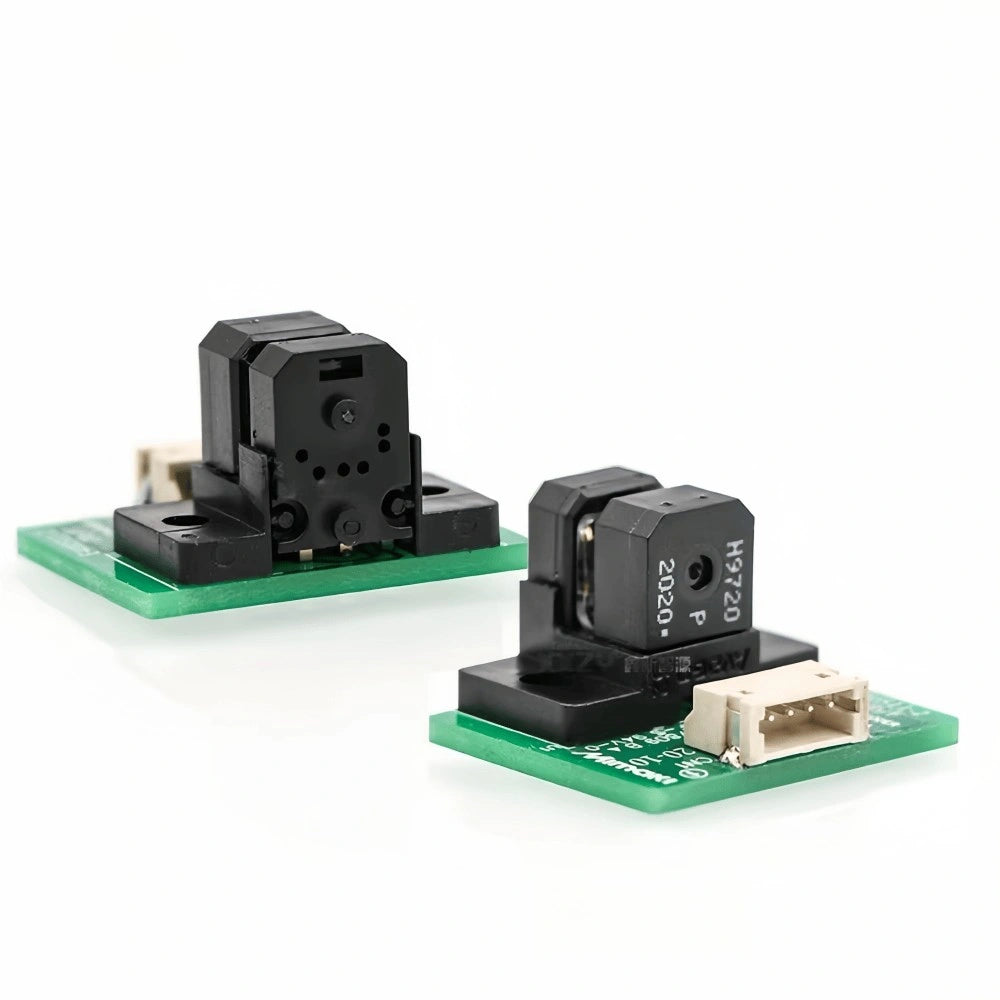

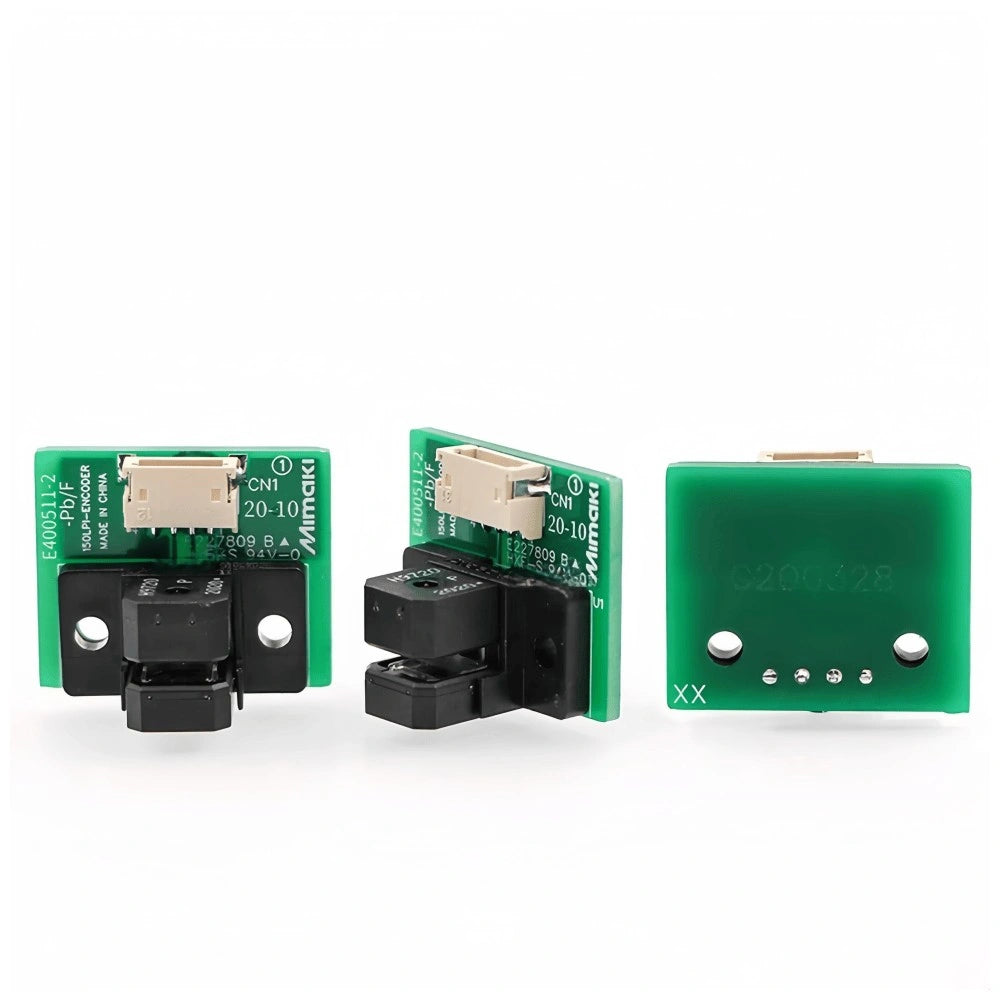

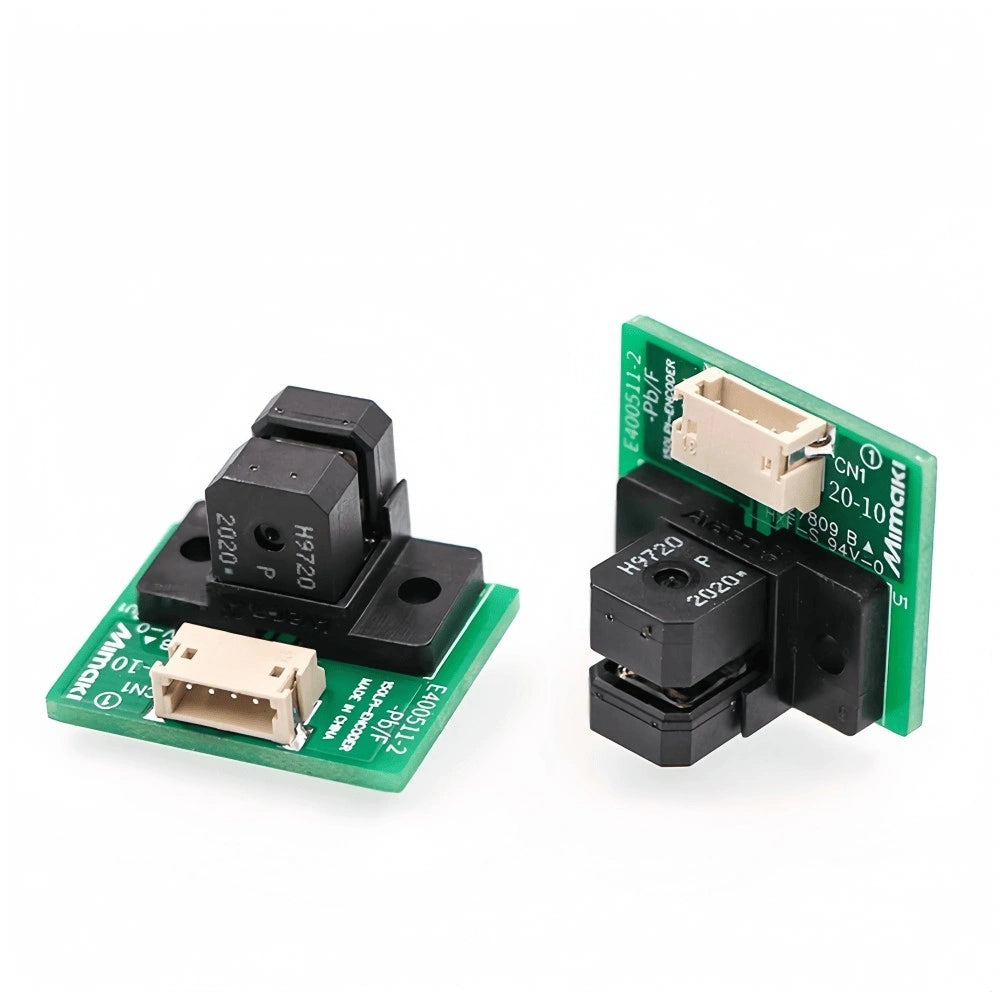

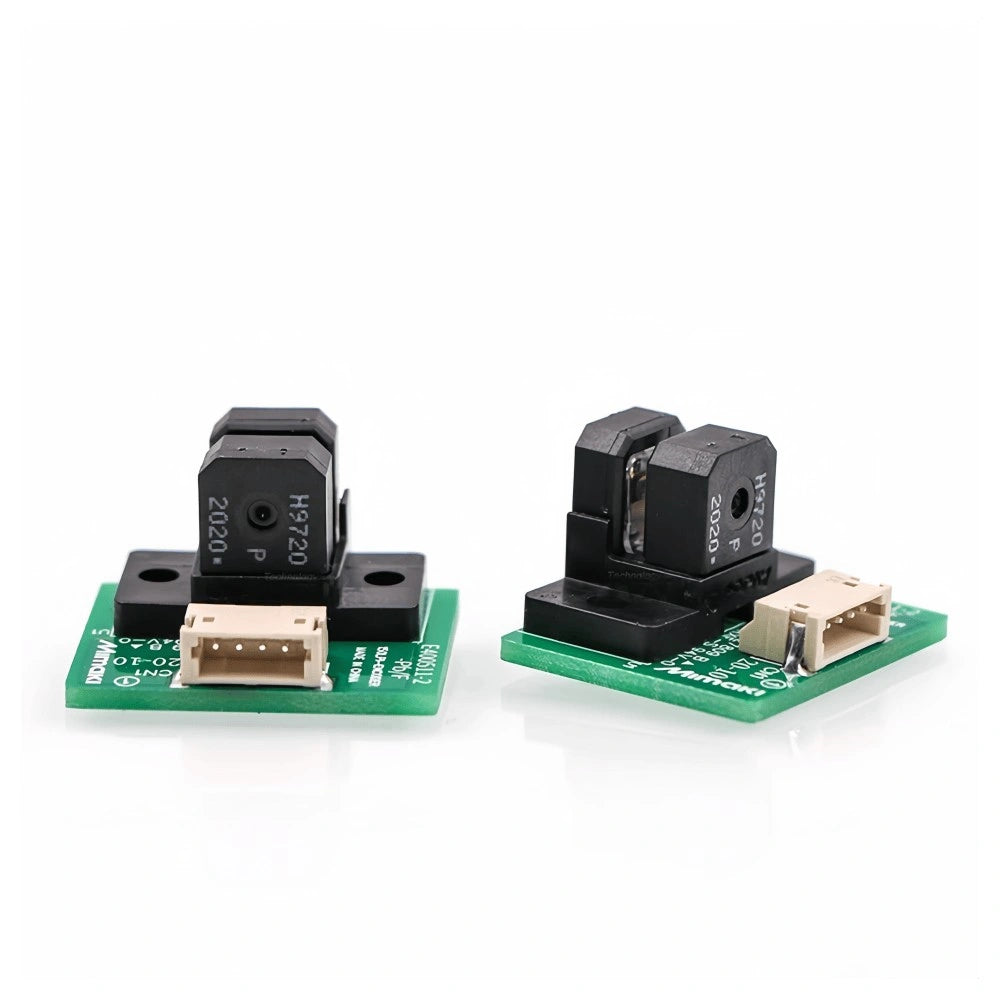

xEncoder Sensor H9720 (2020) – For Mimaki JFX200-2513 Flatbed Printer
The H9720 Encoder Sensor (2020) is a professional-grade optical grating decoder designed specifically for Mimaki JFX200-2513 UV flatbed printers. It reads the encoder strip with high precision to ensure accurate carriage positioning, smooth motion control, and consistent image alignment during high-speed UV printing.
Key Features
- High-precision optical sensing with fast response and minimal latency.
- Stable signal output for reliable carriage movement detection.
- Imported original sensor head for improved sensitivity and durability.
- Optimized PCB design with enhanced anti-interference protection.
- Fully compatible with Mimaki JFX200-2513 UV printers.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | H9720 (2020) |
| Compatible Printer | Mimaki JFX200-2513 |
| Voltage | 5V DC |
| Connection Type | 4-Pin Interface |
| Material | High-quality PCB with precision sensor head |
| Application | UV Flatbed Printer Carriage Motion Detection |
Available Models
| Version | Description |
|---|---|
| Mimaki JFX200-2513 Decoder | Main optical decoding sensor for reading the encoder strip and providing accurate carriage feedback. |
| Mimaki JFX200-2513 Encoder Strip | High-transparency linear scale strip designed for optical signal recognition by the H9720 decoder. |
Applications
- Mimaki JFX200-2513 UV flatbed printers
- UV hybrid printing systems with H9720 decoding module
- Replacement for damaged or worn-out original encoder sensors
Advantages
- Restores precise carriage motion and print accuracy.
- Simple plug-and-play installation with standard connector.
- High durability and long-term reliability under continuous operation.
- Fully tested before shipment to ensure optimal performance.
Included Items
- 1 × H9720 Encoder Sensor (2020)
- Optional: Matching Encoder Strip
- Protective anti-static packaging
