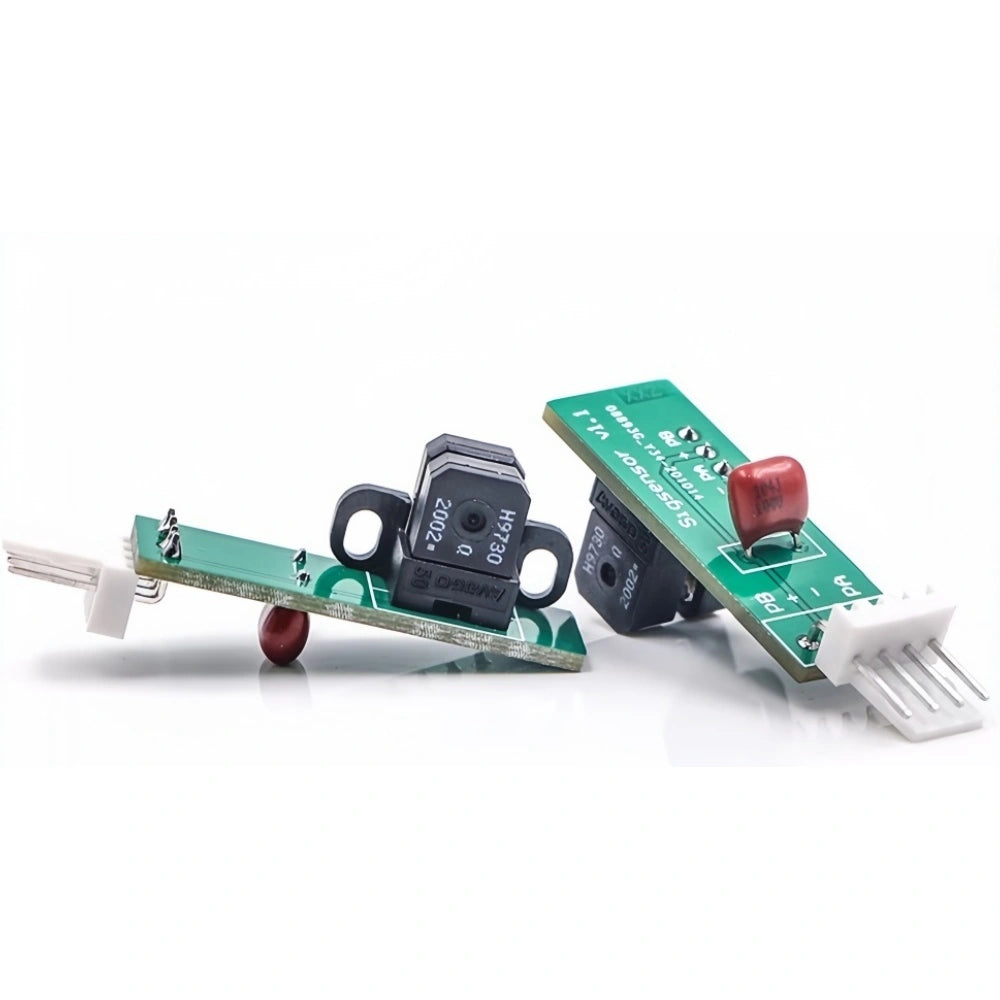

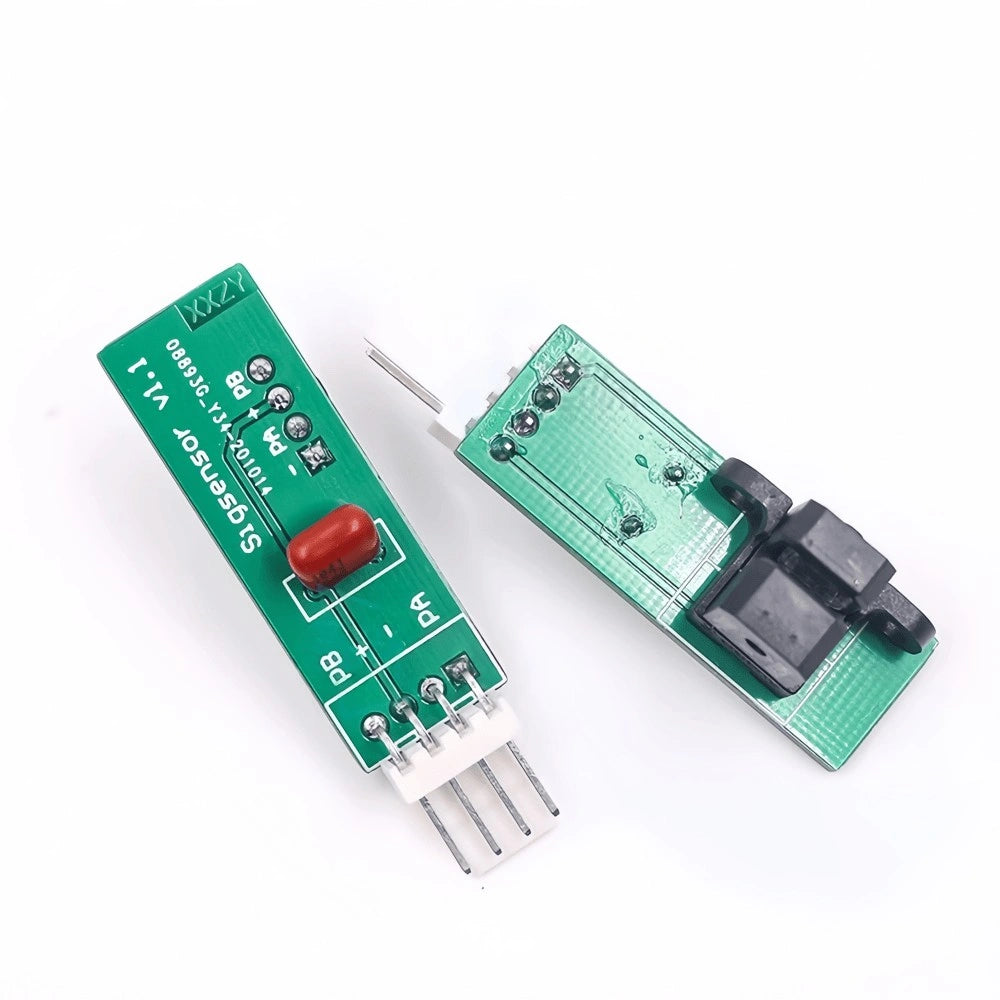

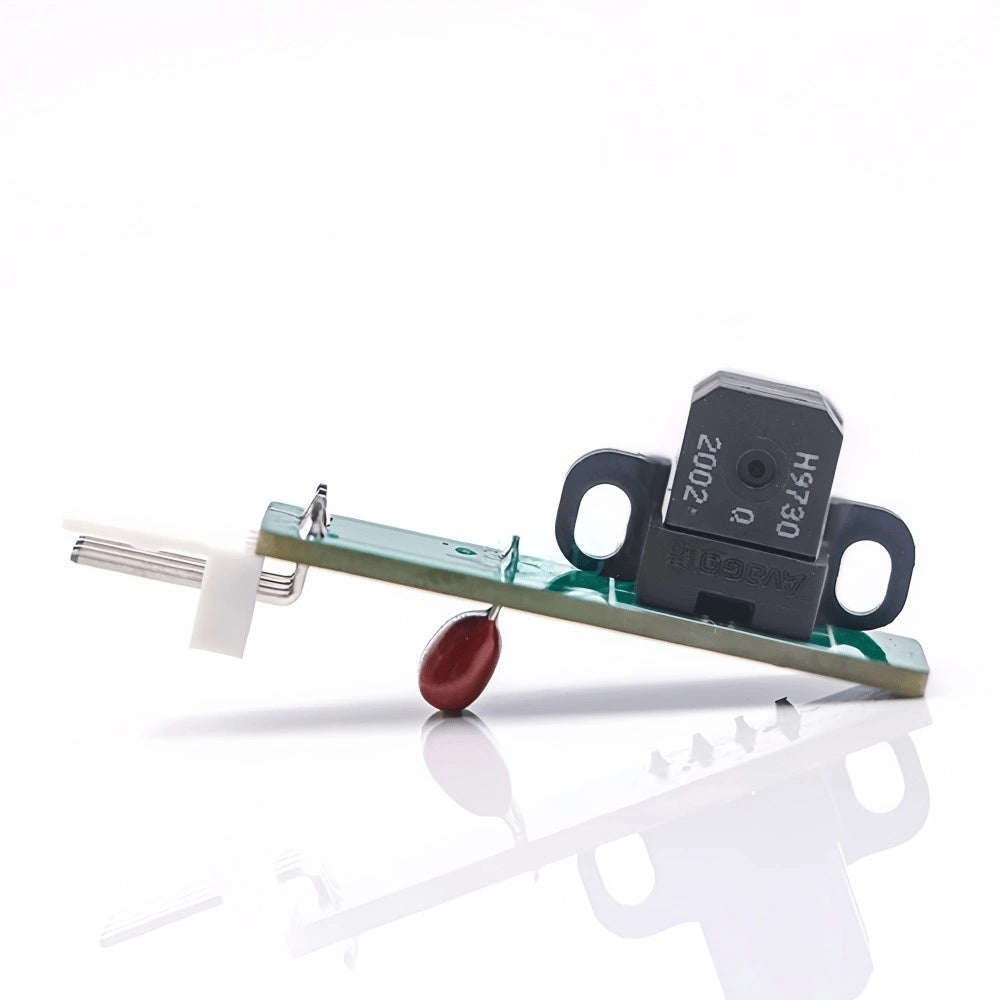

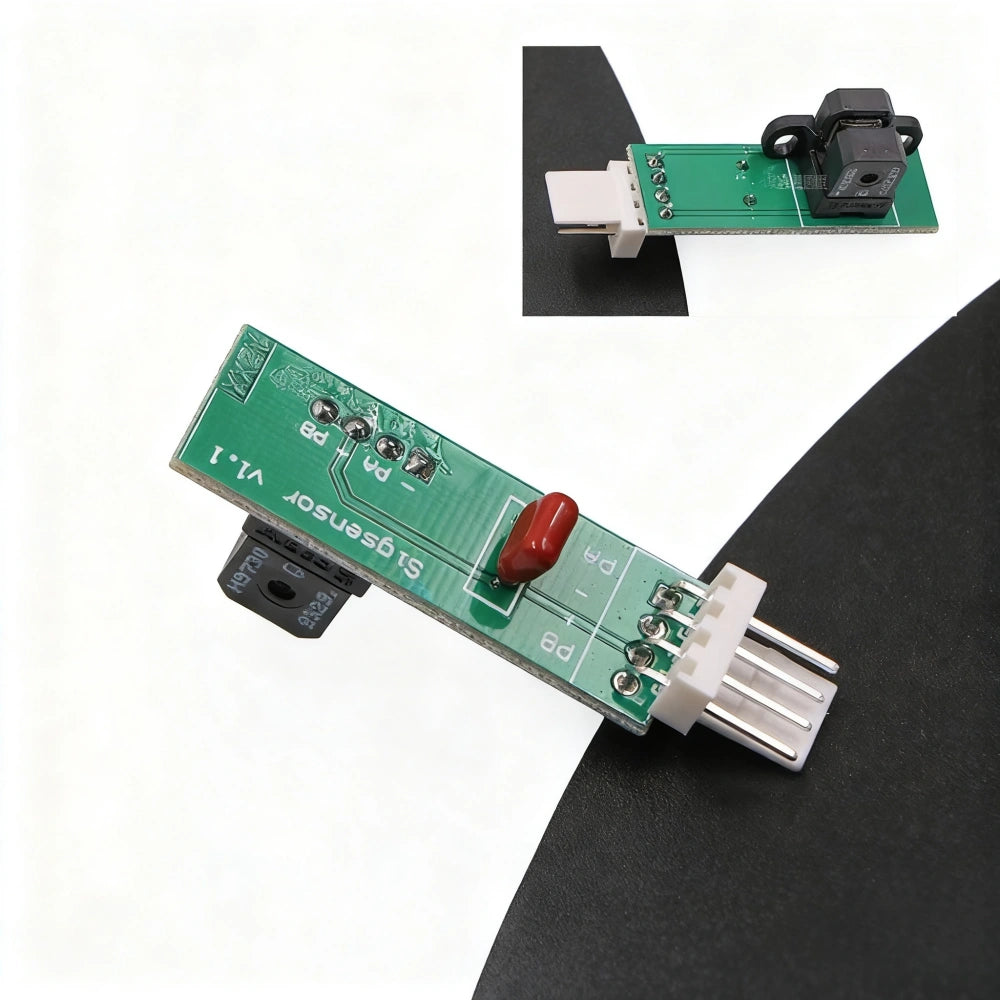

xEncoder Sensor H9720 (2303) – Optical Grating Decoder for UV Flatbed Printers
The H9720 Encoder Sensor is a professional optical grating decoder designed for UV flatbed and hybrid printers. It converts motion signals from the encoder strip into precise electrical feedback, ensuring accurate printhead positioning, smooth carriage movement, and stable printing quality.
Key Features
- High-precision optical sensing technology for accurate motion control.
- Stable and consistent signal output for smooth printhead operation.

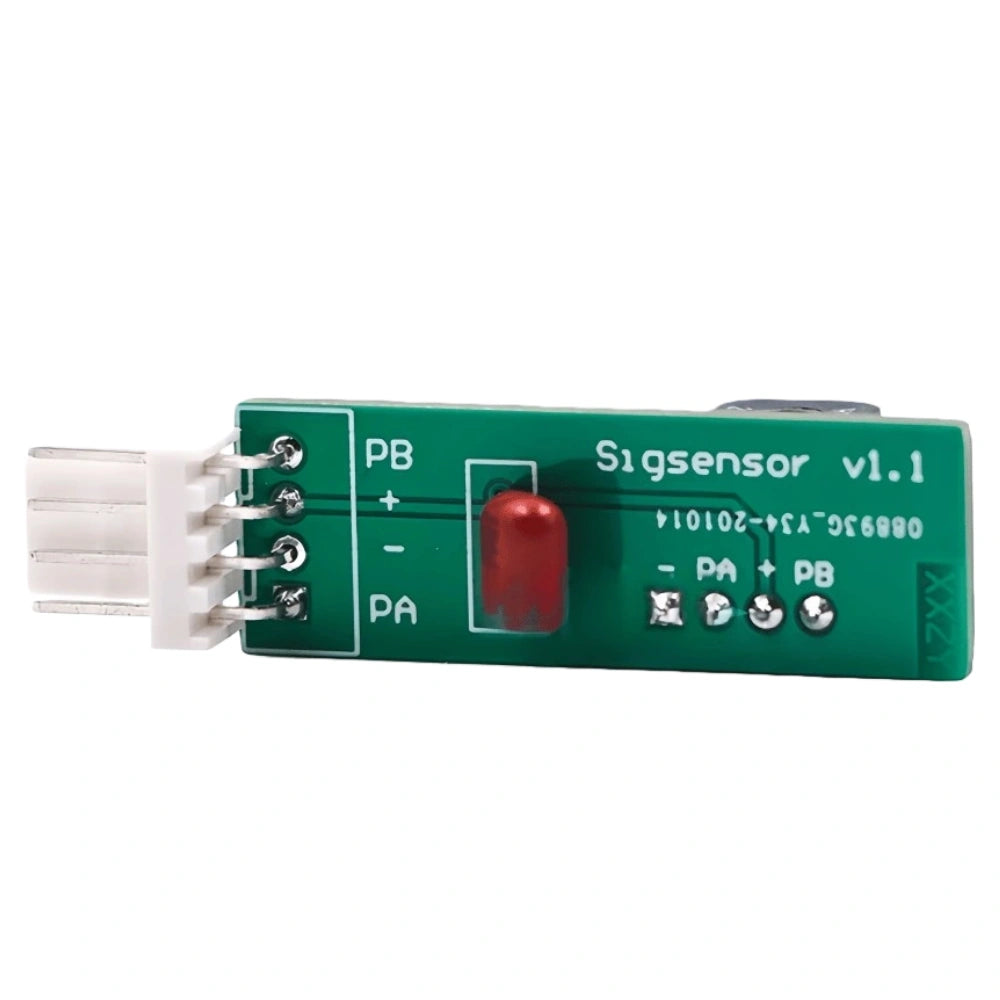

- Compact 4-pin structure with plug-and-play installation.
- Compatible with a wide range of UV flatbed and ceramic printers.
- Durable PCB design with high heat and dust resistance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | H9720 (2303) |
| Pin Type | 4-Pin Connector |
| Voltage | 5V DC |
| Cable Length | Standard 40cm / Optional 70cm |
| Application | UV Flatbed Printers / Ceramic Printers / Hybrid UV Printers |
Available Versions
| Version | Description |
|---|---|
| H9730 Model (Single Unit) | Standard decoder version compatible with multiple UV printer brands such as Hengcheng and Ande. |
| H9720 Model (Single Unit) | Standard 4-pin encoder sensor suitable for UV printers and ceramic flatbed systems. |
| H9730 Model + 40CM Cable | Includes pre-wired 40cm cable for direct plug-in replacement. |
| H9720 Model + 70CM Cable | Extended 70cm version designed for wider printer platforms. |
| Decoder-Only Cable | Replacement signal cable compatible with both H9720 and H9730 decoders. |
Applications
- UV Flatbed Printers (Hengcheng / Ande series)
- Ceramic Tile UV Printers
- Advertising and signage UV printing systems
Advantages
- High precision and reliability for industrial printing environments.
- Ensures accurate printhead motion control and image alignment.
- Compact, easy-to-install design compatible with most UV printer brands.
- Excellent durability and signal stability for continuous use.
Included Items
- 1 × H9720 Encoder Sensor (2303)

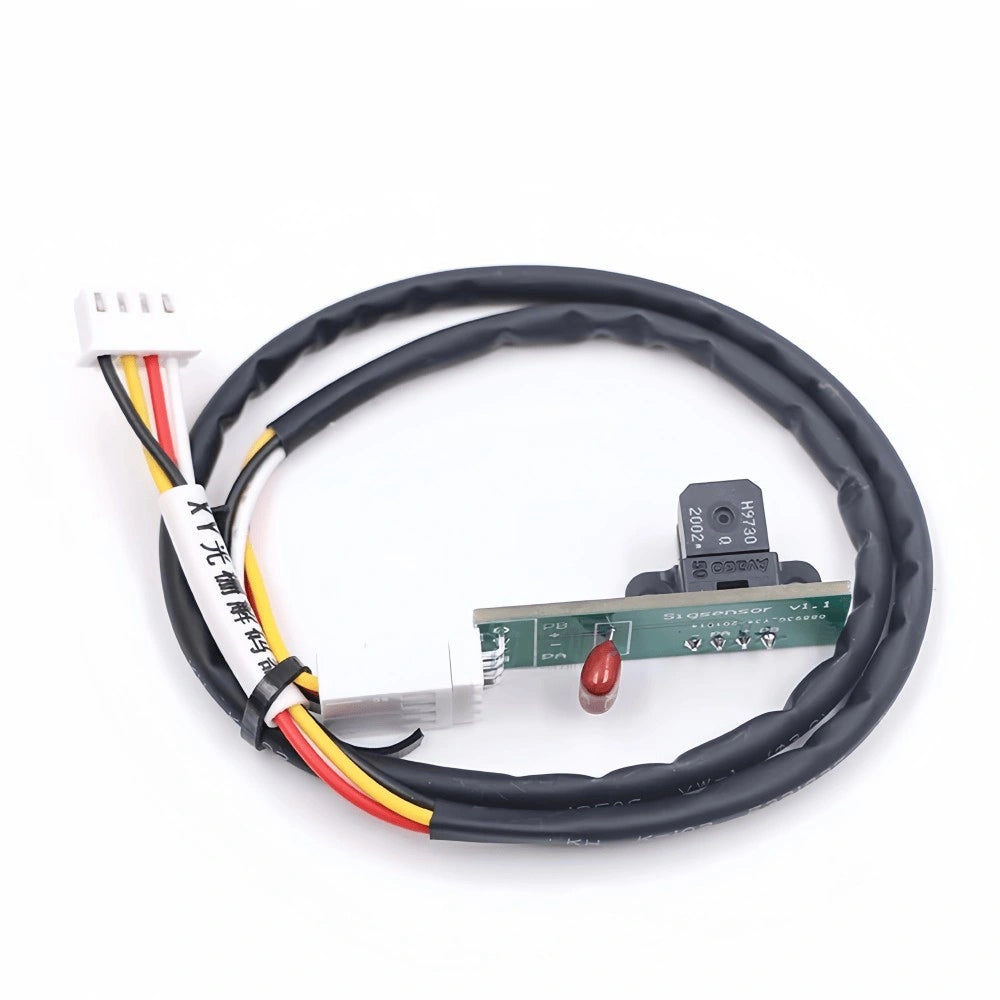

- 1 × Signal Cable (40cm or 70cm, optional)
- Protective anti-static packaging
