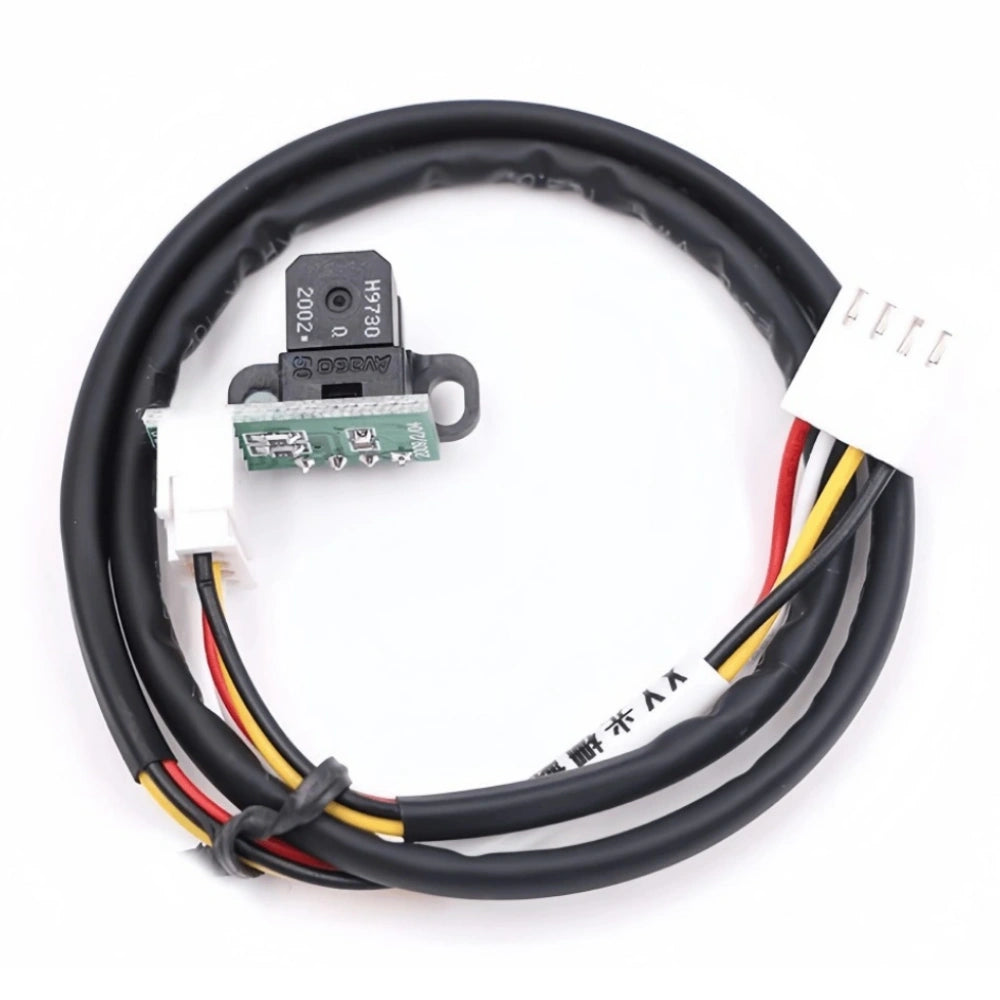

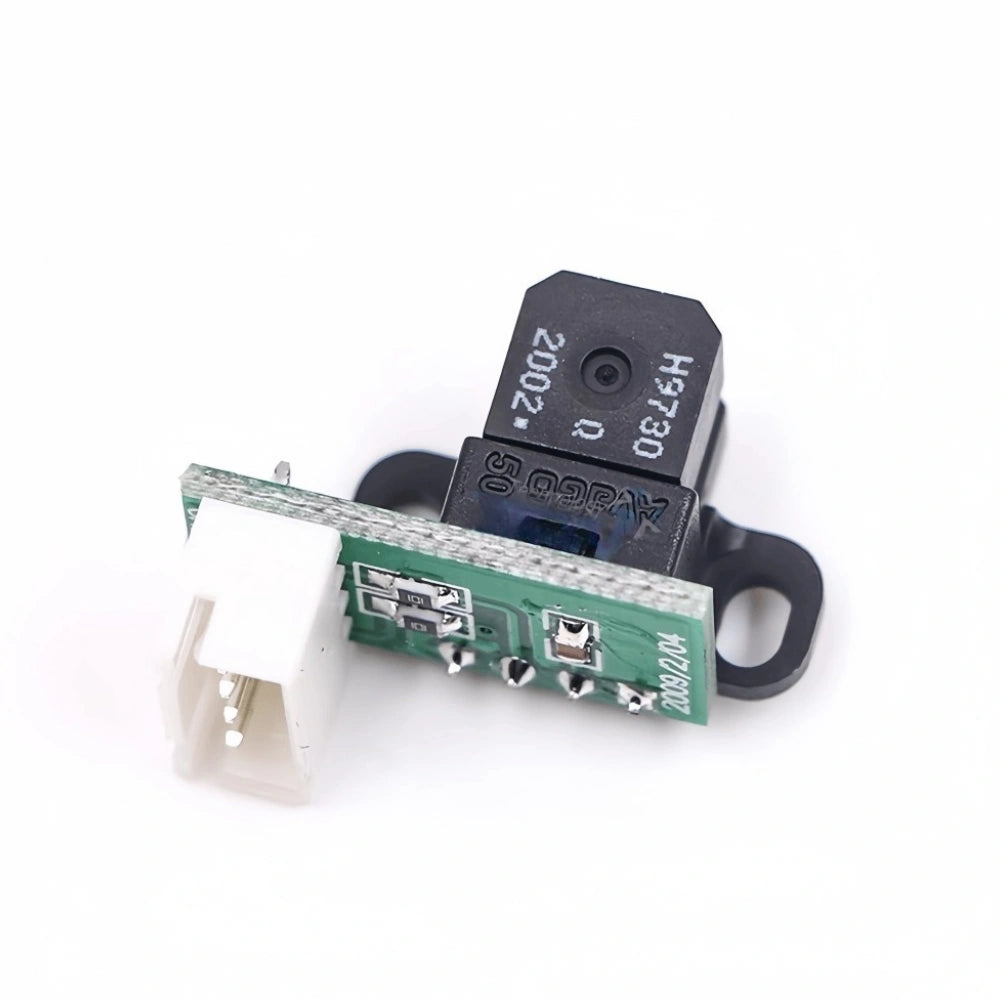

xEncoder Sensor H9730 1849 – Universal Model
Product Overview
The H9730 1849 Encoder Sensor is a reliable, high-precision optical decoding component suitable for a wide range of large-format printers. It ensures accurate carriage positioning and smooth motion control through stable signal output, providing consistent printing performance and long service life.
Key Features
- Universal design fits various printer models.
- High signal accuracy with dual-channel A/B output.
- Compact PCB for easy replacement and installation.
- Supports both short and long cable versions.
- Stable decoding for smooth carriage movement and reduced jitter.
Technical Specifications
| Model | H9730 1849 |
| Voltage | DC 5V |
| Signal Output | A/B quadrature dual-channel |
| Recommended Grating | 150–180 LPI encoder strip |
| Cable Options | 60 cm / 120 cm optional |
| Application | Universal large-format and UV printers |
Type Comparison
| Type | Description | Typical Use |
|---|---|---|
| H9730 Single Decoder | Standard optical decoder board without cable, used for direct board replacements. | For printers that already have existing cables. |

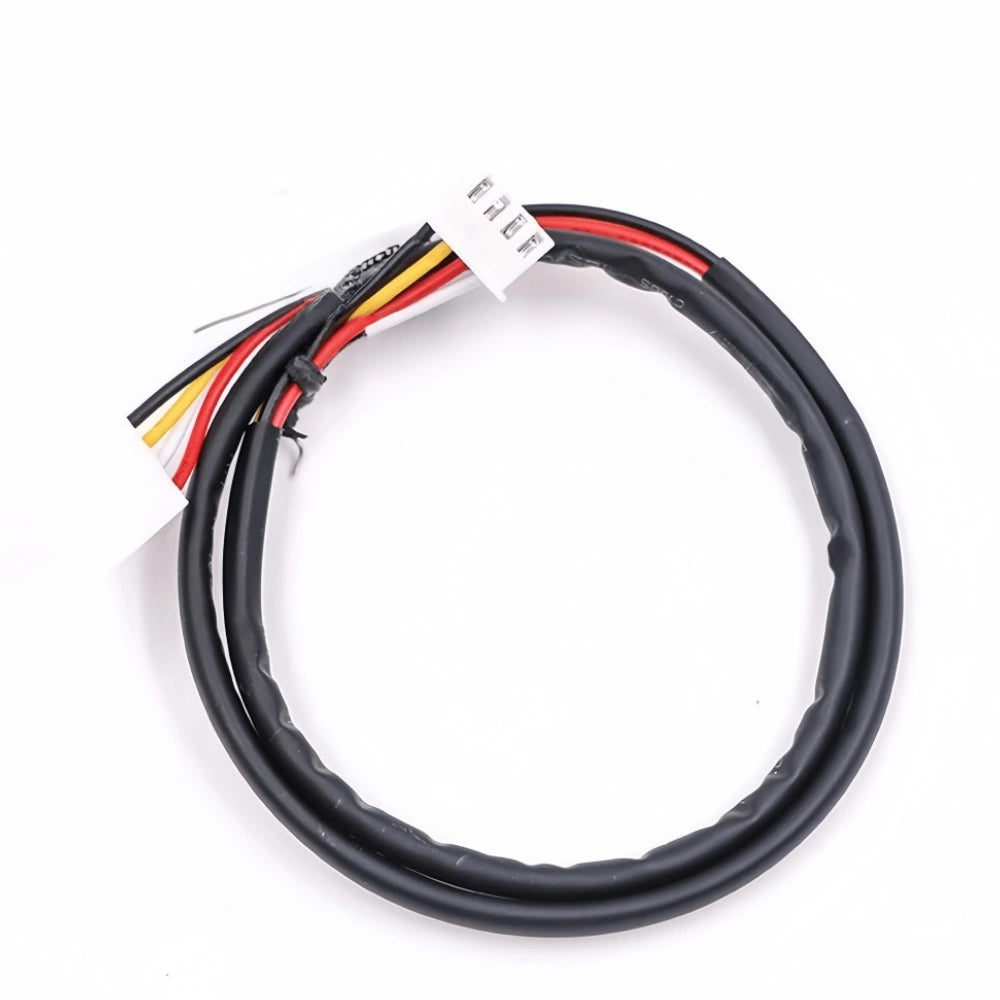

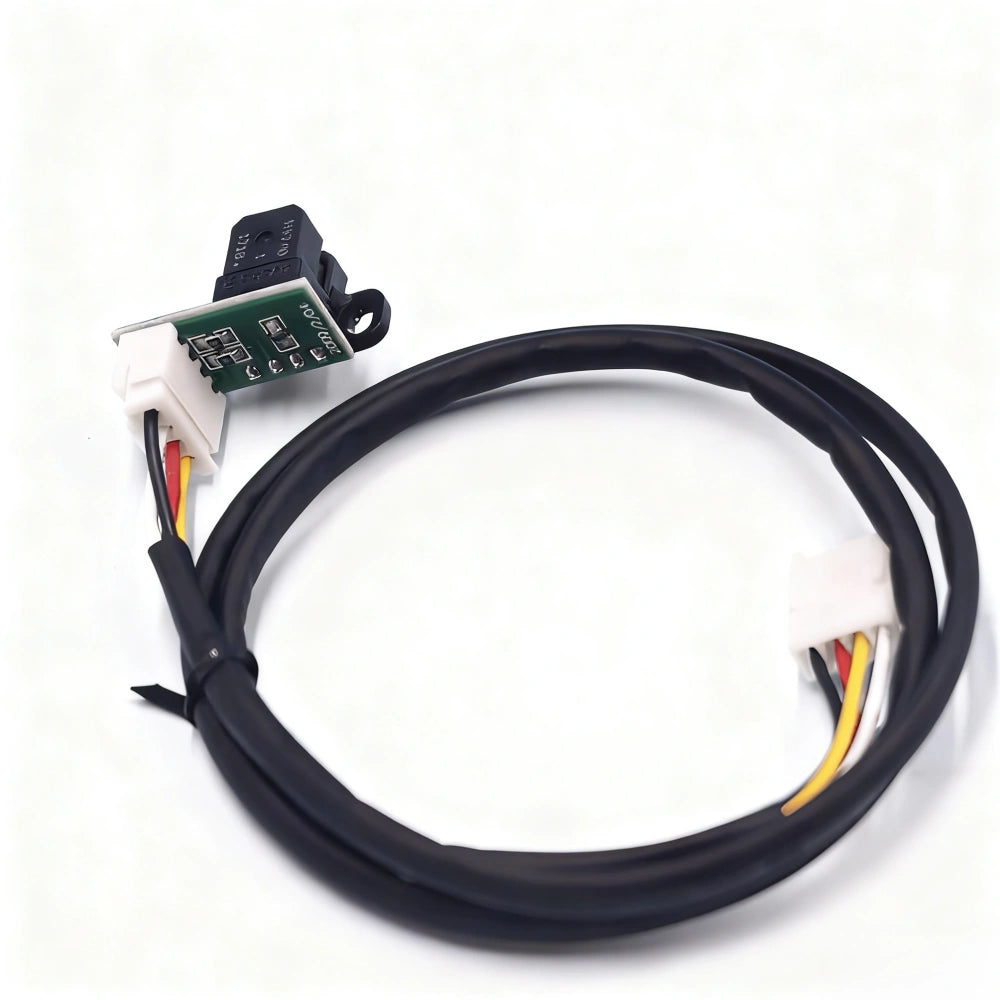

| H9730 Decoder + Cable | Includes decoder board with pre-installed signal cable for quick installation. | For printers requiring plug-and-play replacement. |
| Single Cable | Optional cable only, designed to connect compatible H9730 boards. | Replacement part when only the cable needs replacement. |
Installation Notes
- Turn off the printer before installation.
- Align the sensor’s optical window parallel to the grating strip.
- Maintain 0.3–0.6 mm spacing between the sensor and strip.
- Ensure the grating strip surface is clean and undamaged.
- Run a calibration or test print after replacement to verify stability.
Package Includes
- 1 × Encoder Sensor H9730 1849
- 1 × Optional signal cable (depending on selection)
- Protective anti-static packaging
Note: Select between Single Decoder, Decoder + Cable, or Single Cable according to your installation needs. Always verify connector orientation and cable length before purchase.
