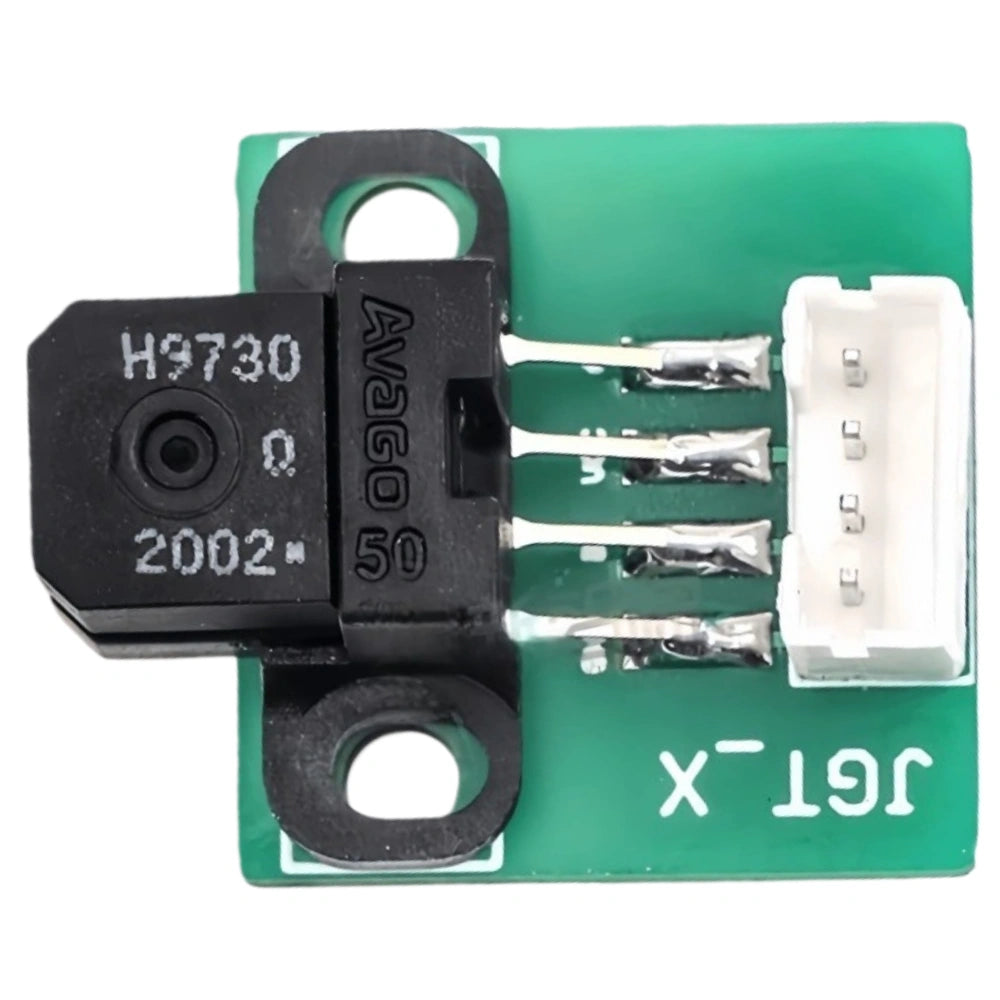

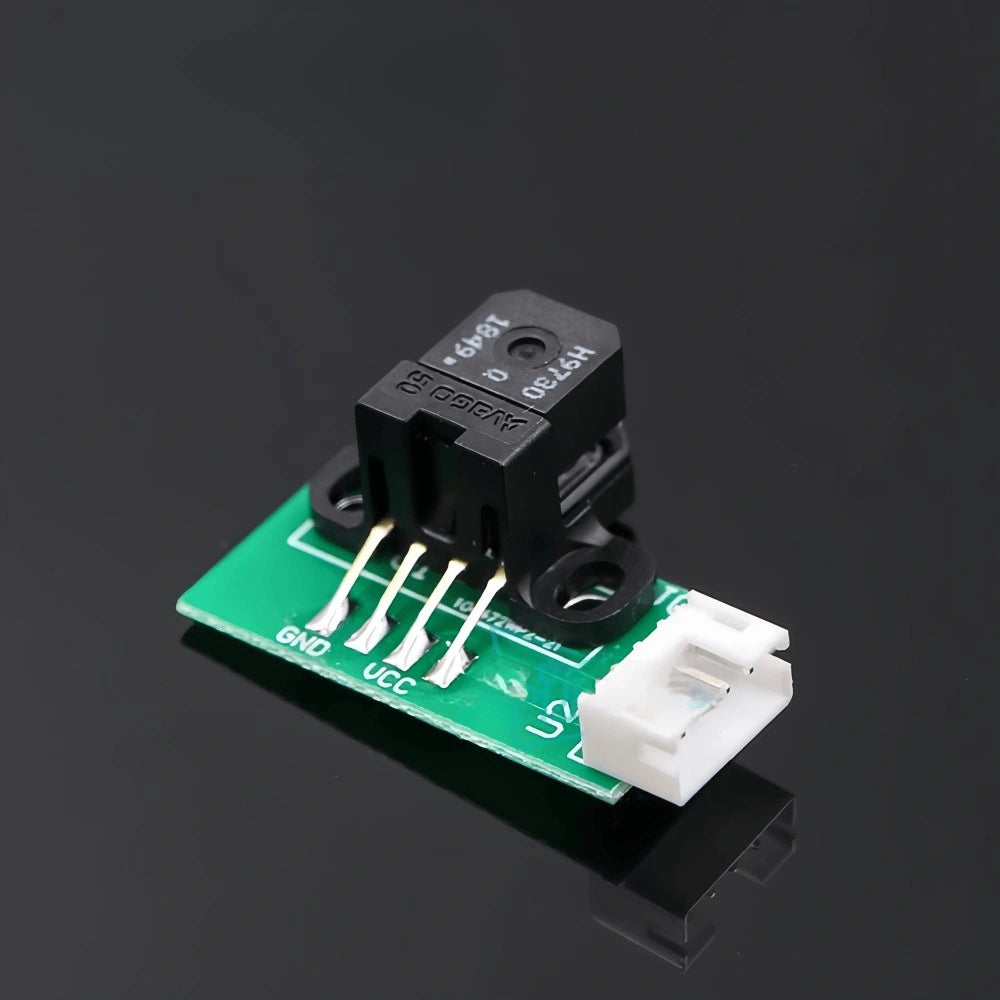

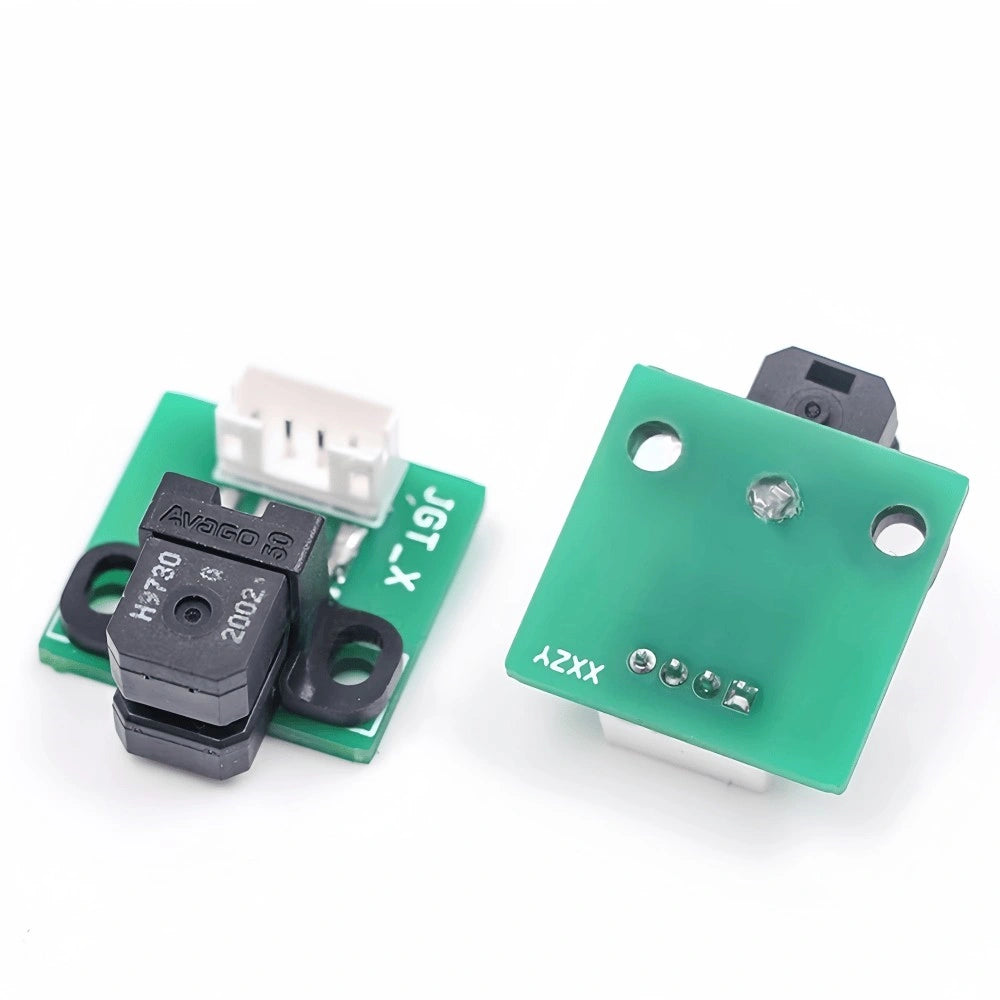

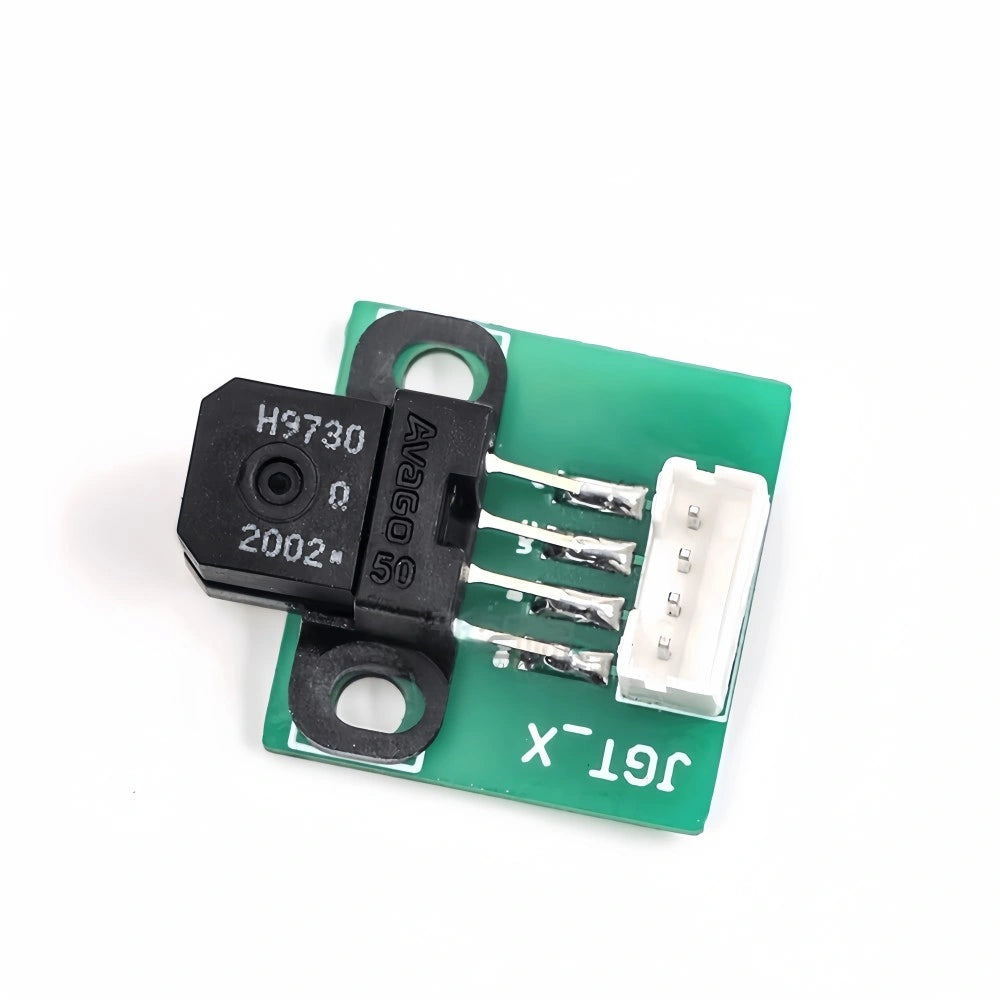

Encoder Sensor H9730 (2002) – For 6090 / 1016 UV Printers

Product Overview

The H9730 (2002) encoder sensor is specifically designed for UV flatbed printers such as 6090 and 1016 models. It provides high-precision carriage position detection and stable A/B signal output, ensuring smooth and accurate printing operations for both large and small-format UV printers.

Key Features

  • Compatible with 6090 and 1016 UV printer series.
  • Equipped with original H9730 optical decoding head.
  • Provides dual-channel A/B signal output for precise motion control.

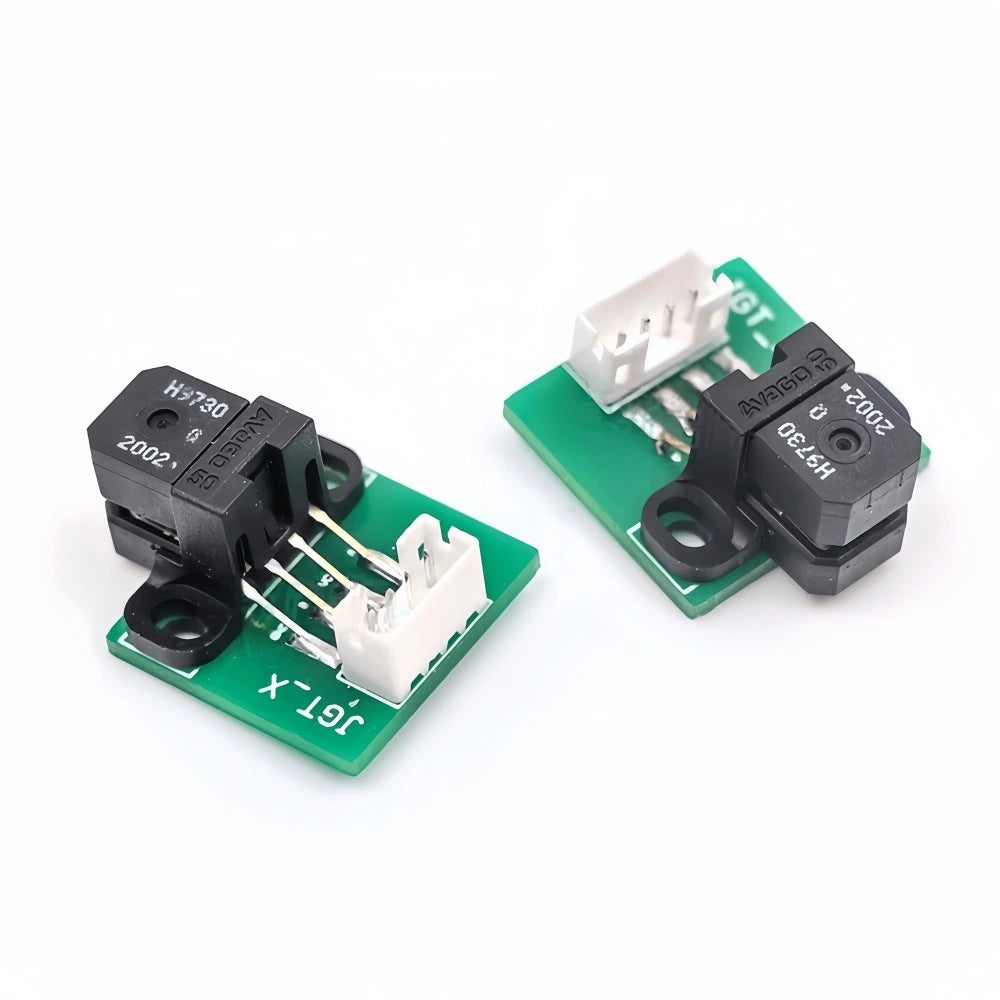

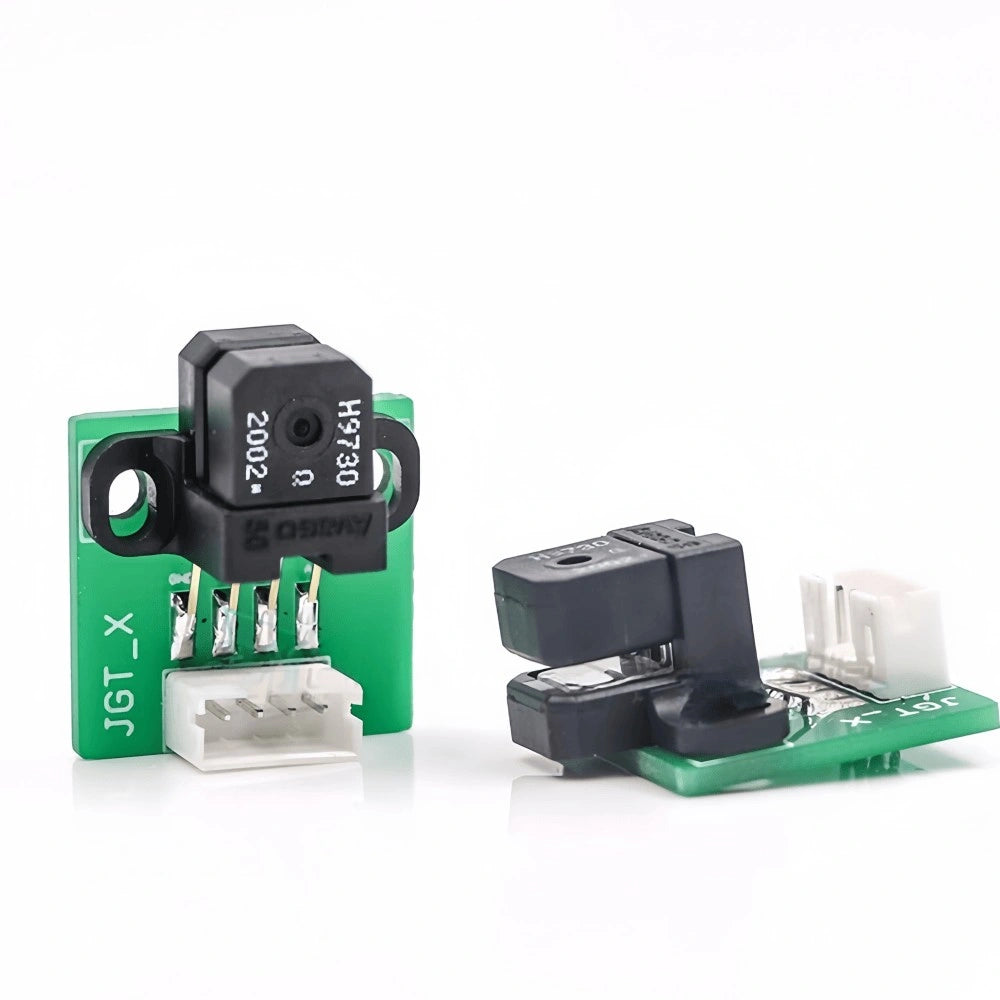

  • Available in two board orientations: Type A and Type B.
  • Compact and easy to install with stable signal transmission.

Technical Specifications

Model H9730 (2002)
Voltage DC 5V
Signal Output Dual-channel A/B quadrature signal
Mounting Hole Distance Standard 19 mm center-to-center
Connector Type 4-pin pre-wired plug
Recommended Encoder Strip 150–180 LPI

Type Comparison

Type Board Orientation Applicable Models
Type A Connector positioned on the right side; commonly used in front-mounted UV printer designs. 6090 UV Printer, 6040, and similar machines.
Type B Connector positioned on the left side; used for rear-mounted or alternate layout platforms. 1016 UV Printer, 1313, 1610, and similar large-format printers.

Installation Notes

  1. Turn off printer power before installation.
  2. Ensure the sensor surface is parallel to the encoder strip.
  3. Maintain a 0.3–0.6 mm distance between the sensor and strip.
  4. Keep the strip clean and free from dust or ink mist.
  5. After installation, test carriage movement for stable signal reading.

Note: Please confirm whether your printer requires Type A or Type B before purchase. Both options are compatible with the H9730 (2002) optical decoding head.
