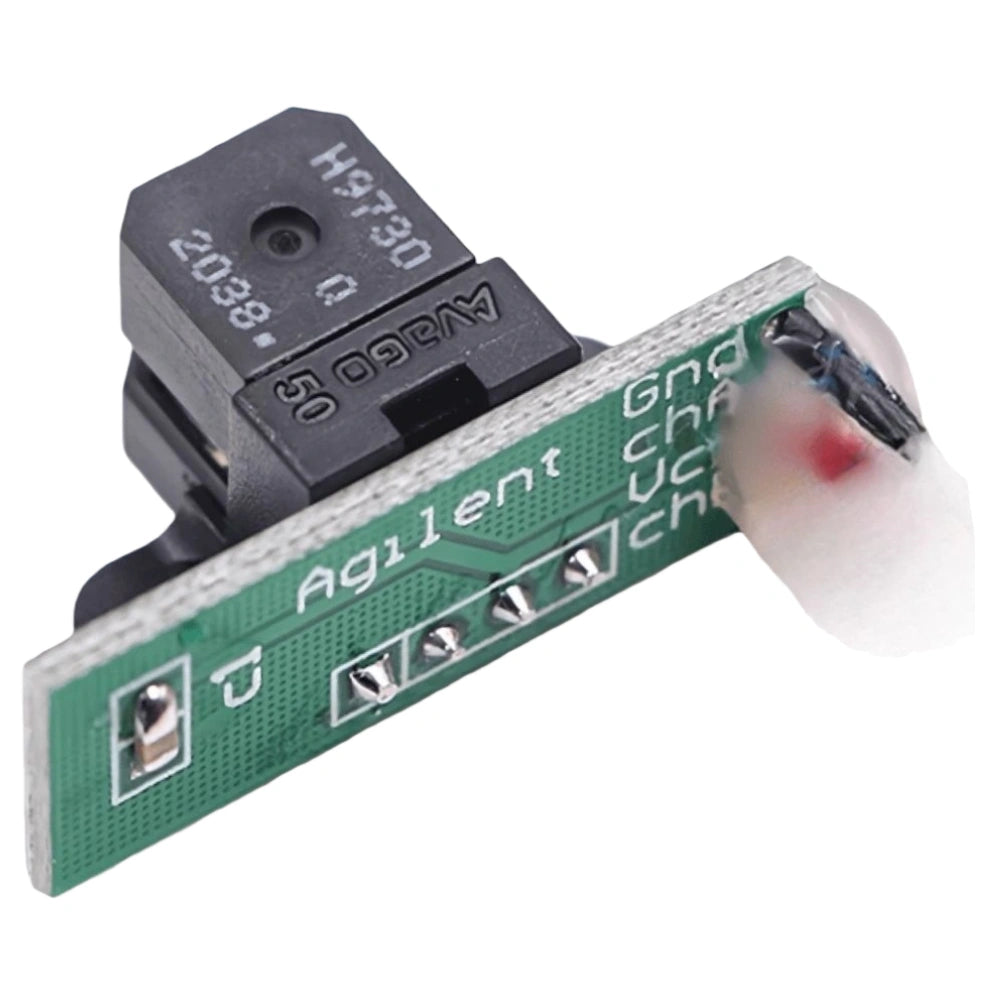

xEncoder Sensor H9730 (2102) – For Inkjet Printers
Product Overview
The H9730 (2102) Encoder Sensor is a high-precision optical decoding component designed for a wide range of inkjet printers. It accurately detects carriage movement through optical signals, ensuring smooth and stable printing performance. The sensor is available in two versions (H9720 and H9730) and supports optional decoder cables for flexible replacement.
Key Features
- Compatible with various inkjet and flatbed printer models.
- Equipped with original H9730 or H9720 optical decoding chip.
- Stable dual-channel A/B signal output for precise carriage positioning.
- Supports optional cable replacement for decoder connection.
- Durable PCB with plug-and-play connector for easy installation.
Technical Specifications
| Model | H9730 (2102) |
| Voltage | DC 5V |
| Signal Output | Dual-channel A/B quadrature |
| Connector Type | 4-pin plug connector |
| Recommended Encoder Strip | 150–180 LPI |
| Application | Inkjet printers and flatbed printing equipment |
Type Comparison
| Type | Description | Typical Use |
|---|---|---|
| H9720 | Optical encoder board using the H9720 chip with standard 4-pin connection. | Used in early-model inkjet printers and specific flatbed systems. |
| H9730 | Upgraded sensor board using H9730 decoding chip with improved signal stability. | Recommended for modern inkjet printers with high-speed carriage movement. |

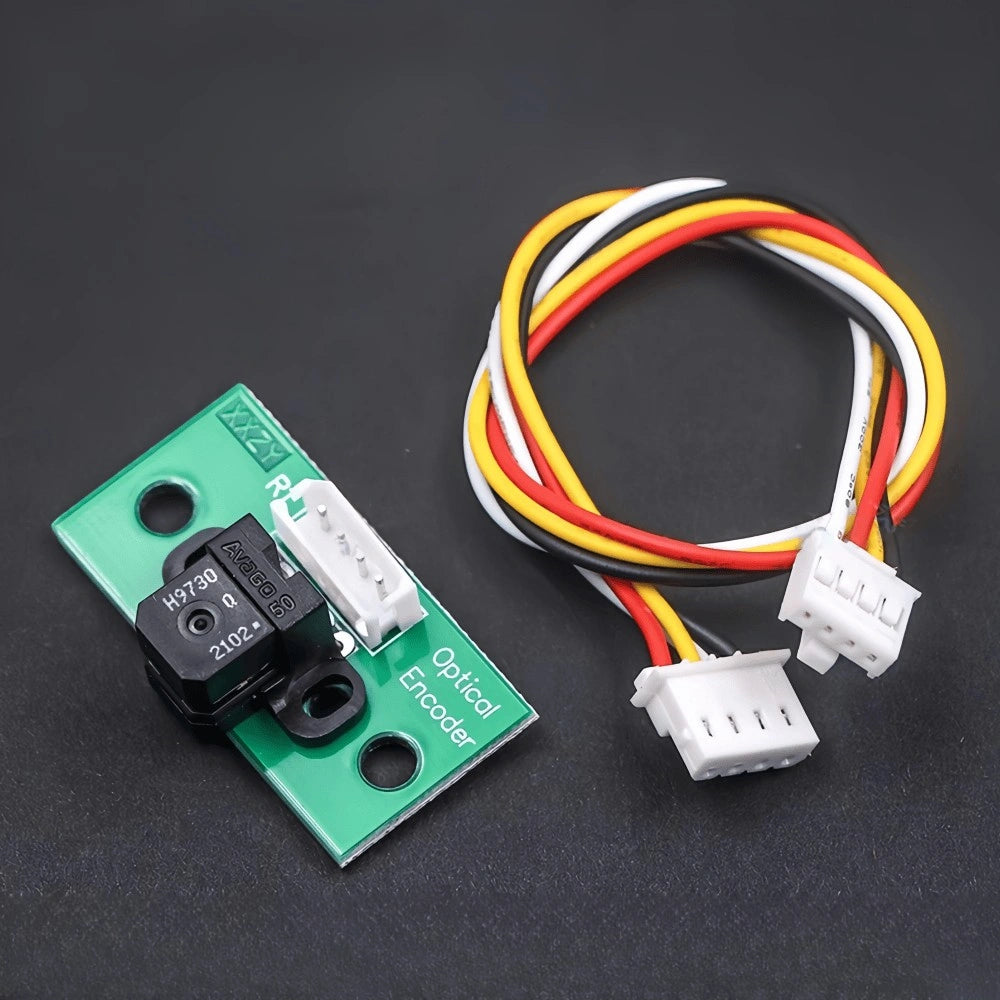

| Cable for Decoder Matching | 4-pin connection cable designed for H9720 and H9730 sensors. | Used when only the decoder cable requires replacement. |
Installation Notes
- Turn off printer power before installation.
- Align the sensor window parallel to the encoder strip.
- Keep a 0.3–0.6 mm distance between sensor and strip.
- Ensure cable connection is secure to prevent signal interference.
- After installation, perform a test print to verify carriage movement.
Note: Confirm your printer model and required sensor type (H9720 or H9730) before purchasing. Both versions are compatible with standard inkjet printer systems.
