xEncoder Sensor H9740 (1631) – 360 LPI Type

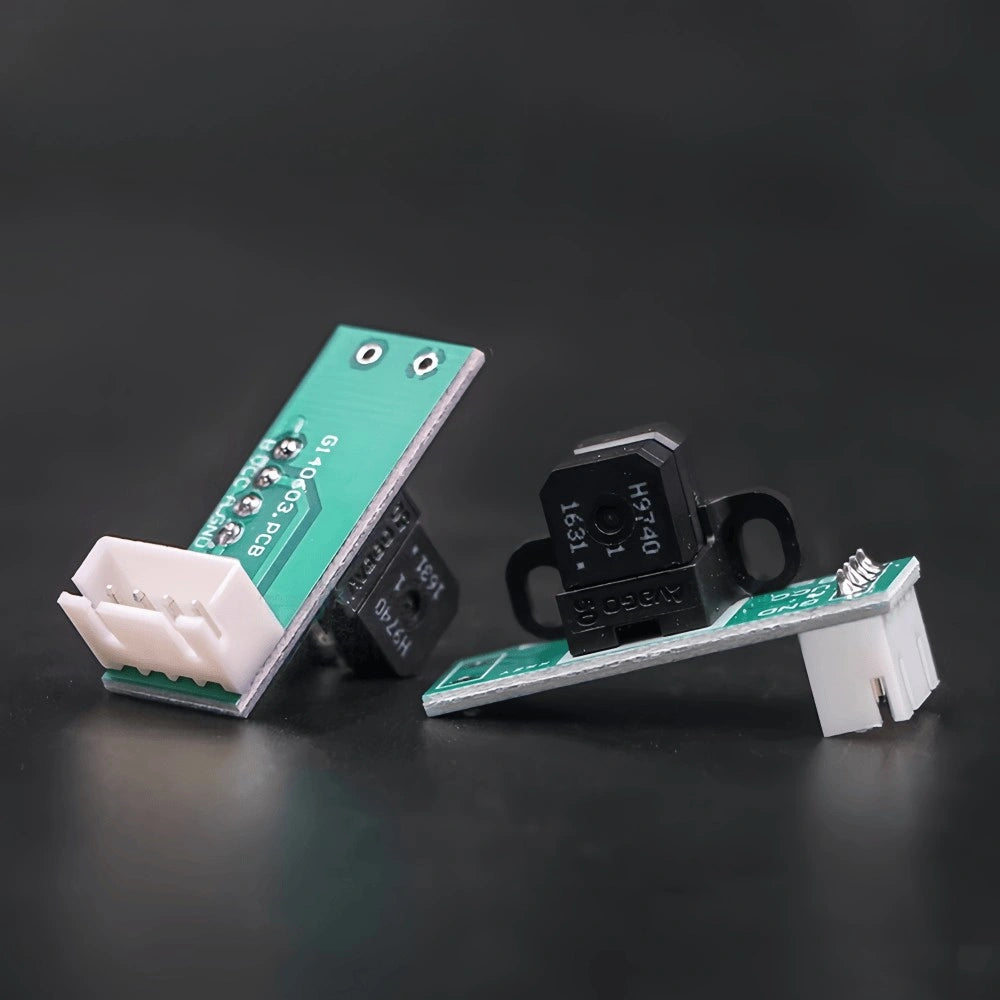

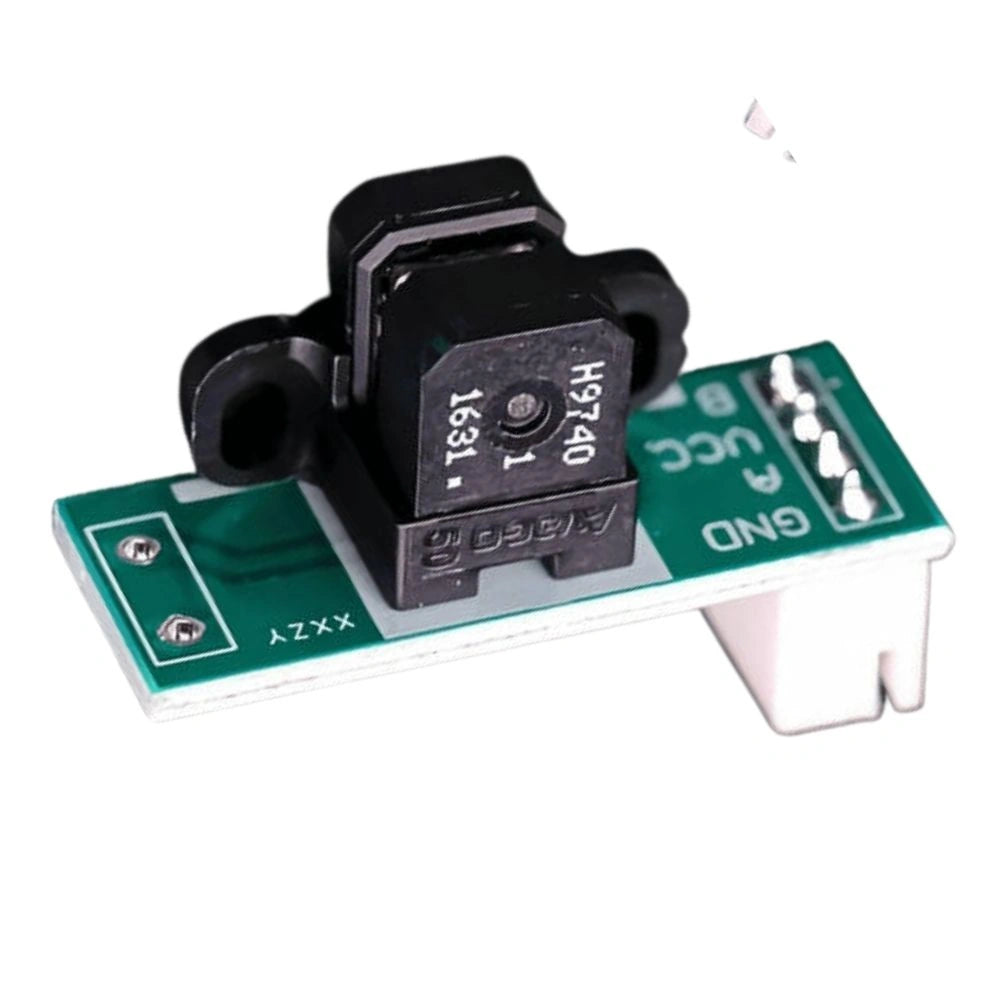

Product Overview
The H9740 (1631) 360 LPI Encoder Sensor is a high-precision optical sensor designed for large-format printers and industrial inkjet equipment. With a 360 LPI (lines per inch) optical grid, it provides accurate motion detection and signal feedback for consistent, high-quality printing performance.
Key Features
- 360 LPI optical resolution ensures ultra-fine decoding accuracy.
- Stable signal output for high-speed and high-precision printing.
- Durable optical head structure resists dust and vibration.

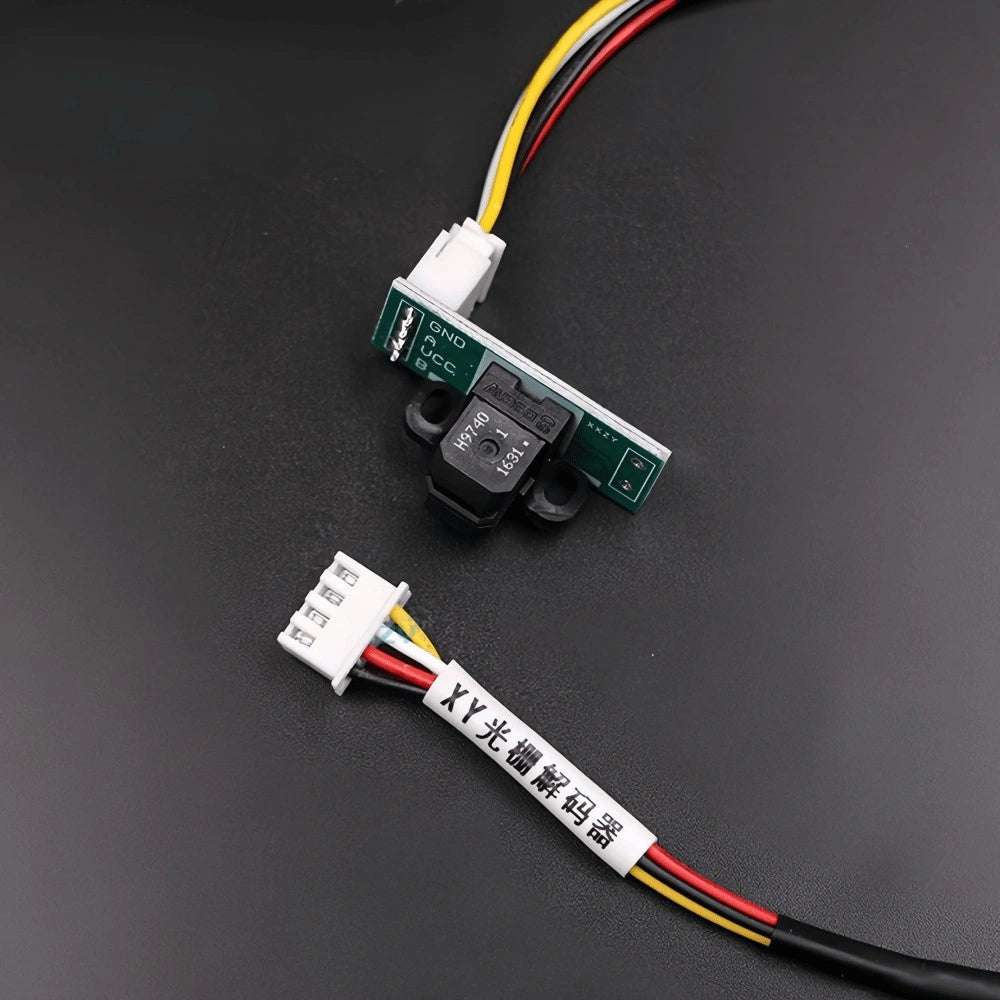

- Available as single unit or with integrated cable for easy installation.
- Suitable for UV, Eco-solvent, and large-format inkjet printers.
Technical Specifications

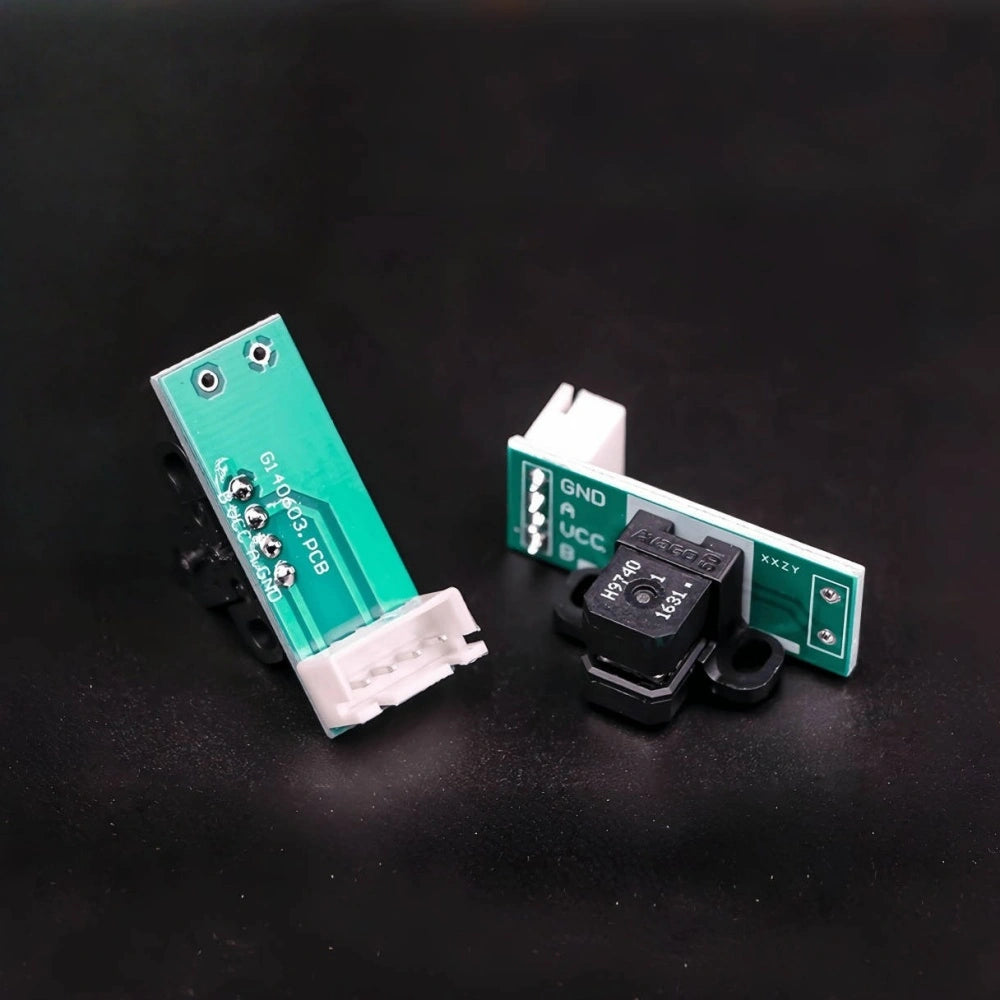

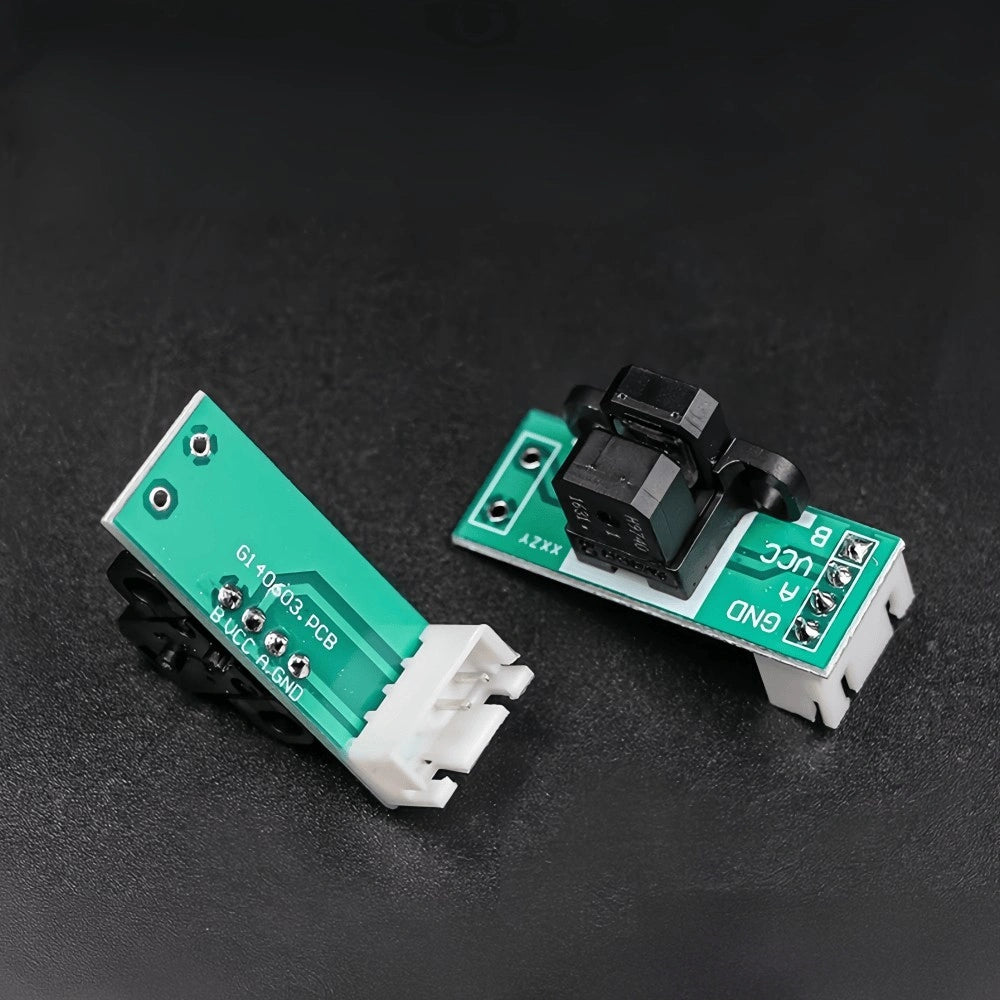

| Model | H9740 (1631) – 360 LPI |
| Working Voltage | DC 5V |
| Optical Resolution | 360 LPI |
| Signal Output | Dual A/B Channel |
| Interface Type | 4-Pin Connector |
| Cable Option | With or Without Cable |
| Compatible Models | Seiko, FY, and other 360 LPI-based printers |
Version Comparison
| Version | Description | Recommended Use |
|---|---|---|
| H9740 Model (Single Unit) | Standard optical sensor without cable, suitable for replacements. | For technicians with existing wiring harnesses. |
| H9740 Model with Cable | Integrated version with cable for quick plug-and-play installation. | For general maintenance and fast replacement. |
Installation Notes
- Turn off the printer before installing the encoder sensor.
- Align the sensor slot precisely with the 360 LPI encoder strip.
- Maintain a 0.3–0.6mm gap between the sensor and the strip.
- Ensure the encoder strip is clean, dry, and free from dust or oil.
Note: The H9740 (1631) 360 LPI encoder sensor provides superior resolution and stability, making it ideal for high-precision large-format printers. Choose between single unit or cable version based on installation needs.
