Encoder Sensor H9740 (1631) – For FY-3200AT Printers

Product Overview

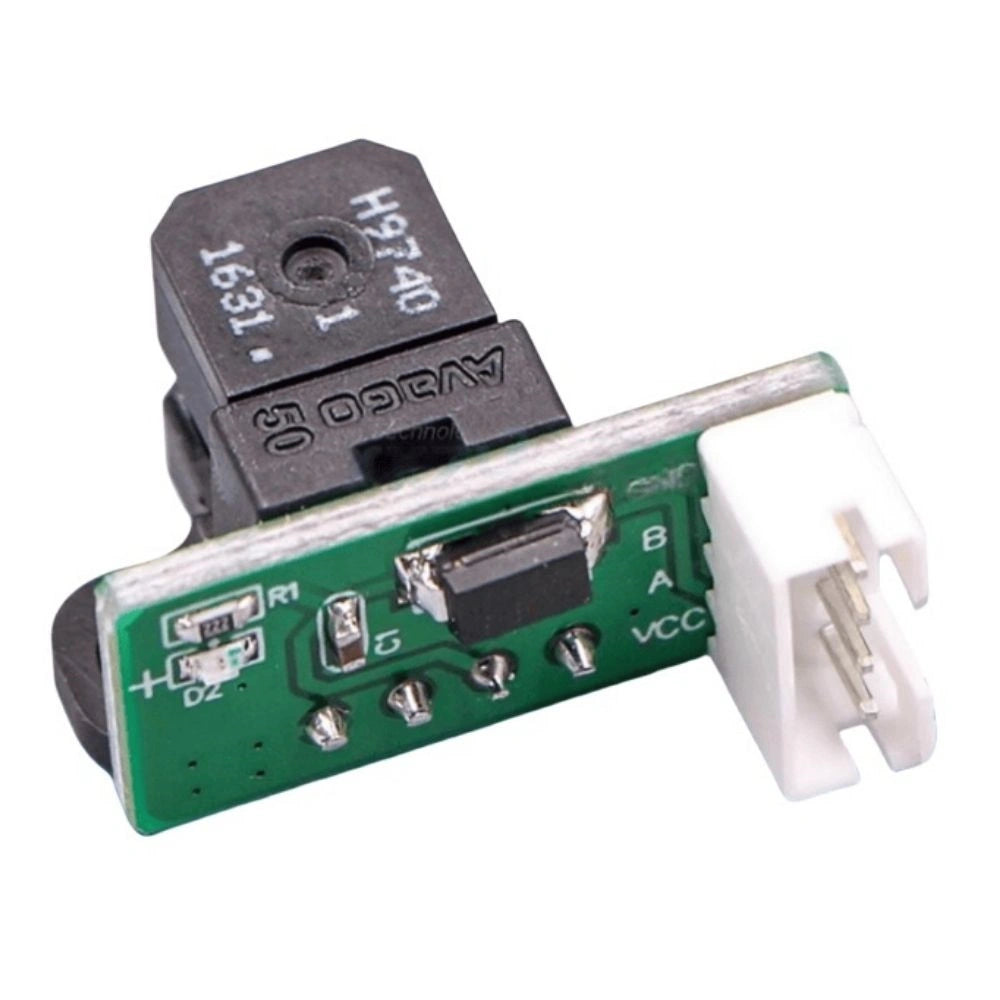

The H9740 (1631) Encoder Sensor is a high-precision optical decoder designed for FY-3200AT and similar large-format printers. It provides accurate motion feedback to ensure stable and consistent printing performance under high-speed operation.

Key Features

  • Specially designed for FY-3200AT and 508GS printers.
  • High-precision 360 LPI optical decoding for accurate positioning.
  • Available as a single sensor or with 25cm cable pre-installed.
  • Optional replacement cables (25cm / 40cm) for easy maintenance.
  • Durable PCB design ensures stable signal and long service life.

Technical Specifications

Model H9740 (1631)
Working Voltage DC 5V
Optical Resolution 360 LPI
Signal Output Dual A/B Channel Signal
Cable Options 25cm / 40cm (Optional)
Compatible Models FY-3200AT / 508GS / Similar Large-Format Printers

Version Comparison

Version Description Recommended Use

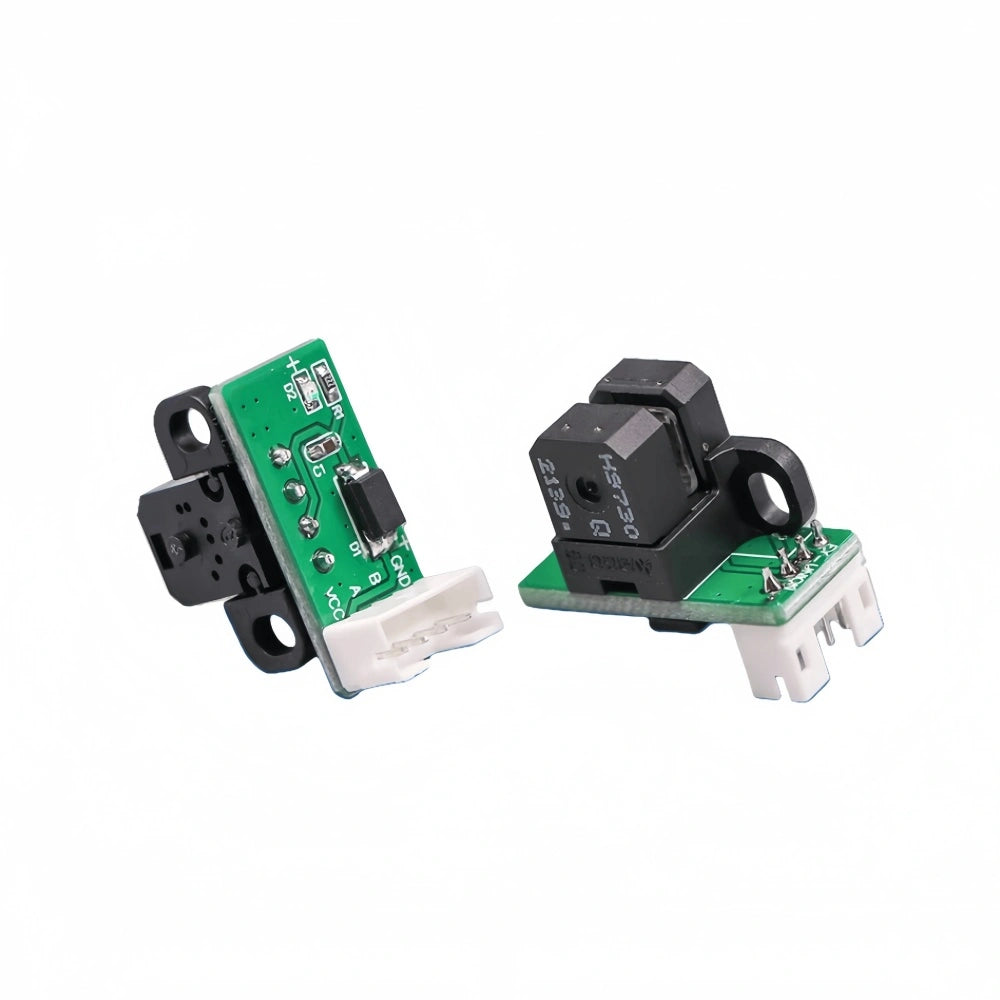

Single Decoder Basic optical sensor without cable, ideal for maintenance replacement. For users who already have compatible wiring.

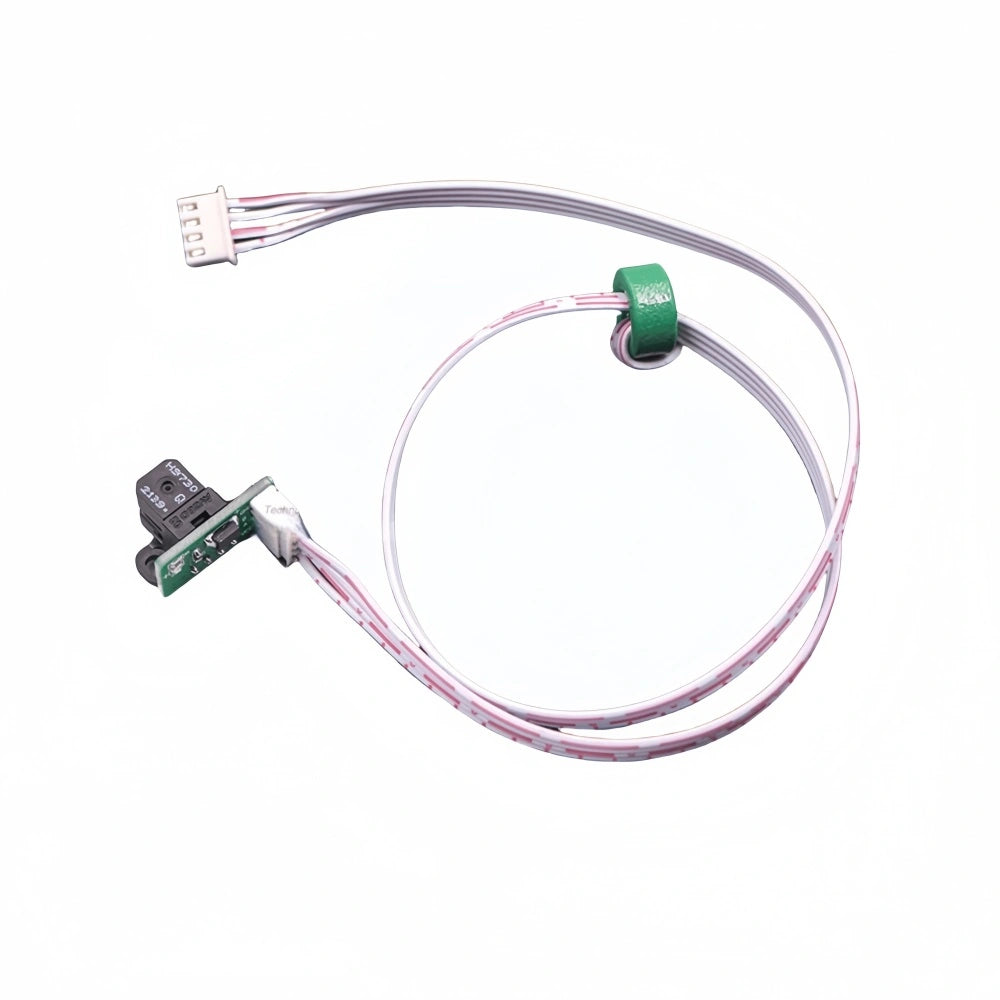

Decoder with Cable (25CM) Pre-wired sensor with 25cm cable, ready for plug-and-play installation. Recommended for standard printer configurations.

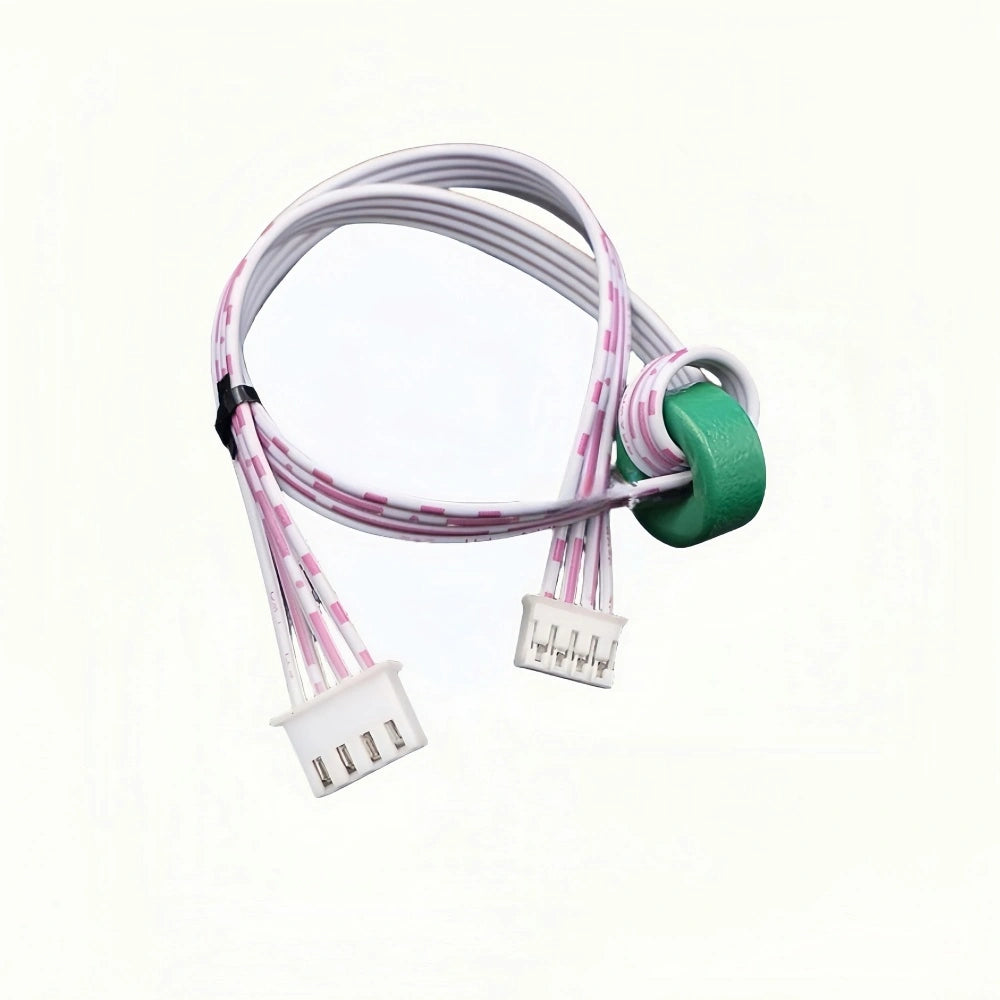

Single Cable Length 25CM Replacement short cable for compact printer layouts. Used when replacing existing 25cm cables.

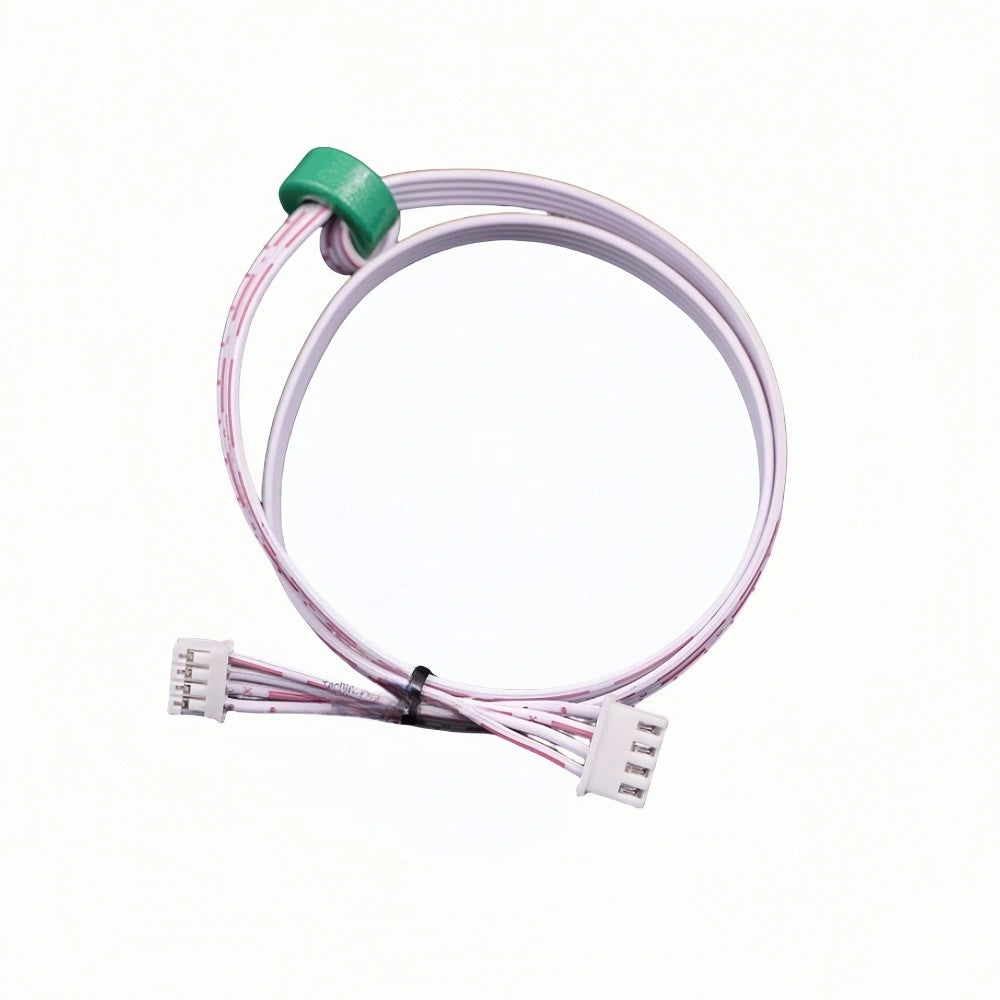

Single Cable Length 40CM Extended replacement cable for long-body printers or distant connections. Best for FY-3200AT and large-format setups.

Installation Notes

  1. Turn off the printer before installation or replacement.
  2. Align the sensor slot with the encoder strip; maintain a 0.3–0.6mm gap.
  3. Ensure the strip surface is clean and free of dust or ink stains.
  4. After installation, move the carriage to test smooth decoding performance.

Note: The H9740 (1631) provides reliable decoding performance for FY-3200AT printers. Choose the proper cable length according to your printer’s internal layout.
