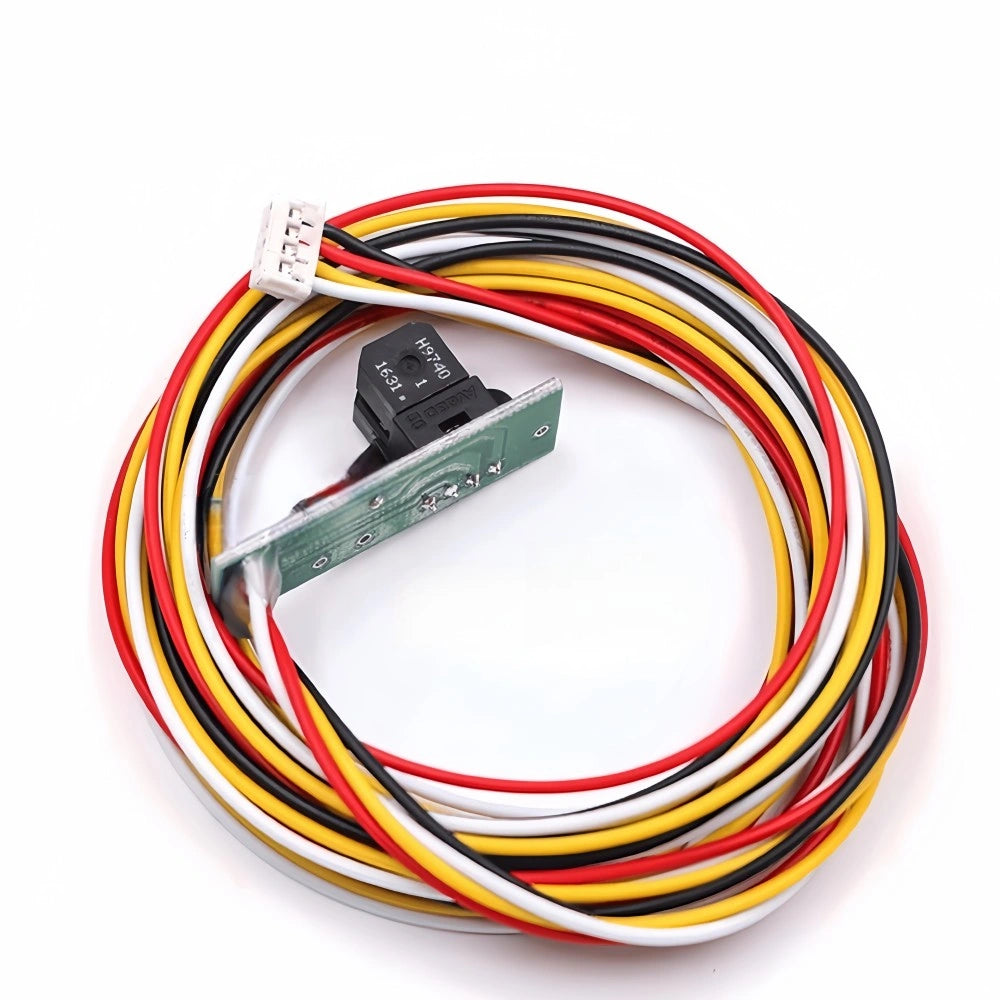

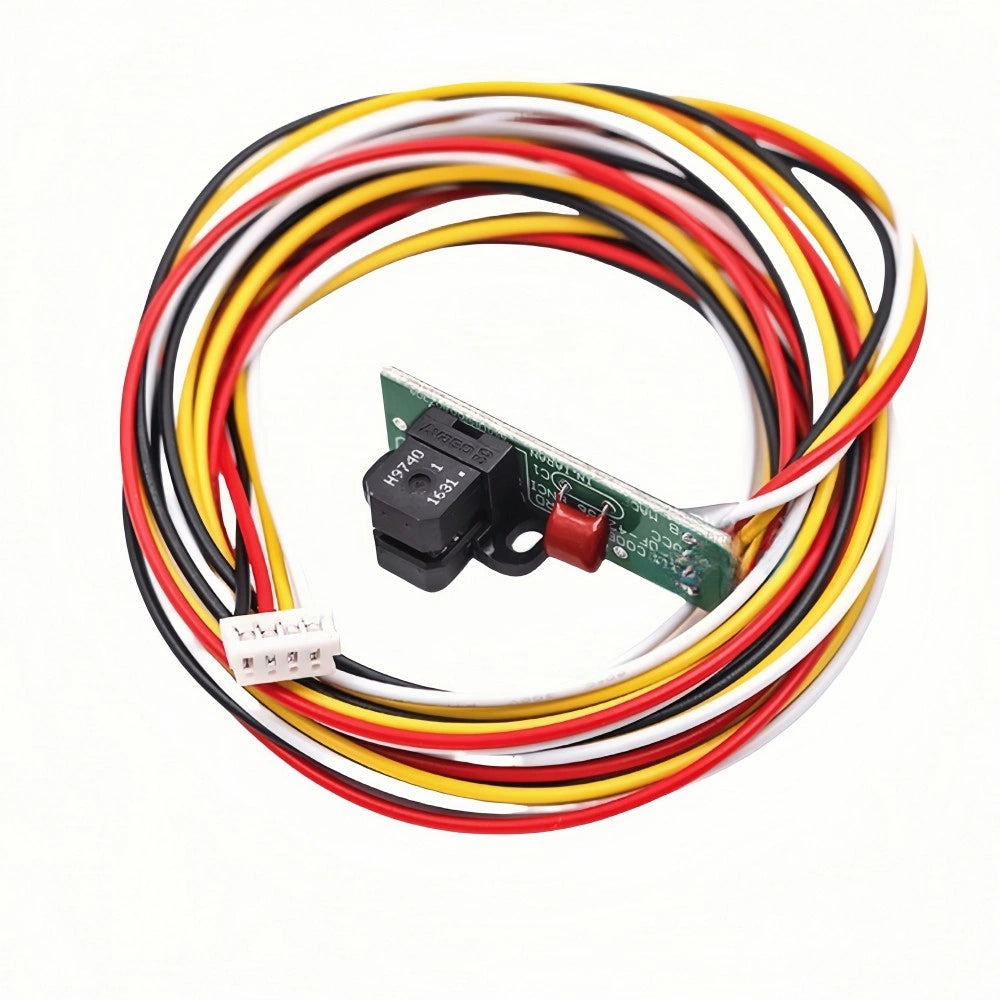

xEncoder Sensor H9740 (1631) – For Mutoh VJ-1604 Series
Product Overview
The H9740 (1631) Encoder Sensor is a high-precision optical disk decoder designed for Mutoh VJ-1604 and similar printer models. It delivers accurate carriage position feedback and smooth printing control, ensuring excellent image alignment and printhead movement stability.
Key Features
- Specifically compatible with Mutoh VJ-1604 / RJ-8000 / RJ-8100 / VJ-1624 series.
- Accurate 360 LPI optical resolution for stable signal feedback.
- Available with different cable lengths for flexible printer installation.
- Provides strong resistance to vibration and environmental interference.
- Ensures long-term consistent performance with industrial-grade PCB design.
Technical Specifications
| Model | H9740 (1631) |
| Working Voltage | DC 5V |
| Optical Resolution | 360 LPI |
| Signal Output | A/B Dual Channel |
| Cable Length Options | 55cm / 1.3m |
| Compatible Models | Mutoh VJ-1604 / RJ-8000 / RJ-8100 / R-H2 / VJ-1624 and similar printers |
Version Comparison
| Version | Description | Recommended Use |
|---|---|---|
| Short Cable 55CM – H9740 Optical Disk Decoder | Compact version with 55cm cable for standard Mutoh printer layouts. | Ideal for typical Mutoh VJ-1604 installation distance. |
| Long Cable 1.3M – H9740 Optical Disk Decoder | Extended 1.3m cable version suitable for larger printer frames. | Recommended for long-body or modified machine setups. |
| Short Cable 55CM + H9730 Optical Strip Decoder | Alternative model with H9730 optical strip sensor head. | For printers using hybrid decoding systems. |
Installation Notes
- Power off the printer before installing or replacing the sensor.
- Align the sensor slot with the encoder strip and secure the position.
- Maintain a 0.3–0.6mm gap between the optical head and the strip.
- Ensure the encoder strip is clean and free of dust or fingerprints.
Note: The H9740 (1631) encoder sensor ensures high decoding precision and long-term reliability for Mutoh VJ-1604 series printers. Choose the cable length according to your printer’s internal wiring layout.
