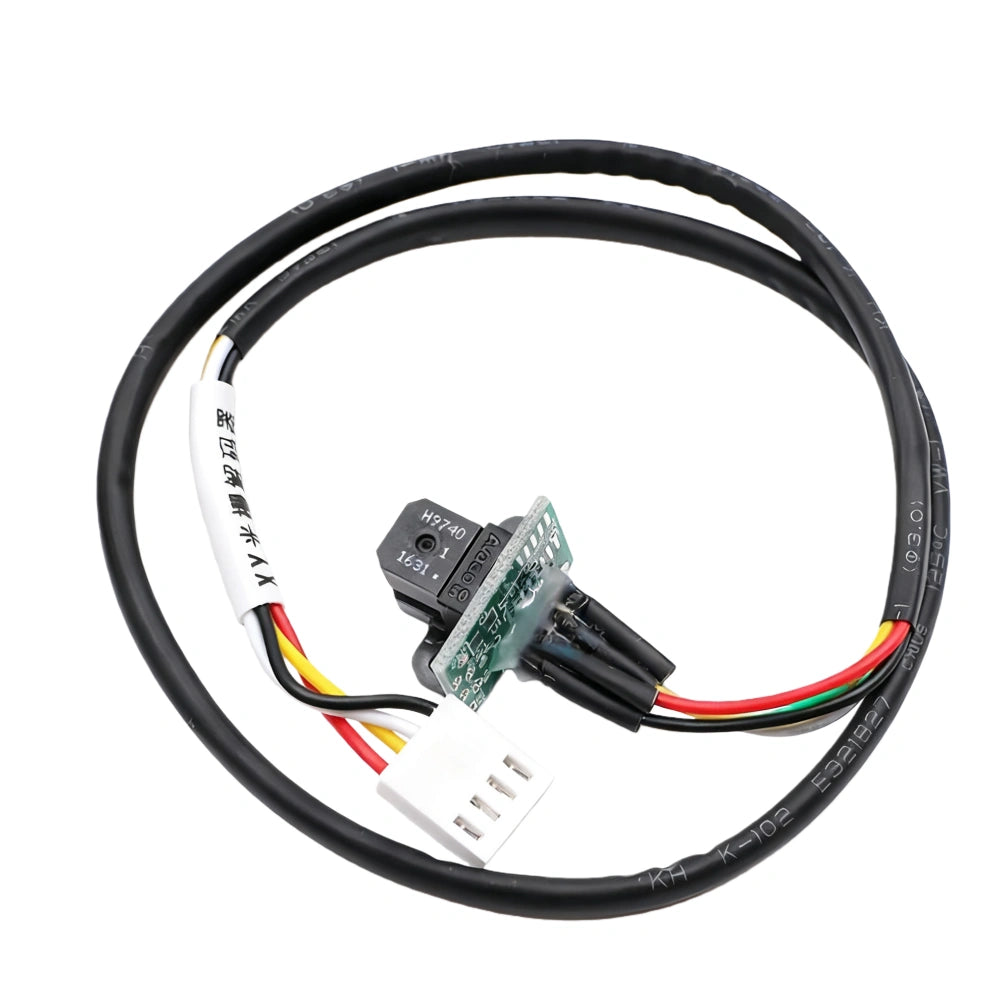

xEncoder Sensor H9740 (1732) – For Seiko 508GS Printhead Printers
Product Overview

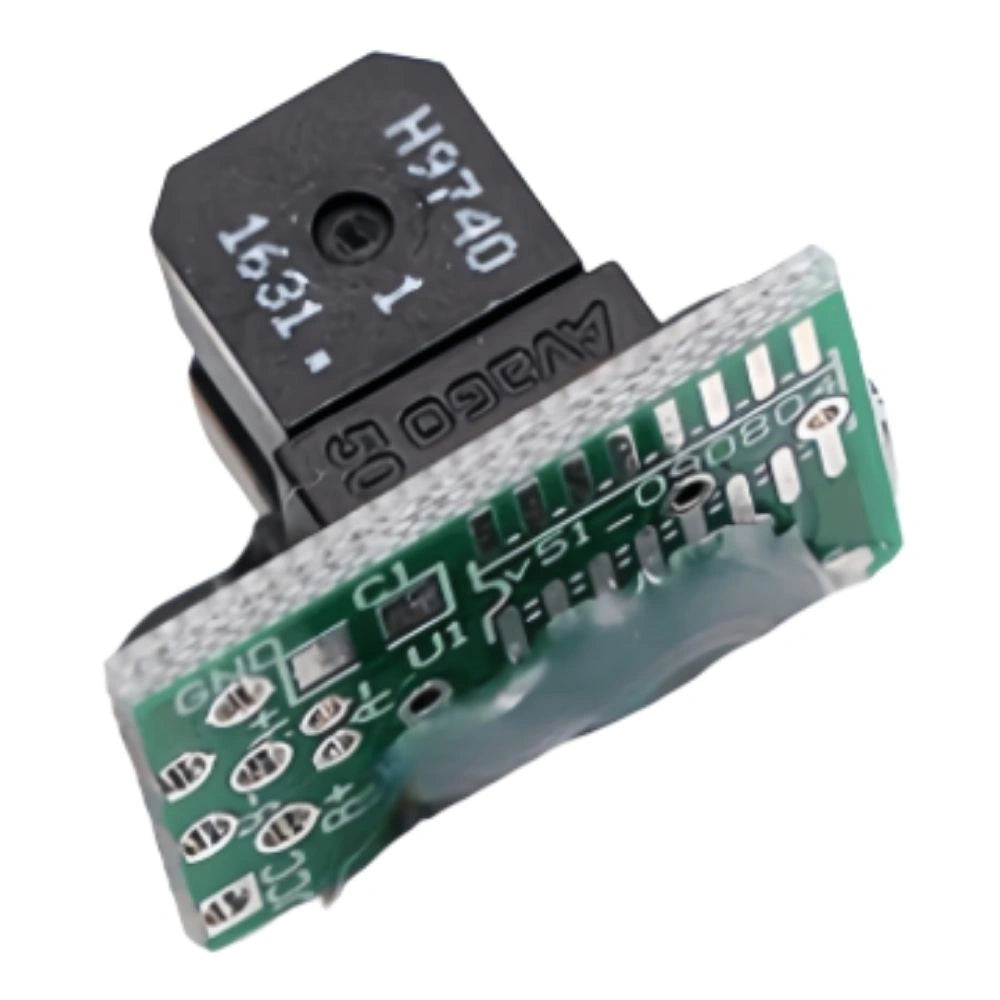

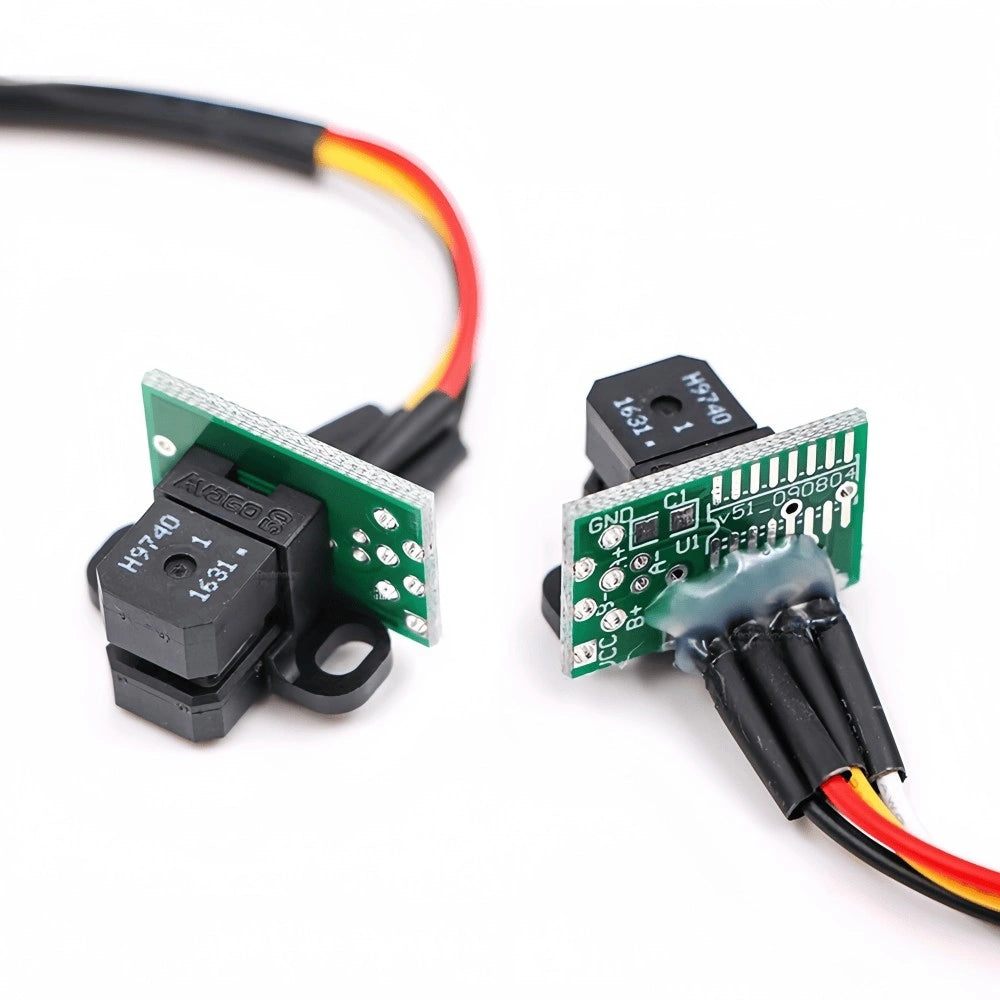

The H9740 (1732) Encoder Sensor is a high-precision optical decoding component designed for Seiko 508GS printhead printers and Jinghui 7000 series machines. It accurately detects carriage motion and provides stable signal feedback to ensure high-resolution printing and consistent alignment during high-speed operation.
Key Features
- Specially designed for Seiko 508GS and Jinghui 7000 large-format printers.
- High-precision H9740 optical reading head for reliable decoding.
- Available with large or small 4-pin connector for compatibility with different wiring systems.
- Supports stable performance in UV, solvent, and eco-solvent printing environments.
- Durable PCB and connector design ensures long service life and stable signal output.
Technical Specifications
| Model | H9740 (1732) |
| Working Voltage | DC 5V |
| Optical Resolution | 360 LPI |
| Signal Output | Dual A/B Channel |
| Connector Type | 4-Pin Large / 4-Pin Small |
| Compatible Printers | Jinghui 7000 / Seiko 508GS / FY-3200AT / 360 LPI Series Printers |
Version Comparison
| Version | Description | Recommended Use |
|---|---|---|

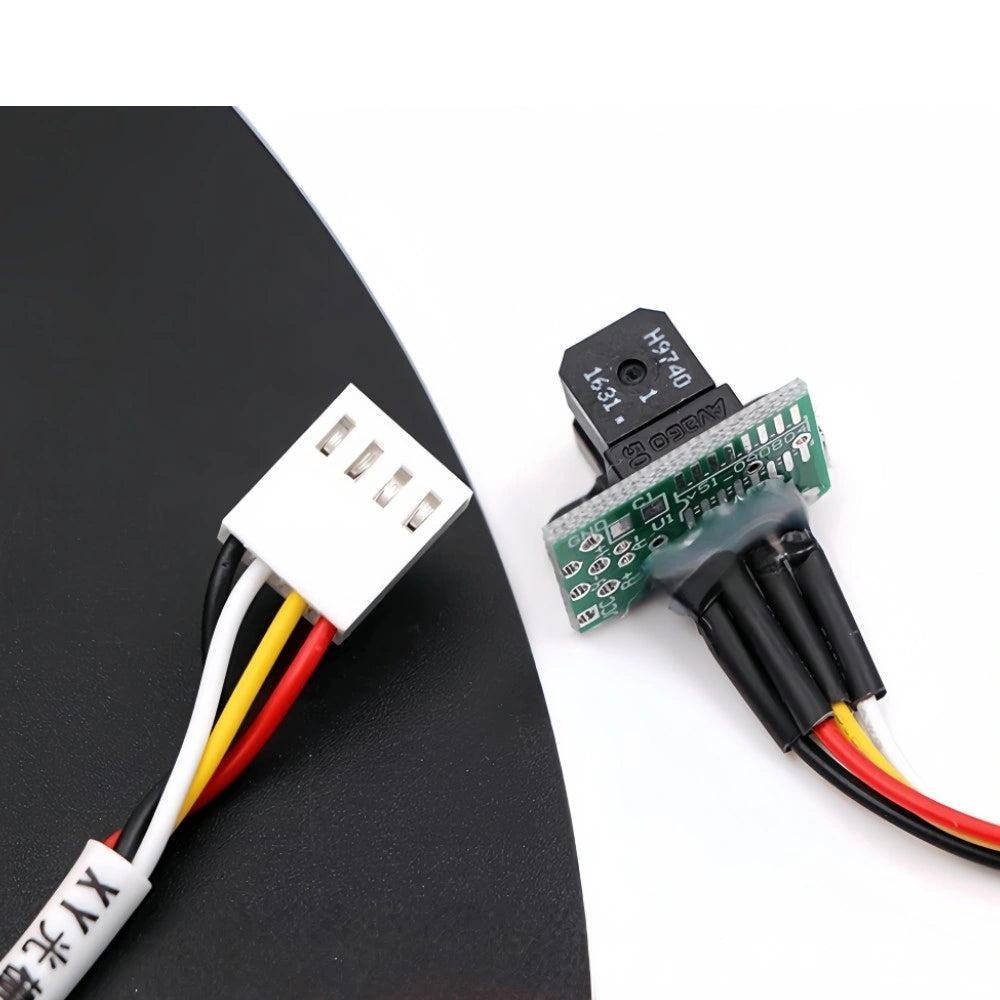

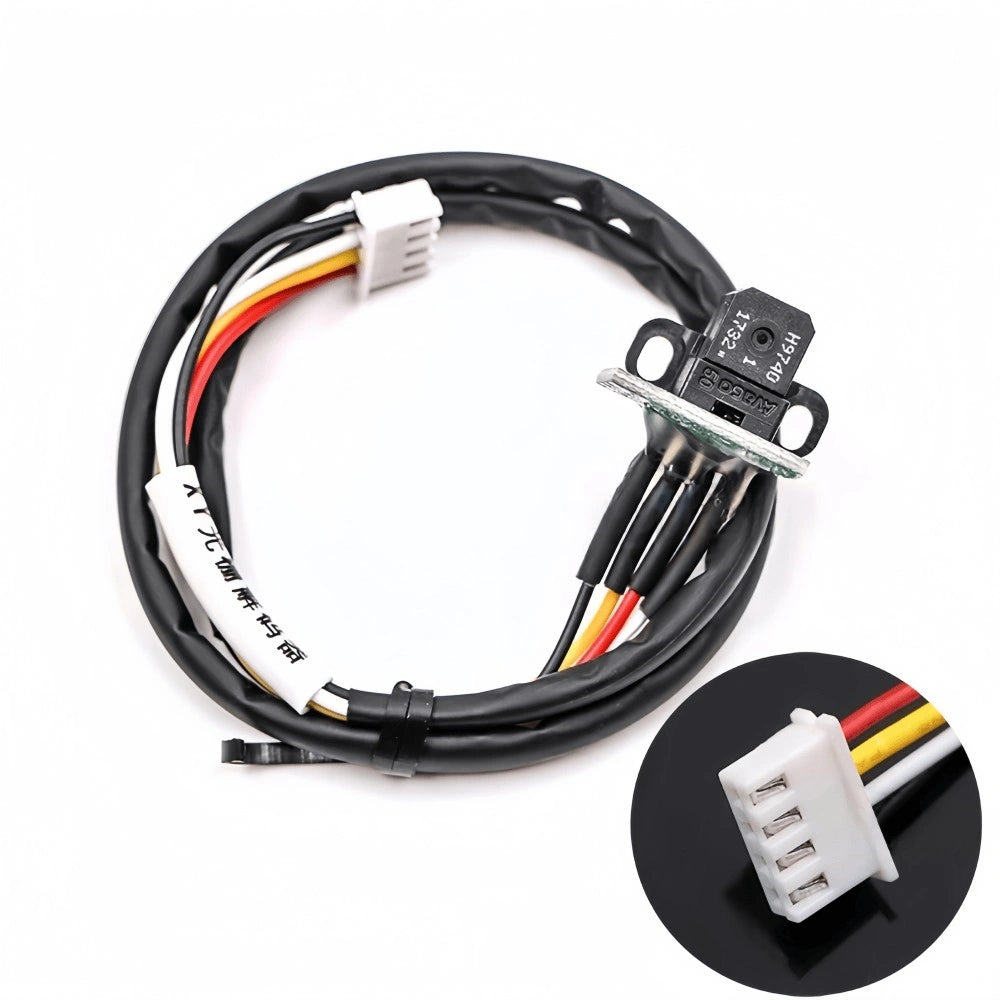

| 4-Pin Large Connector | Standard large connector design, compatible with most Seiko 508GS printers. | Recommended for standard printhead carriages and wiring setups. |
| 4-Pin Small Connector | Compact connector version for printers with limited space or smaller cable ports. | Ideal for machines requiring tight cable routing. |
Installation Notes
- Power off the printer before installing or replacing the sensor.
- Align the optical slot with the encoder strip for accurate signal reading.
- Keep the encoder strip surface clean to avoid interference during printing.
- Check connector type carefully before installation (large or small 4-pin).
Note: The H9740 (1732) encoder sensor offers precise decoding and stable performance for Seiko 508GS and similar large-format printers. Select the correct connector type based on your printer model.
