xProduct Overview

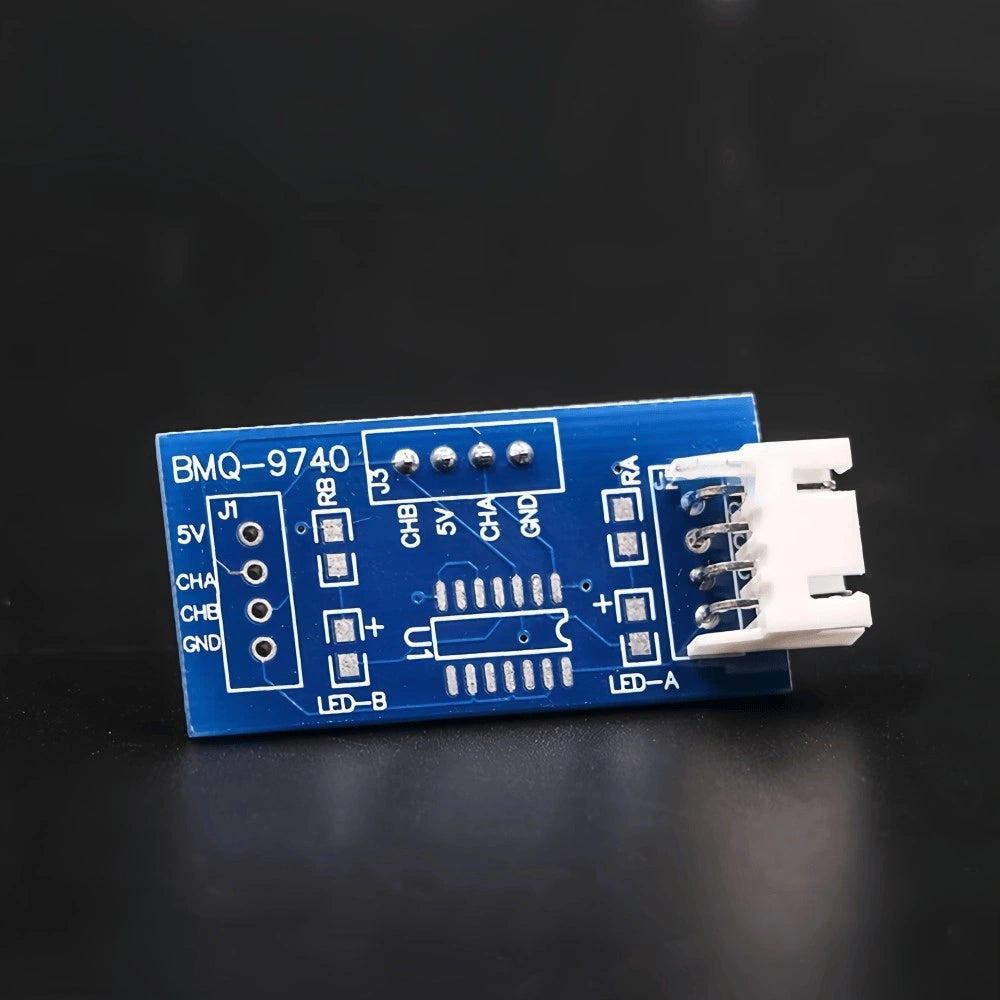

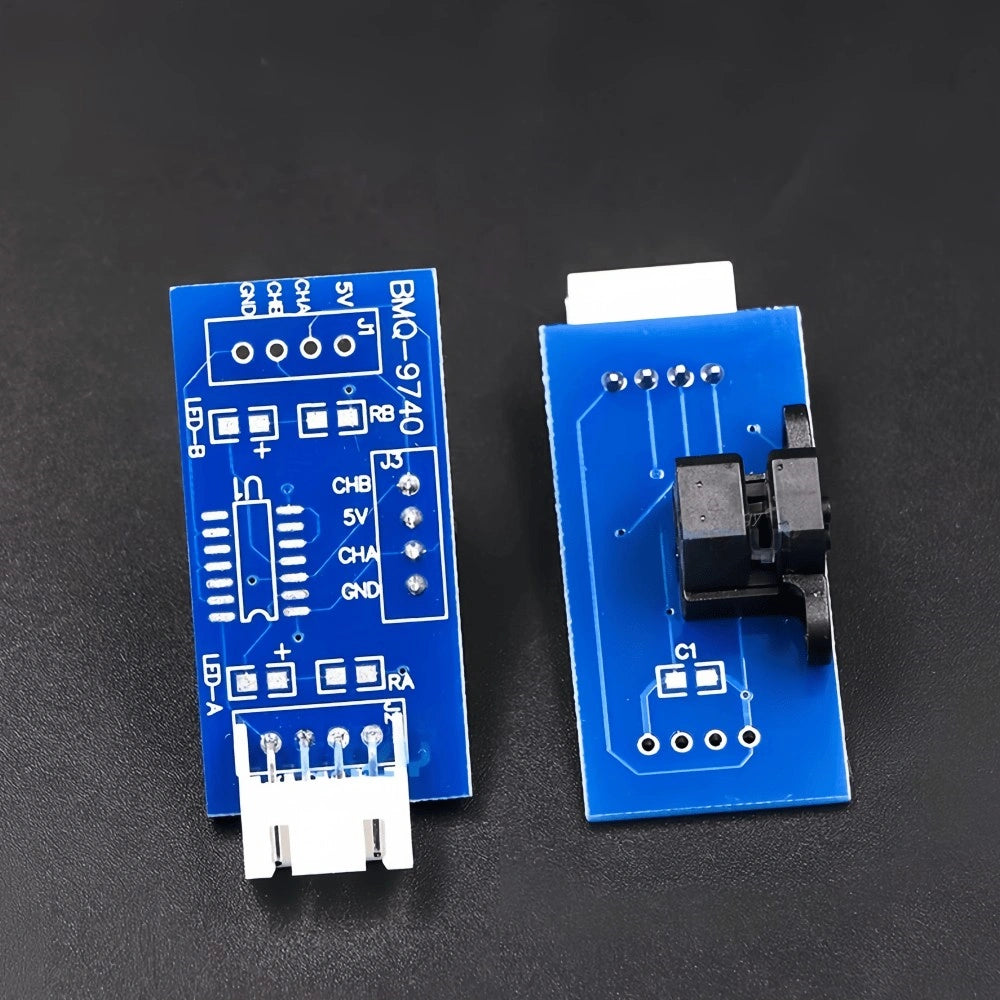

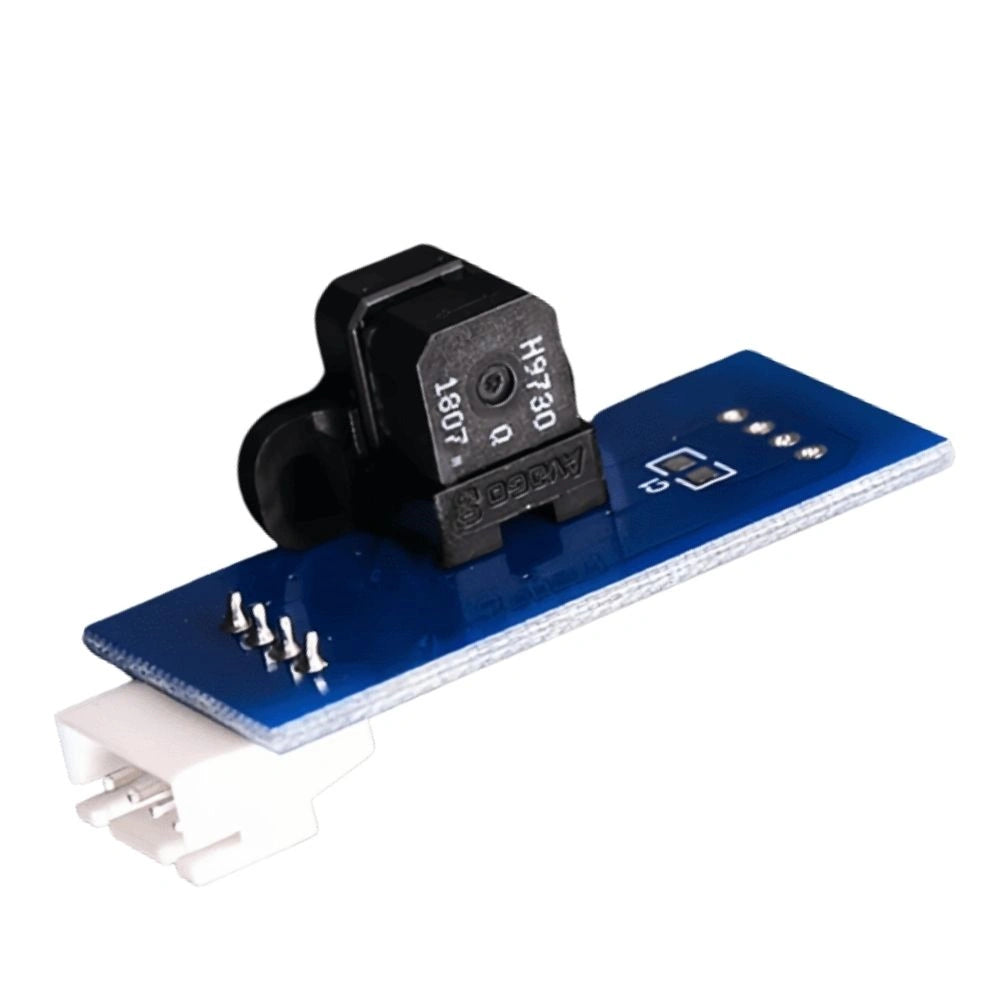

The H9730 Encoder Sensor is a precise optical decoding module designed for UV flatbed printers and large-format machines using Konica 512/512i printheads. It accurately detects carriage motion and converts mechanical movement into stable electrical signals, ensuring smooth and consistent image output.
Key Features
- High-sensitivity optical decoder chip for stable performance.
- Supports dual-channel signal output for accurate positioning.
- Durable PCB design with strong anti-interference capability.
- Optional cable and board upgrade for flexible installation.
- Compatible with 4-pin and 6-pin connector interfaces.
Technical Specifications
| Model | H9730 (1732) |
| Voltage | DC 5V ±10% |
| Signal Output | Dual A/B Channel |
| Connector | 4-Pin / 6-Pin Square Plug |
| Optical Resolution | 360 LPI |
| Compatible Printers | Dongchuan, Konica 512 / 512i, FY-3200AT, and similar UV printers |
Version Comparison
| Version | Description | Recommended Use |
|---|---|---|
| H9730 Model (4-Pin Square) | Standard optical sensor board with 4-pin connector for precise carriage detection. | Ideal for standard UV printers using H9730 sensors. |
| H9730 Model (4-Pin Square) with Cable | Includes a durable connection cable for easy plug-and-play installation. | Recommended for quick replacement and easy maintenance. |
| New Version H9730 Complete Set with Cable and Board (6-Pin Square) | Upgraded 6-pin version with enhanced signal board and cable for superior stability and accuracy. | Best for high-speed UV flatbed printers requiring stronger signal reliability. |
Installation Notes
- Power off the printer before replacing or installing the encoder sensor.
- Align the sensor slot accurately with the encoder strip during mounting.
- Secure all cables to prevent tension or bending near connectors.
- Ensure the encoder strip is clean and scratch-free for optimal detection.
Note: The H9730 (1732) Encoder Sensor delivers stable signal decoding, long lifespan, and high precision—ideal for UV printers and flatbed printing systems.
