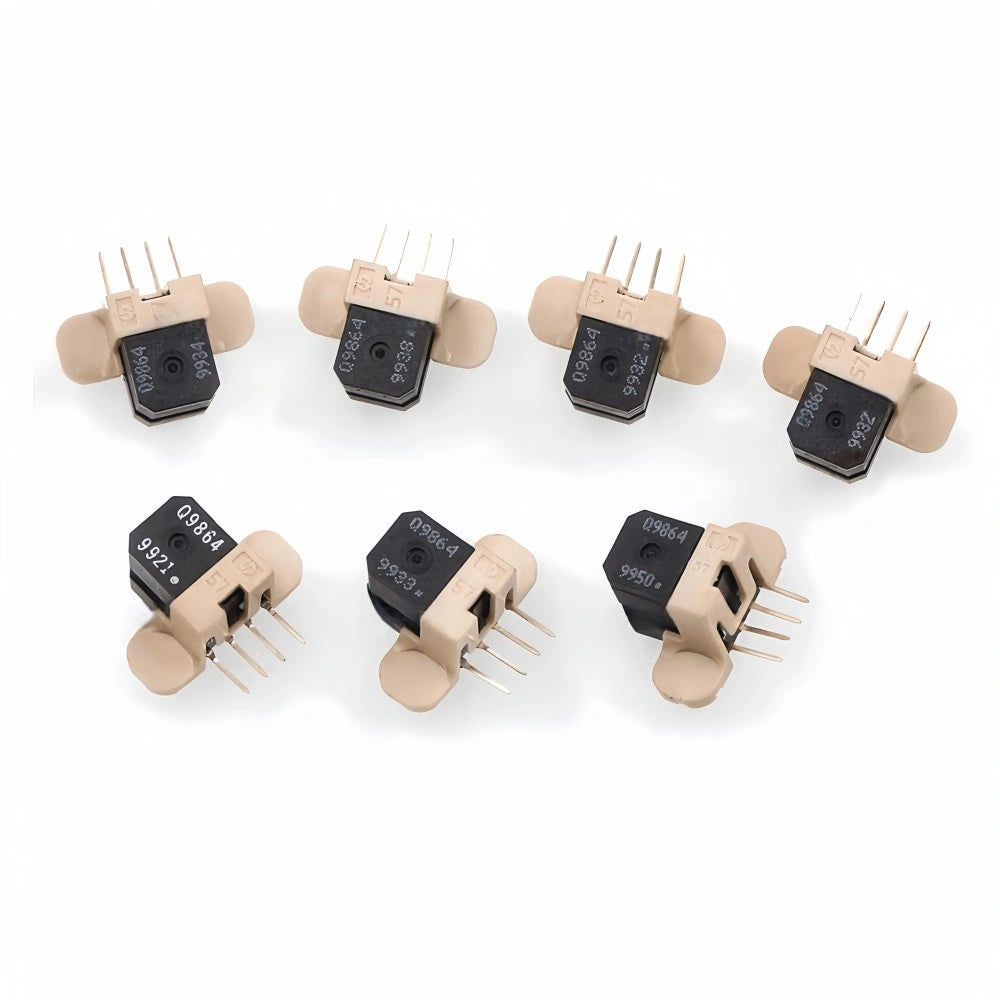

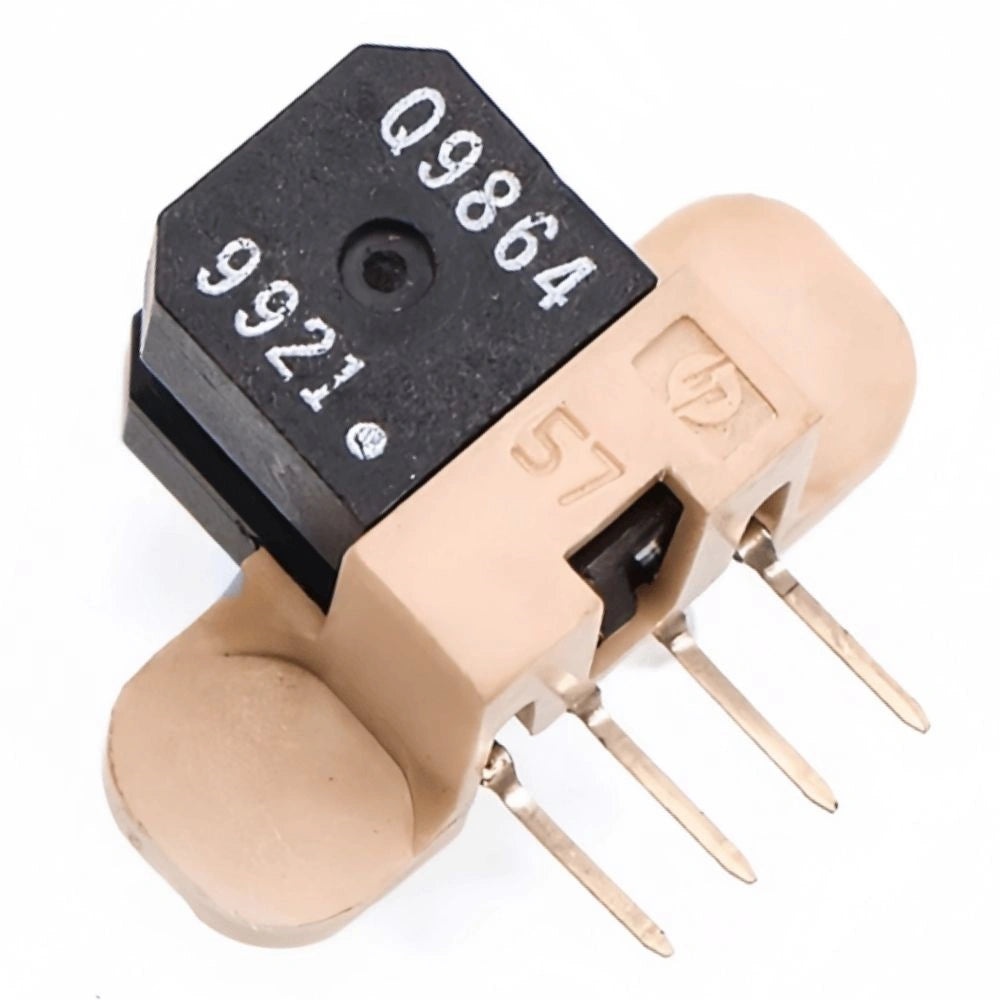

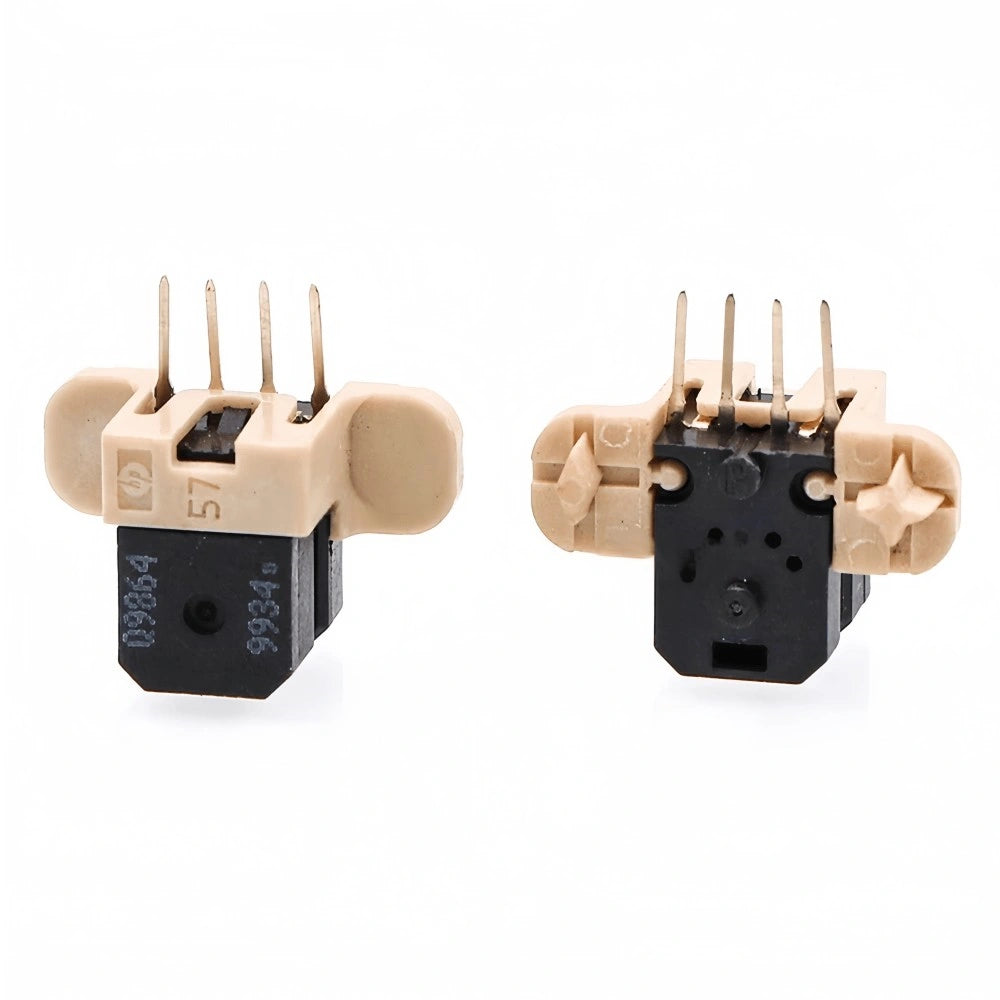

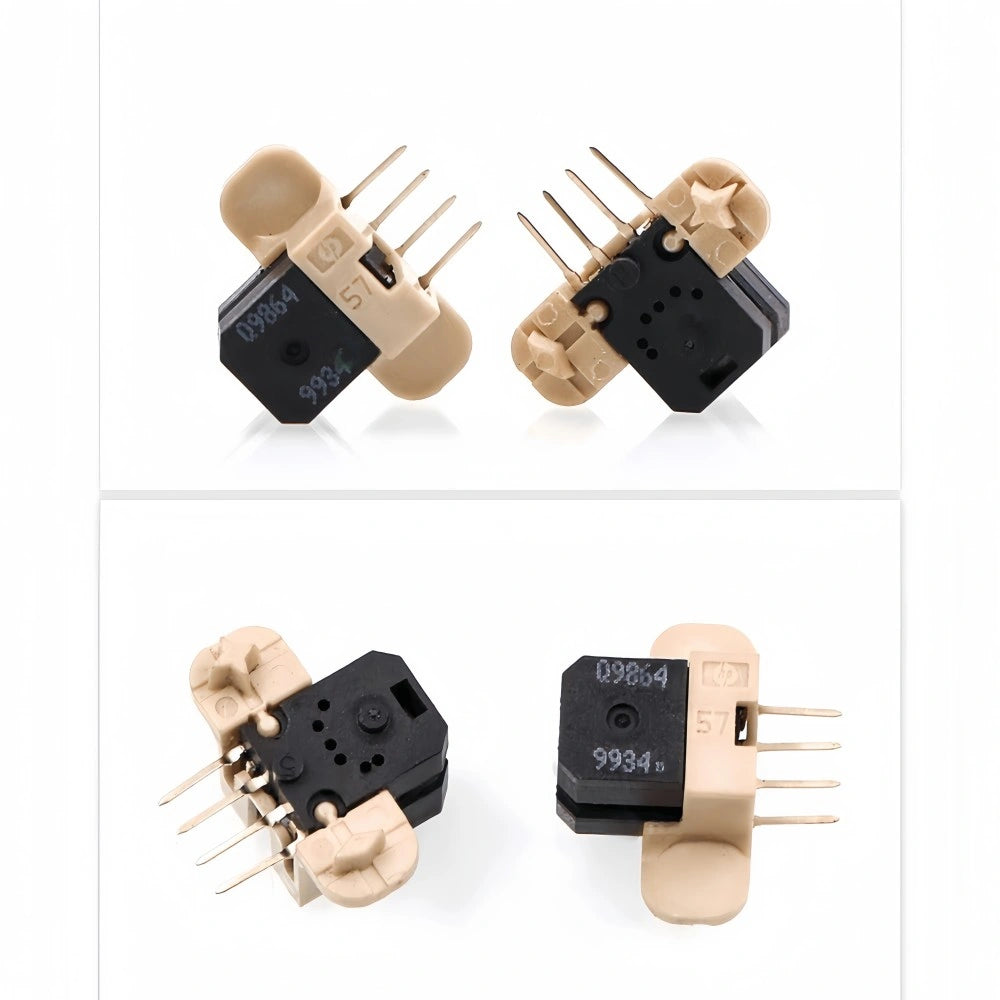

The Q9864#57 optical raster sensor is a precision encoder read head designed for 120LPI linear raster decoding systems, widely used in inkjet printers, photo plotters, and UV flatbed printers. Manufactured with durable materials and high-temperature-resistant plastic housing, this sensor offers stable and long-lasting performance in high-speed printing environments.

Each unit features a compact 4-pin interface and is compatible with a wide range of raster scale widths and decoding boards. The Q9864 sensor reads light through a precision slit and outputs high-fidelity encoder signals to control carriage positioning.

Key Features:

  • Model: Q9864#57

  • 120LPI (lines per inch) raster compatibility

  • 4-pin interface (CH B, VCC, CH A, GND)

  • Compact and durable housing with stable signal output

  • Designed for decoding linear optical strips

  • Easy integration with encoder boards and motion control systems

Specifications:

  • Application: Raster decoding for 120LPI systems

  • Wiring: 1—CH B, 2—VCC, 3—CH A, 4—GND

  • Size: Miniature format for space-saving installations

  • Color: Beige & black housing

  • Optional matching encoder strips available (custom lengths/widths)

Compatible With:

  • Inkjet printers

  • Eco-solvent photo plotters

  • UV flatbed printers

  • Digital signage machines and X-axis carriage motion control systems
