Description

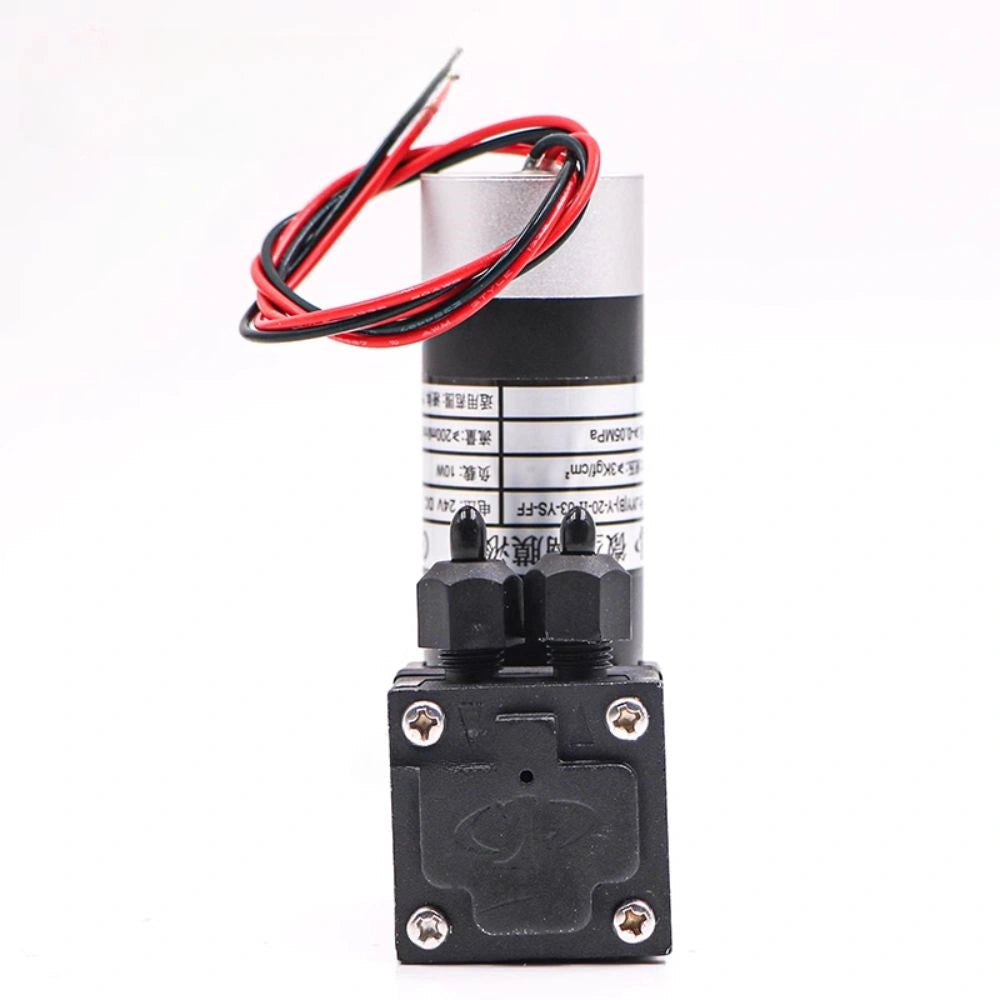

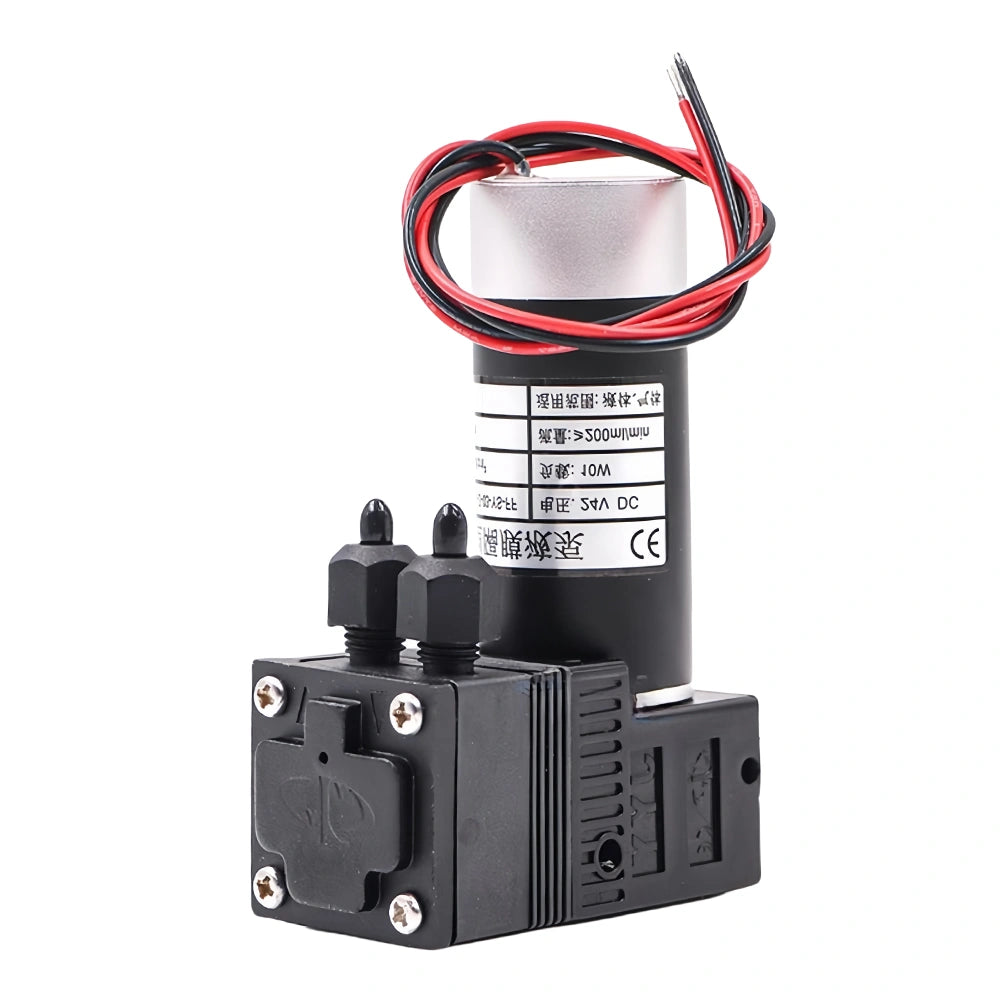

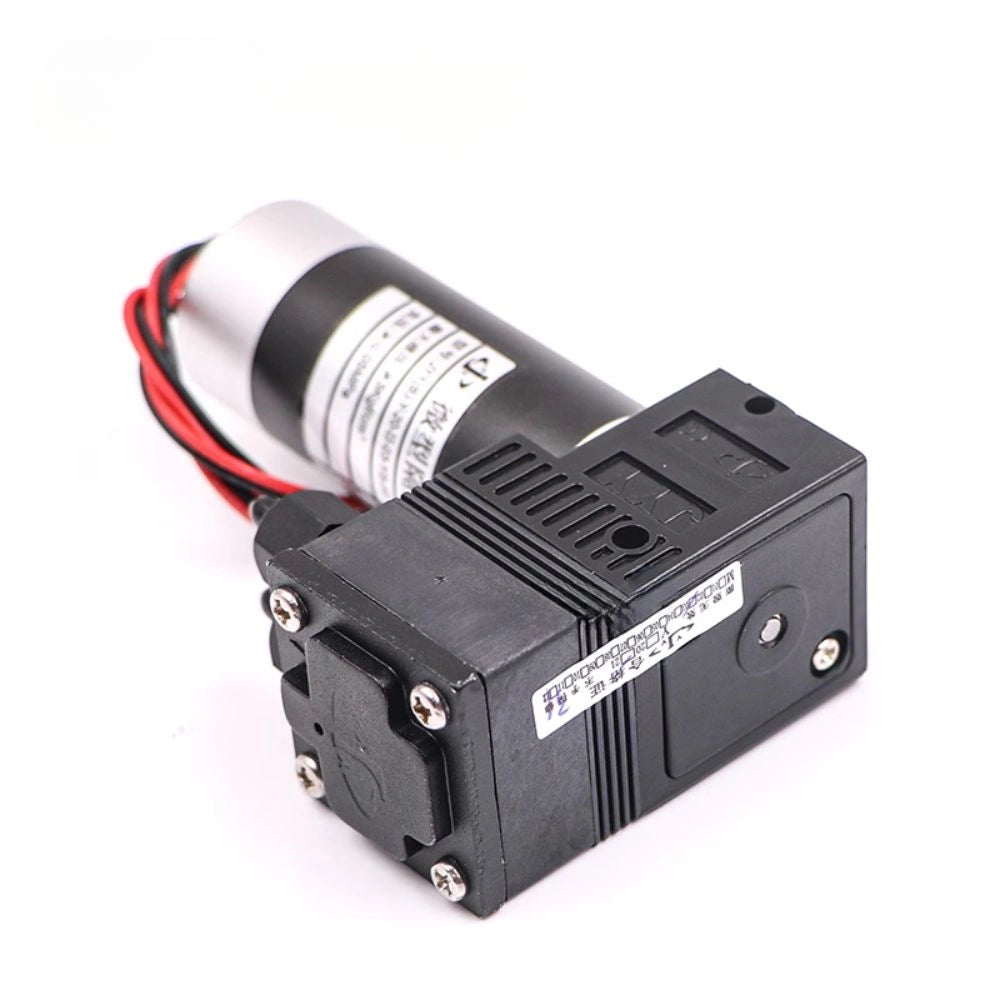

xThe JYY(B)-Y-20-II-03-YS-FF is a high-pressure micro diaphragm pump engineered for precision ink delivery and air transfer in industrial coding machines, UV flatbed printers, and inkjet systems. Operating at 24V DC and 10W, this model supports a liquid flow rate ≥200ml/min and handles liquid pressure ≥3kgf/cm², making it especially suitable for ceramic ink, UV white ink, or other viscous fluids requiring reliable delivery under pressure.
This model integrates a reinforced pump head, dual ink ports, and compact body optimized for embedded or replacement use. Its advanced construction ensures durability in continuous, high-volume operation environments.
Specifications:
-
Model: JYY(B)-Y-20-II-03-YS-FF
-
Voltage: 24V DC
-
Power: 10W
-
Flow Rate: ≥200ml/min
-
Max Pressure: ≥3 kgf/cm²
-
Medium: UV ink, ceramic ink, solvent, water, air
-
Applications: Coding machines, UV printers, ceramic printing systems
-
Features: High-pressure output, low-noise design, durable ceramic-compatible build
Key Features:
-
10W high-efficiency motor for stronger fluid delivery
-
Excellent compatibility with high-viscosity media (e.g., white or ceramic inks)
-
Sealed and durable for long-term use
-
Supports liquid and air pumping with stable performance
-
Trusted by industrial coding and UV print systems
