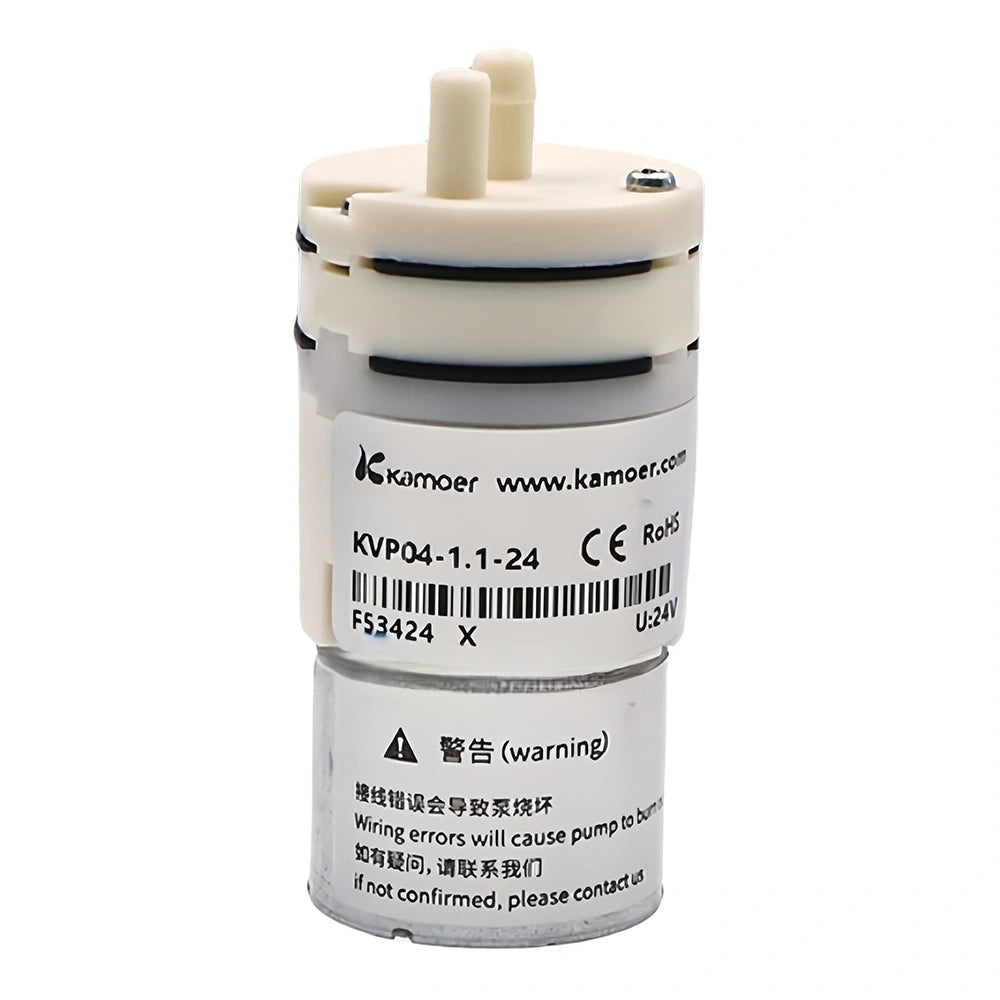

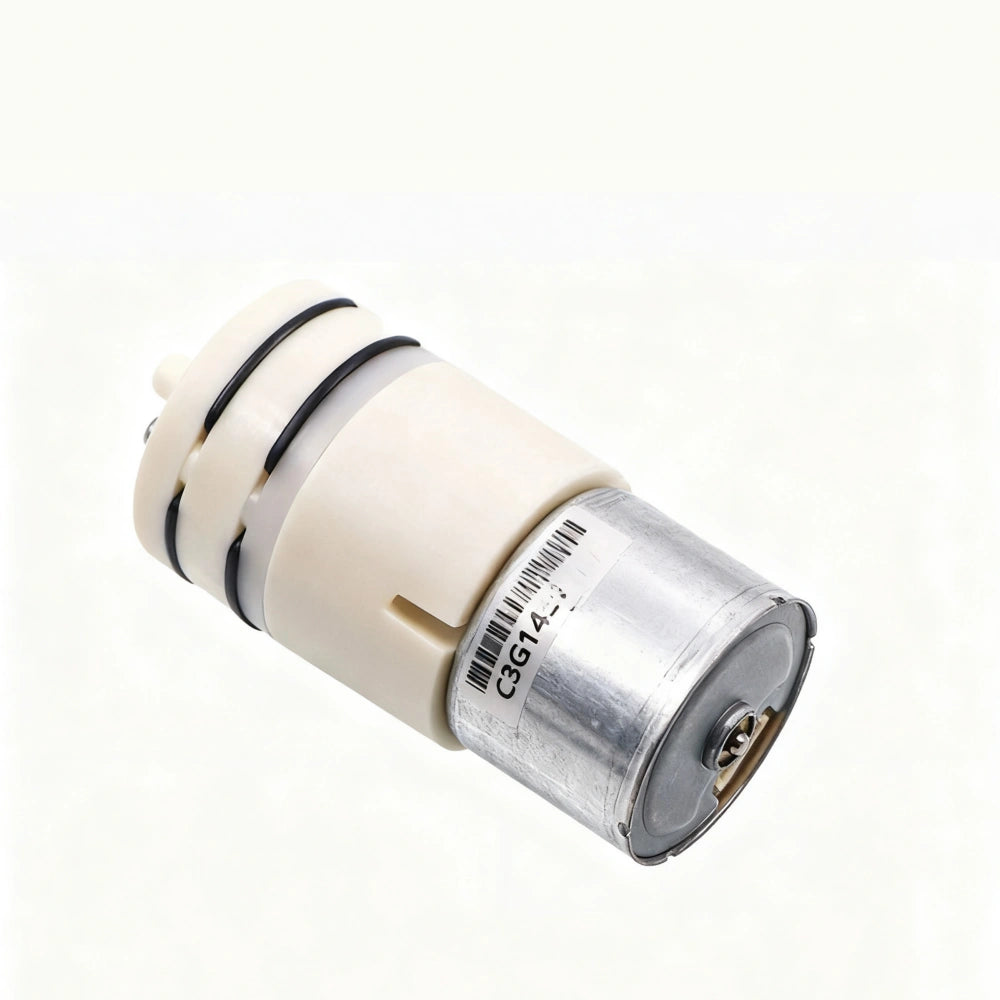

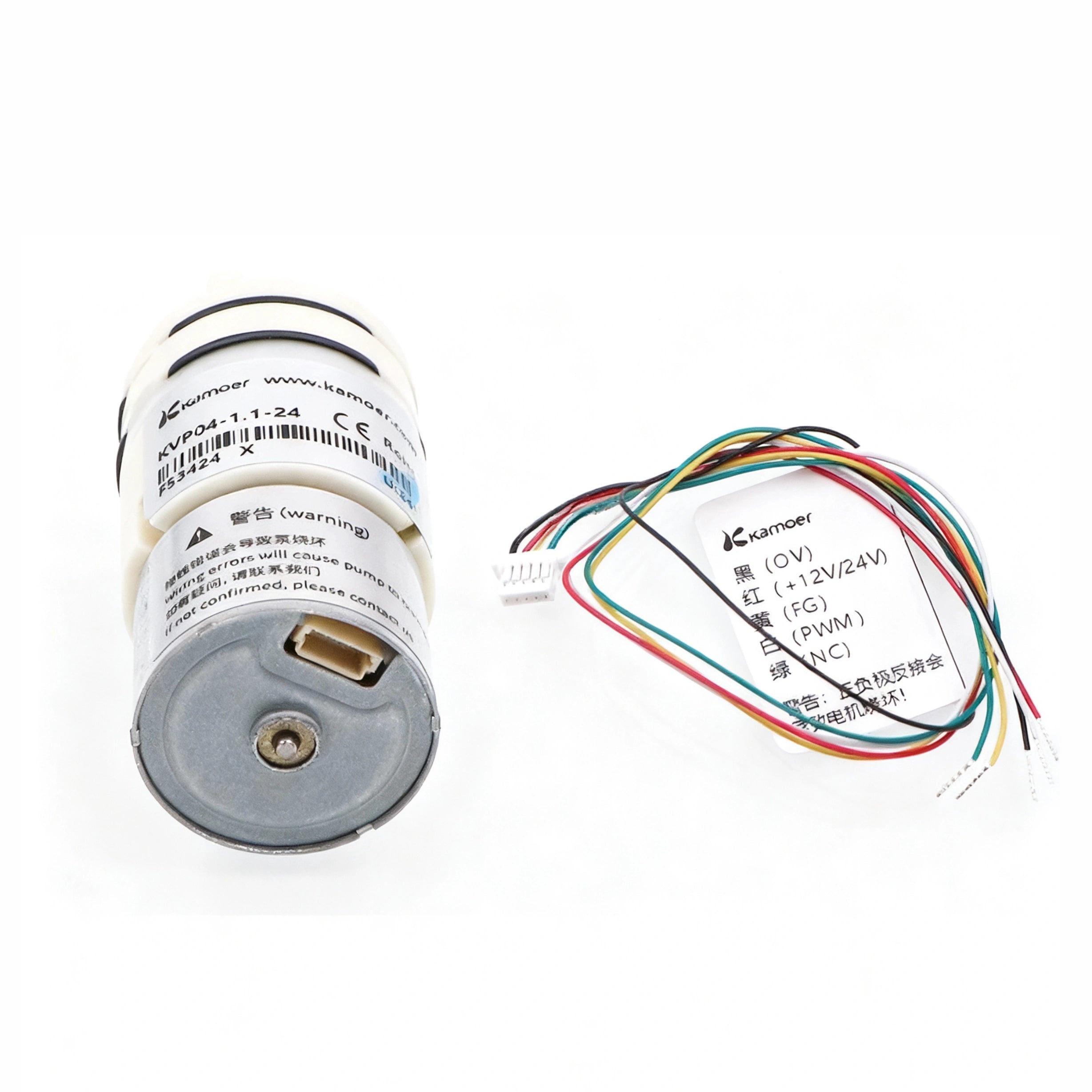

xThe Kamoer KVP04-1.1-24 is a high-precision miniature diaphragm vacuum pump with a brushless DC motor, delivering reliable and silent operation for applications in inkjet printers, coding machines, and spray systems.
With its compact size and strong negative pressure performance (≥ -0.04MPa), the pump supports a flow rate of up to 1.1L/min and maximum pressure of 90kPa, making it ideal for ink recovery, pressure stabilization, or air handling in professional digital printing equipment.
Built with EPDM diaphragm material, this model offers excellent resistance to chemicals and ensures long-term stability. The tested motor lifespan exceeds 3000 hours in continuous operation, which makes it highly durable in demanding industrial environments.
Specifications:
-
Model: KVP04-1.1-24
-
Voltage: 24V DC
-
Motor Type: Brushless DC
-
Positive Pressure: ≥ 0.09 MPa
-
Negative Pressure: ≥ -0.04 MPa
-
Max Flow Rate: 1.1L/min
-
Material: EPDM diaphragm
-
Lifespan: ≥ 3000 hours (tested)
-
Application: Inkjet printers, coding machines, spray systems, lab instruments, UV flatbed printers
Key Features:
-
Compact and lightweight with high performance
-
Quiet, vibration-free operation
-
EPDM diaphragm for excellent chemical resistance
-
Clearly labeled ports (IN/OUT) for easy integration
-
Durable brushless motor with long service life
-
Widely compatible with solvent, UV, and water-based ink systems
