Description
xProduct Overview

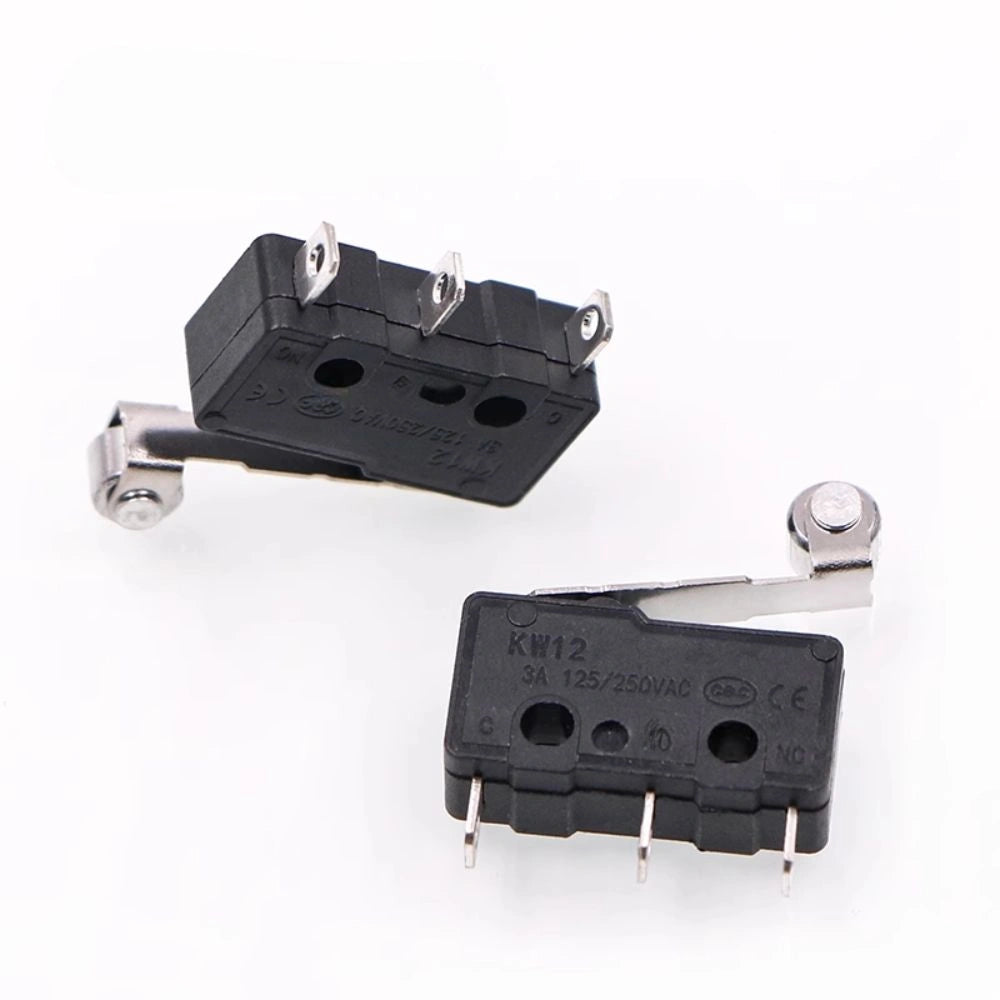

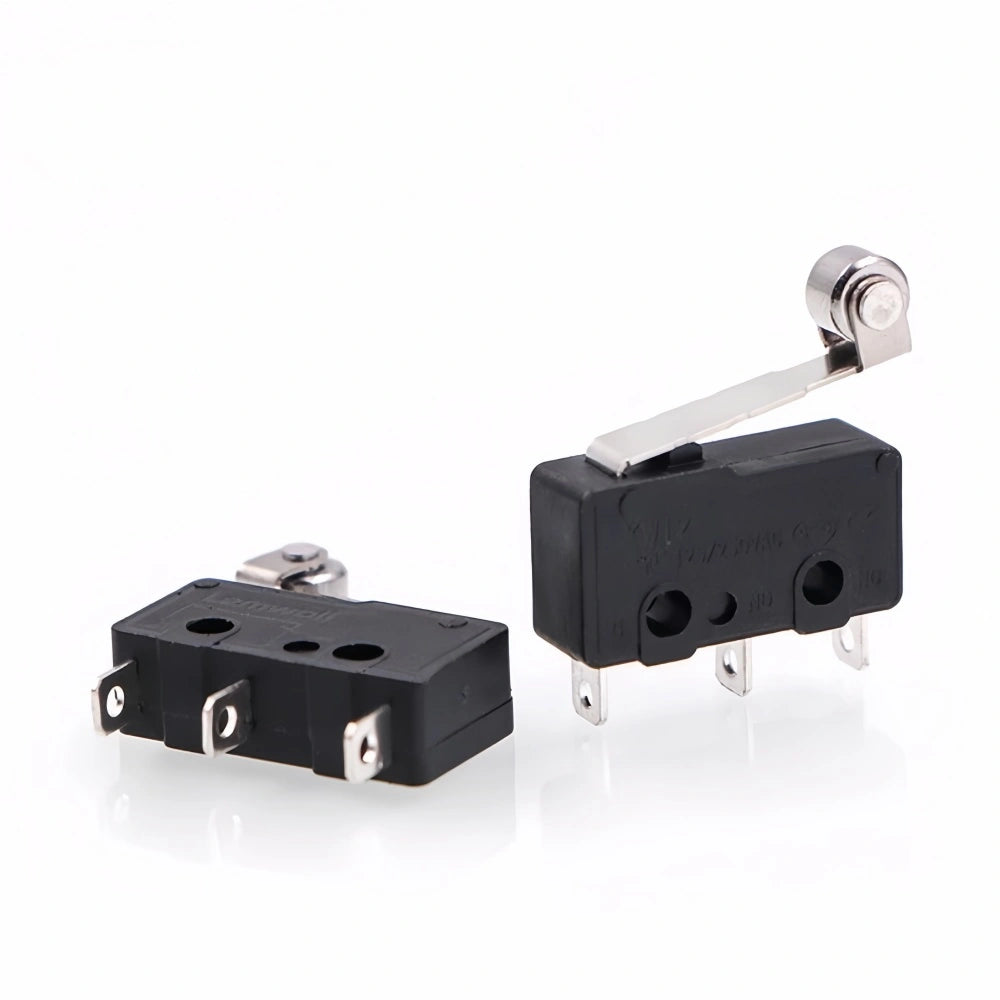

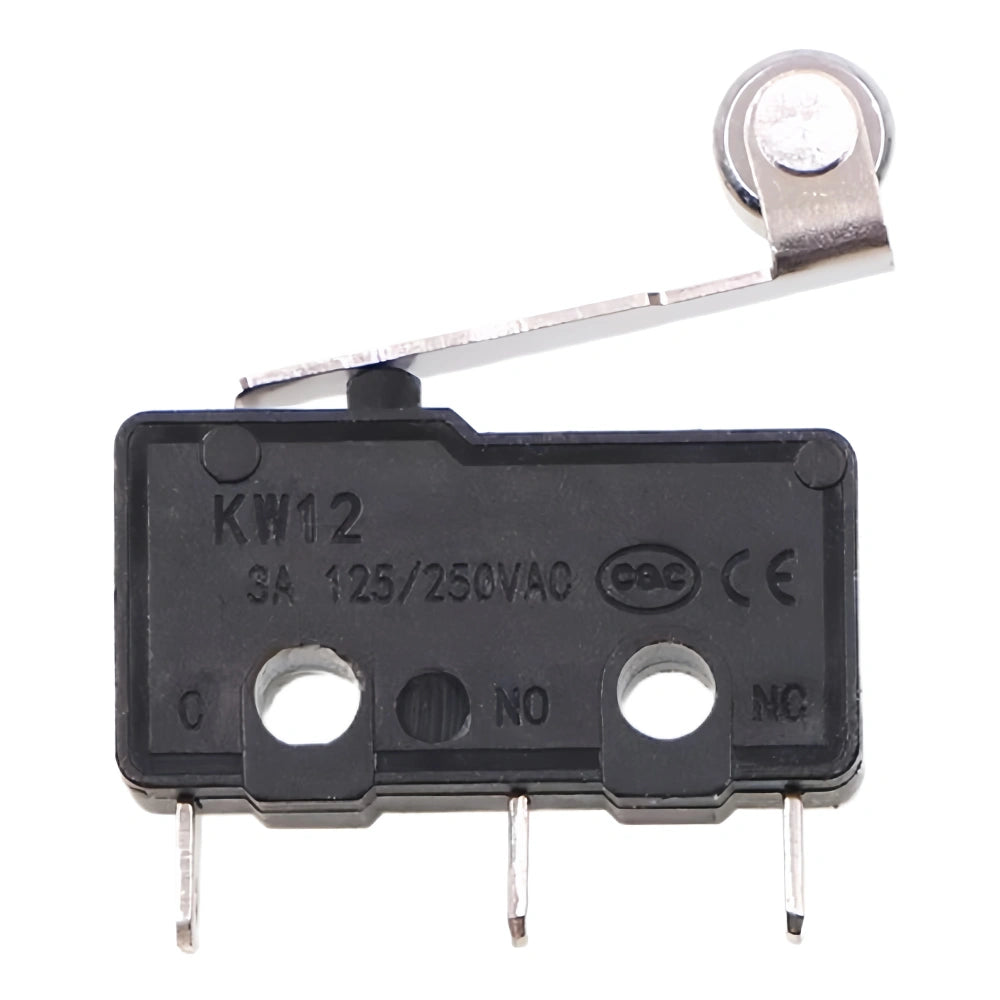

The KW12 Micro Limit Switch is designed for precise position detection and motion control in inkjet, UV flatbed, and large-format printers. Built with high-quality conductive materials and dust-proof insulation, it ensures stable performance and extended service life under continuous operation.
Key Features
- Quick response and reliable mechanical contact
- Dust-proof insulation for long-term durability
- Strong electrical conductivity and corrosion resistance
- Compact structure, easy to install and replace
- Ideal for various printing and automation systems
Technical Specifications
| Parameter | Value |
|---|---|
| Model | KW12 |
| Contact Type | Normally Open / Normally Closed |
| Rated Voltage | 125/250 V AC, 3 A |
| Lever Type | 3-Pin with Roller Lever |
| Lever Length | 19 mm |
| Material | High-strength plastic shell and metal roller arm |
| Mounting Type | Through-hole mounting |
Applications
- Inkjet printers
- UV flatbed printers
- Large-format printing machines
- Automation equipment requiring motion limit control
Installation & Notes
- Ensure power is disconnected before replacement or wiring.
- Align the roller lever with the moving part of the carriage or mechanical arm.
- Test for correct open/close operation before restarting the printer.
Note: Avoid exposure to excessive moisture or corrosive environments to extend product lifespan.
Package Contents
- 1 × KW12 Micro Limit Switch (3-pin, 19 mm roller lever)
