xProduct Overview

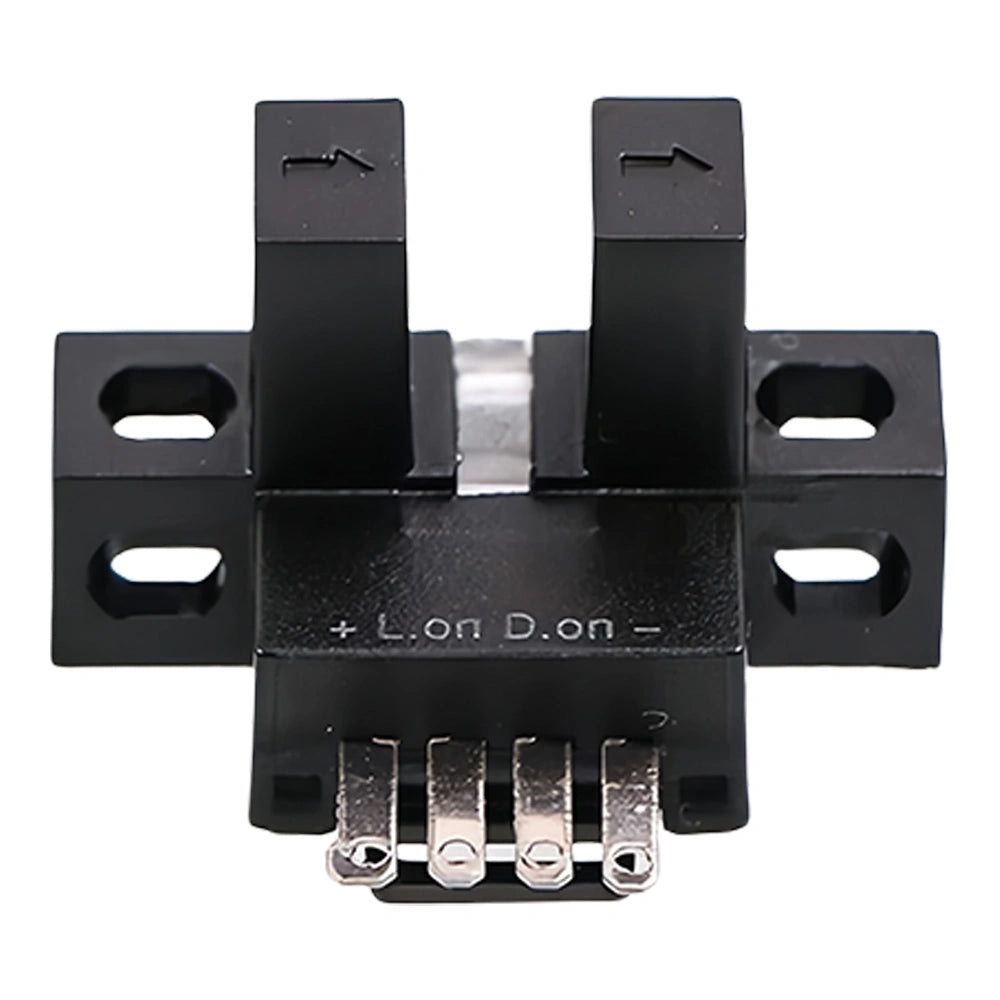

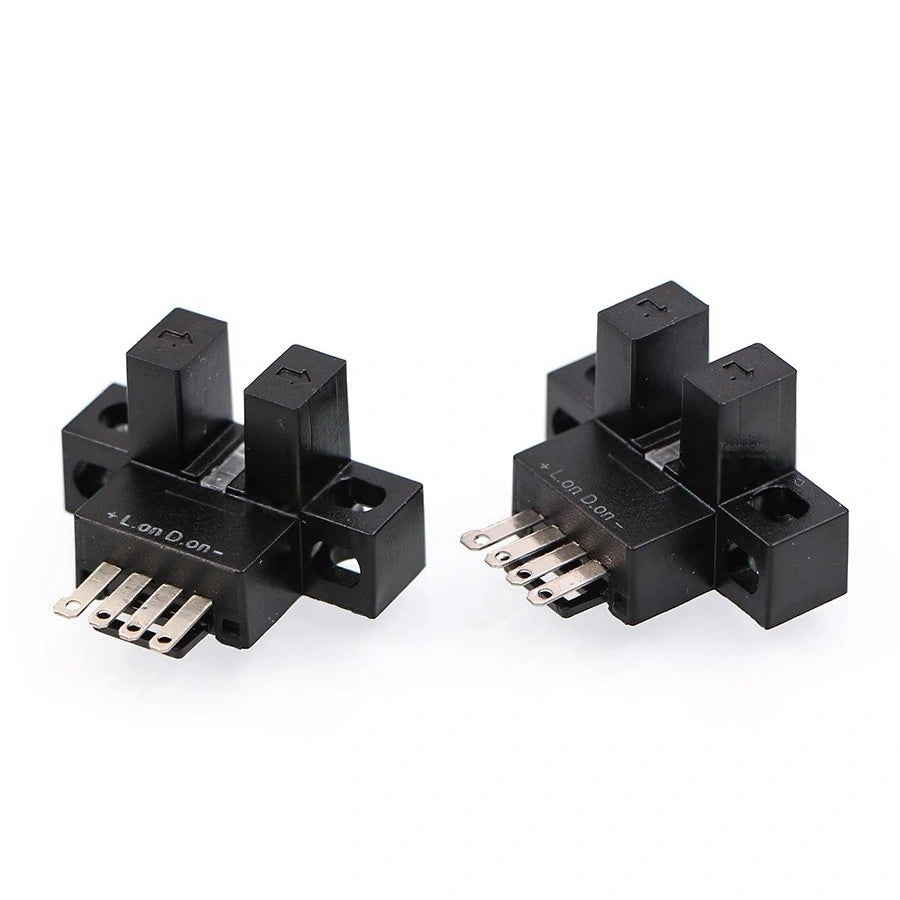

The SL-305NA-E Optical Limit Switch is a compact and high-precision photointerrupter sensor designed for UV, inkjet, and large-format printers. It offers fast response and stable signal detection to ensure accurate carriage positioning and reliable printer operation. Built with durable materials, this model is ideal for long-term use in demanding environments.
Key Features
- High-precision optical sensing with fast response time
- Compact and durable structure for easy installation
- Excellent stability and anti-interference performance
- Accurate detection of carriage and mechanical motion limits
- Long lifespan and reliable performance under continuous operation
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SL-305NA-E |
| Type | Optical Limit / Photointerrupter Sensor |
| Detection Method | Infrared beam interruption |
| Output Signal | Digital (ON/OFF) |
| Power Supply | DC 5V |
| Connector Type | 5-pin plug interface |
| Mounting Type | Screw-hole mounting |
| Material | High-strength plastic housing with optical components |
| Dimensions | Compact small-slot design |
Applications
- UV printers
- Inkjet printers
- Eco-solvent printers
- Large-format printing equipment
- Automation and motion positioning systems
Installation & Notes
- Turn off the printer before installation or wiring.
- Align the optical slot with the carriage or trigger mechanism.
- Secure the sensor using screw holes to prevent vibration.
- Connect the 5-pin interface to the printer’s mainboard port.
- Check the signal response before starting normal operation.
Note: Ensure compatibility with your printer’s voltage and connector type before purchasing. Avoid direct exposure to strong light sources during operation.
Package Contents
- 1 × SL-305NA-E Optical Limit Switch
