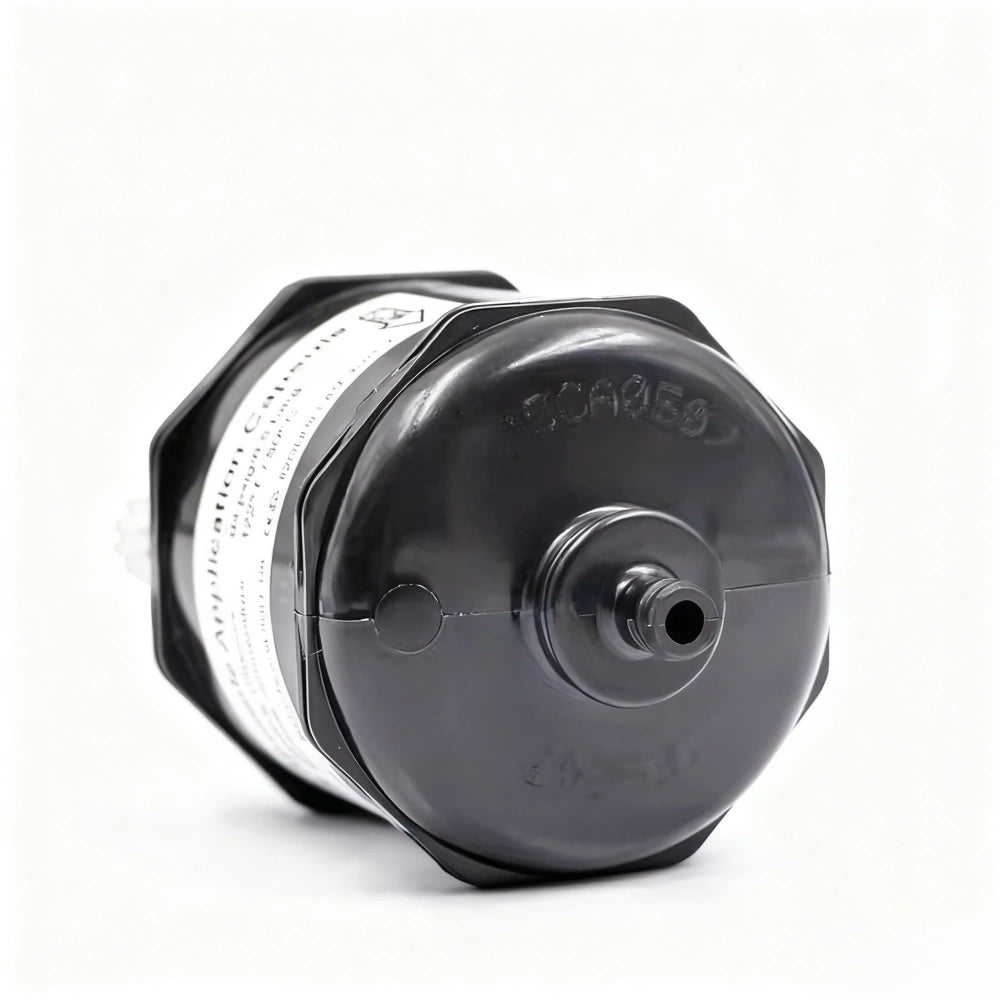

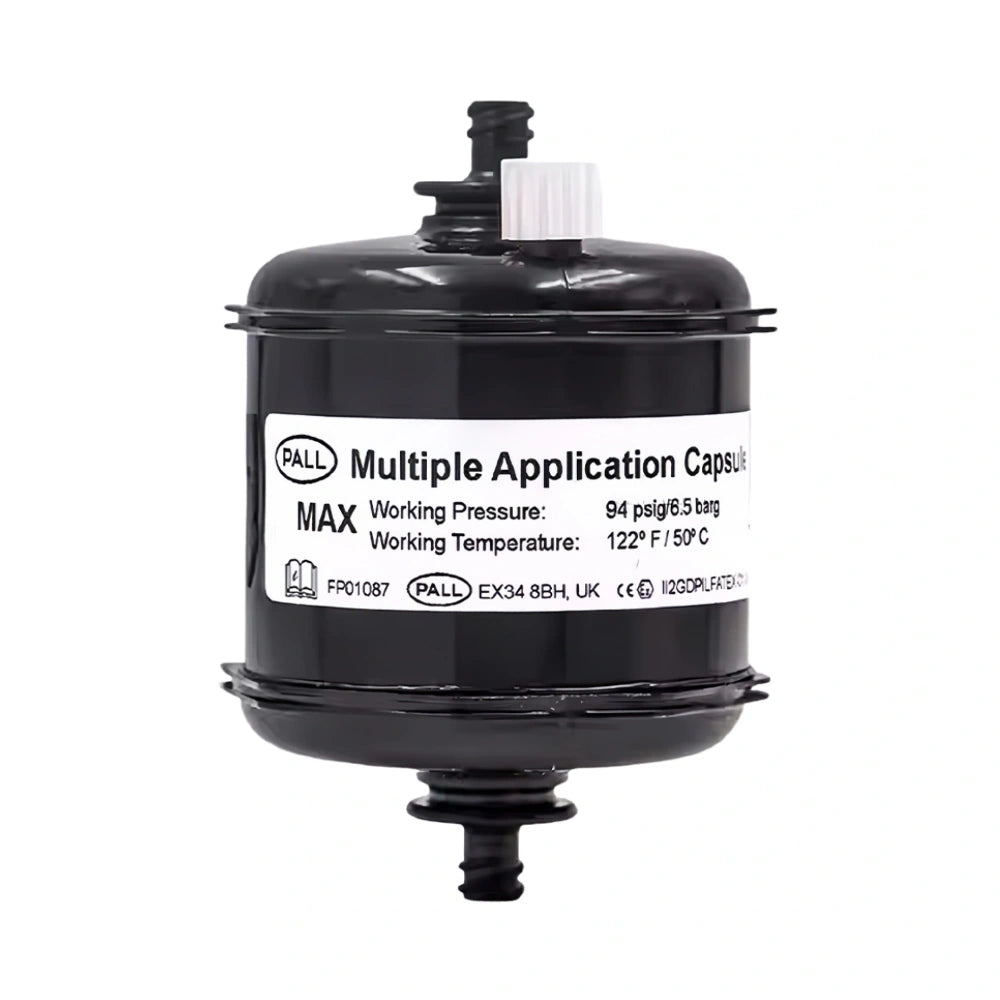

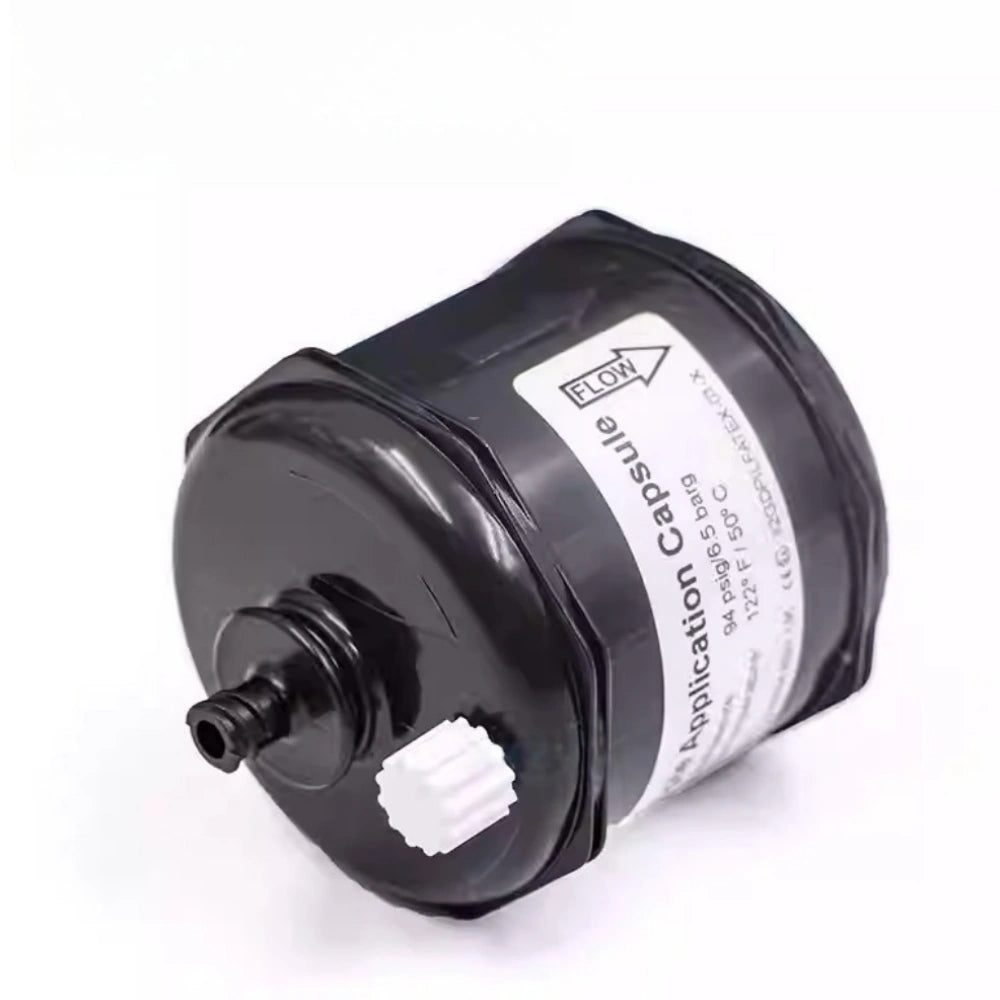

xPALL MACCA0507 Main Ink Filter – 5μm High-Precision Capsule Filter for UV Printers
The PALL MACCA0507 is an original imported capsule-style main ink filter designed for UV printers, inkjet machines, and ceramic printing systems. It uses a high-density 5μm filtration membrane to remove fine particles, ensuring clean, stable ink delivery and protecting printheads from clogging or contamination.
Technical Specifications
| Model | MACCA0507 |
| Filtration Accuracy | 5 μm |
| Type | Capsule / Main Ink Filter |
| Working Pressure | ≤ 0.5 MPa (approx. 5 bar) |
| Working Temperature | ≤ 50°C / 122°F |
| Material | Corrosion-resistant composite with PALL membrane |
| Connection | Standard 6×4 mm ink tube fitting |
Product Features
- Imported PALL filter membrane for consistent ink purity
- 5μm precision ensures efficient removal of particles and micro-bubbles
- Corrosion-resistant structure ideal for UV, solvent, and ceramic inks
- Prevents nozzle blockage and extends printhead lifespan
- Suitable for long-term continuous industrial printing
Applications
Widely used in UV printers, digital inkjet machines, coding systems, and ceramic printing equipment. Acts as the main filtration stage in the ink supply system, ensuring ink stability and consistent printing quality.
Advantages
- Certified original PALL product with high temperature and chemical resistance
- Stable performance verified by multiple industrial validation tests
- Compatible with Ricoh, Konica, Seiko, and Toshiba printhead systems
Choose PALL MACCA0507 Main Ink Filter for professional-grade filtration performance and reliable ink system protection in UV and industrial printing applications.
