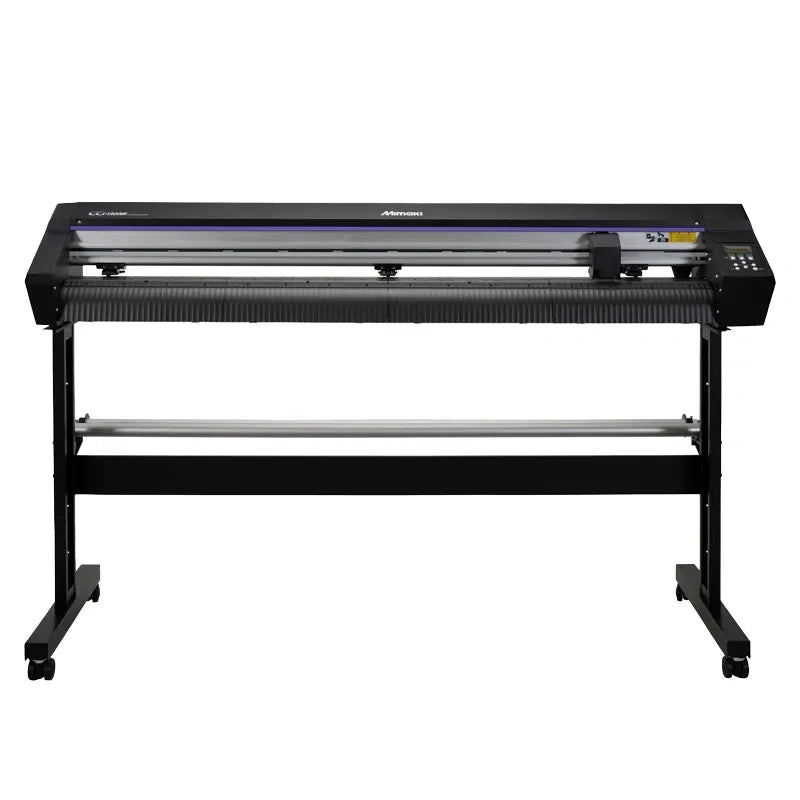

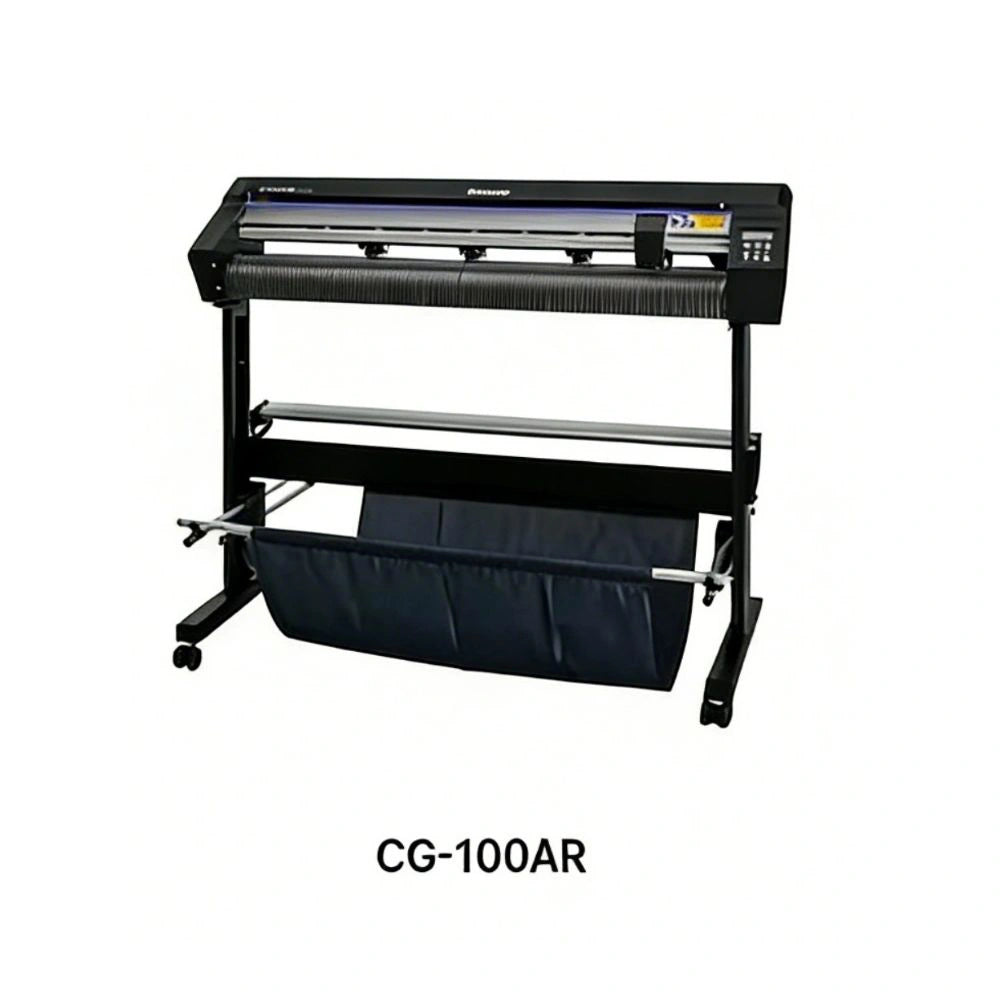

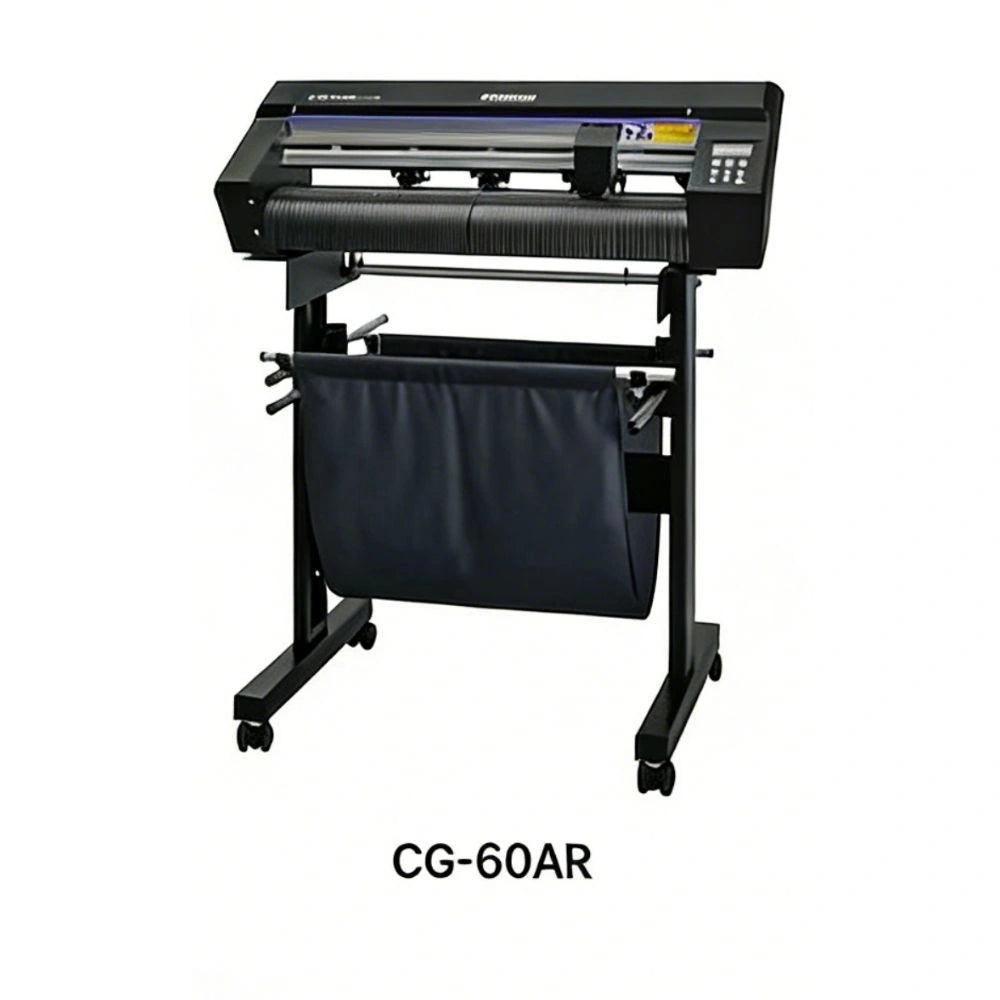

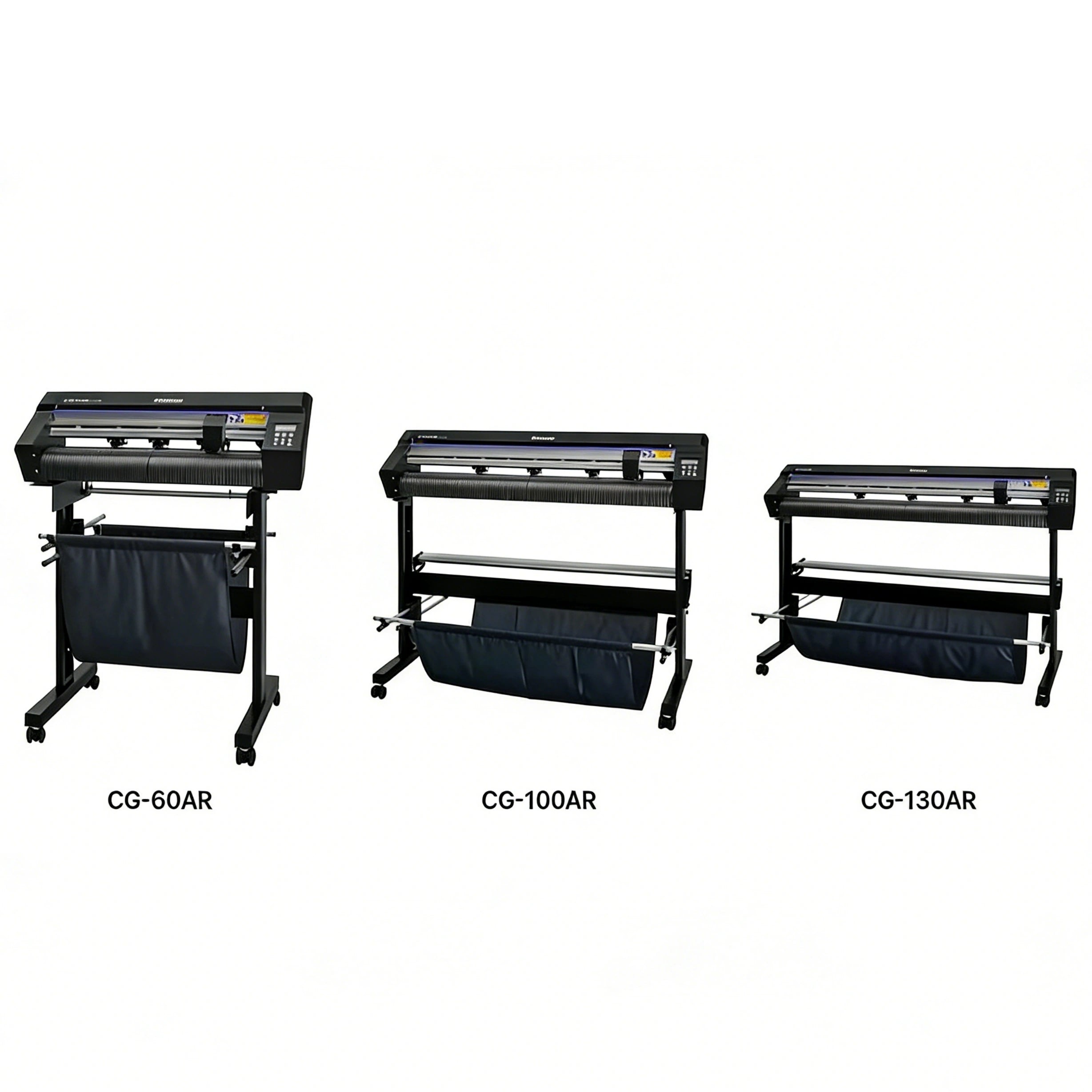

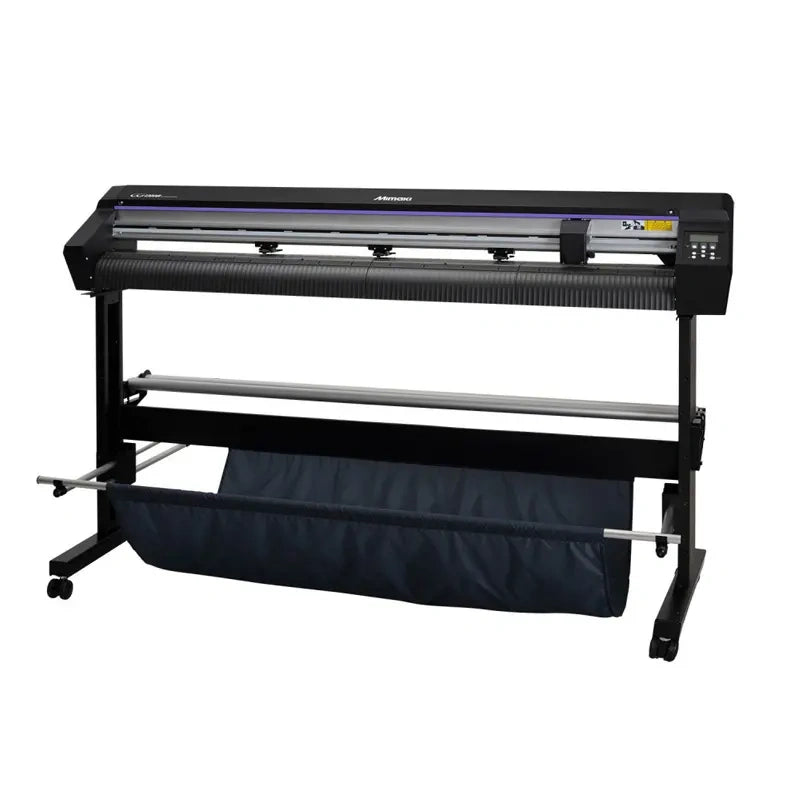

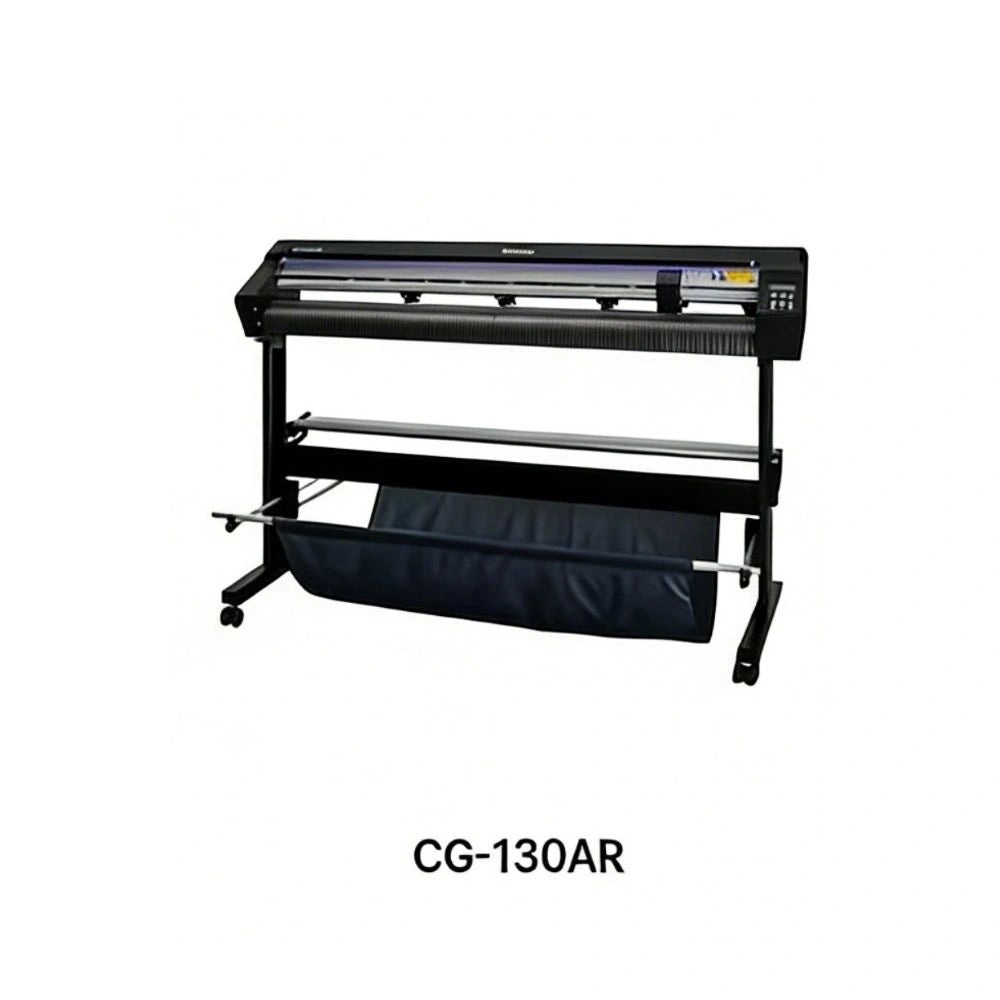

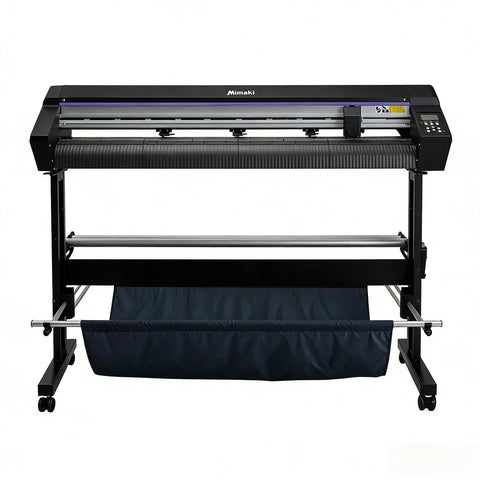

Mimaki CG-AR Series Cutting Plotter is a professional roll-to-roll vinyl cutting machine designed for sign production, sticker cutting and graphic applications. The series includes three models: CG-60AR, CG-100AR and CG-130AR, providing different cutting widths to meet various production needs.
These cutting plotters deliver stable performance, high cutting precision and strong cutting pressure, making them ideal for advertising companies, printing shops and graphic production environments.
| Item | CG-60AR | CG-100AR | CG-130AR |
|---|---|---|---|
| Applicable Media Width | 90-740mm (3.5-29.1") | 90-1,250mm (3.5-49.2") | 90-1,550mm (3.5-61.0") |
| Cuttable Area | 606mm × 51m (23.9 × 167.3") | 1,070mm × 51m (42.1 × 167.3") | 1,370mm × 51m (53.9 × 167.3") |
| Maximum Speed | Cutting: 73 cm/s (45° direction: 103 cm/s) | ||
| Settable Speed | 1-10 cm/s (1 cm/s step adjustment), 10-73 cm/s (5 cm/s step adjustment) | ||
| Mechanical Resolution | X-axis: 2.5 μm, Y-axis: 5 μm | ||
| Program Step | 25,10 μm (MGL-IIc) / 100, 50 μm (MGL-IC1) | ||
| Repetition Accuracy | 0.2 mm / 2 m | ||
| Accuracy Guarantee Range | 586mm × 2m | 1,050mm × 2m | 1,350mm × 2m |
| Maximum Pressure | 550 g | ||
| Set Pressure (Cutter) | 10-20g (2g step), 20-100g (5g step), 100-550g (10g step) | ||
| Set Pressure (Pen) | 10-20g (2g step), 20-100g (5g step), 100-550g (10g step) | ||
| Set Pressure (Creasing Tool) | 10-20g (2g step), 20-100g (5g step), 100-550g (10g step) | ||
| Applicable Media | PVC sheet (≤0.25mm laminated), rubber sheet, fluorescent sheet, reflective sheet | ||
| Additional Material | Cardboard (used with optional sheet table) | ||
| Usable Tools | Eccentric cutter, ball-point pen, creasing tool (optional) | ||
| Commands | MGL-IIC / IC1 | ||
| Interface | USB, RS-232C, Ethernet | ||
| Receive Buffer Capacity | About 27MB standard (17MB when sorting is effective) | ||
| Operational Environment | Temperature: 5-35℃ | Humidity: 35-75% RH (without condensation) | ||
| Power Supply | AC 100-240V 1A 50/60Hz | ||
| Power Consumption | 168W or less | 228W or less | 228W or less |
| Dimensions (W×D×H) | 1,010 × 355 × 355 mm | 1,510 × 580 × 1,160 mm | 1,810 × 580 × 1,160 mm |
| Weight | 17 kg | 35 kg | 43 kg |
| Stand | Optional | Standard Equipment | Standard Equipment |
The Mimaki CG-AR series provides reliable cutting performance for professional sign makers and printing companies that require precise and stable vinyl cutting production.
