Mimaki CG-FXII Series Cutting Plotter
Vendor:
Mimaki
For second-hand machines
We Recycle and refurbish units from the market to ensure reliable performance.
Second-hand machines are more affordable than brand new ones.
Prices are not listed online—please contact us via WhatsApp for current availability and a personalized quote.
Secure payments
Every payment you make on iColorPro is secured with strict SSL encryption and PCI DSS data protection protocols
Standard refund policy
Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Want to learn more about Mimaki printers? Feel free to contact us!
Contact Yanice
Product Details

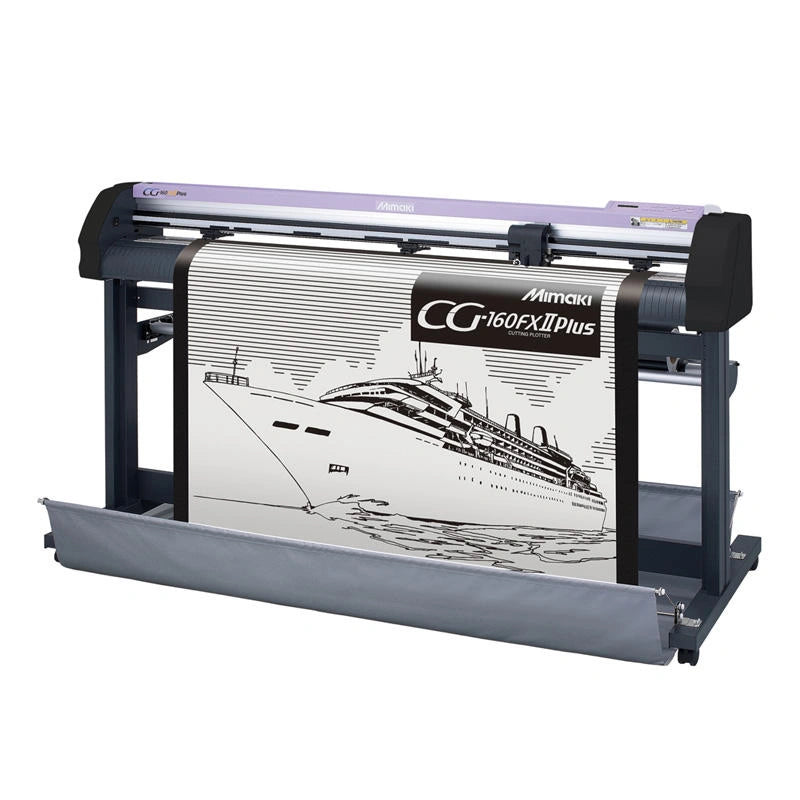

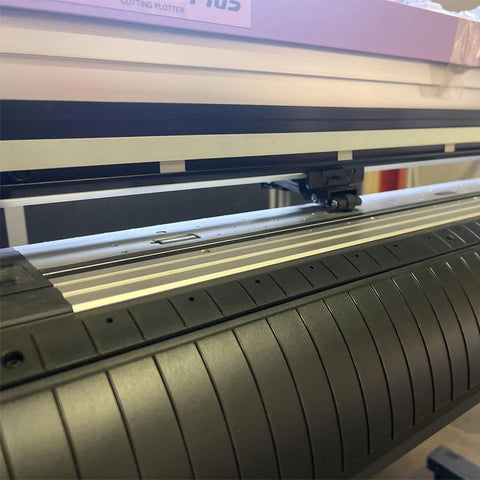

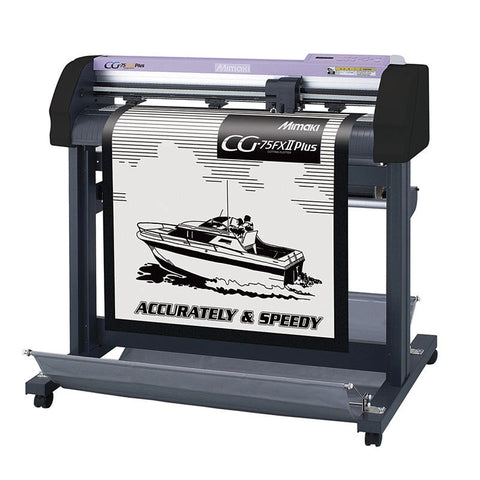

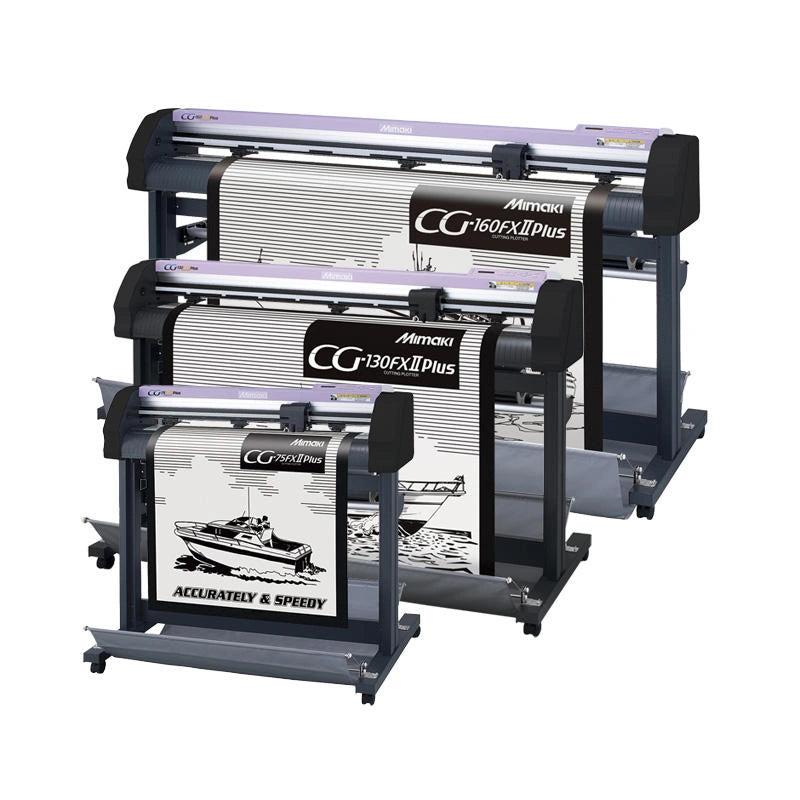

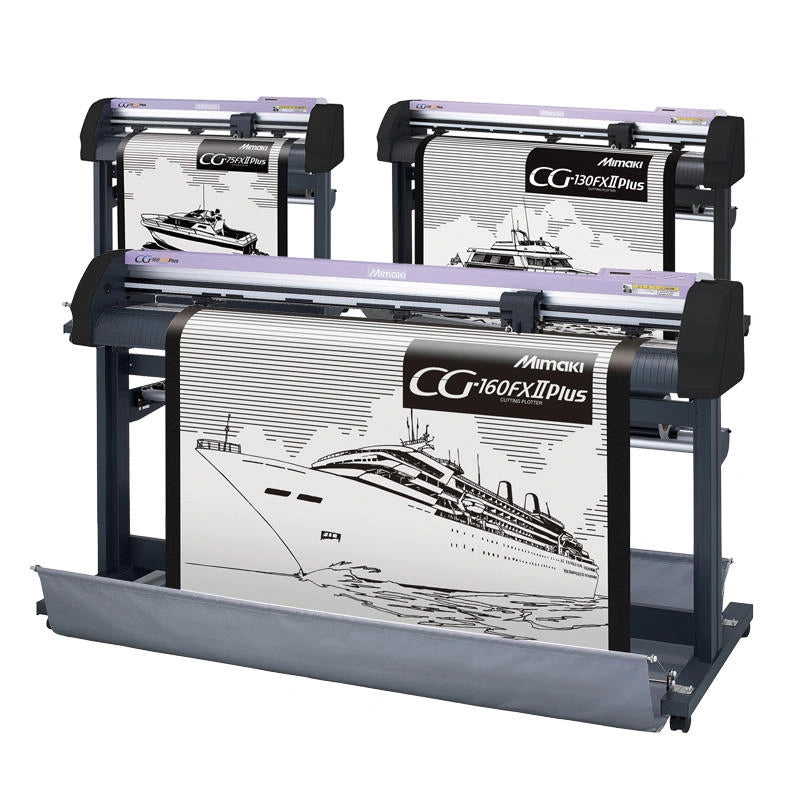

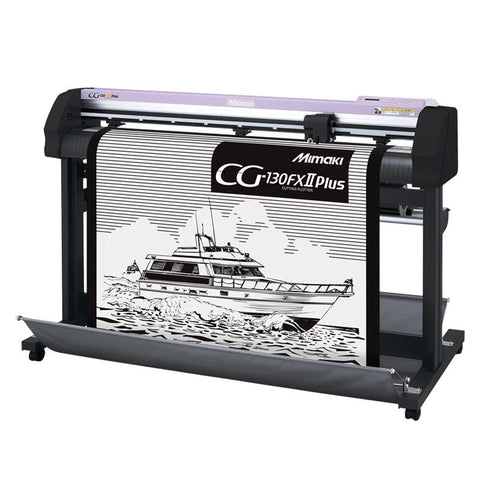

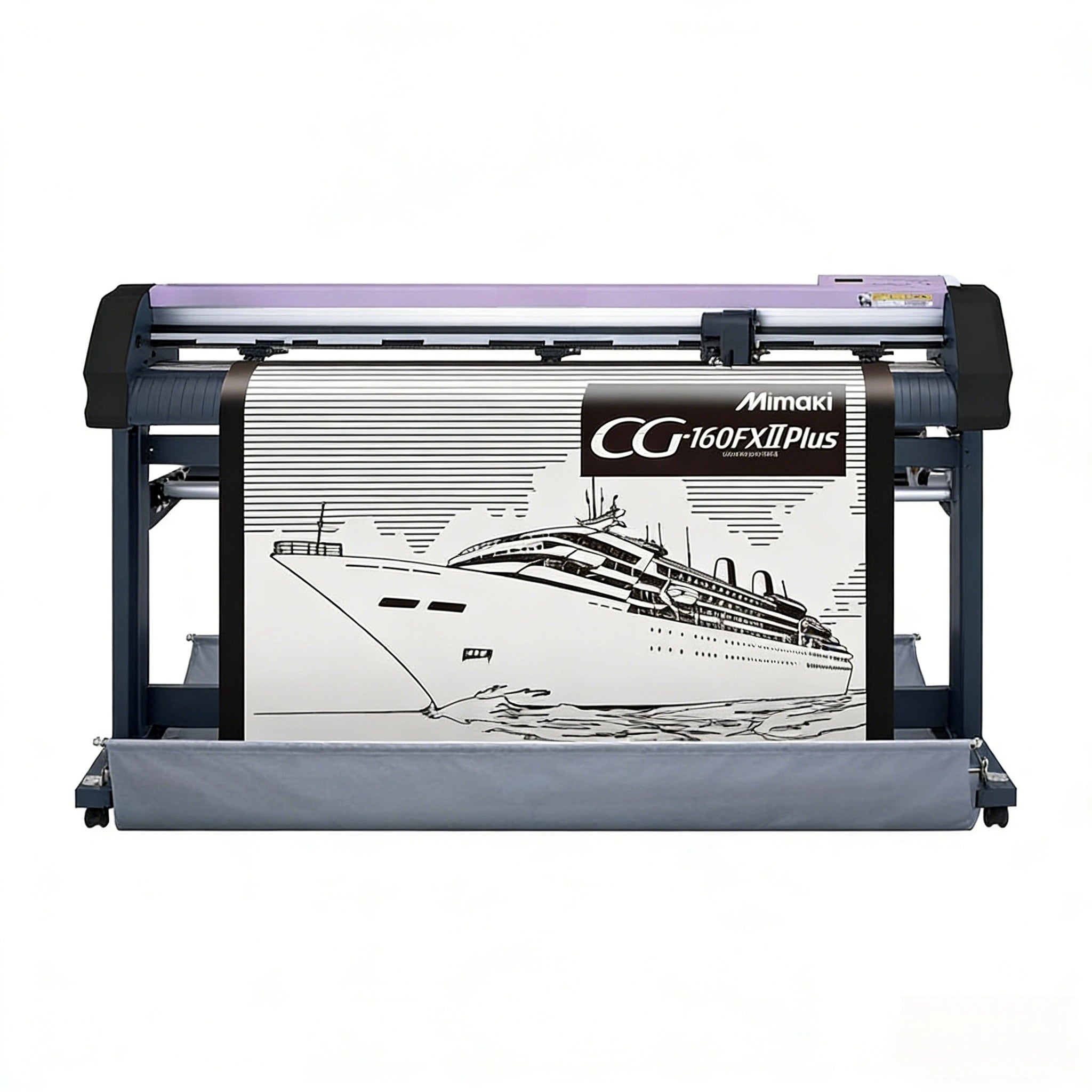

xMimaki CG-FXII Series Cutting Plotter is a professional roll-fed vinyl cutting machine designed for sign production, sticker cutting and graphic processing. The series includes three models: CG-75FXII, CG-130FXII and CG-160FXII, offering different cutting widths for various production needs.
These cutters provide high-precision cutting performance, stable operation and powerful cutting pressure. They are widely used in advertising companies, print shops and industrial graphic production.
Key Features
- High precision roll-to-roll cutting plotter
- Maximum cutting speed up to 100 cm/s
- Maximum pressure up to 500 g
- High mechanical resolution of 5 μm
- Supports vinyl, reflective and fluorescent media
- Stable repeatability accuracy ±0.2 mm
- USB and RS-232C connectivity
Applications
- Advertising sign production
- Vinyl graphics and decals
- Reflective safety graphics
- Label and sticker cutting
- Graphic and printing industries
Specifications
| Item | CG-75FXII Plus | CG-130FXII Plus | CG-160FXII Plus |
|---|---|---|---|
| Acceptable Sheet Width | 90mm – 1,040mm (3.54" – 40.9") | 90mm – 1,580mm (3.54" – 62.0") | 90mm – 1,880mm (3.54" – 74") |
| Rolled Media Weight | 18kg (40 lb) or less | 22kg (49 lb) or less | 22kg (49 lb) or less |
| Roll Outside Diameter | Φ200mm (7.87") or less | ||
| Effective Cutting Area | 760mm × 51m (29.9" × 167') | 1,300mm × 51m (51.2" × 167') | 1,600mm × 51m (62.9" × 167') |
| Maximum Auto Cutting Width | 870mm (34.2") | 1,425mm (56.1") | 1,720mm (67.7") |
| Maximum Cutting Speed | 100 cm/s (39.3"/s) | ||
| Maximum Moving Speed | 140 cm/s (55"/s) in a 45° direction and pen-up state | ||
| Adjustable Speed Range |
1-10cm/s (1cm step adjustment) 10-50cm/s (5cm step adjustment) 50-100cm/s (10cm step adjustment) |
||
| Mechanical Resolution | 5 μm (0.0002") | ||
| Command Resolution | 25μm, 10μm (MGL-IIc), 100μm, 50μm (MGL-Ic1) | ||
| Repeatability | ±0.2mm (excluding shrinkage or expansion caused by film temperature) | ||
| Accuracy Assurance Range | 760mm × 10m | 1,300mm × 10m | 1,600mm × 10m |
| Maximum Pressure | 500 g | ||
| Range of Down Pressure (Cutter) | 10-20g (2g step), 20-100g (5g step), 100-500g (10g step) | ||
| Range of Down Pressure (Pouncing) | 10-20g (2g step), 20-100g (5g step), 100-500g (10g step) | ||
| Range of Down Pressure (Pen) | 10-20g (2g step), 20-100g (5g step), 100-150g (10g step) | ||
| Acceptable Sheet | Vinyl up to 0.25mm thickness, fluorescent vinyl, reflective sheet | ||
| Acceptable Sheet for Pouncing | Paper thickness: 0.06 – 0.13mm | ||
| Applicable Tools | Cutter, water-based ball-point pen, oil-based ball-point pen, pouncing tool | ||
| Certifications | VCCI Class A, FCC Class A, ETL IEC 60950-1, CE Marking, RoHS, CB, REACH, RCM, EAC | ||
| Type of Command | MGL-IIc / Ic1 | ||
| Interface | RS-232C, USB | ||
| Receiver Buffer Size | 30MB Standard (20MB when sorting) | ||
| Operational Environment | Temperature: 5-35°C | Humidity: 35-75% RH (Non-condensing) | ||
| Power Requirement | AC100-240V 1A 50/60Hz | ||
| Power Consumption | 100W or less | ||
| Dimensions (W×D×H) | 1,285 × 700 × 1,217 mm | 1,825 × 700 × 1,217 mm | 2,125 × 700 × 1,217 mm |
| Weight (with Stand) | 47 kg | 62 kg | 70 kg |
The Mimaki CG-FXII series provides reliable and accurate vinyl cutting performance for professional sign makers and printing companies requiring efficient and stable production.
