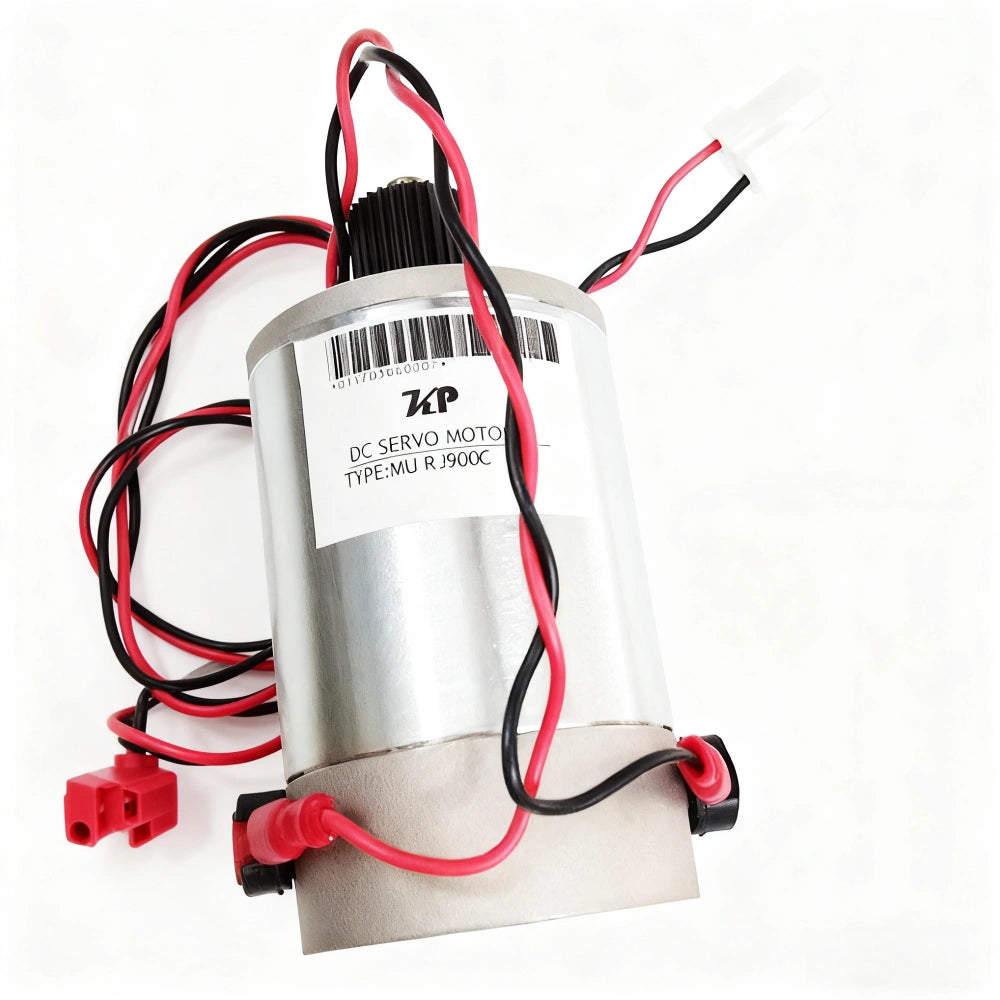

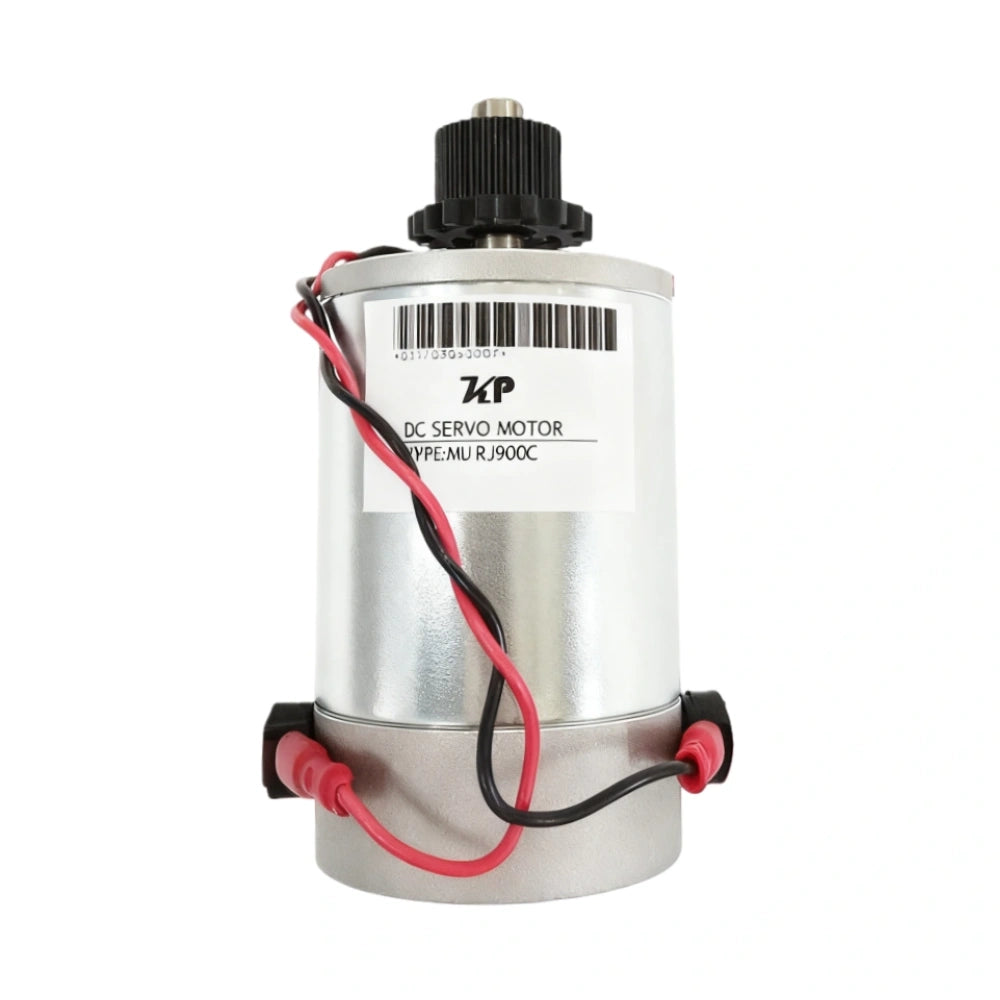

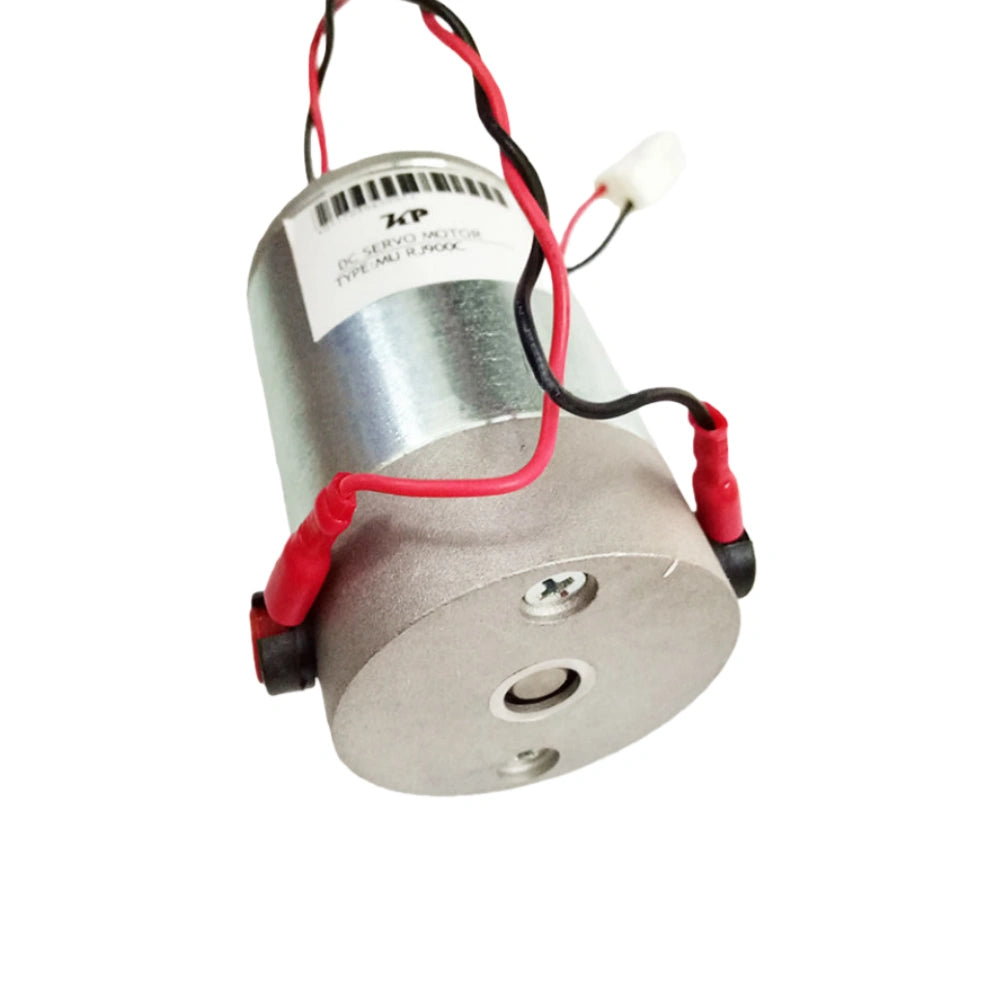

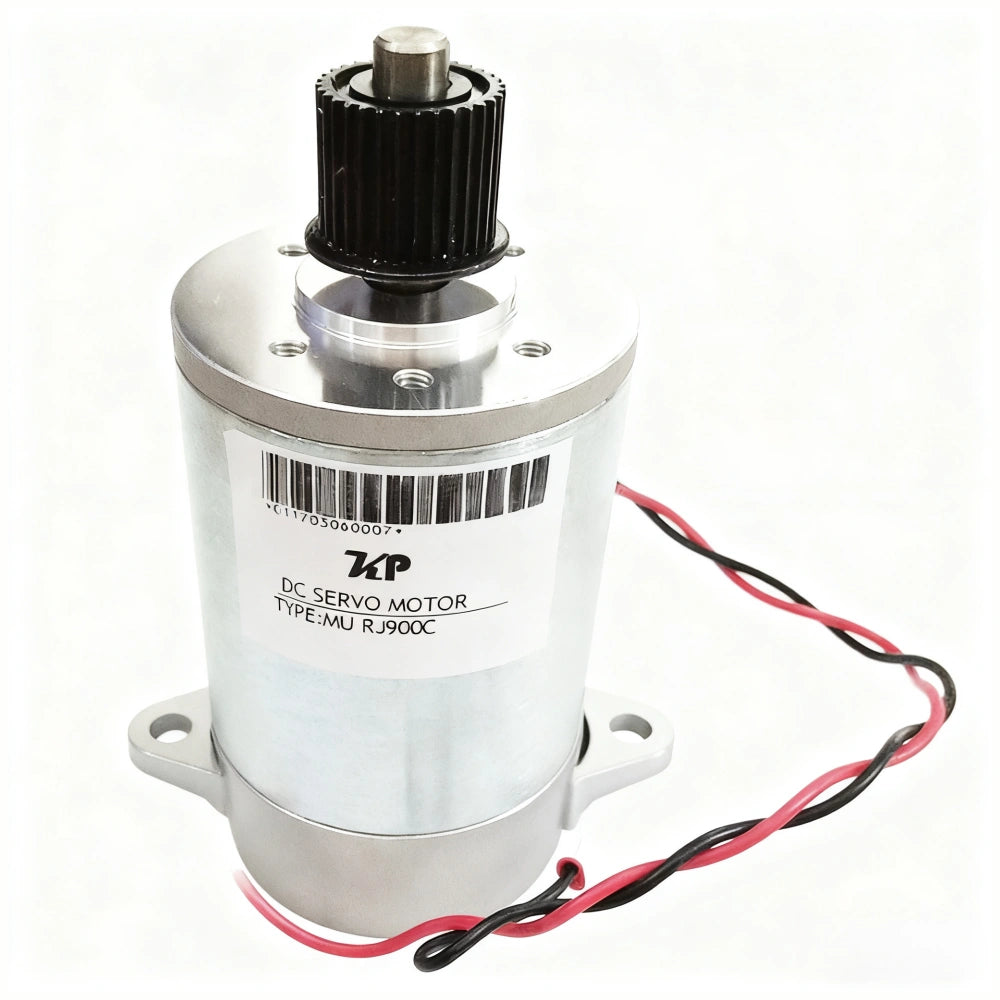

xMutoh PF Motor Assy – DF-49020
The Mutoh PF (Feed) Motor Assembly DF-49020 is the original drive motor responsible for controlling media feed movement in Mutoh ValueJet and DraftStation printers. It delivers stable and precise paper or film feeding during printing, ensuring accurate image alignment and consistent media tension across long print runs.
Key Features
- Original Mutoh DF-49020 feed motor assembly
- High-precision stepper motor for accurate media advance
- Stable operation for both high-speed and fine-quality printing
- Durable build with long service life and minimal noise
- Fully compatible with multiple ValueJet and DraftStation models
Description
The PF motor moves the media back and forth during printing. It works in coordination with the CR motor (carriage movement motor) to maintain synchronized media transport and printhead travel. A malfunctioning PF motor can cause banding, paper skew, or irregular media movement. Replacing it with the original DF-49020 motor ensures smooth and accurate feed motion for consistent print quality.
Related Parts
The related carriage drive motors are: VJ CR Motor Assy – DG-44693 or ValueJet 1324 CR Motor Assy – DG-42957, depending on printer model.
Printer Compatibility
| Mutoh RJ-900C (DraftStation) Mutoh ValueJet 1204 Mutoh ValueJet 1324 Mutoh ValueJet 1608 Hybrid Mutoh ValueJet 1617H Mutoh ValueJet 1626UH Mutoh ValueJet 1638 Mutoh ValueJet 1638X Mutoh ValueJet 628 |
Mutoh RJ-900X (DraftStation) Mutoh ValueJet 1304 Mutoh ValueJet 1604 Mutoh ValueJet 1608HS Mutoh ValueJet 1624 Mutoh ValueJet 1627MH Mutoh ValueJet 1638W Mutoh ValueJet 2628TD |
Mutoh RJ-901C (DraftStation Pro) Mutoh ValueJet 1304W Mutoh ValueJet 1604W Mutoh ValueJet 1614 Mutoh ValueJet 1624W Mutoh ValueJet 1628TD Mutoh ValueJet 1638WX Mutoh ValueJet 426UF |
Product Specifications
| Type | PF (Feed) Drive Motor Assembly |
|---|---|
| Part Number | DF-49020 |
| Function | Controls media feeding during printing |
| Voltage | DC Stepper Motor (as per model specification) |
| Condition | Original Mutoh part – brand new |
Maintenance Tips
- Check motor wiring and connectors regularly for oxidation or looseness.
- Avoid excessive dust or debris buildup around the drive system.
- Replace motor if abnormal vibration or noise occurs during printing.
Why Choose iColorPro
iColorPro provides genuine Mutoh parts and high-quality compatible components to ensure stable machine operation. All motors are tested for torque, precision, and noise control, delivering professional performance for large-format printing environments.
