xPHF / PHFII / HPHFB / HPHFII Series — Inline Ink Filters
Inline capsule filters for wide-format printers and ink supply systems. The series covers two-way and three-way structures with size codes from 500C to 2000C. Typical filtration ratings available: 5 / 10 / 15 / 20 µm (default commonly 10 µm). Suitable for UV, eco-solvent and water-based workflows.
Key Features
- Stable filtration for continuous ink supply; low pressure drop, smooth flow.
- 2-way & 3-way options for straight-through or bypass/vent lines (series naming: “SS”≈2-way, “SF”≈3-way).
- Multiple size codes (500C / 1000C / 1500C / 2000C) to match different flow demands.
- Common ratings 5–20 µm for pre-head protection; helps reduce nozzle clog risk.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | PHF / PHFII / HPHFB / HPHFII |
| Structure | Two-Way (SS) / Three-Way (SF) |
| Size Code | 500C / 1000C / 1500C / 2000C |
| Filtration Rating | 5 / 10 / 15 / 20 µm (default often 10 µm) |
| Typical Use | Inline filtration on ink lines before sub-tank/printhead |
Compatibility
Works with common wide-format printers and ink systems, including brands such as Mimaki, Mutoh, Roland, Epson-based platforms, Ricoh-head UV flatbeds, and similar ink supply assemblies. Use the size/port type that matches your existing tubing and flow requirements.
Model Differences (Multi-Variant Mapping)
| No. | Model Code (as shown) | Port Type* | Size Code | Notes |
|---|---|---|---|---|

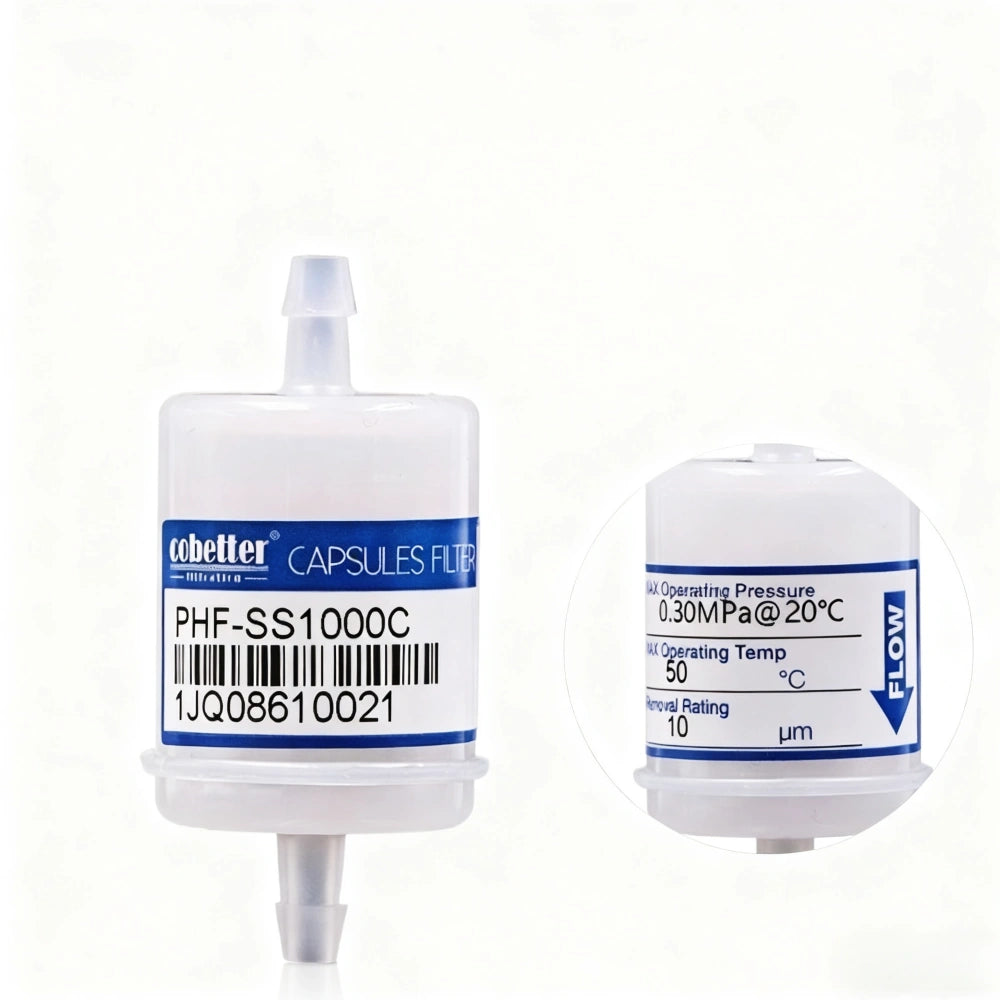

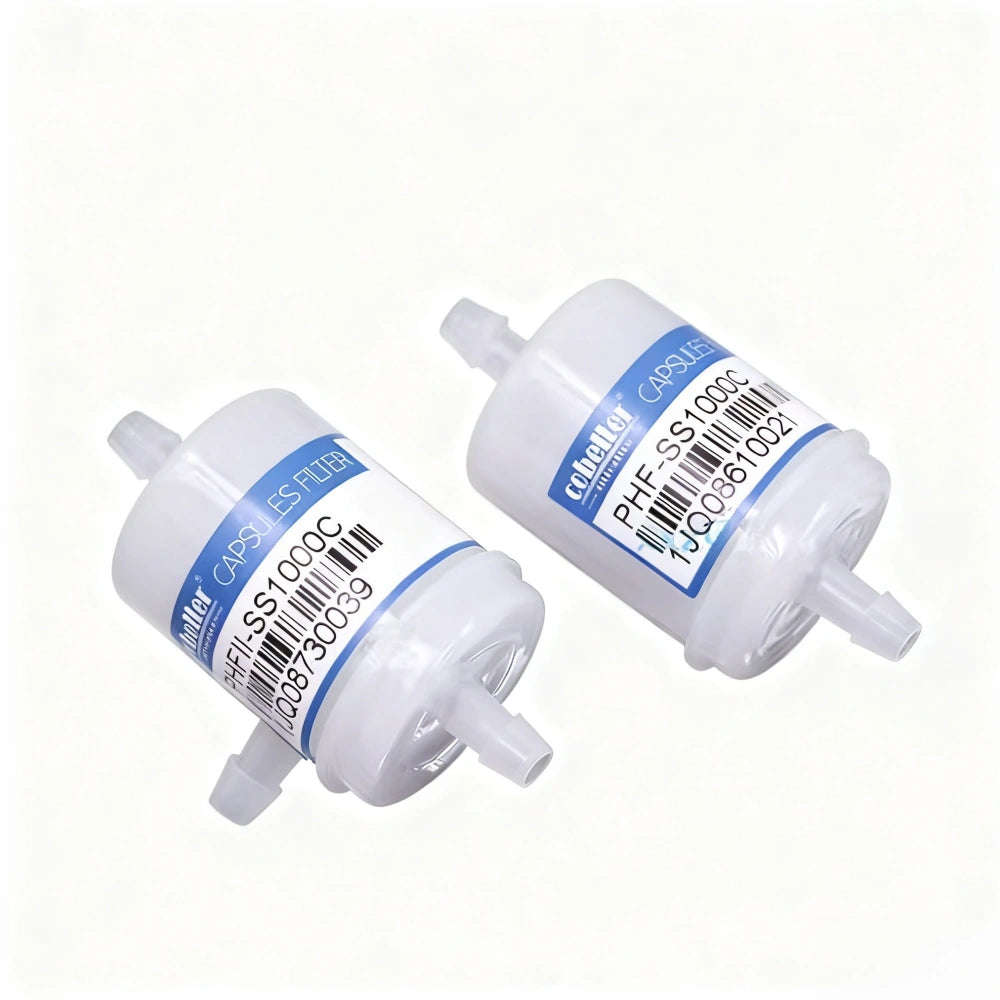

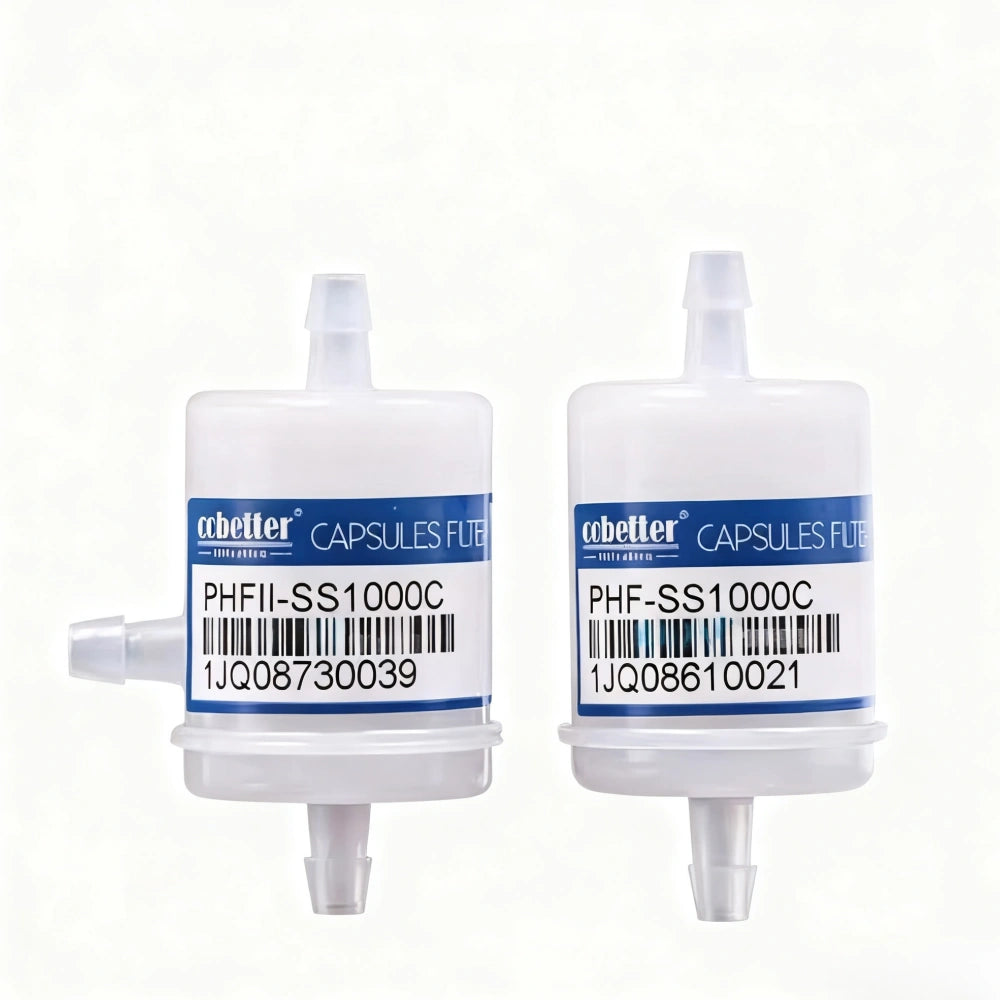

| No.1 | PHF-SS1000C | 2-Way (SS) | 1000C | General inline use |

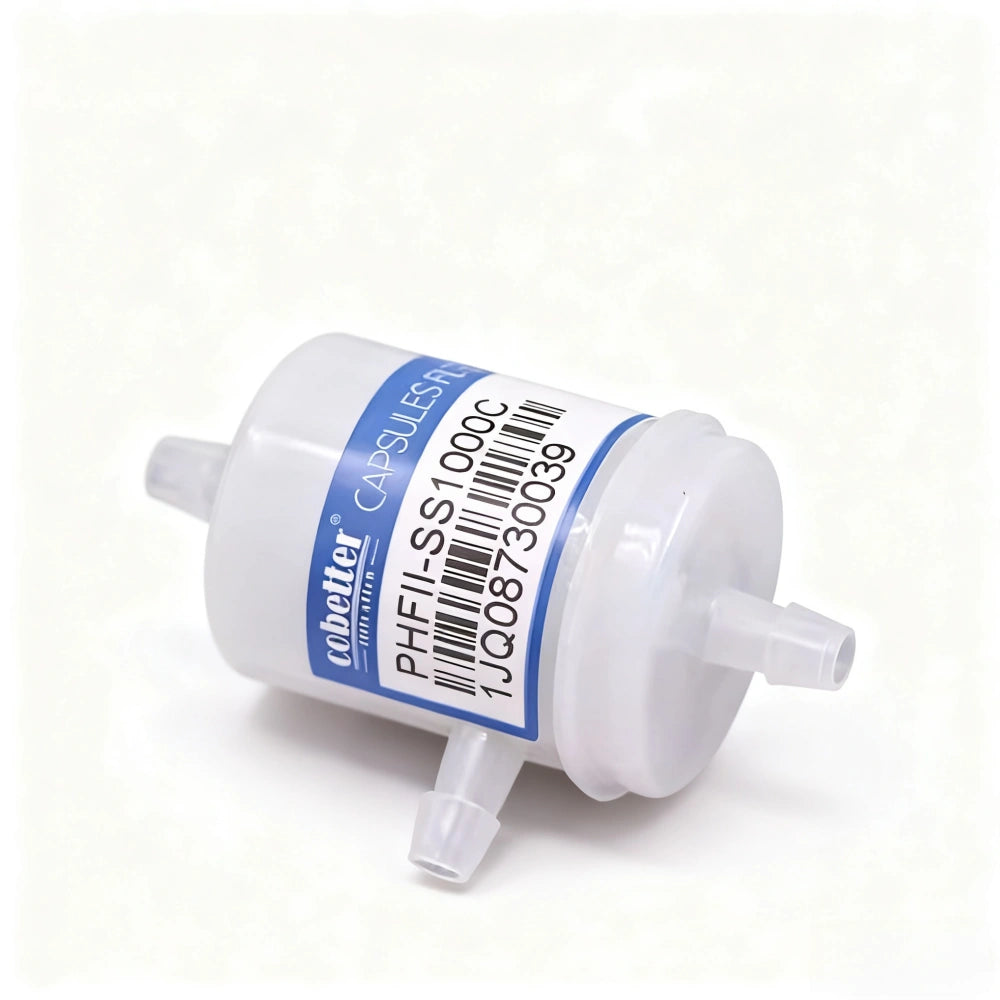

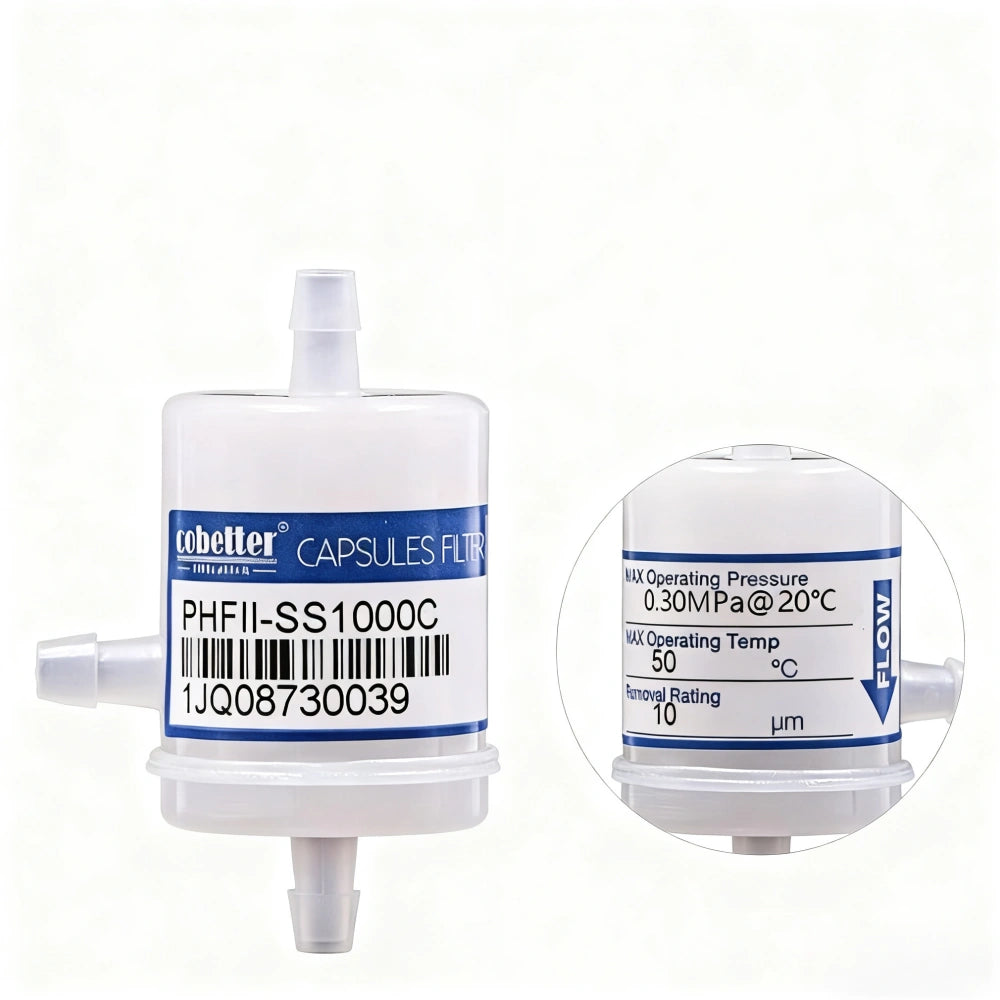

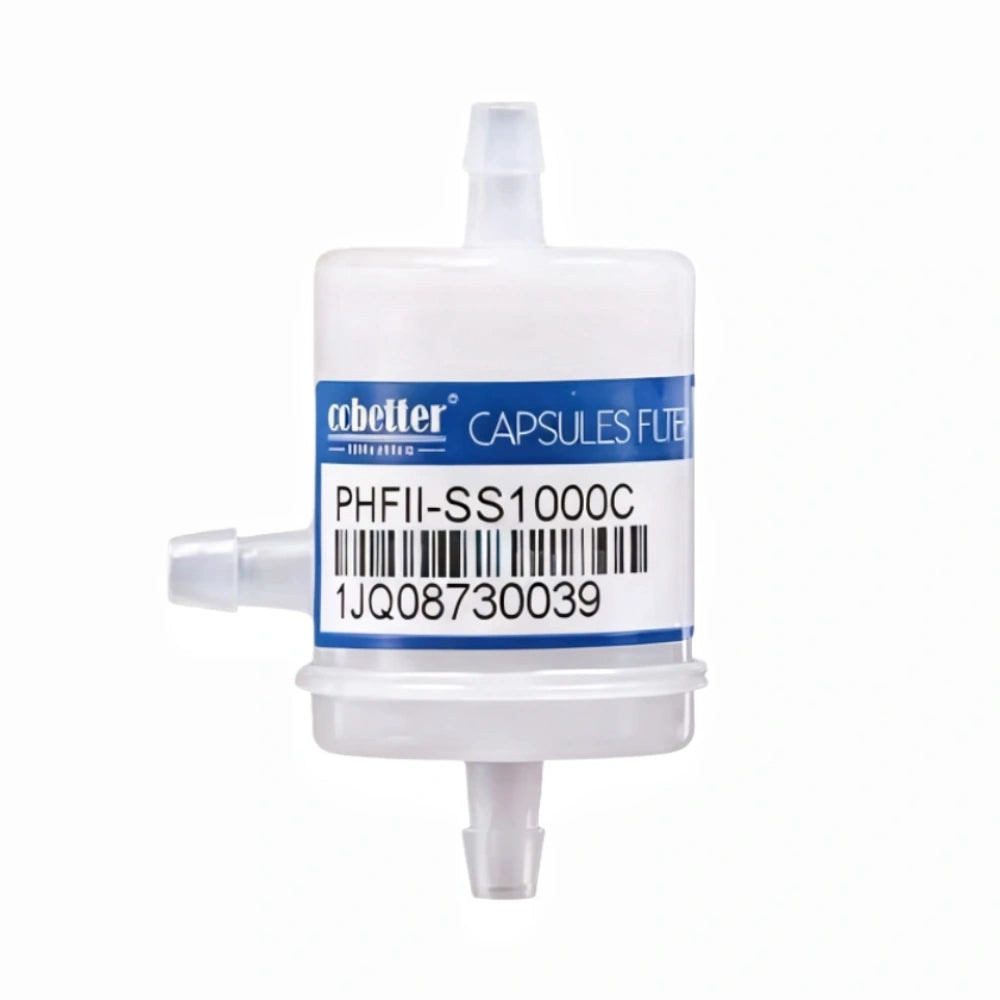

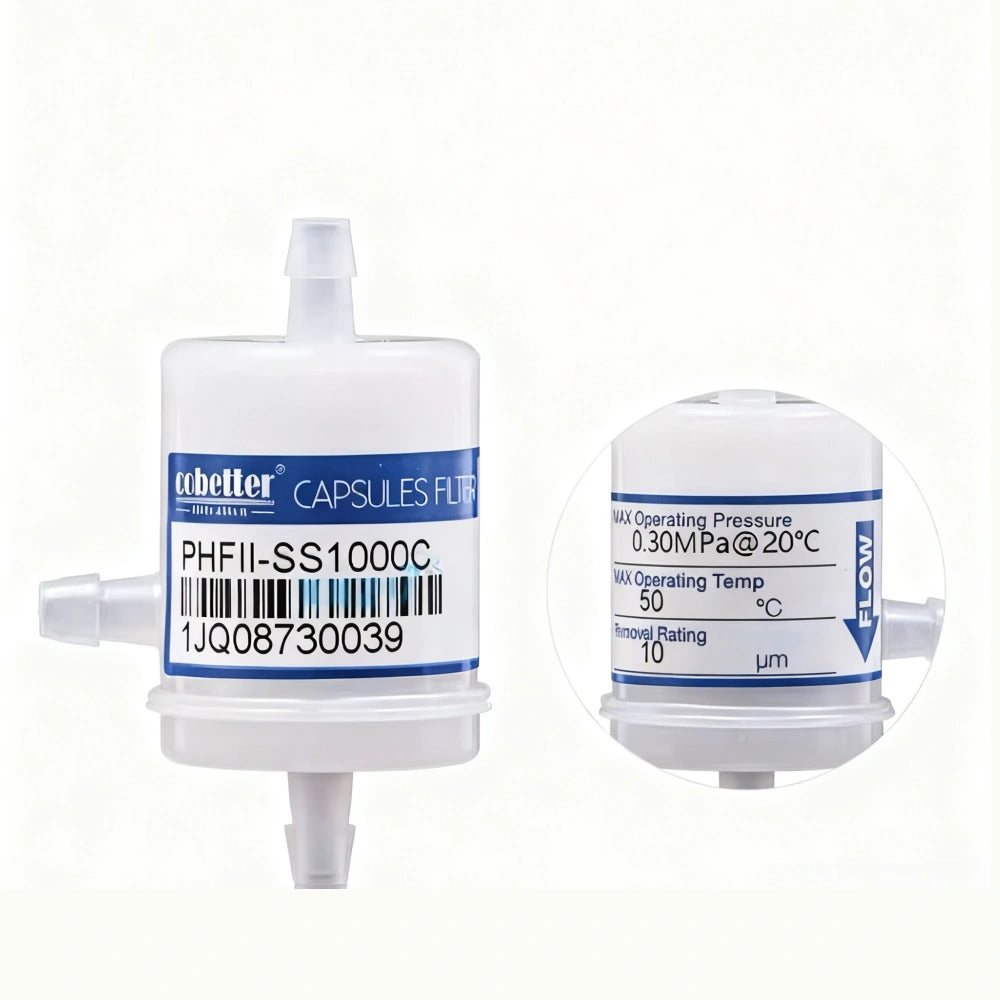

| No.2 | PHFII-SS1000C | 2-Way (SS) | 1000C | PHFII revision |

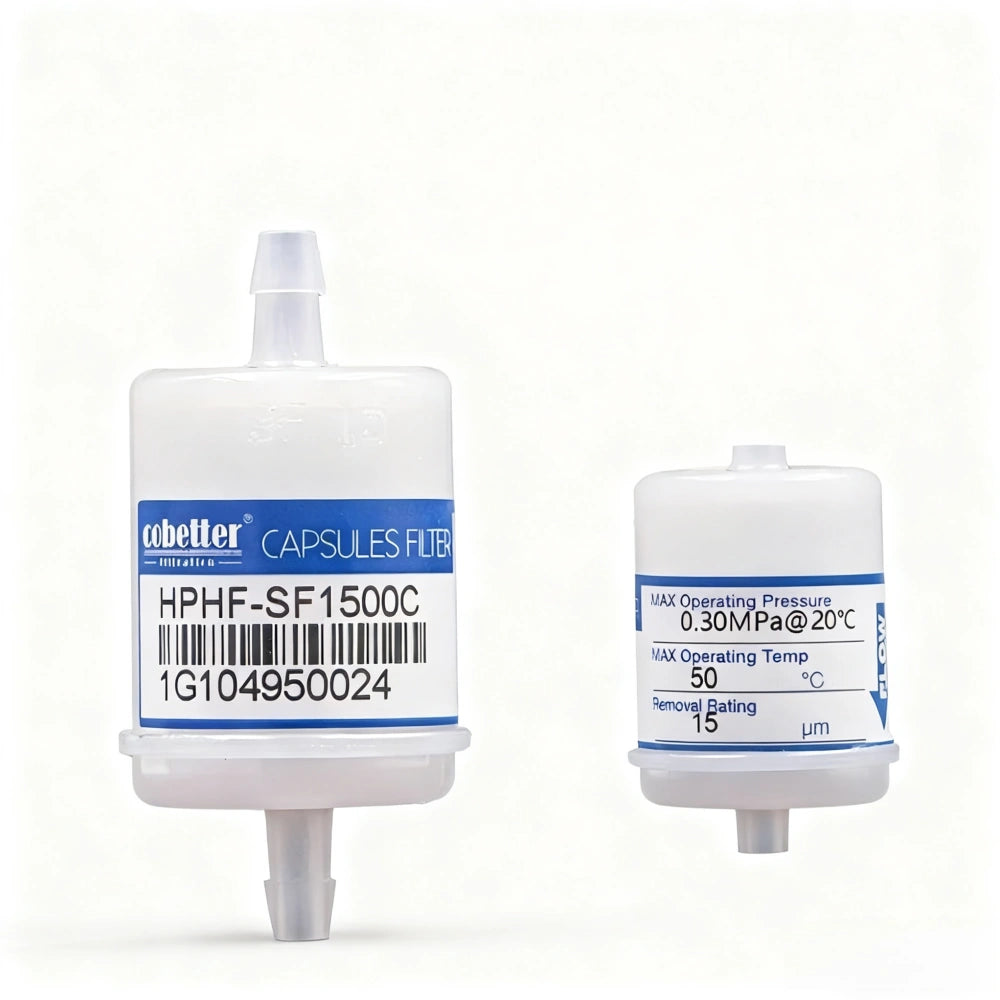

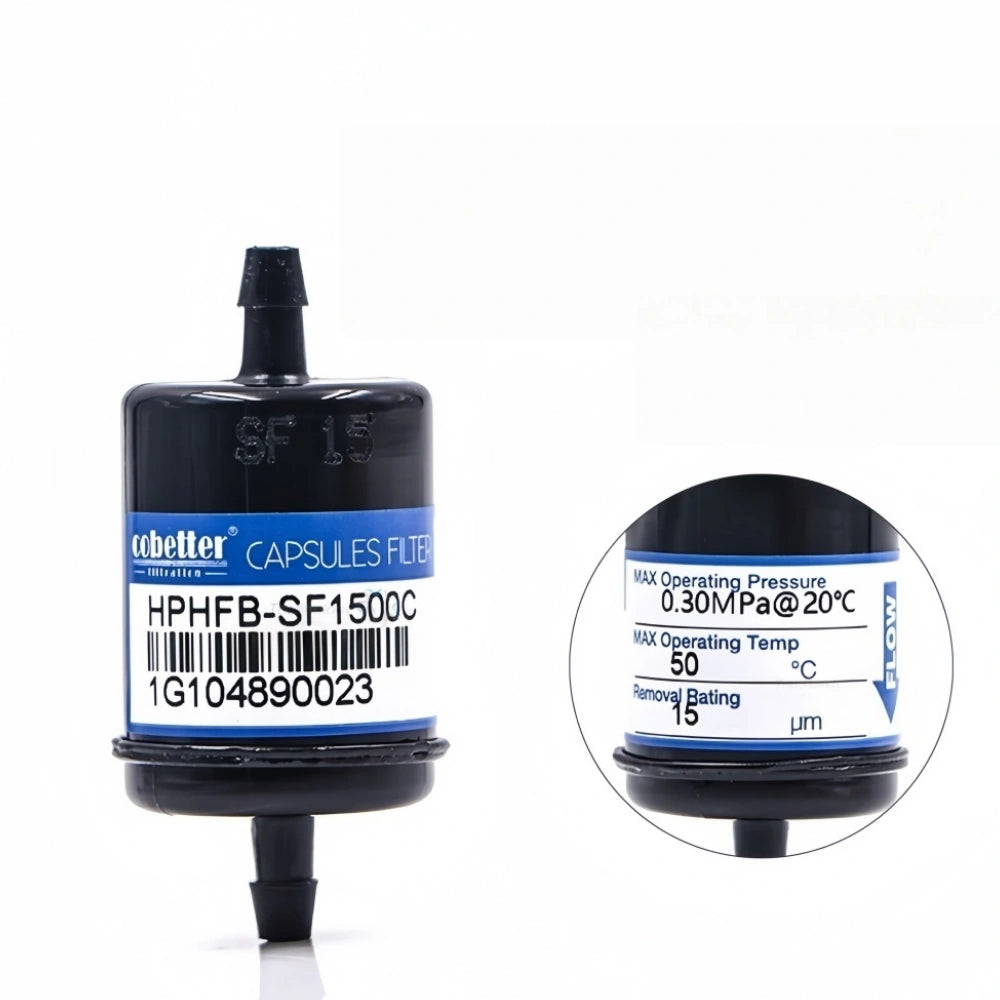

| No.3 | HPHFB-SF1500C | 3-Way (SF) | 1500C | Three-port style |

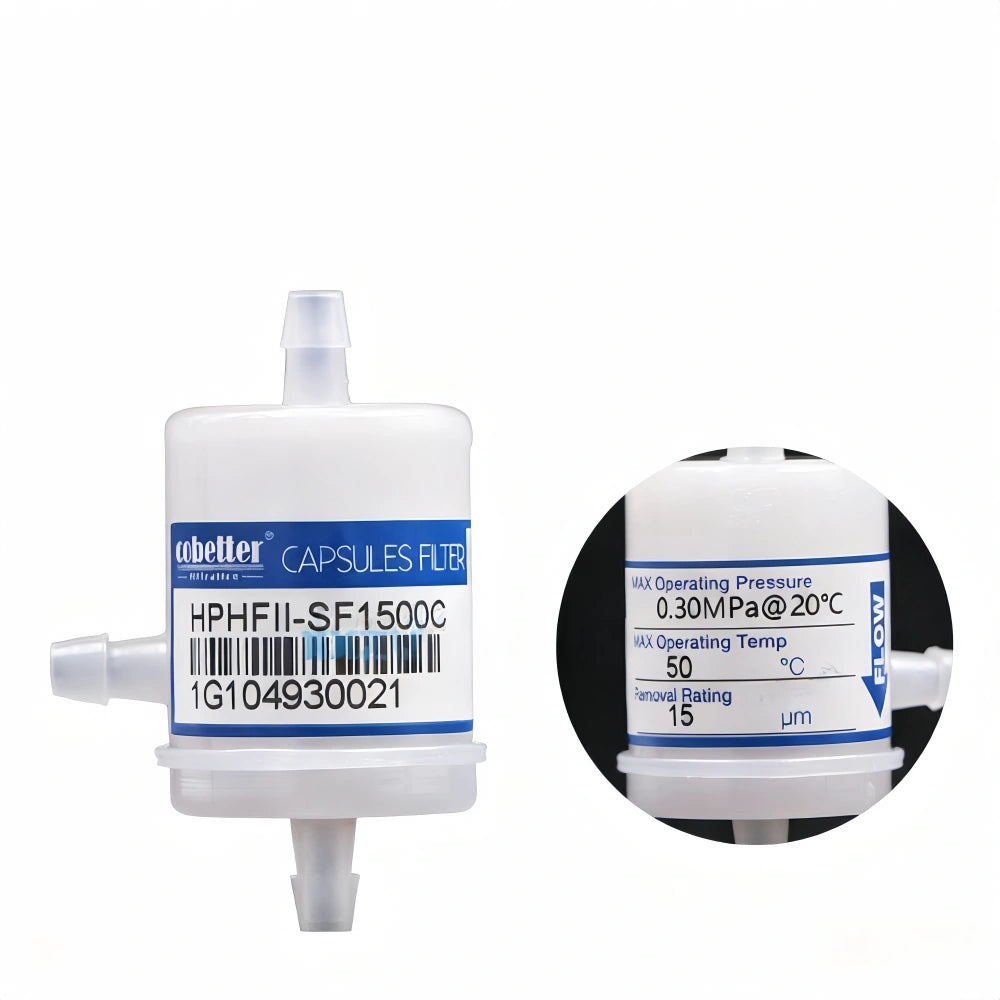

| No.4 | HPHFII-SF1500C | 3-Way (SF) | 1500C | HPHFII revision |

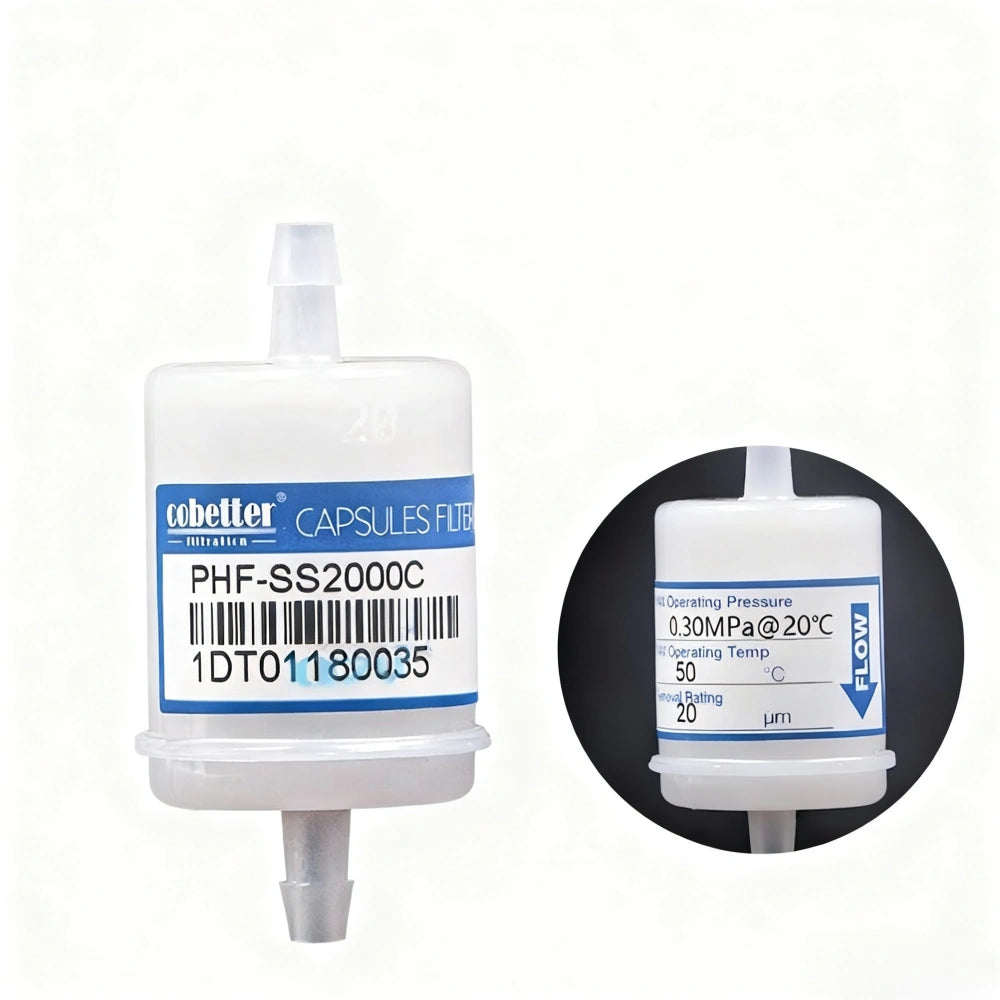

| No.5 | PHF-SS2000C | 2-Way (SS) | 2000C | Higher flow size |

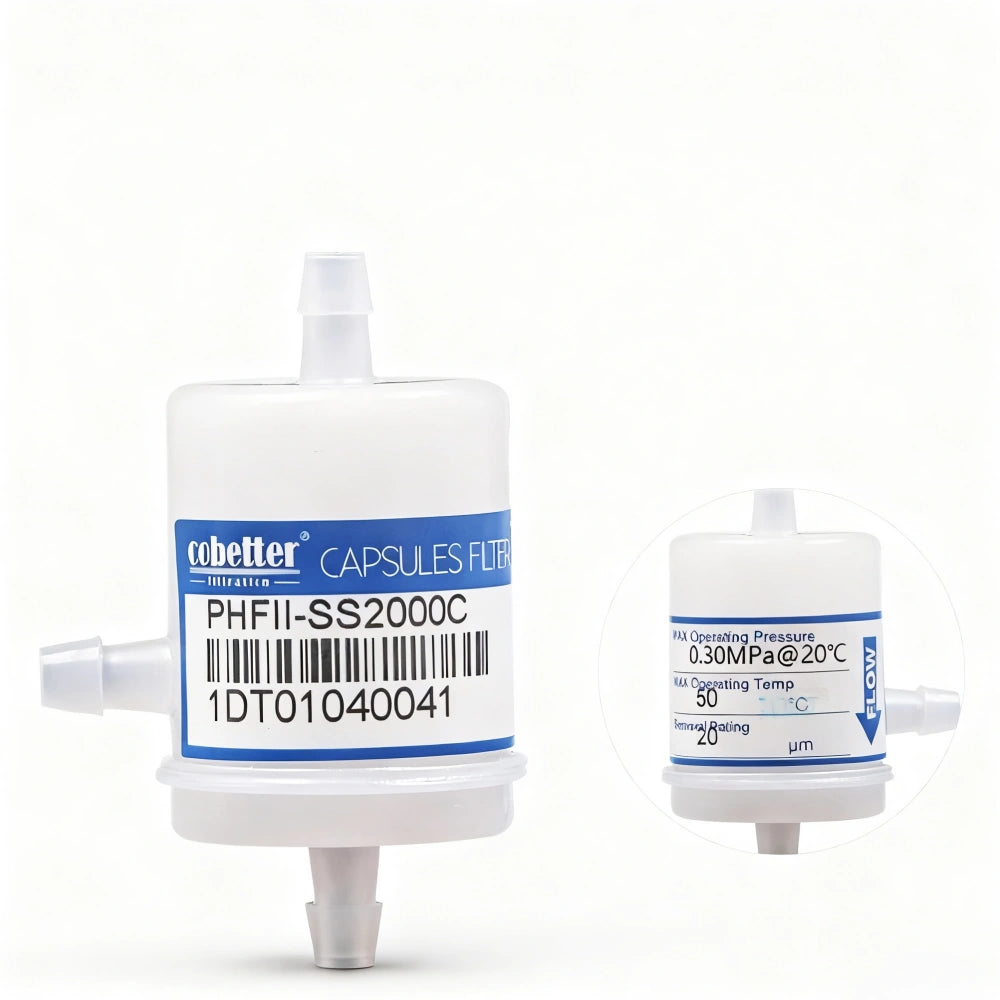

| No.6 | PHFII-SS2000C | 2-Way (SS) | 2000C | PHFII revision |
| No.7 | HPHFB-SF1500C | 3-Way (SF) | 1500C | Same code as No.3 (supplier option) |

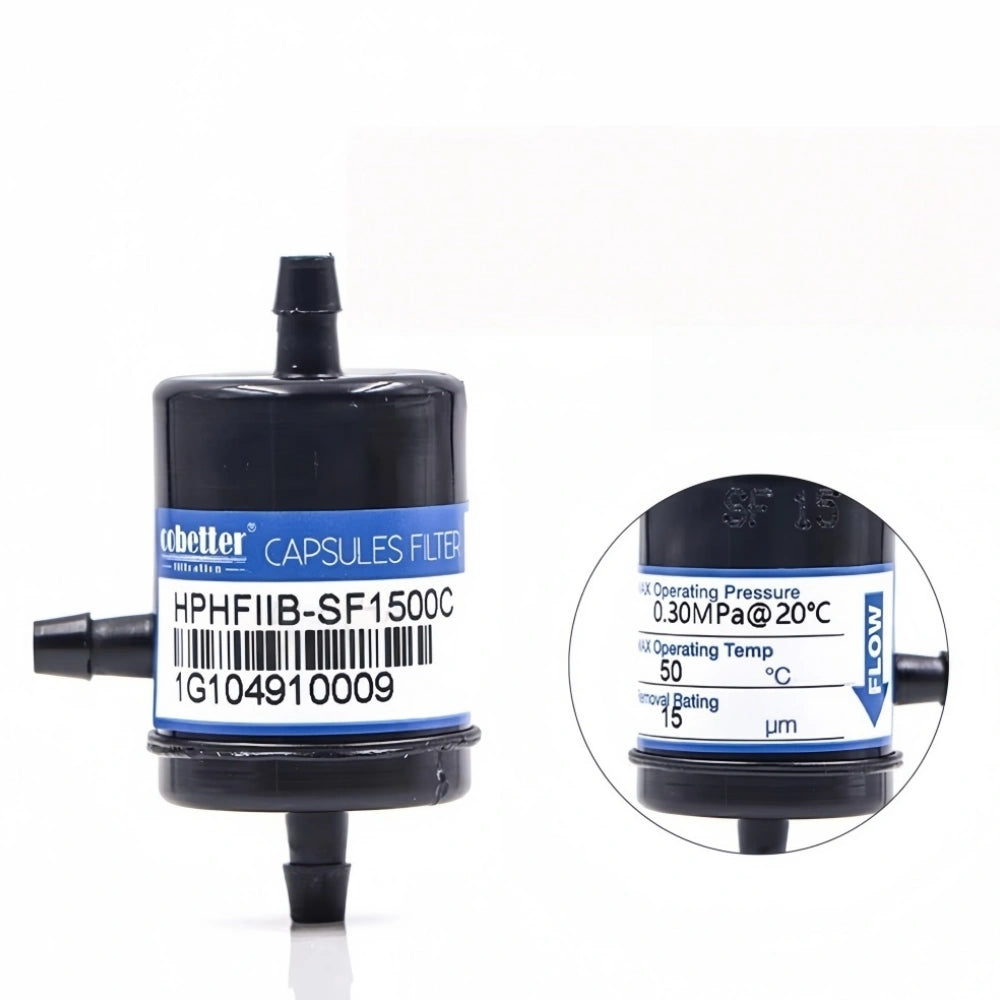

| No.8 | HPHFII B-SF1500C | 3-Way (SF) | 1500C | “B” subtype |
| No.9 | PHFB-SS2000C | 2-Way (SS) | 2000C | PHFB variant |

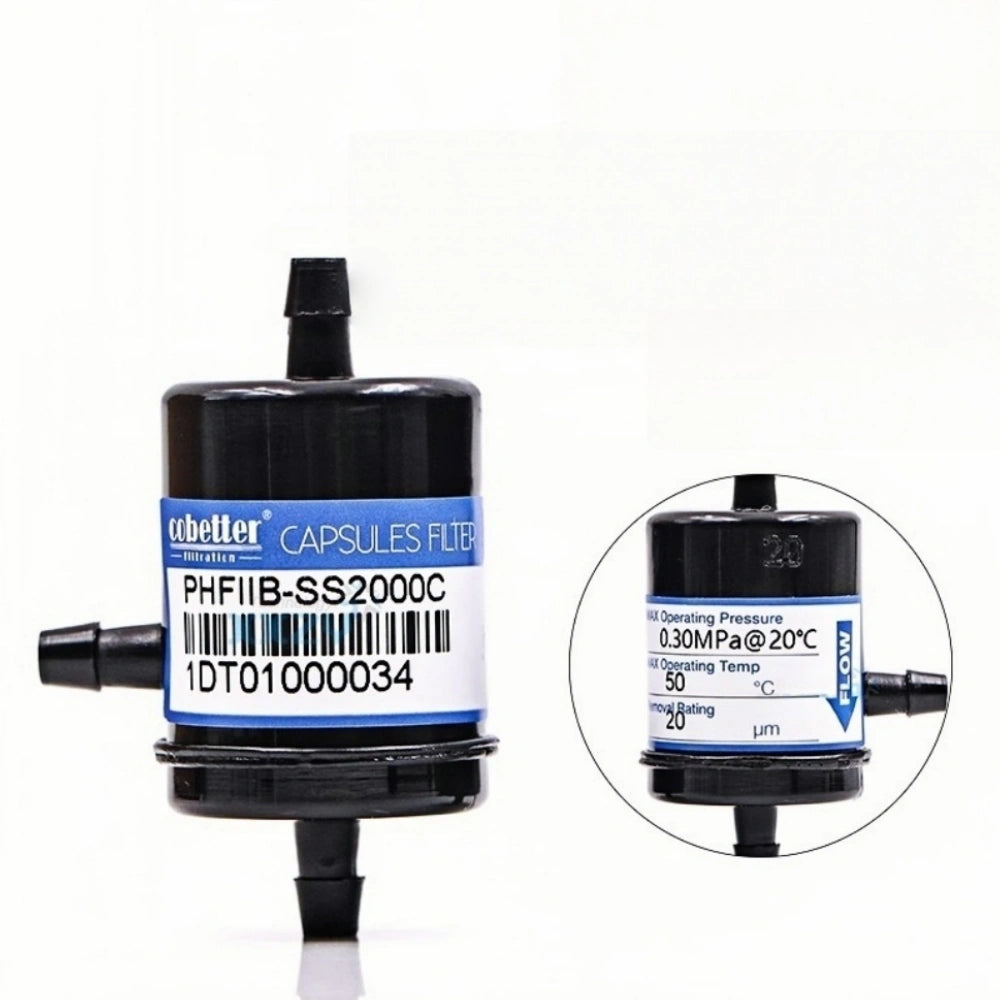

| No.10 | PHFII B-SS2000C | 2-Way (SS) | 2000C | “B” subtype |

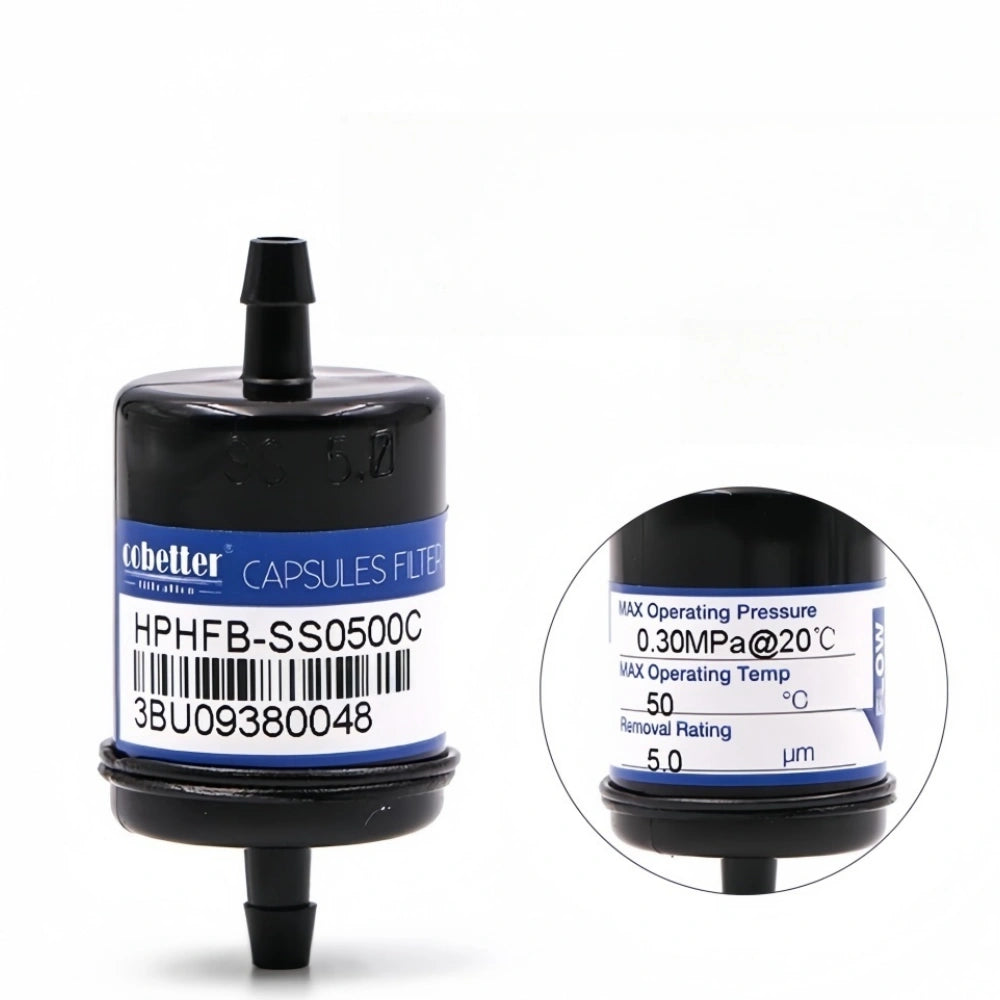

| No.11 | HPHFB-SS0500C | 2-Way (SS) | 500C | Compact size |

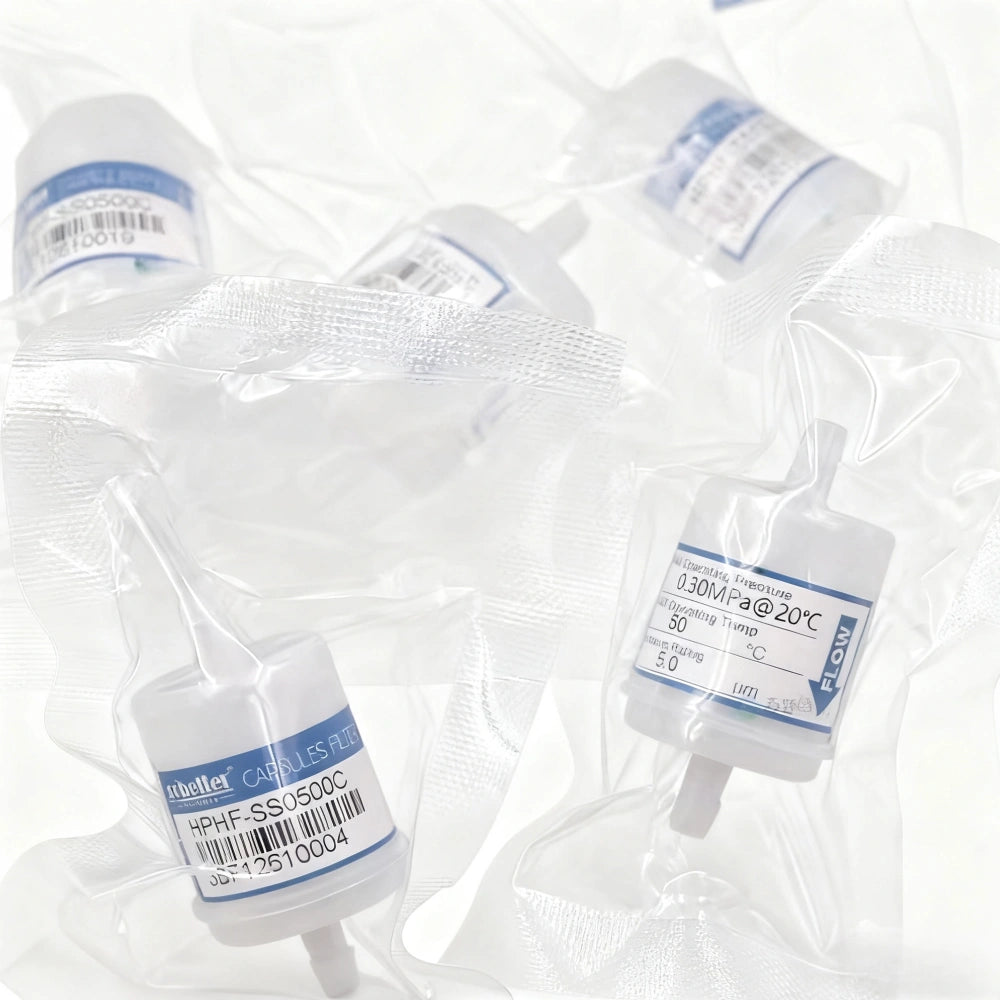

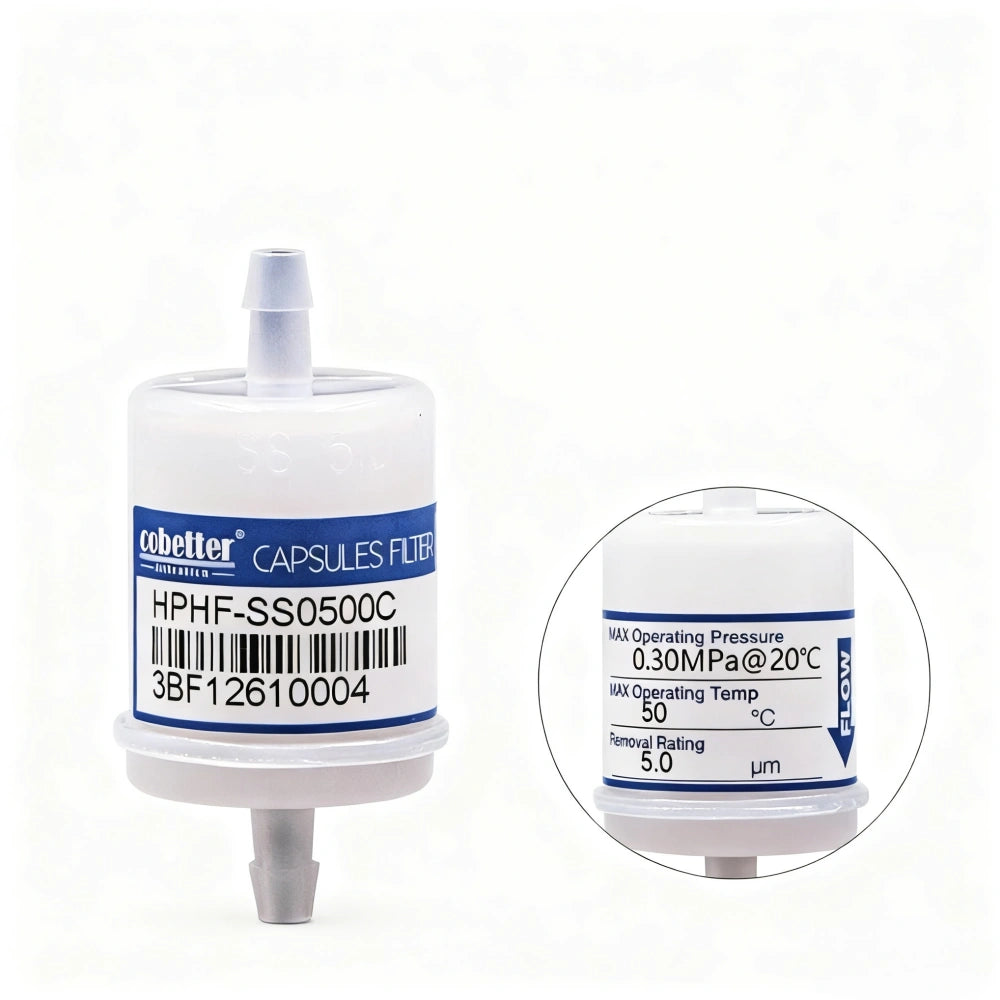

| No.12 | HPHF-SS0500C | 2-Way (SS) | 500C | Compact size |

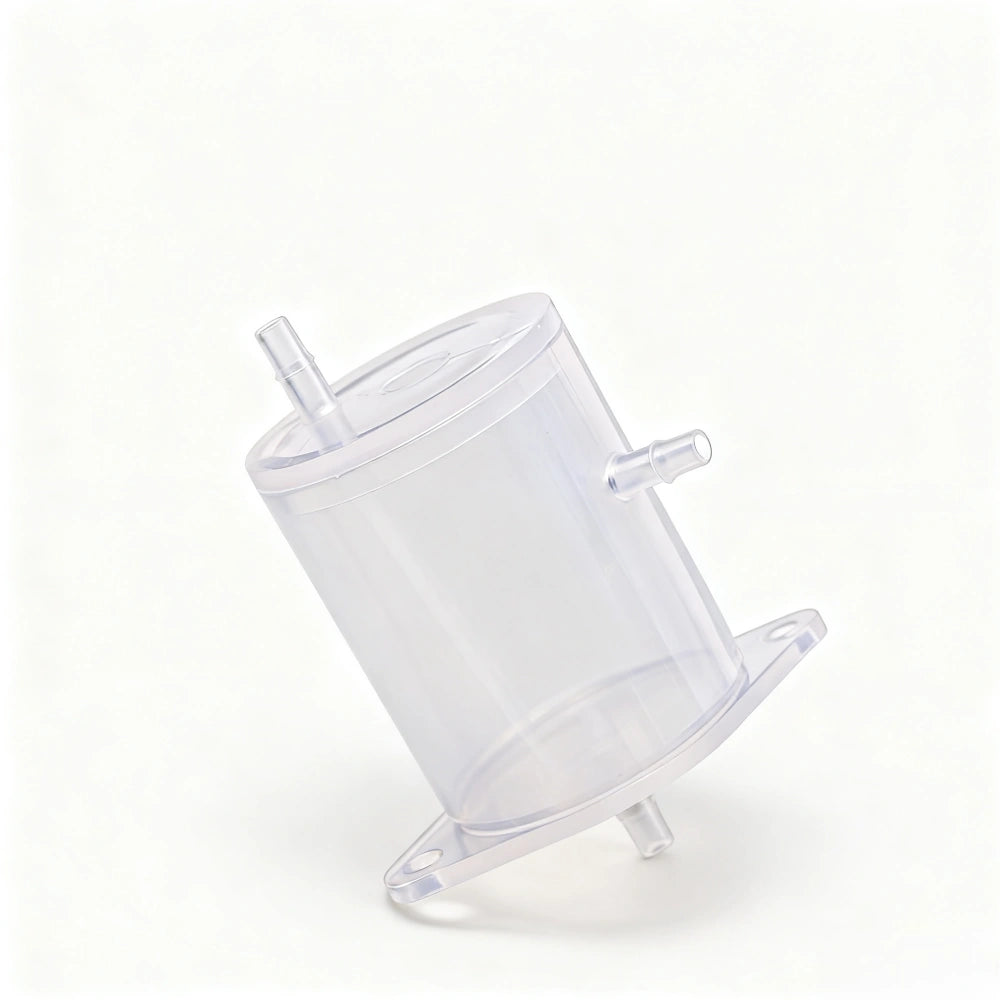

| — | Standard Buffer Bottle | — | — | Common sub-tank buffer bottle |
*Series naming convention used here for clarity: SS ≈ 2-way, SF ≈ 3-way. Please confirm against your current ink line layout before ordering.
Installation Notes:
- Match tubing I.D./O.D. and flow demand (500C–2000C) with your system.
- Observe ink direction if marked; purge air before printing to avoid flow fluctuation.
- Replace filters periodically based on ink type, usage hours, and pressure drop.
- Keep one spare on hand for unplanned maintenance to reduce downtime.
