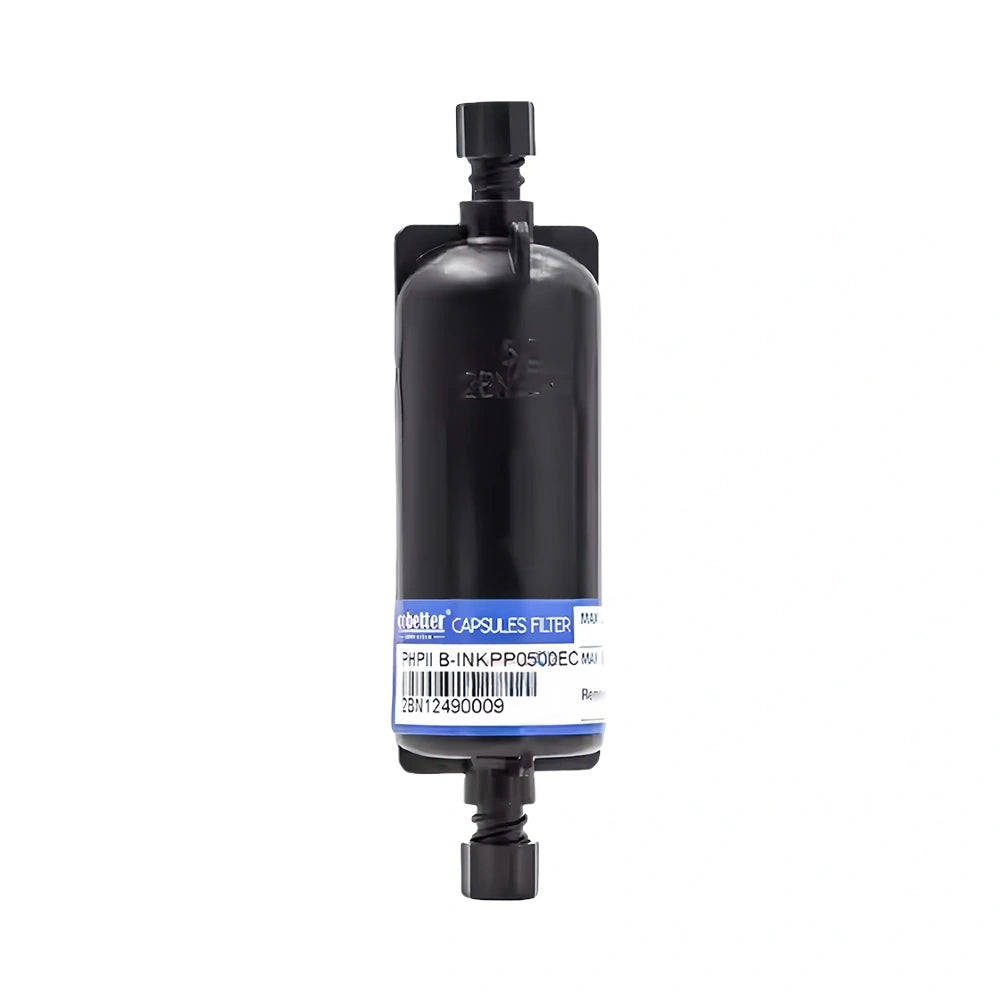

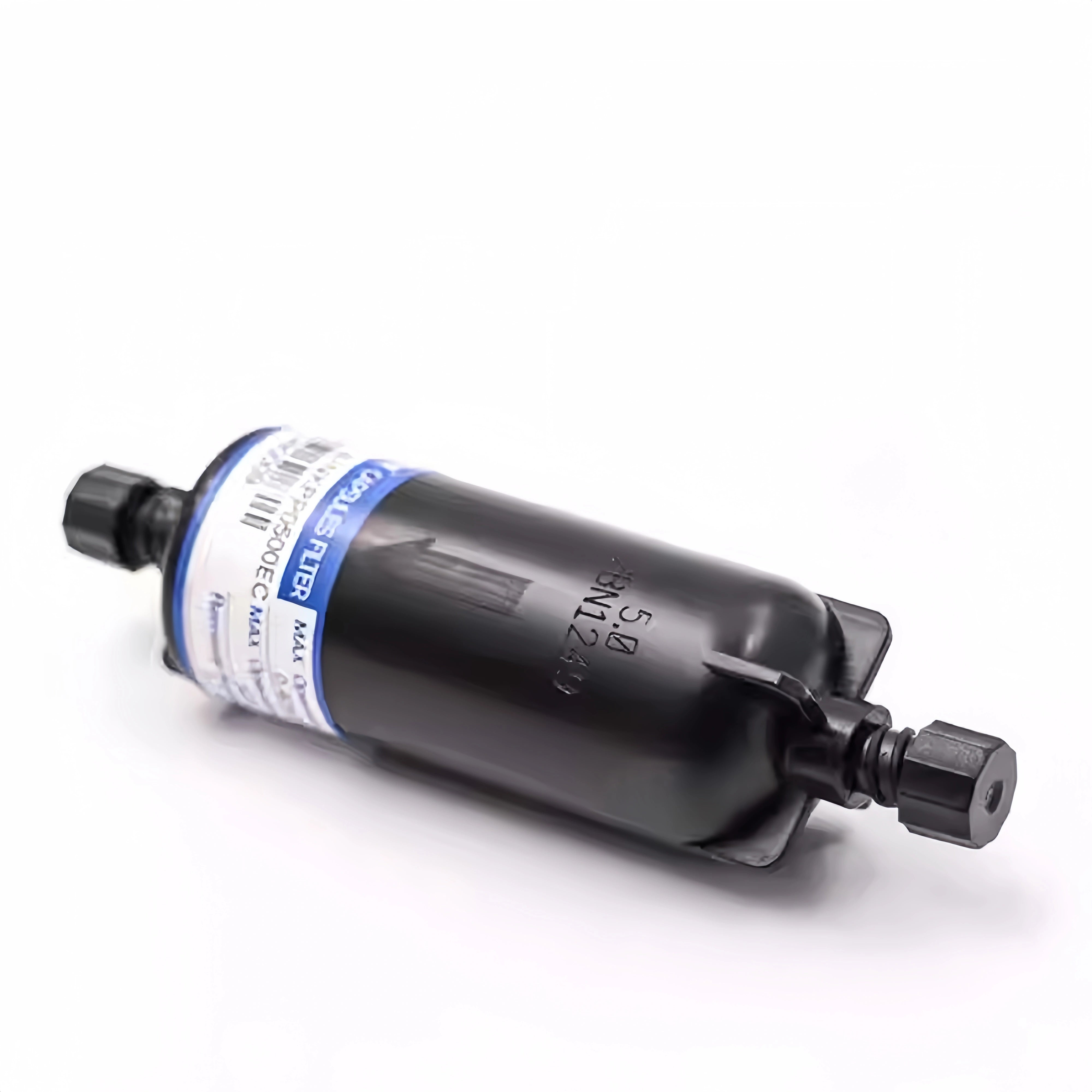

xPHPIIB-INKPP0500EC — Inline Cylindrical Ink Filter
The PHPIIB-INKPP0500EC filter is a high-precision inline cylindrical capsule filter designed for wide-format UV and ceramic printing systems. With a 5 µm filtration rating, it provides excellent protection against particle contamination, reduces printhead clogging, and maintains stable ink delivery under continuous operation.
Key Features
- Filtration precision: 5 µm for effective impurity removal.
- Low pressure drop and high flow rate for smooth ink supply.
- Durable polypropylene housing, corrosion-resistant design.
- Extends printhead lifespan and improves overall printing stability.
- Suitable for UV, solvent, and water-based ink systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PHPIIB-INKPP0500EC |
| Type | Inline Cylindrical Ink Filter |
| Filtration Rating | 5 µm |

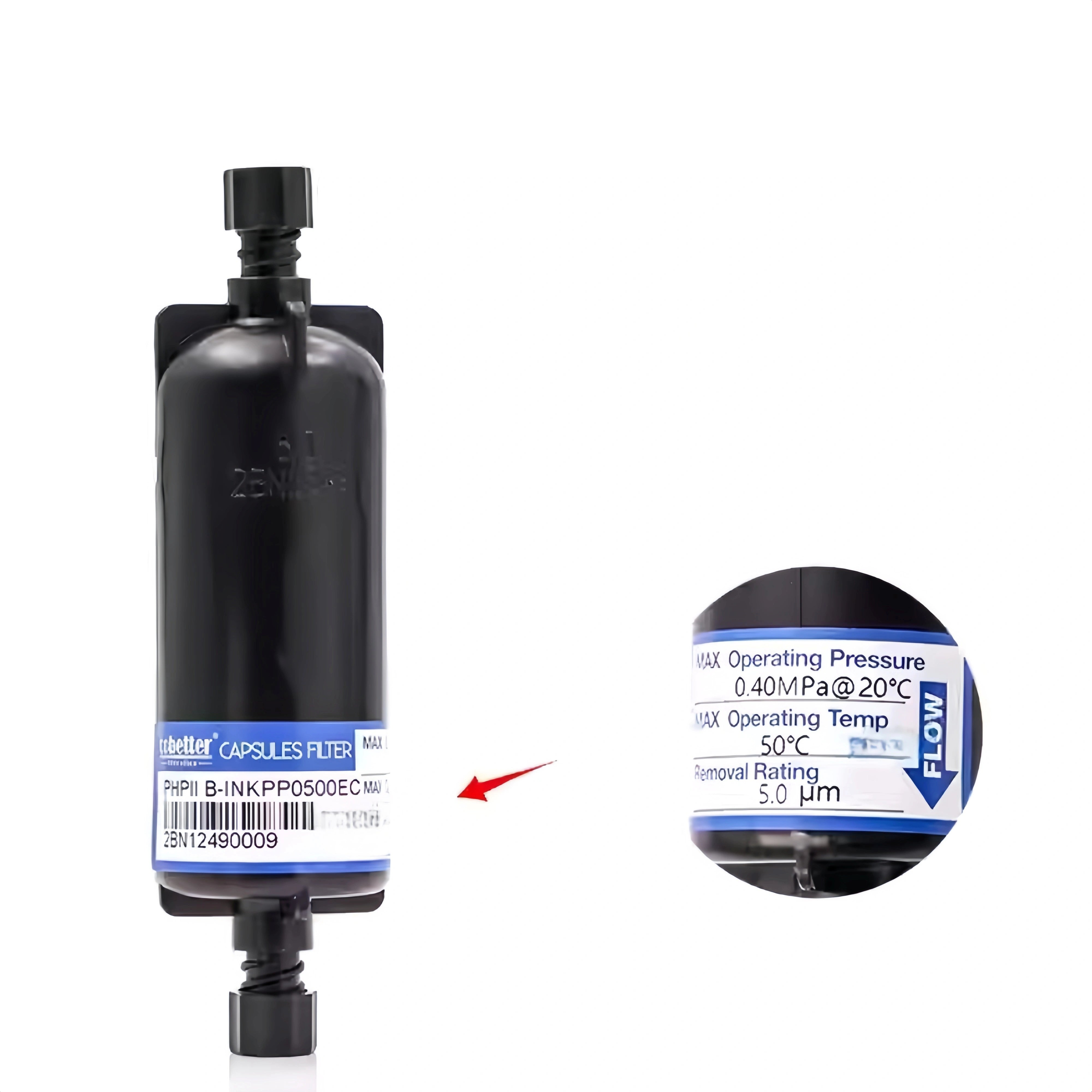

| Operating Pressure | 0.40 MPa @ 20 °C |
| Operating Temperature | ≤ 50 °C |
| Material | PP Housing / Stainless Mesh / Heat-welded Seal |
| Port Connection | Standard tube interface (push-fit) |
| Color | Black |
Compatibility
Compatible with wide-format printers using Ricoh Gen5 / Gen6, Konica 1024A, Kyocera KJ4, Toshiba CF3, Epson i3200, and other industrial printheads. Suitable for inline installation between the ink pump and sub-tank.
Installation Notes:

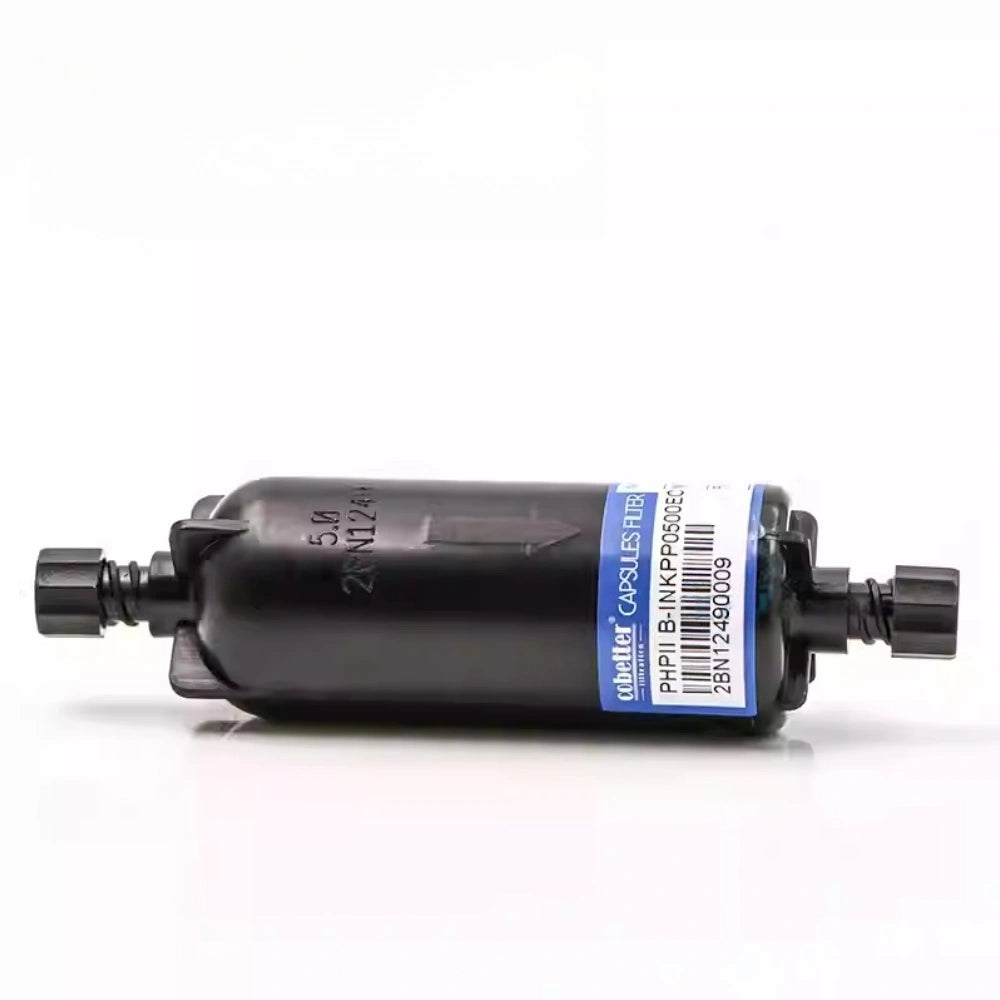

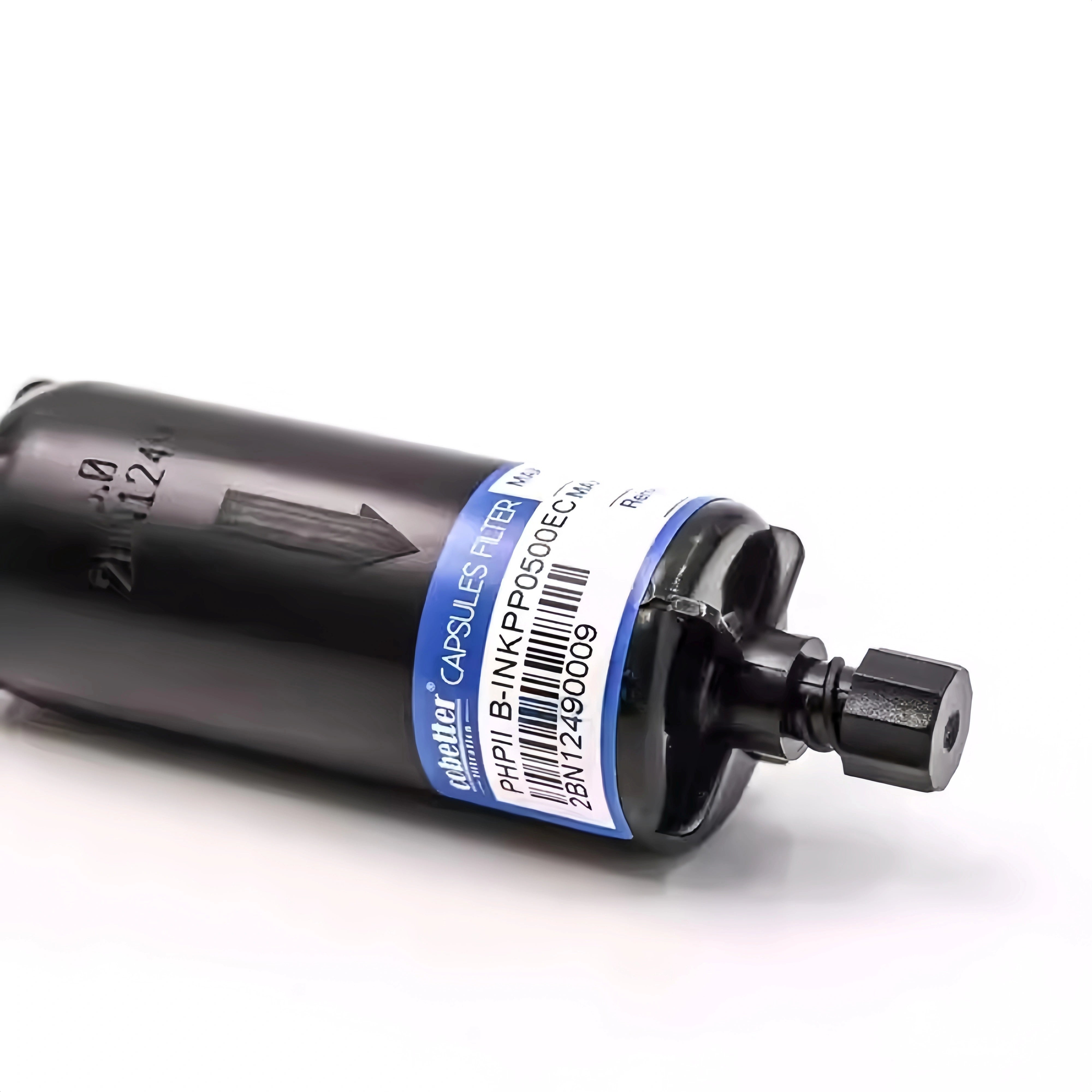

- Align the flow direction arrow before installation.
- Prime the system to purge air and stabilize ink flow.
- Replace filters periodically depending on ink type and workload.
- Keep spares available to minimize downtime during maintenance.
5 µm Filtration
Low Pressure Drop
Cylindrical Type
