xProduct Overview

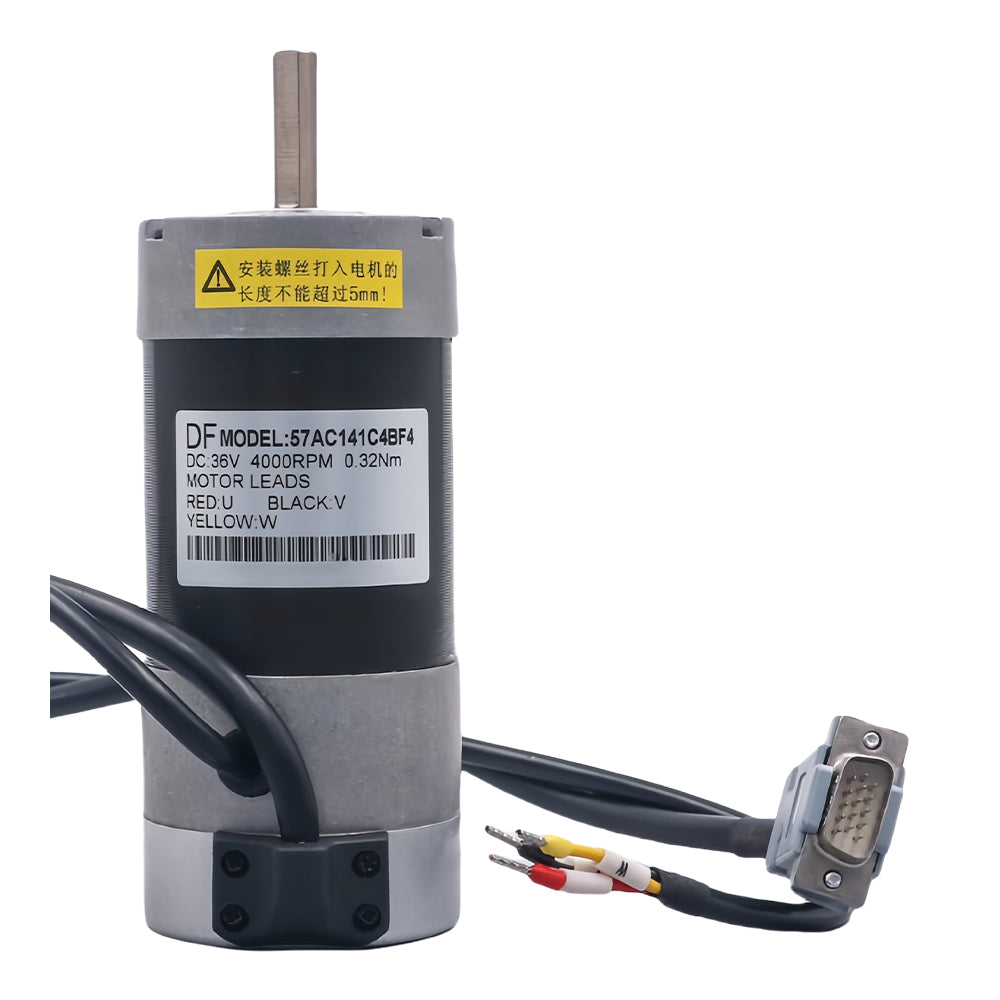

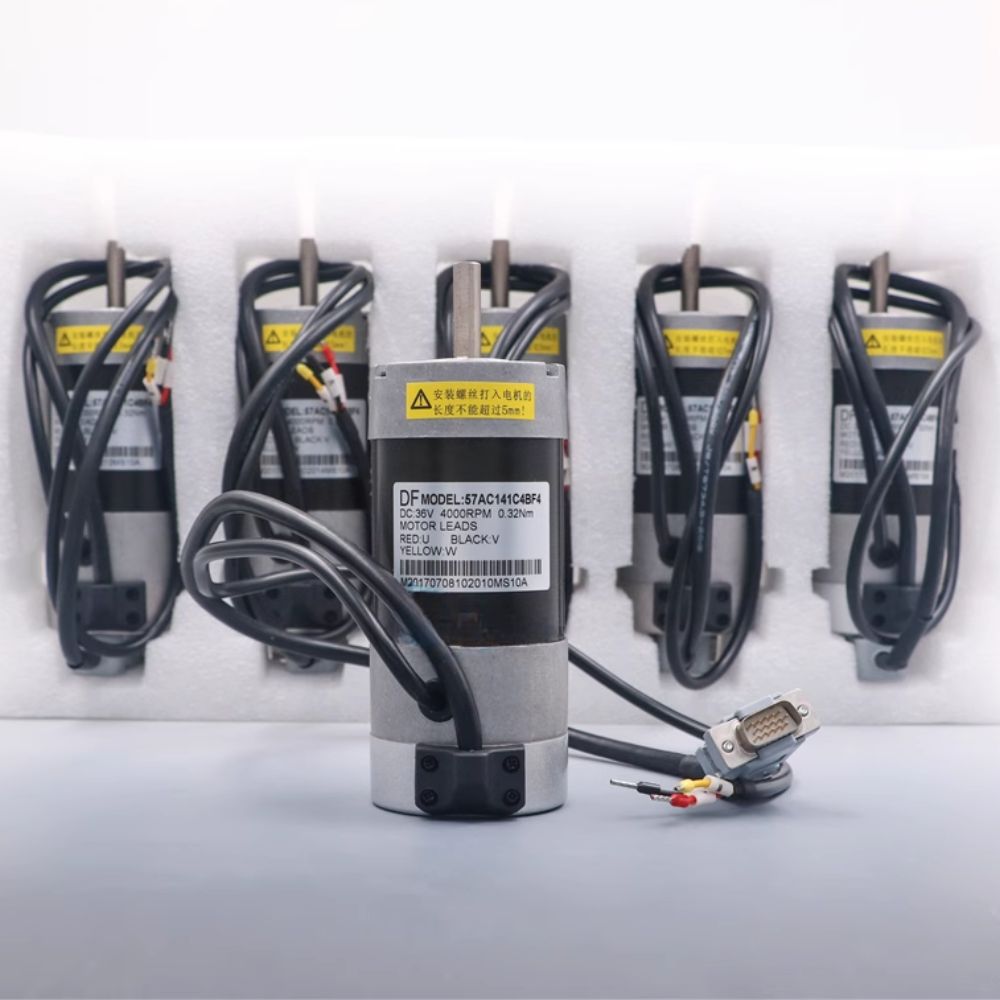

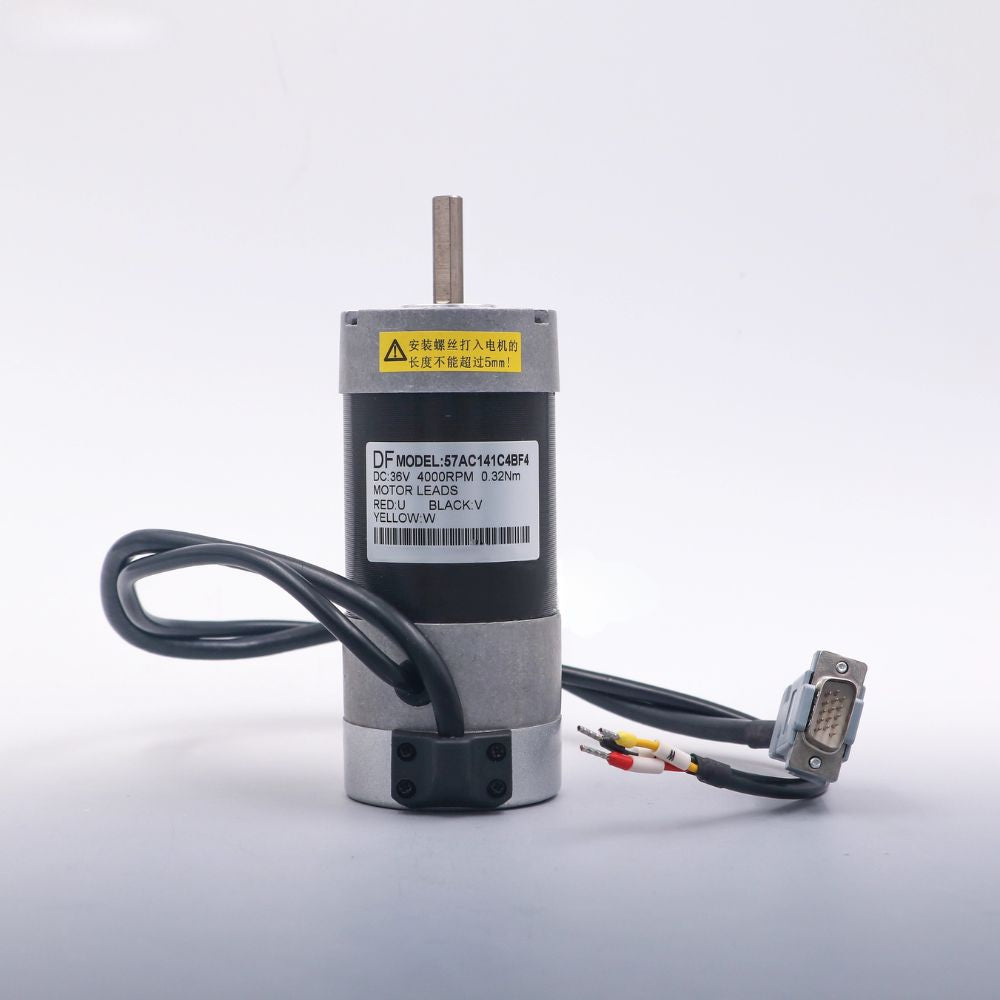

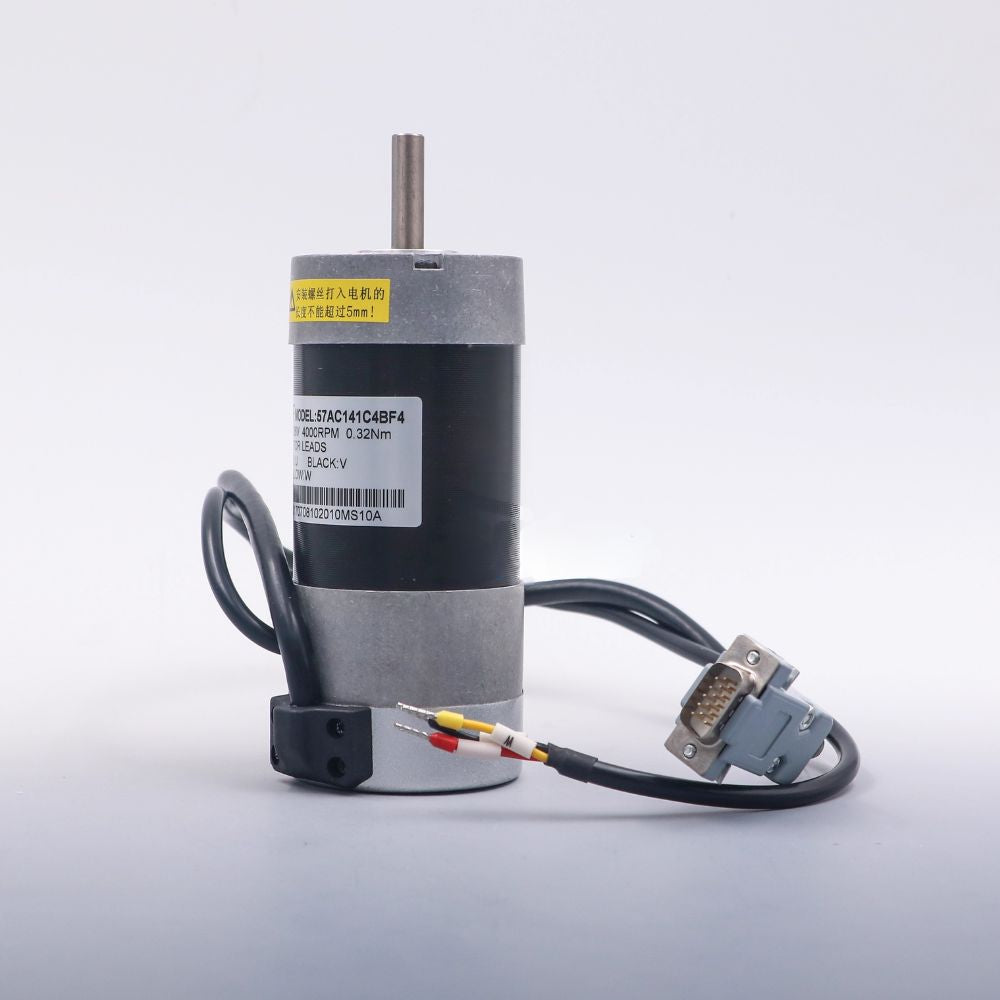

The 57AC141 Servo Motor is a high-performance closed-loop motor designed for X-axis and carriage drive systems in UV, inkjet, and large-format printers. It delivers stable torque, high positioning accuracy, and fast response, ensuring smooth and precise motion control during printing. This motor is ideal for machines that require consistent speed, strong load capacity, and reliable long-term operation.
Key Features
- High torque and fast acceleration for precise motion control
- Closed-loop servo system to prevent step loss and vibration
- Stable rotation and excellent positioning accuracy
- Durable construction suitable for continuous high-speed printing
- Integrated encoder for feedback and real-time synchronization
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 57AC141 |
| Type | Closed-loop Servo Motor |
| Voltage | DC 36V |
| Speed | 4000 RPM |
| Torque | 0.32 Nm |
| Encoder | 1000-line incremental encoder |
| Phase | 3-phase |
| Connector Type | Signal + Power multi-pin cable interface |
| Application | X-axis and carriage motor for UV/inkjet printers |
| Mounting Size | 57 mm frame |
Applications
- UV flatbed printers
- Inkjet printers
- Large-format and eco-solvent printers
- CNC or automation motion systems
- X-axis and carriage drive mechanisms
Installation & Notes
- Ensure proper wiring for power and signal connections before operation.
- Match the servo driver specifications to the motor’s rated voltage and current.
- Use shielded cables to minimize electrical interference.
- Securely fix the motor on a stable base to prevent vibration.
- Regularly check the encoder and connections for stable feedback signals.
Note: The 57AC141 servo motor is compatible with various printer brands and models using 57-series motors. Always verify wiring and driver compatibility before installation.
Package Contents
- 1 × 57AC141 Servo Motor
- 1 × Signal & Power Cable Set
