Description

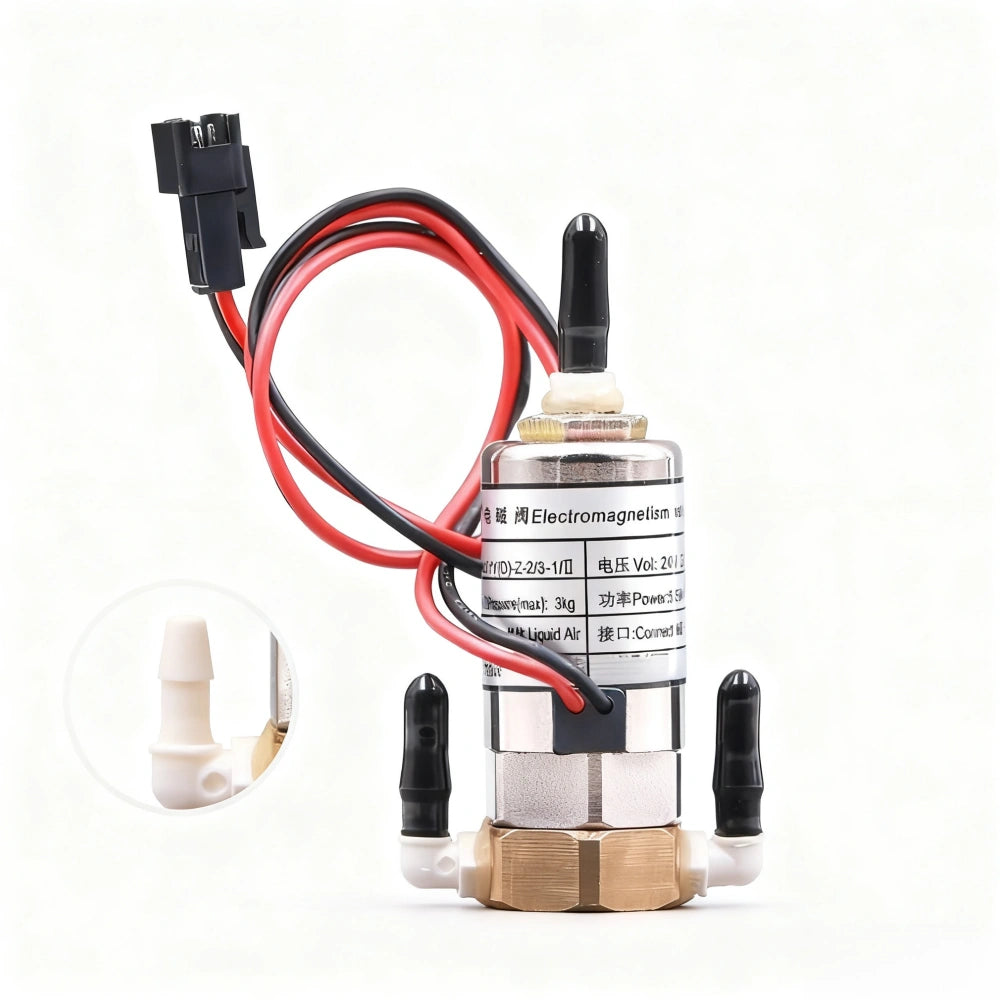

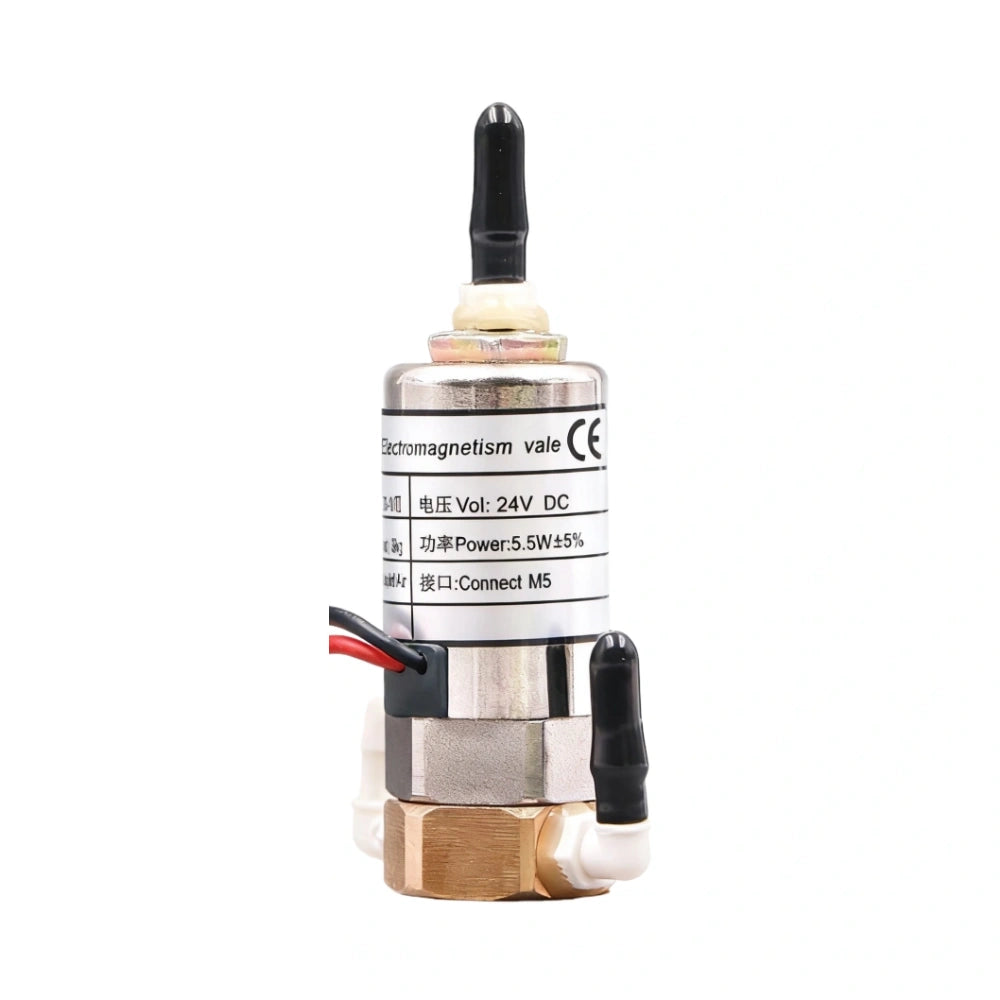

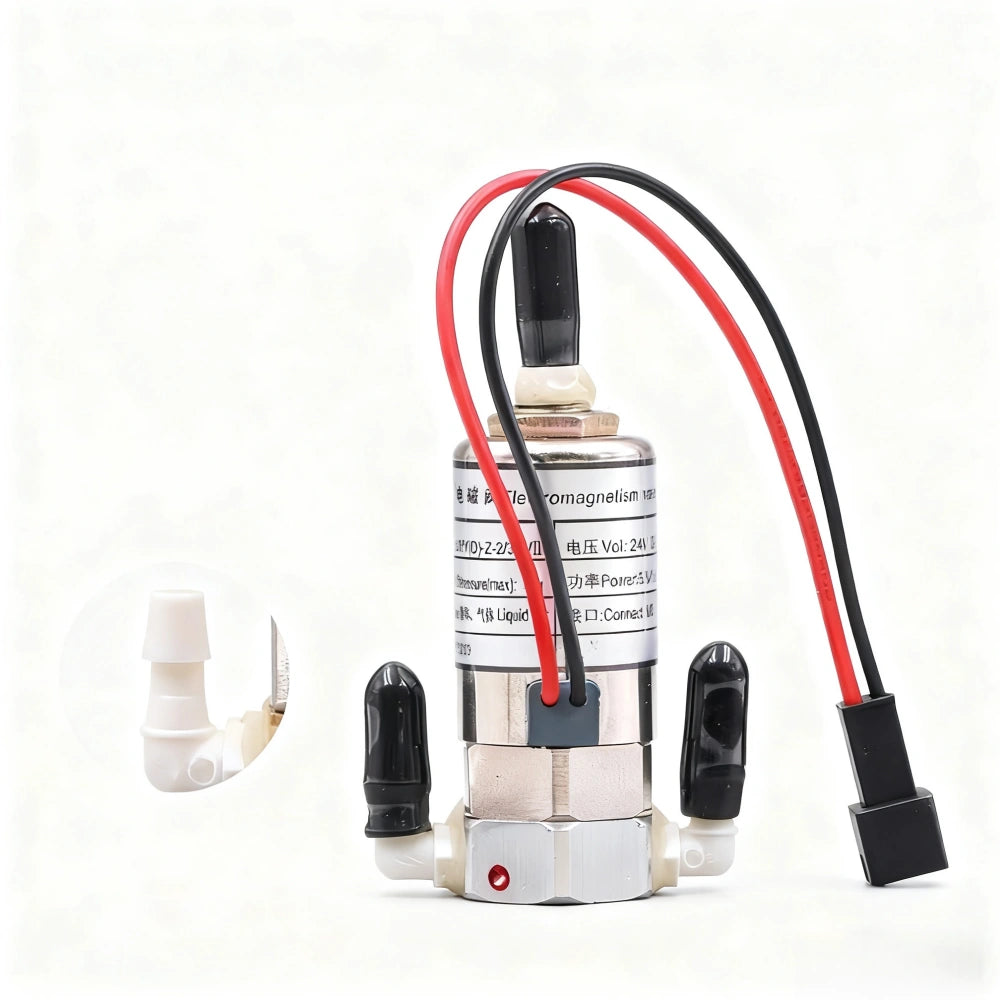

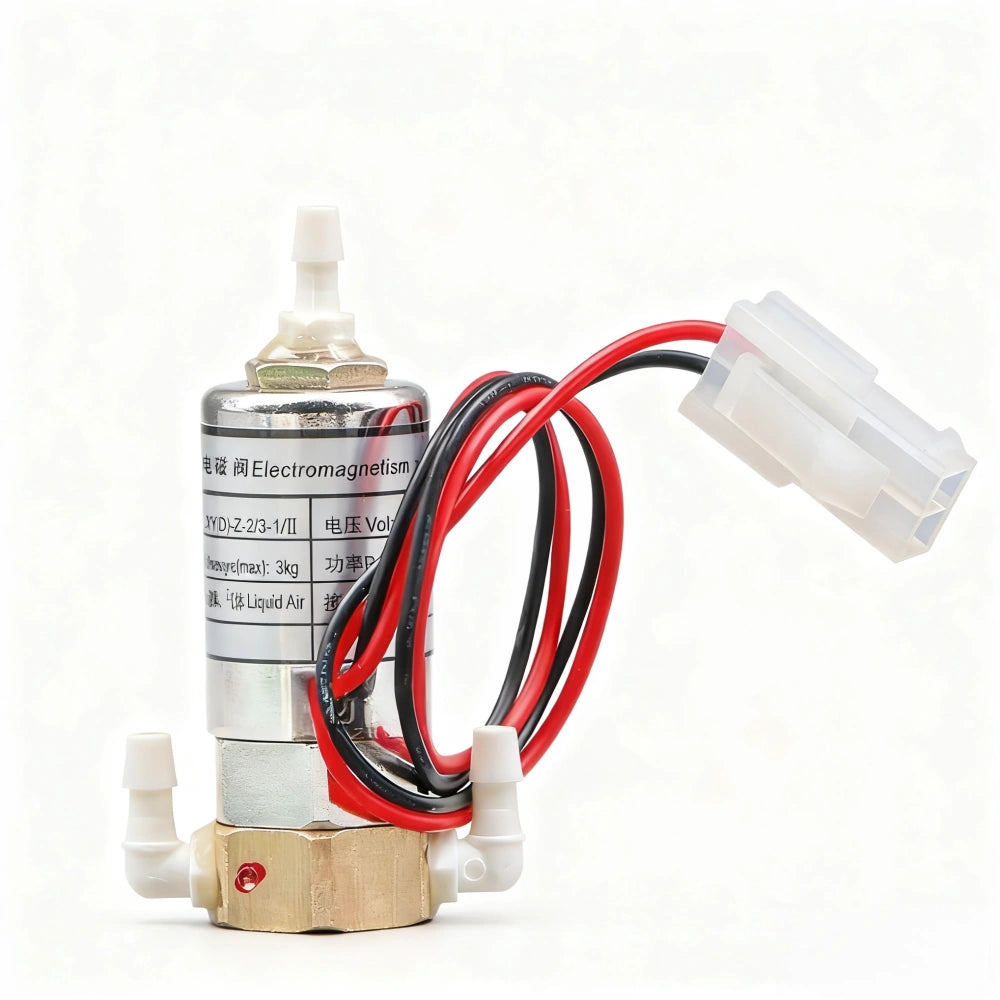

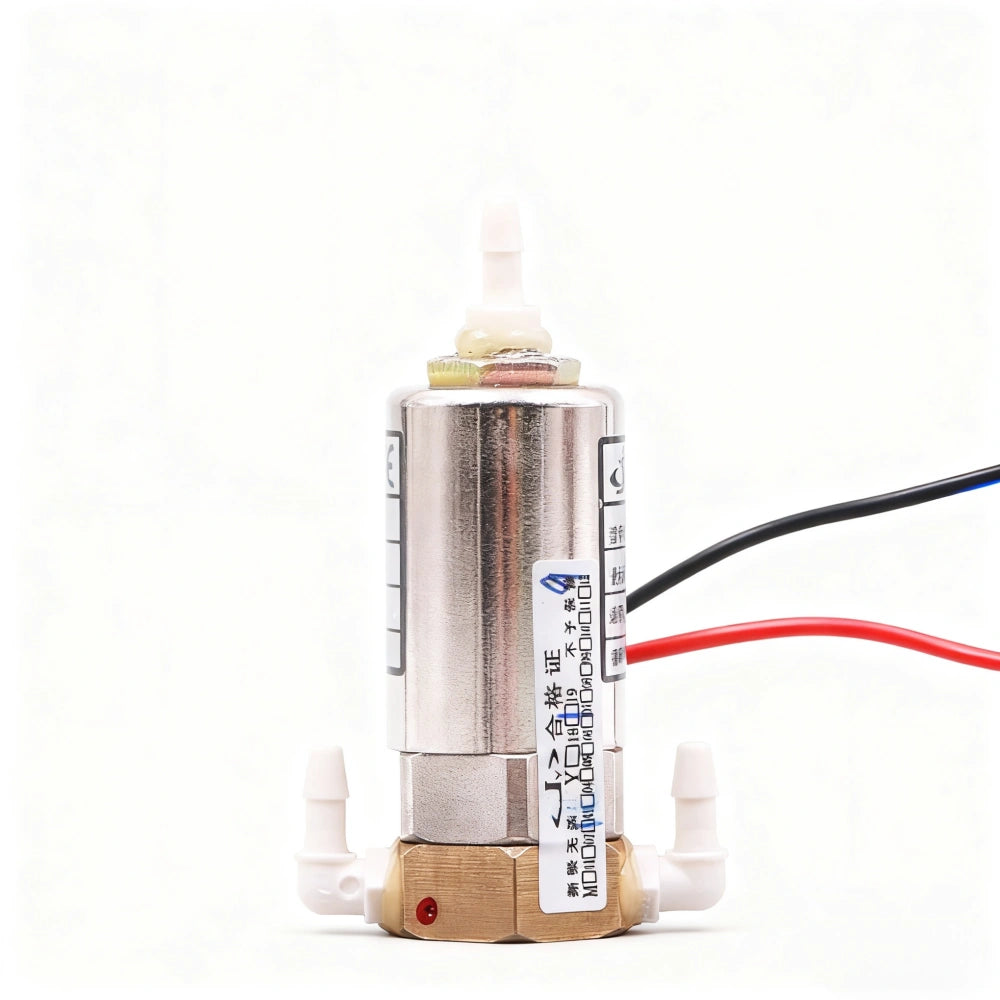

xSolenoid Valve JYY(D)-Z-2/3-1/II – 3-Way Electromagnetic Valve (24V 5.5W)
The JYY(D)-Z-2/3-1/II solenoid valve is designed for industrial UV printers, flatbed printers, and air or ink control systems. With precise electromagnetic response and stable performance, this 3-way valve ensures efficient ink flow and pressure control. Available in both 3mm and 4mm tube connector types to match different system configurations.
Key Features
- 3-way structure for smooth switching between ink and exhaust flow.
- Rated at 24V DC with 5.5W ±5% power for stable operation.
- Available in 3mm thin port or 4mm thick port connectors.
- Built-in M5 thread for easy installation.
- Fast response and excellent corrosion resistance.
- Ideal for air valve, ink system, or solvent-based printing equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JYY(D)-Z-2/3-1/II |
| Type | 3-Way Solenoid Valve |
| Voltage | DC 24V |
| Power | 5.5W ±5% |
| Thread Size | M5 |
| Connection Tube | Φ3mm / Φ4mm (Inner Diameter) |
| Application | Ink, Air, Solvent |
Model Options
| Model Option | Tube Size | Connector Type | Notes |
|---|---|---|---|
| (Thin Port) | Φ3mm | Connector #1 | Used for small ink tubes |
| (Thick Port) | Φ4mm | Connector #1 | Standard UV printer connector |
| (Thick Port) | Φ4mm | Connector #2 | Alternative connector for different fittings |
| (Thick Port) | Φ4mm | Connector #3 | Optimized for higher air flow |
| Extension Cable Option | 4M | Plug-in Type | For extended installation distance |
Compatible Printers
Suitable for UV printers, flatbed printers, and wide-format printing equipment. Commonly used in air pressure systems and ink control modules of models such as Kingjet, Polaris, Wit-Color, and similar machines.
