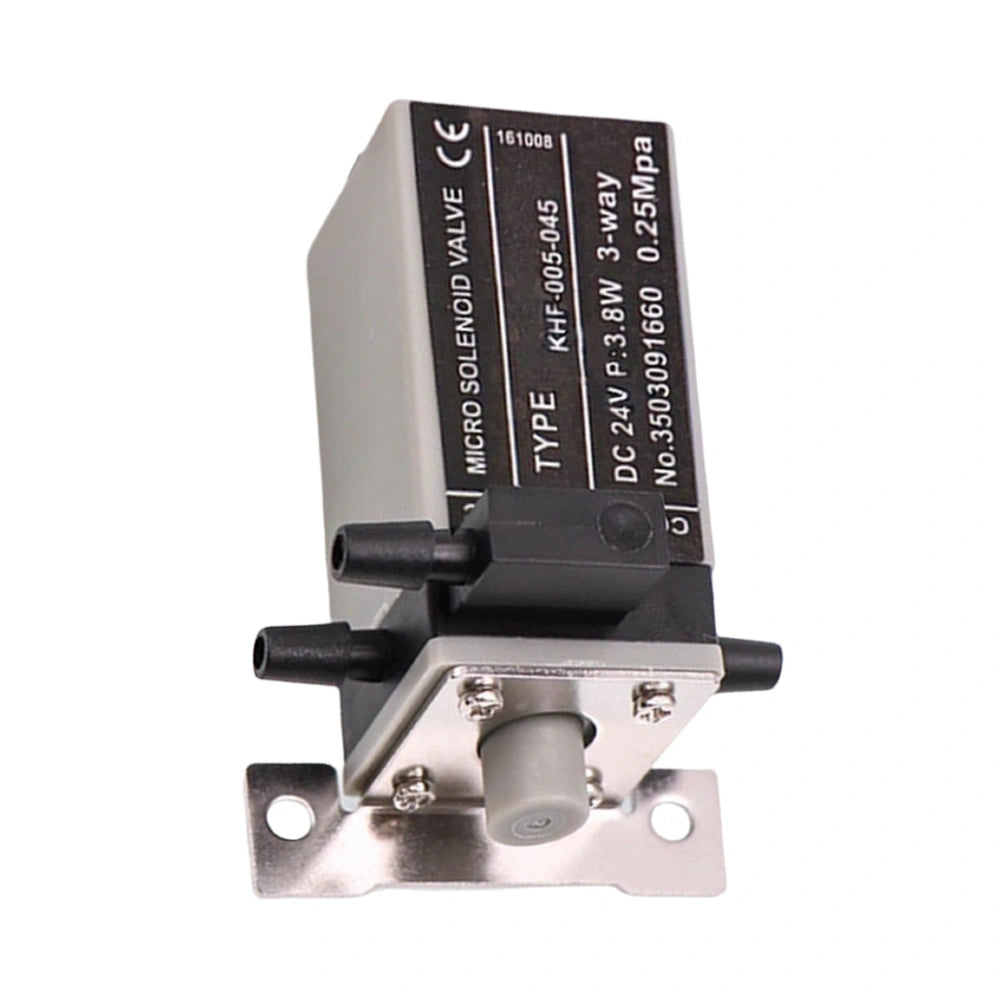

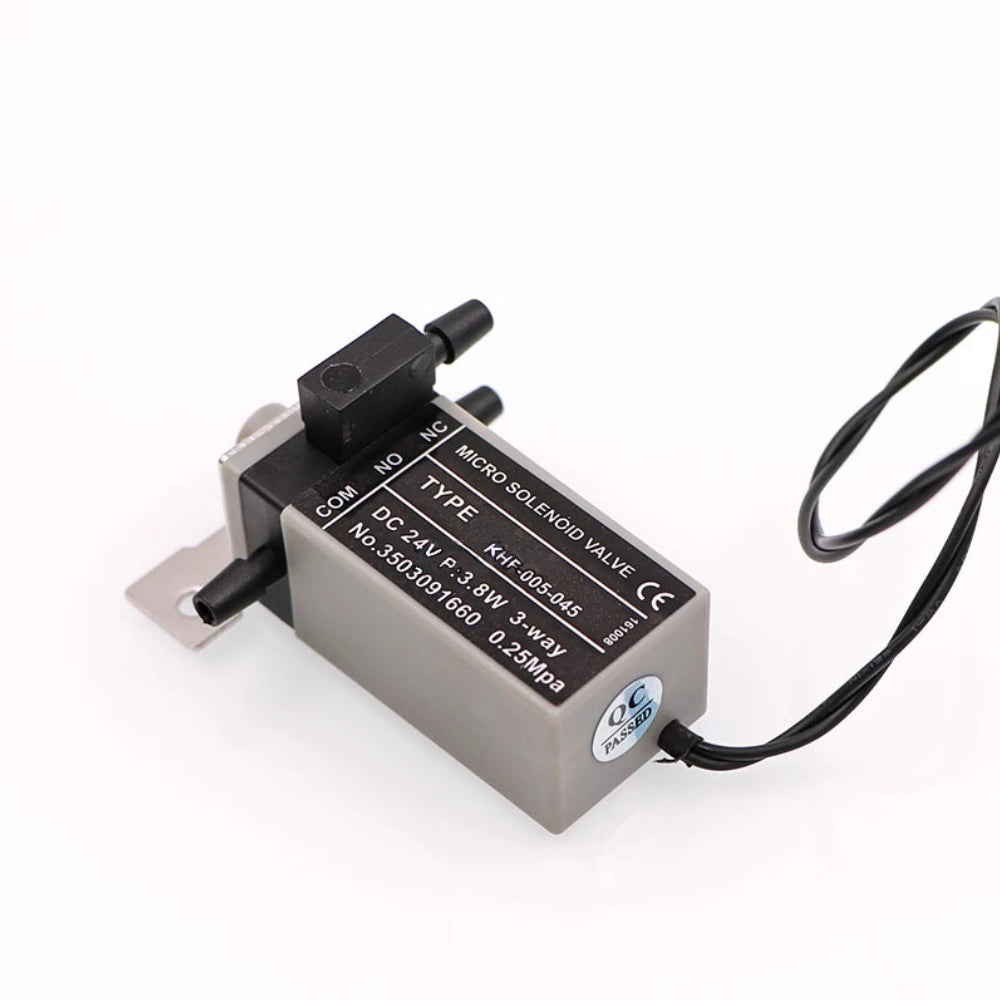

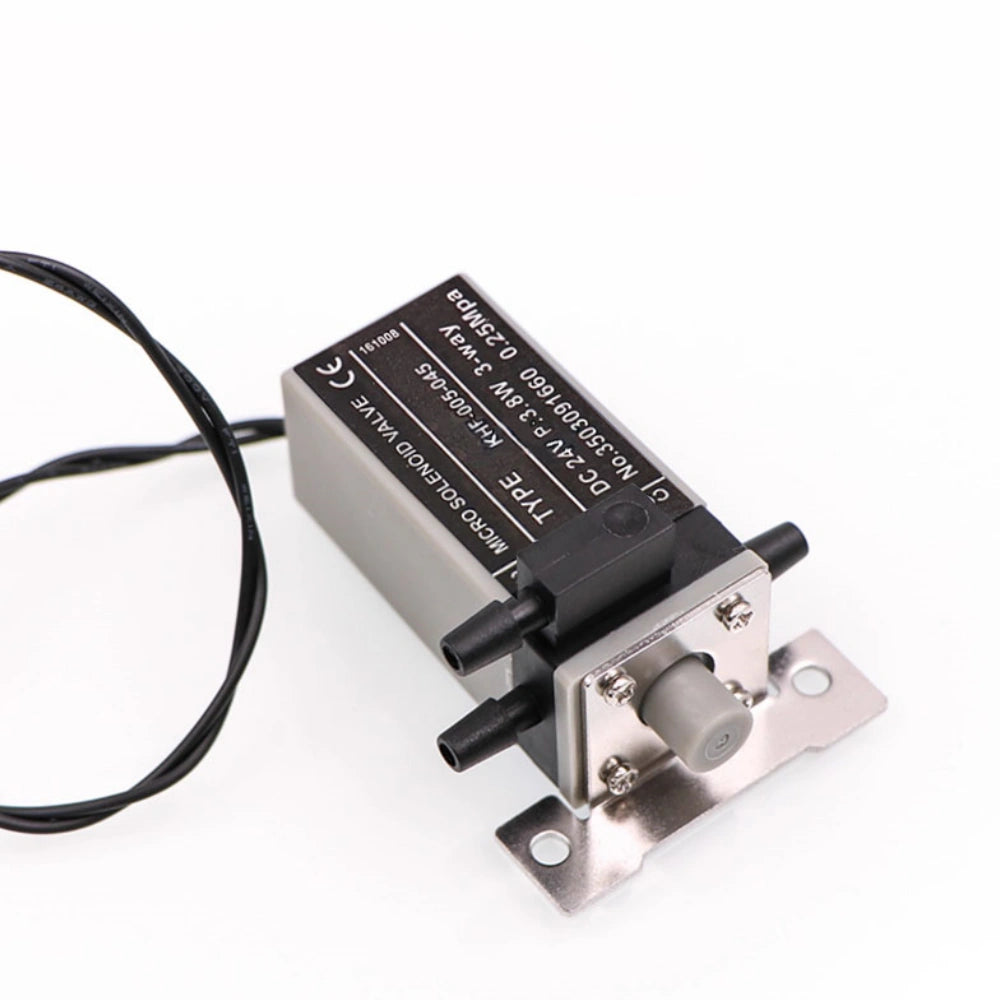

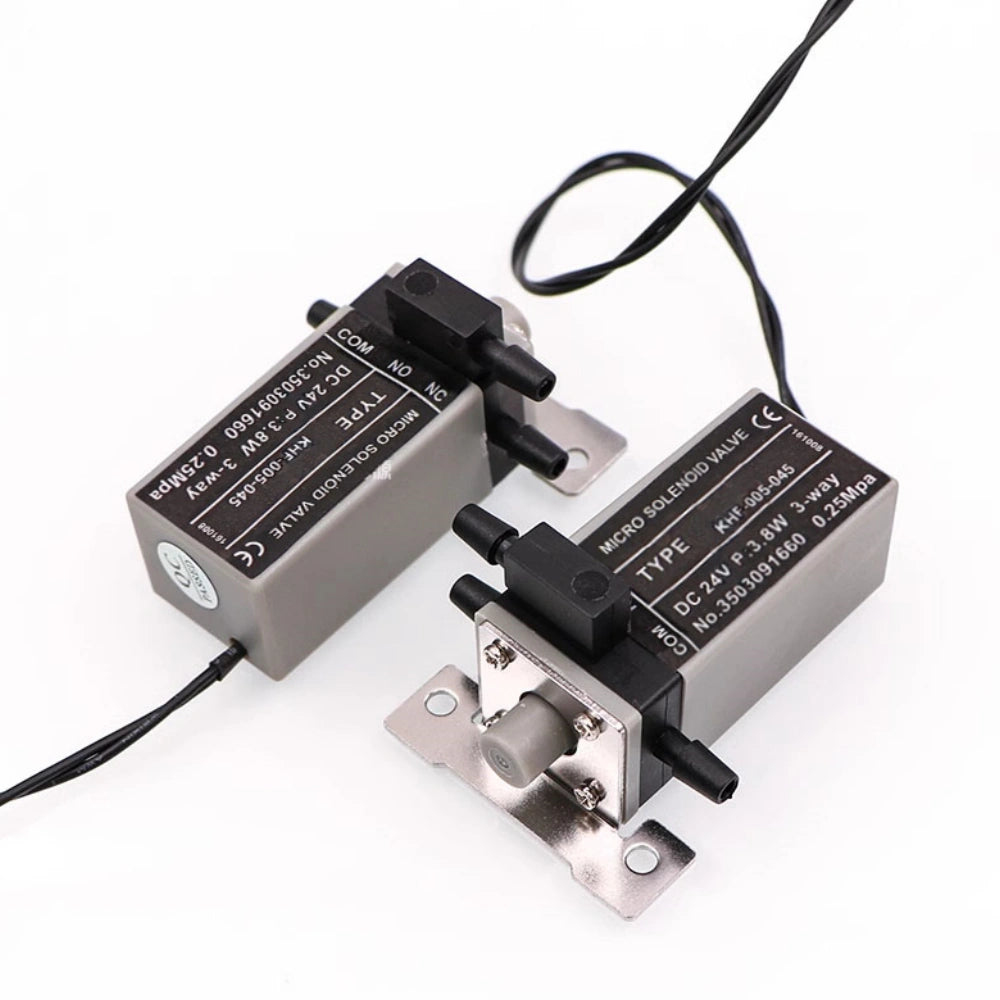

xKHF-005-045 Micro Solenoid Valve – 3-Way, DC24V 3.8W, 0.25MPa for Inkjet & Pneumatic Systems
The KHF-005-045 is a compact 3-way micro solenoid valve designed for precise control in fluidic and pneumatic systems. With a working voltage of DC 24V and power consumption of just 3.8W, this valve is ideal for use in inkjet printers, vacuum switching systems, and other applications requiring fast and reliable directional control. Its 3-port configuration (COM / NO / NC) allows switching between two output lines or for controlled venting.
Key Features:
-
Model: KHF-005-045
-
Voltage: DC 24V
-
Power: 3.8W
-
Valve Type: 3-Way (COM–NO–NC)
-
Pressure Range: 0–0.25 MPa
-
Structure: Compact, lightweight, and easy to mount
-
Port Type: Compatible with 2–4mm flexible tubing
-
Low power, fast response, and quiet operation
-
CE Certified, reliable for industrial integration
Specifications:
-
Application Medium: Air / Ink / Cleaning Fluids / Vacuum
-
Duty Cycle: 100% ED (continuous operation)
-
Connector Type: 3 barbed ports (COM / NO / NC)
-
Mounting: Metal plate with screw holes for panel or chassis installation
-
Typical Use Cases: Ink suction switching, negative pressure redirection, automated fluid control in compact environments
