xProduct Overview

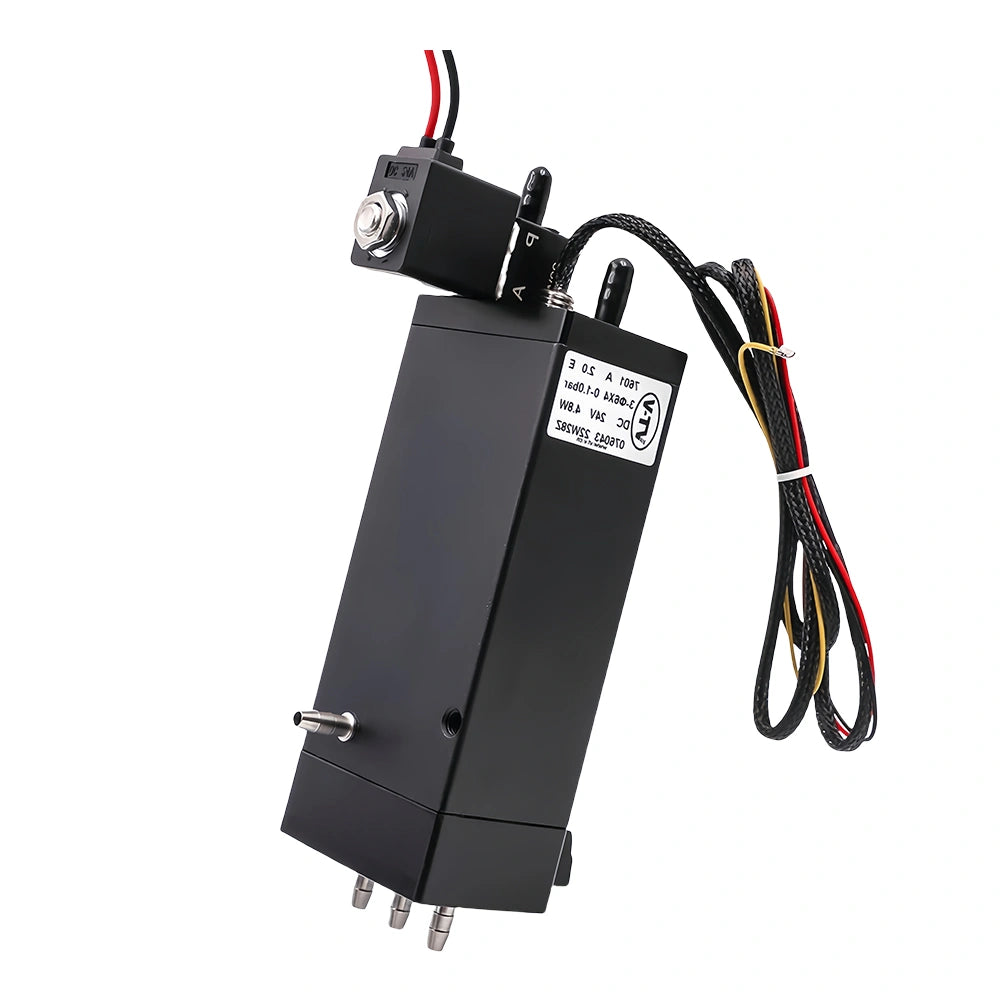

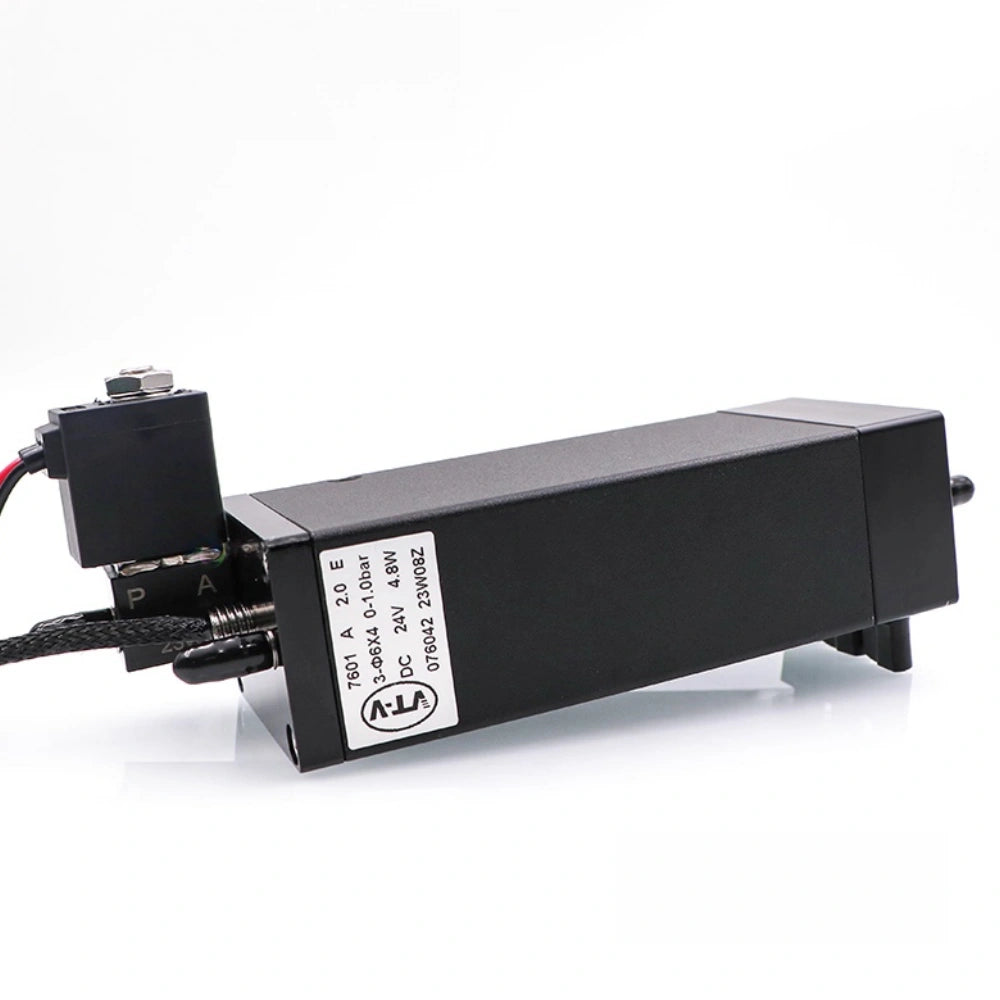

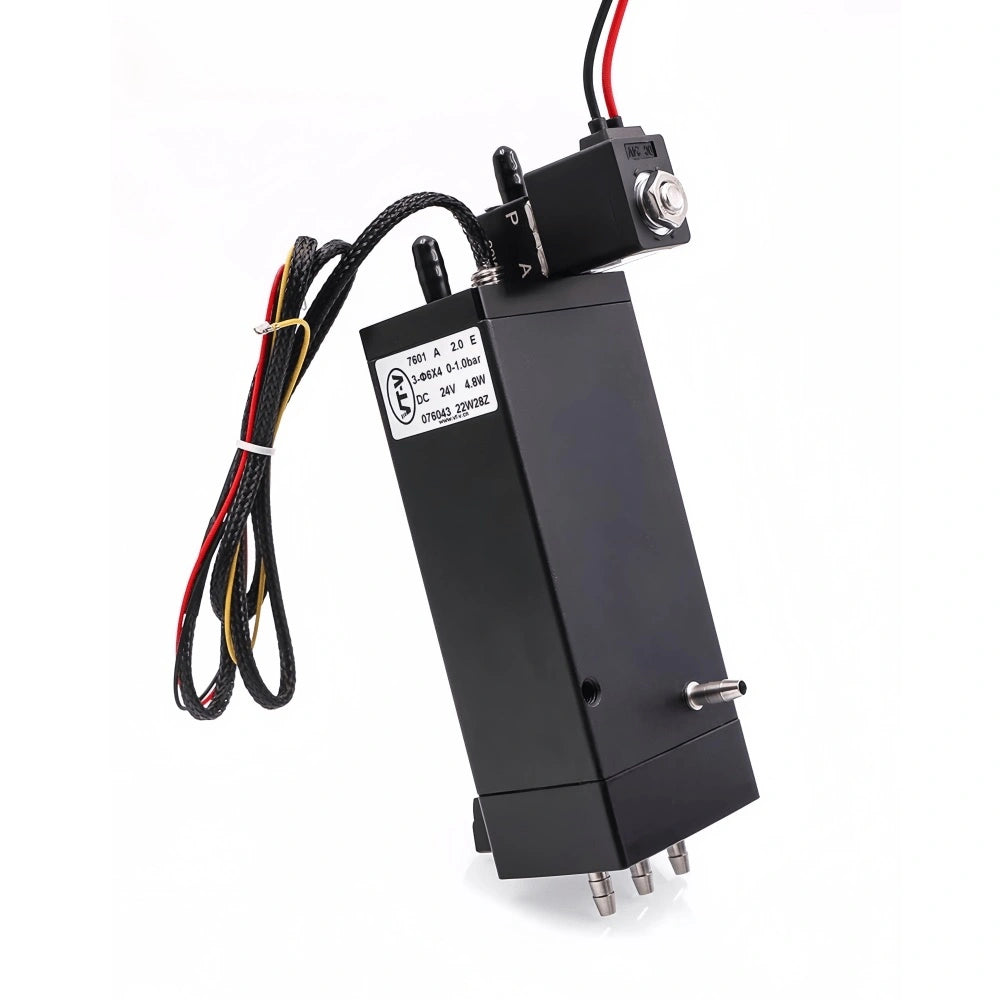

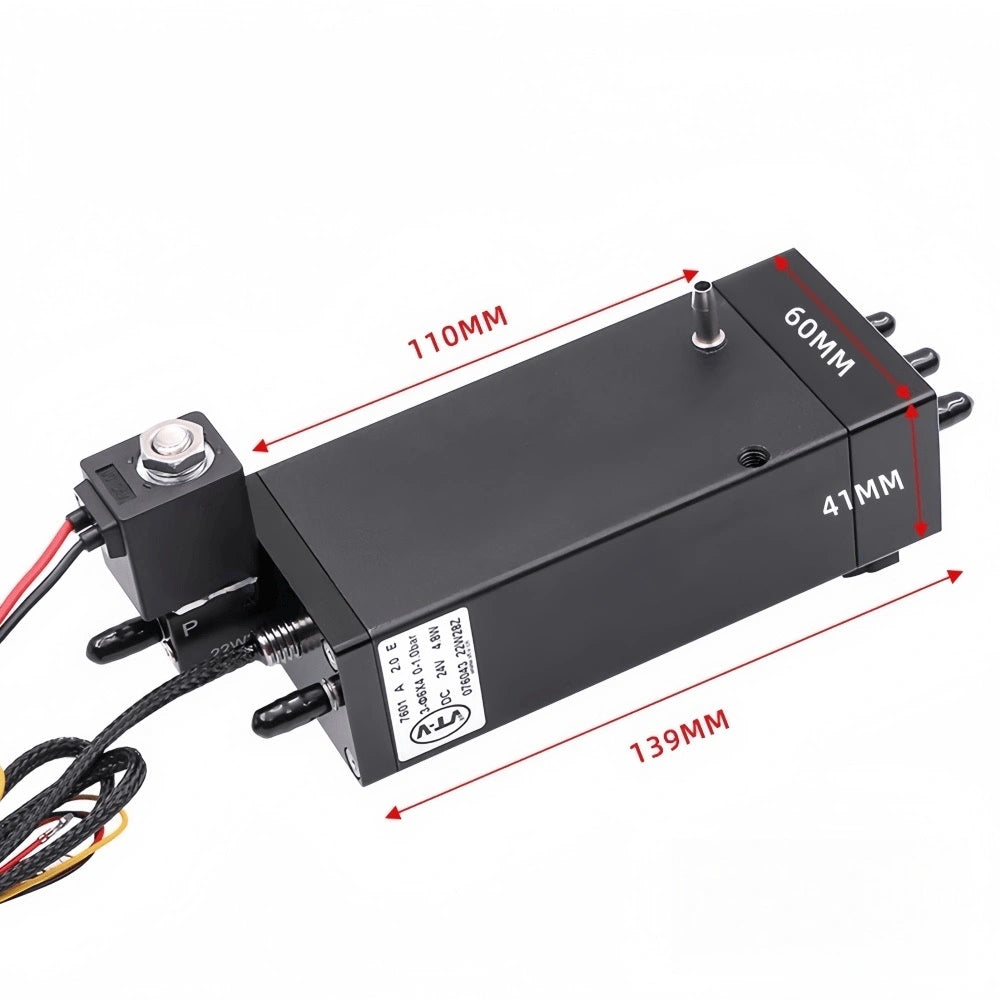

The 3-Out Electronic Valve Sub Ink Cartridge is a premium-grade secondary ink tank designed for advanced UV flatbed and roll-to-roll printers. Featuring an integrated solenoid valve with a 3-outlet design, it provides precise electronic control of ink flow and negative pressure balance, ensuring reliable and continuous ink delivery during high-speed printing.
Built from high-strength aluminum alloy, this cartridge is resistant to corrosion and ink residue buildup. It supports both white ink recirculation systems and standard color ink systems, making it ideal for industrial-grade printing operations.
Key Features
- 3-out electronic valve design ensures stable ink output and smooth recirculation.
- Integrated solenoid valve (DC 24V / 4.8W) for precise ink pressure and flow control.
- Durable aluminum construction with high sealing performance and corrosion resistance.

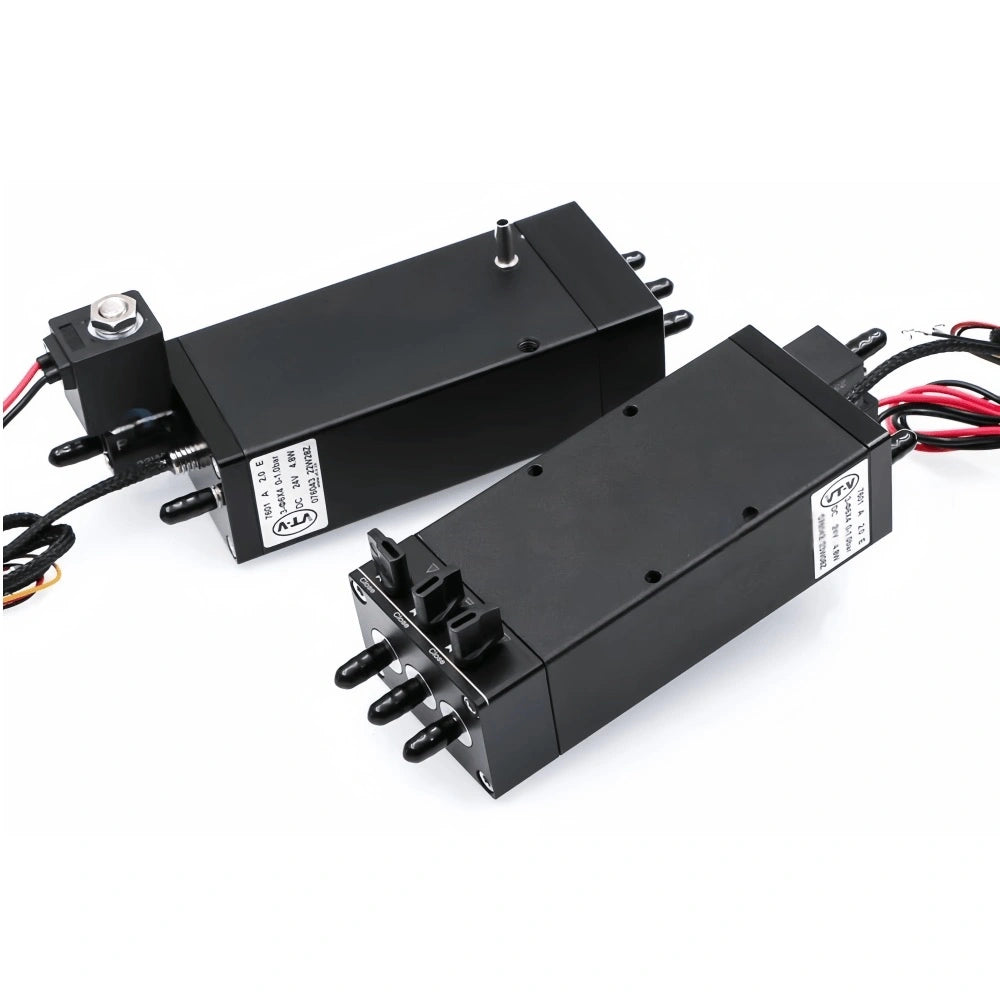

- Available in two models: White Ink Model (with recirculation) and Color Ink Model (without recirculation).
- Compact design, easy installation, and compatible with most UV printers.
- Excellent anti-leak structure ensures safe long-term use with UV inks.
Available Models
| Model | Description |
|---|---|
| White Ink Model (With Recirculation Port) | Includes a dedicated recirculation port and valve for continuous white ink circulation, preventing sedimentation. |
| Color Ink Model (No Recirculation Port) | Simplified version without recirculation function, designed for CMYK ink lines with stable pressure control. |
Technical Specifications
| Product Type | 3-Out Electronic Valve Sub Ink Cartridge |
| Valve Type | Integrated Solenoid Valve (With/Without Recirculation) |
| Operating Voltage | DC 24V |
| Power | 4.8W |
| Material | Aluminum Alloy |
| Ink Outlet | 3-Way Ink Output |
| Compatibility | UV Flatbed / Roll-to-Roll Printers |
| Ink Type | UV Ink (White & Color) |
Product Advantages
- Integrated electronic valve system ensures fast and stable response during printing.
- Prevents ink leakage and backflow even under variable pressure conditions.
- Strong corrosion resistance suitable for long-term UV ink use.
- Optional white ink version enhances continuous circulation and prevents clogging.
- Widely compatible with UV flatbed and hybrid printing systems.
Applications
- UV Flatbed Printers
- Roll-to-Roll UV Printers
- Hybrid UV Printing Systems
- High-speed Industrial Ink Supply Systems
Installation Notes
- Install vertically, keeping the ink outlets downward for smooth flow.
- Connect wiring according to the solenoid valve’s polarity marks (24V DC input).
- Ensure airtight tubing connections to prevent leaks or air bubbles.
- Use compatible connectors for recirculation lines (white ink model only).
Note: The white ink version includes a recirculation port to maintain consistent ink fluidity, while the color version is simplified for standard ink lines.
