xProduct Overview

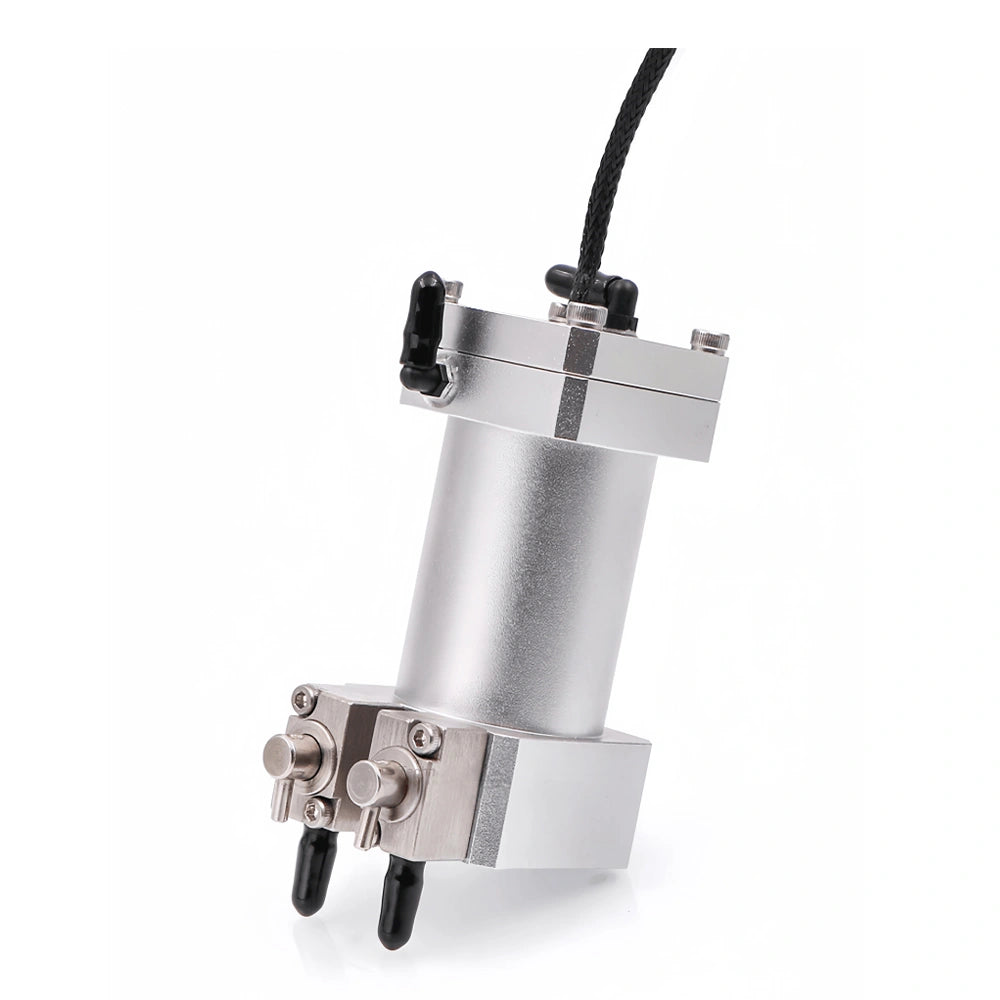

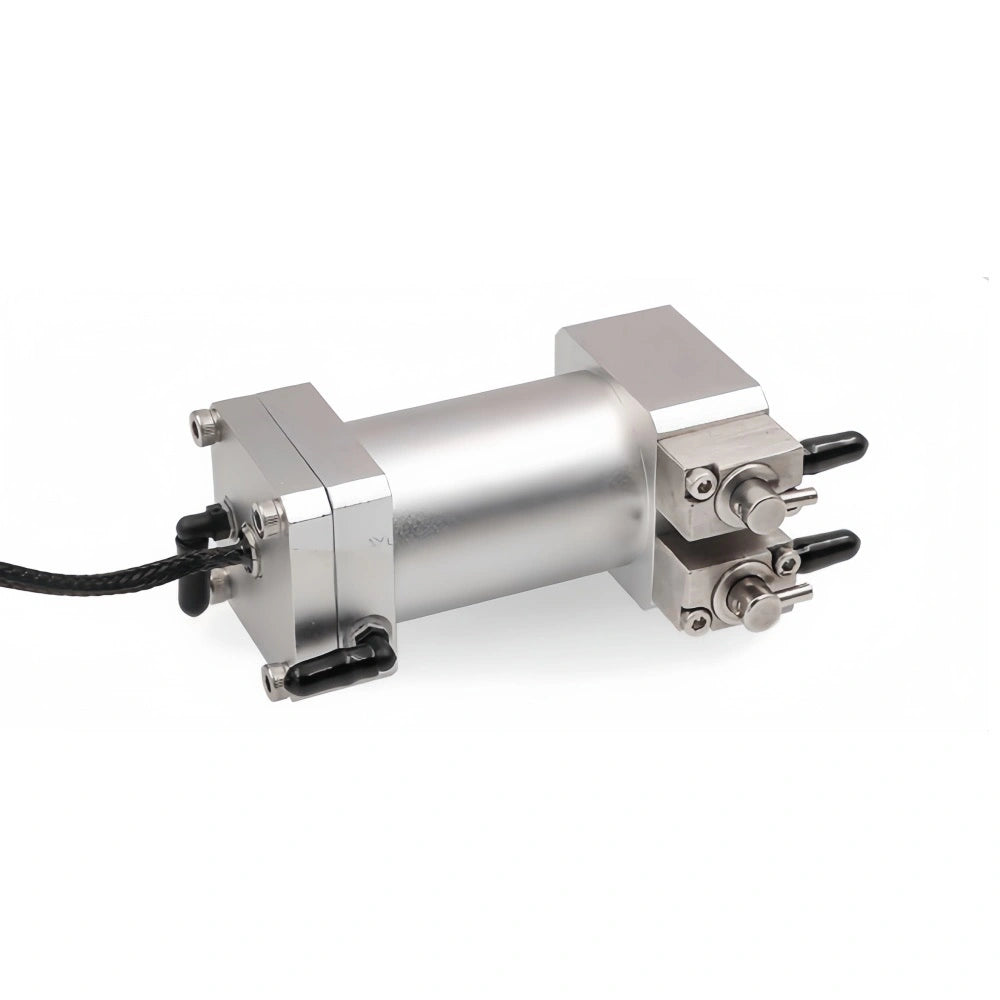

The Dual-Valve Metal Sub Ink Cartridge is a professional-grade secondary ink tank designed for UV flatbed and roll-to-roll printers. Constructed from high-strength aluminum alloy, it offers excellent corrosion resistance, sealing, and long-term stability. The dual-valve structure provides efficient negative pressure control and smooth ink flow, preventing ink leakage and air mixing during printing.
Key Features
- Dual-valve system ensures consistent ink output and stable negative pressure regulation.
- Available in both Two-Way and Three-Way configurations to suit different ink circulation systems.
- Aluminum alloy housing provides excellent corrosion resistance and prevents ink contamination.
- Compact cylindrical design saves installation space while maintaining structural strength.
- Easy to install with standard M4 screw mounts and 6×4 mm ink tubing compatibility.
- Ideal for UV printers, flatbed printers, and hybrid ink systems.
Available Models
| Model | Description |
|---|---|
| Double-Valve Two-Way | Features dual in/out valves for balanced ink supply and return flow control. Suitable for single-loop ink circulation systems. |
| Double-Valve Three-Way | Includes an additional air relief port for advanced pressure balancing, ideal for high-speed or multi-channel UV printers. |
Technical Specifications
| Product Type | Dual-Valve Metal Sub Ink Cartridge |
| Material | Aluminum Alloy (Anti-Corrosion Type) |
| Valve Type | Two-Valve or Three-Valve Configuration |
| Function | Negative Pressure Regulation and Ink Flow Control |

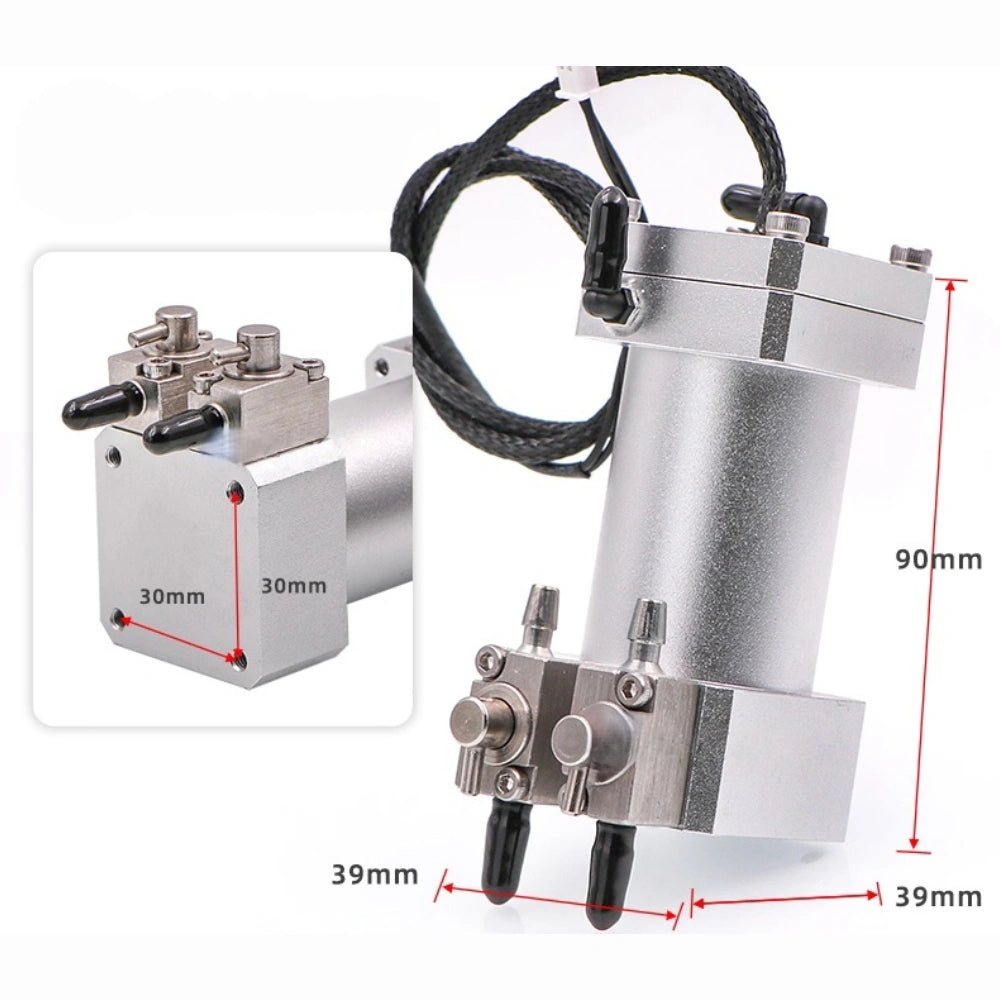

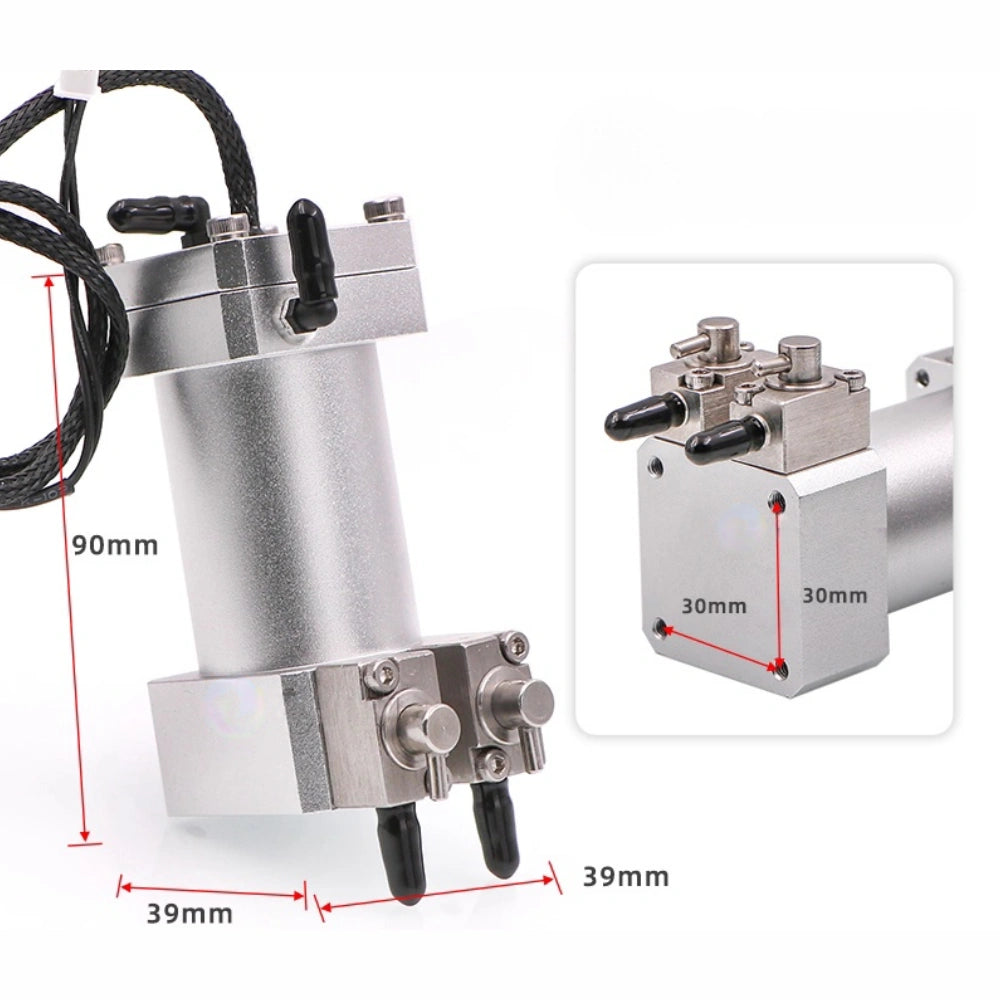

| Size | 39 × 39 × 90 mm |
| Mounting Hole Distance | 30 × 30 mm |
| Mounting Hole Type | M4 Screw Holes |
| Ink Tube Interface | 6×4 mm Ink Tube Compatible |
| Ink Type Compatibility | UV Ink |
| Compatible Printers | UV Flatbed / Roll-to-Roll / Hybrid Printers |
Product Advantages
- High sealing precision prevents ink leakage or backflow during operation.
- Dual-valve system maintains stable negative pressure for long-duration printing.
- Corrosion-resistant material ensures compatibility with UV inks.
- Simple structure allows quick replacement and easy maintenance.
- Available in two-way or three-way versions for different circulation requirements.
Applications
- UV Flatbed Printers
- Roll-to-Roll Printers
- Hybrid UV Printing Systems
- Industrial Ink Circulation Units
Installation Tips
- Mount the cartridge vertically with ink outlets facing downward.
- Ensure all tubing connections are firmly sealed before operation.
- Check the valves and pressure balance during printer calibration.
- Regularly clean the connection ports to prevent clogging or sediment buildup.
Note: The Two-Way model is ideal for standard ink circulation systems, while the Three-Way version is recommended for high-volume or continuous printing systems.
