xProduct Overview

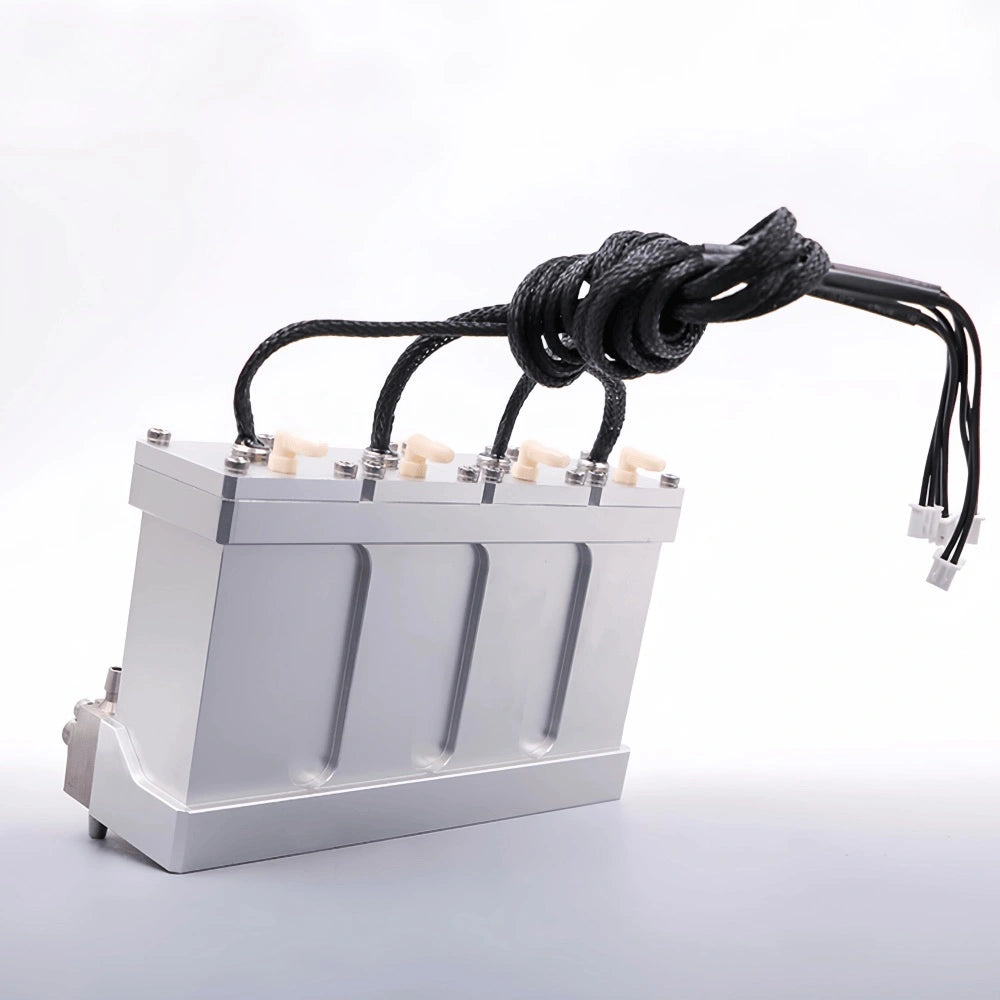

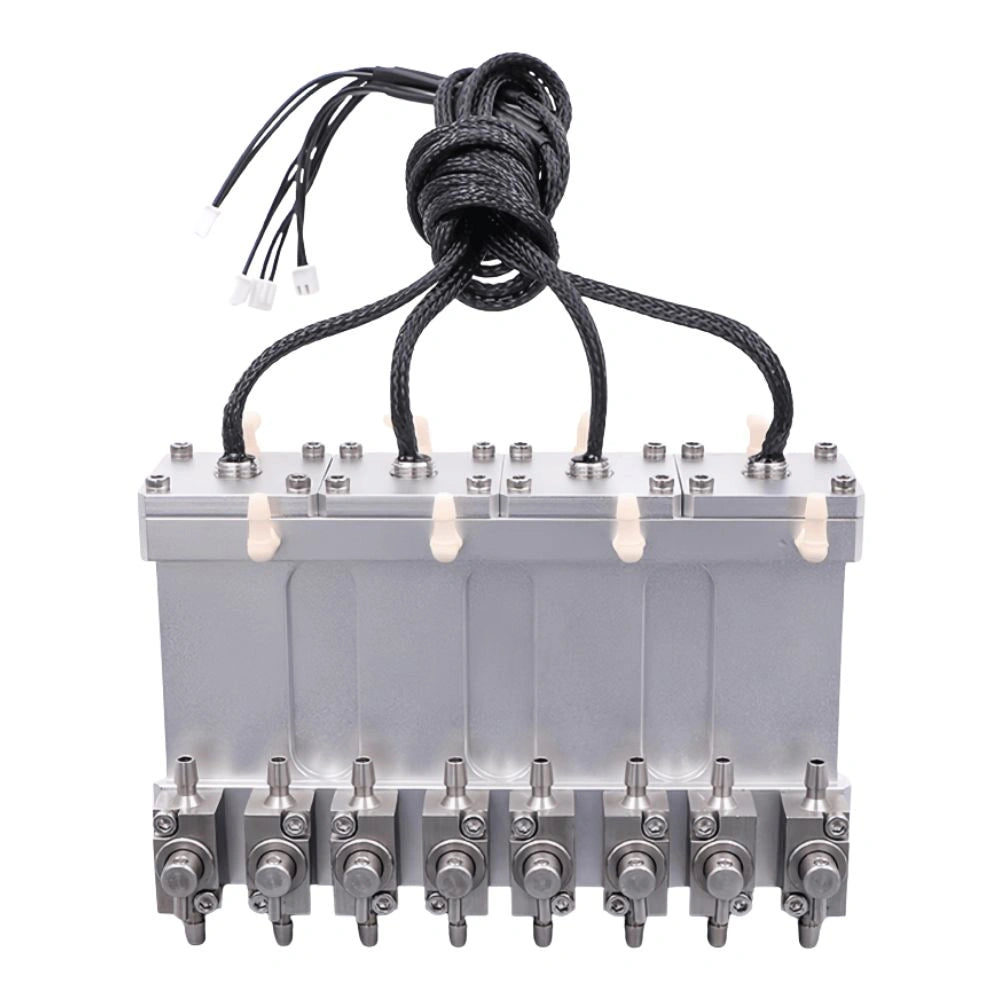

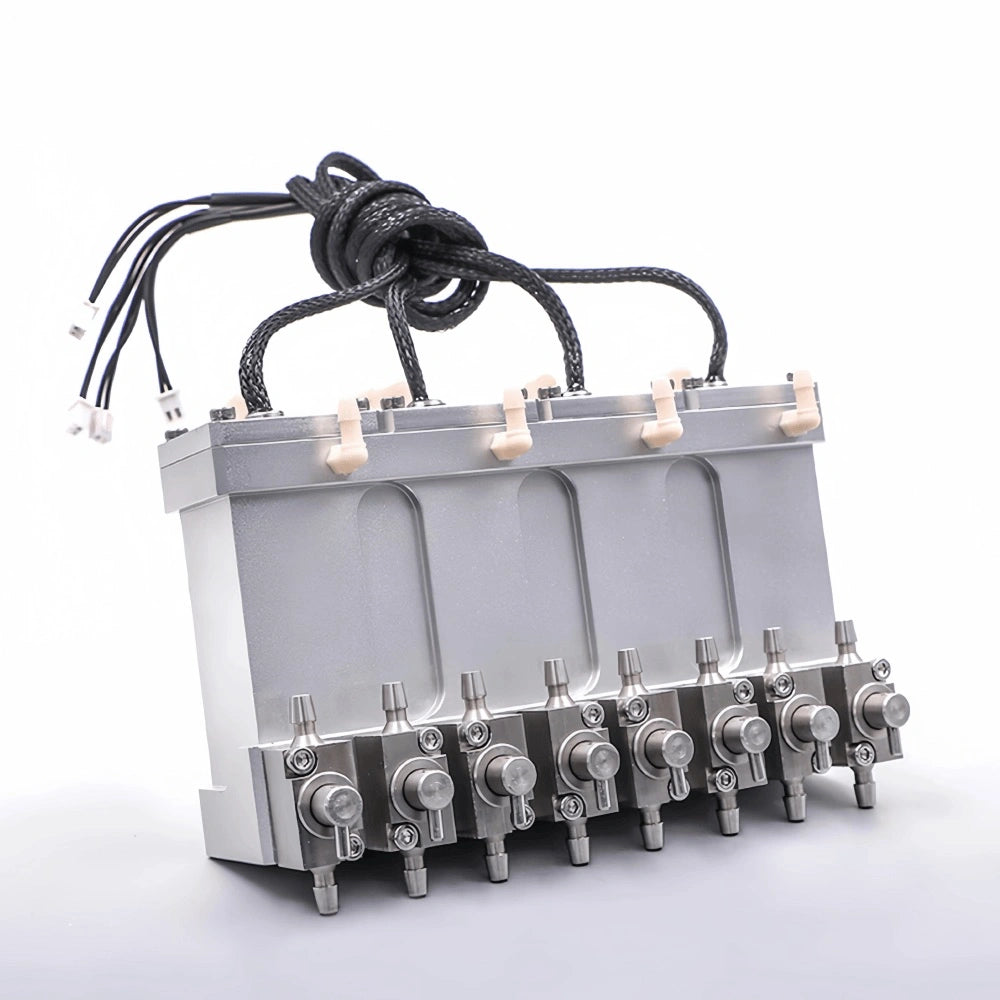

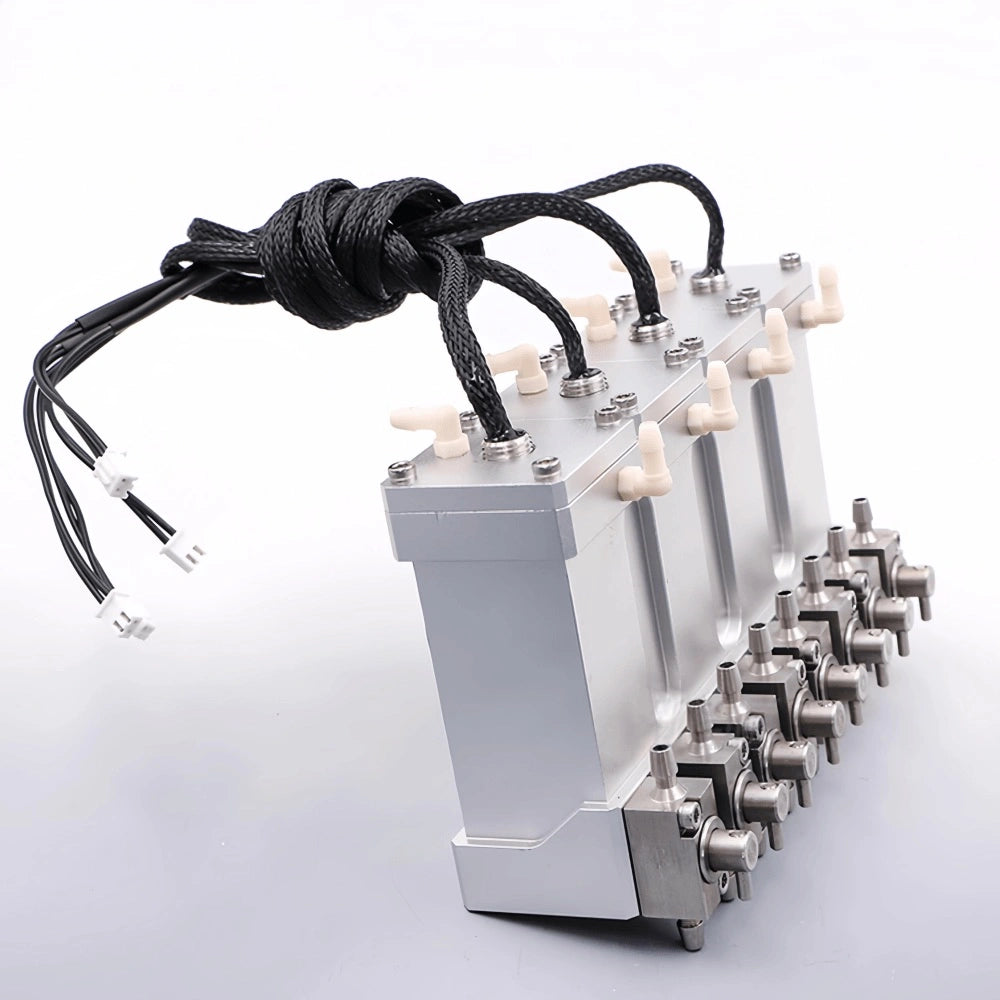

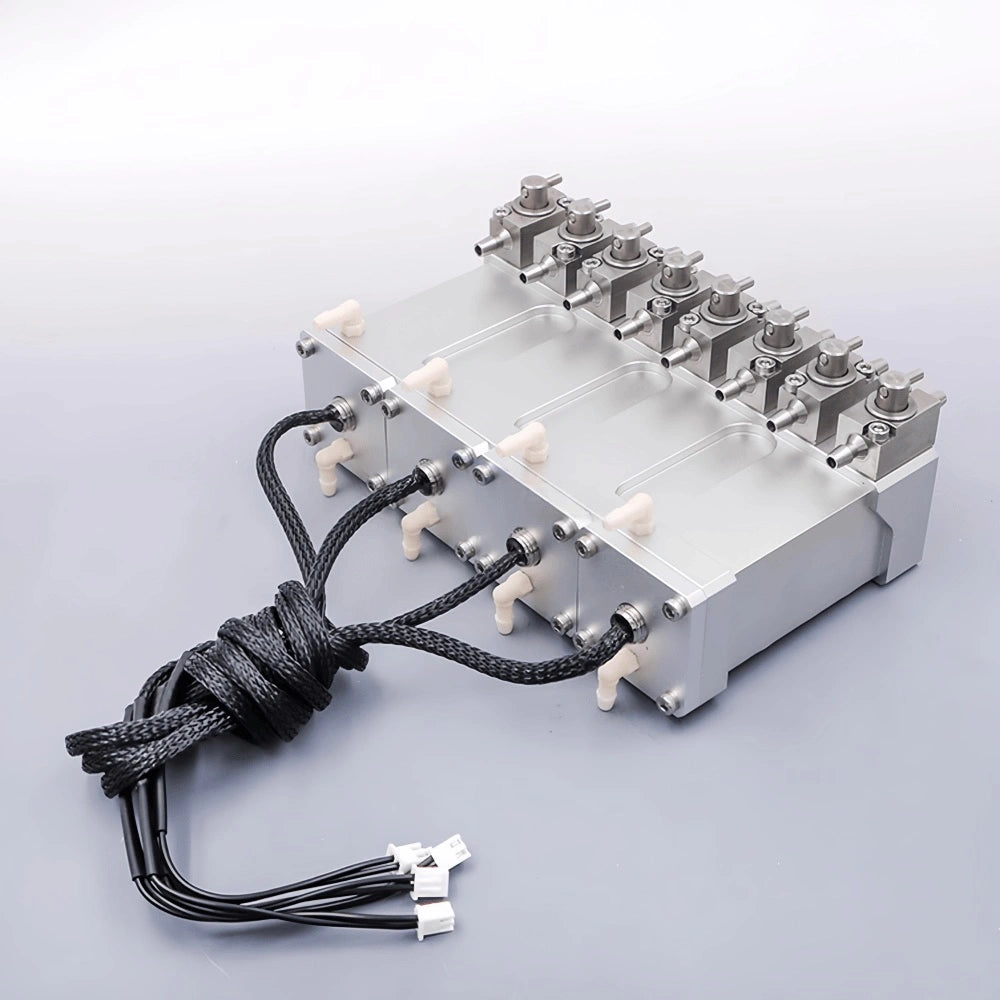

The 4-Color 8-Valve Metal Sub Ink Cartridge (155×38×90mm) is an industrial-grade secondary ink supply system specially designed for UV flatbed printers. Built from high-strength aluminum alloy, it integrates four separate ink chambers with a total of eight precision valves, ensuring stable ink circulation and long-lasting performance for continuous printing environments.
Key Features
- Four independent ink chambers (CMYK) integrated into one solid aluminum block.
- Eight precision valves for efficient ink control and fast refill cycles.
- Excellent sealing performance to prevent air leakage and ink backflow.
- Durable aluminum alloy body with strong corrosion and heat resistance.
- Compatible with most UV flatbed printers and hybrid printing systems.
- Designed for continuous high-volume operation with stable ink pressure and smooth delivery.
Technical Specifications
| Model | 4-Color 8-Valve Metal Sub Ink Cartridge |
| Material | High-Grade Aluminum Alloy |
| Size | 155 × 38 × 90 mm |
| Valve Configuration | 4 Ink Chambers × 2 Valves Each (Total 8 Valves) |
| Mounting Hole Distance | 30 × 35.5 mm (M4 Screw Thread) |
| Ink Type Compatibility | UV, Eco-Solvent, Pigment Ink |
| Applicable Printers | UV Flatbed Printers, Hybrid Printers, Roll-to-Roll Systems |
| Weight | Approx. 1.2 kg |
Product Advantages
- Integrated design for four colors, saving space and simplifying maintenance.
- Supports high-speed ink supply with balanced pressure for each color channel.
- Excellent stability during long continuous printing sessions.
- Precision-machined valves ensure accurate ink control and prevent cross-contamination.
- Strong anti-corrosion construction suitable for UV-curable and solvent-based inks.
Installation and Maintenance
- Mount the cartridge horizontally to ensure proper air balance and ink flow.
- Connect each color tube and valve securely to avoid air intake or leakage.
- Check ink levels regularly and refill through designated ports.
- Clean valve connections periodically to maintain consistent ink circulation.
- When switching ink types, flush the system with compatible cleaning fluid.
Note: This 4-color 8-valve sub ink cartridge is ideal for professional UV flatbed printers that require continuous, high-precision ink management and multi-channel stability.
