xProduct Overview

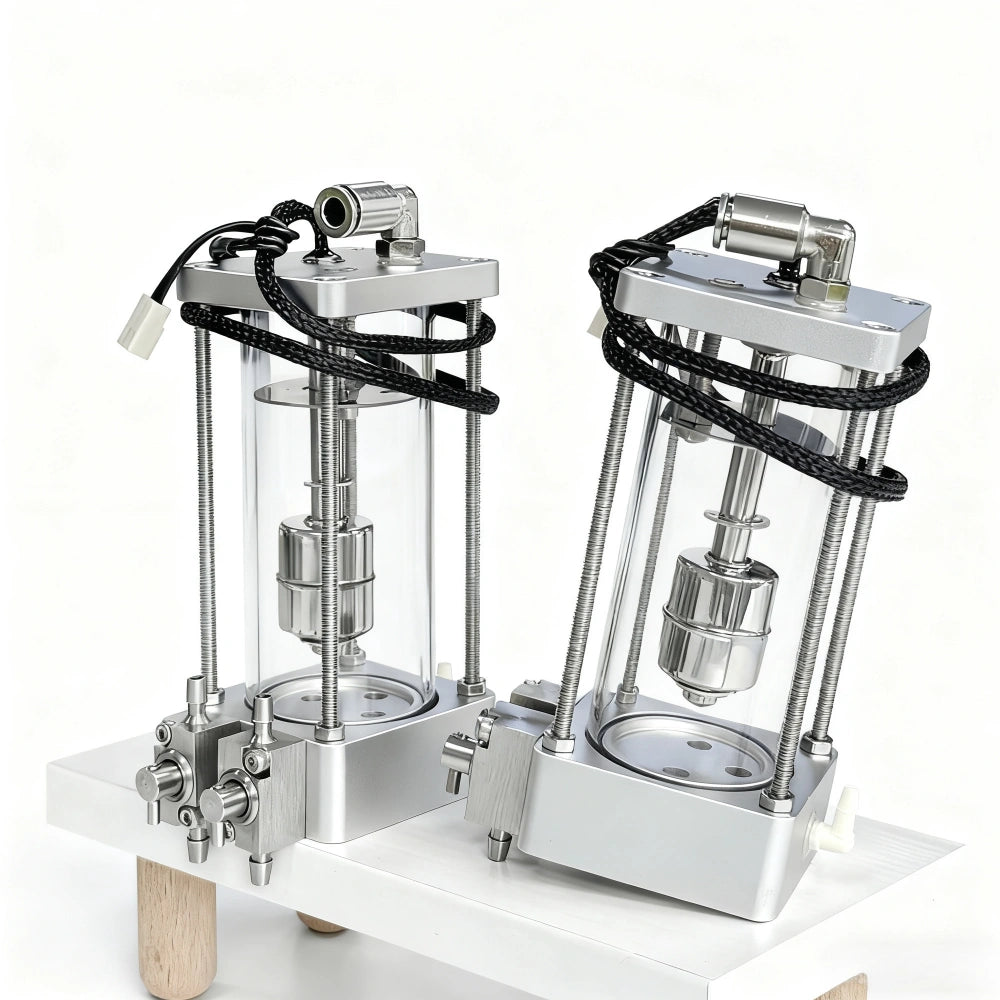

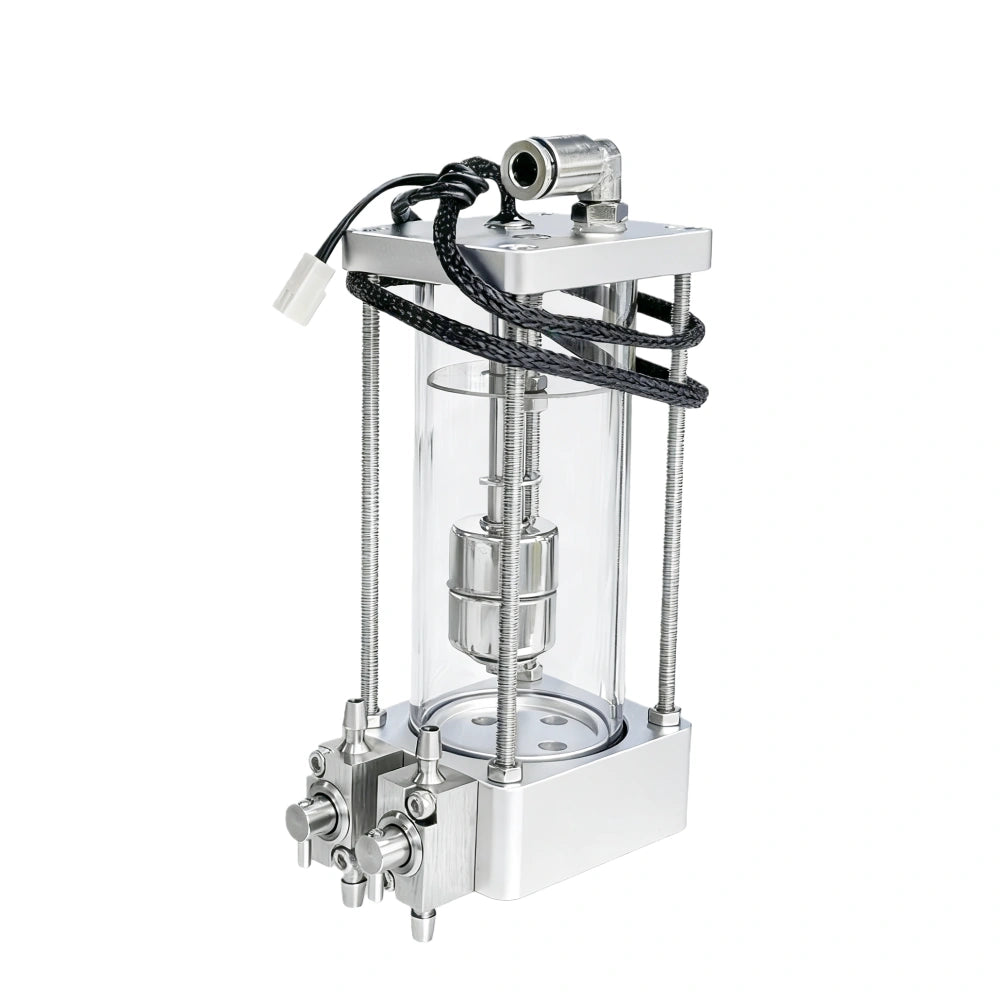

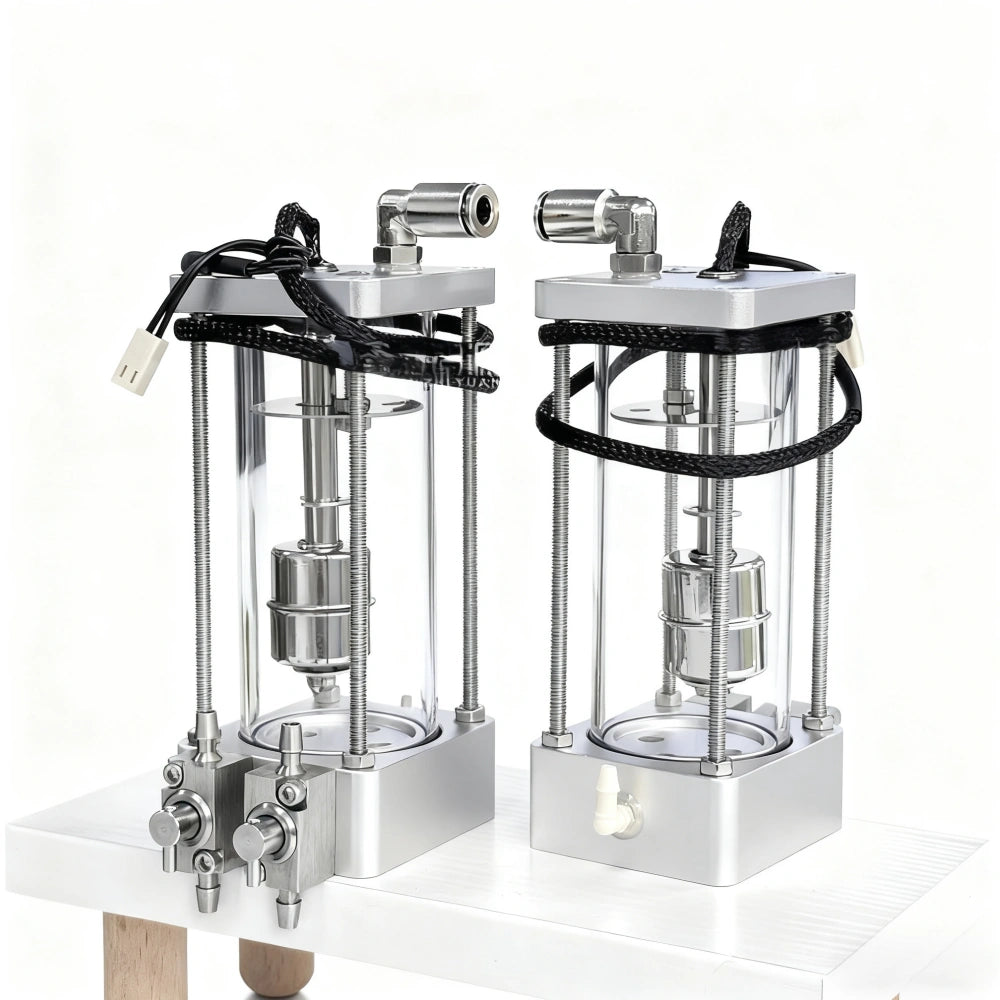

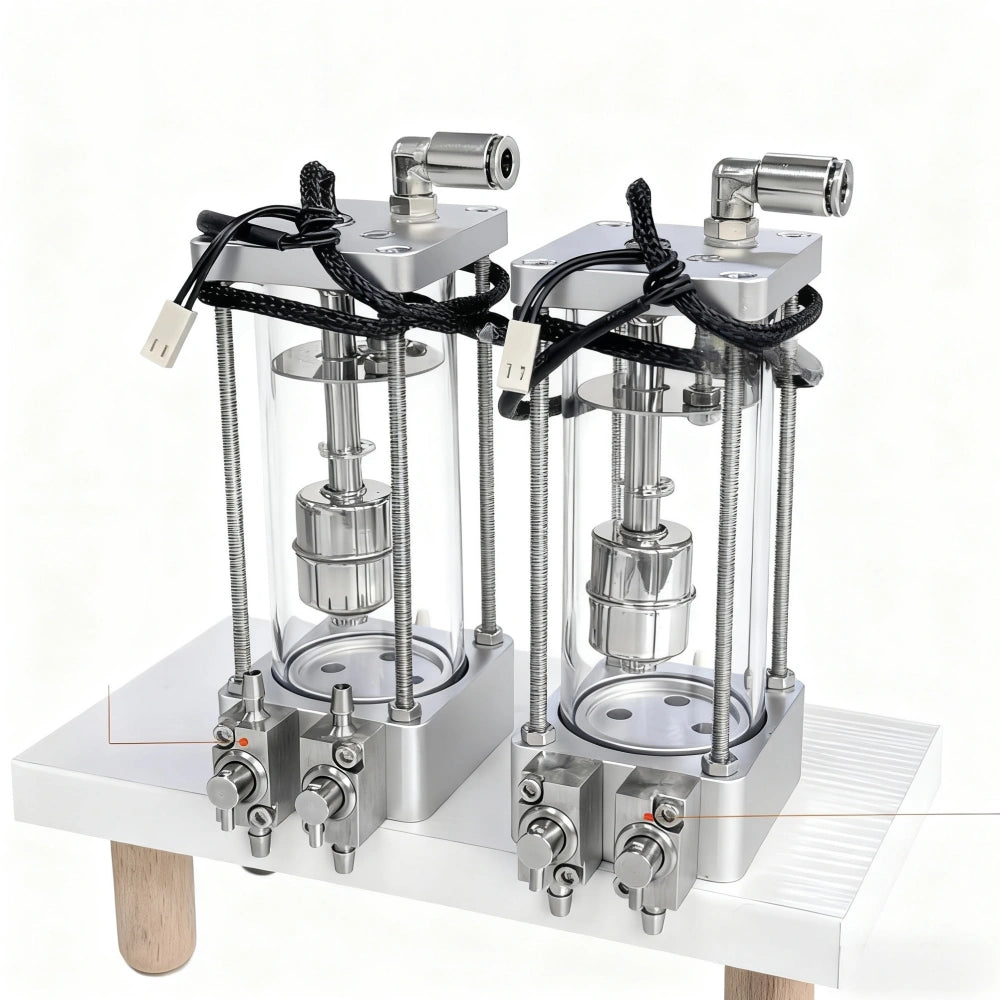

The Dual-Valve Glass Sub Ink Cartridge (Negative Pressure Type) is designed for professional UV and solvent printers such as Aowei, Gongda, Dongchuan, and Konica models. Built with a transparent glass body and precision metal valves, it provides clear visibility of ink levels, excellent corrosion resistance, and stable ink pressure for continuous high-quality printing.
Available in Two-Way and Three-Way configurations, this cartridge supports customized ink flow systems, making it ideal for flatbed and roll-to-roll printers requiring consistent negative pressure circulation.
Key Features
- Dual-valve design ensures smooth ink supply and return.
- Transparent glass chamber allows real-time liquid level monitoring.
- Precision sealing prevents air intrusion and ink leakage.
- Negative pressure balance system maintains steady ink output.
- Suitable for UV, solvent, and eco-solvent inks.
- Compact structure with high heat dissipation performance.
Model Comparison
| Model | Valve Type | Inlet/Outlet Configuration | Recommended Application |
|---|---|---|---|
| Dual-Valve Two-Way | Dual Independent Valves | 1 Ink Inlet / 2 Outlets | Standard negative pressure systems, general UV printers |
| Dual-Valve Three-Way | Dual Valves + Extended Outlet | 1 Ink Inlet / 3 Outlets | Enhanced ink circulation systems, large-format printers |
Technical Specifications
| Product Type | Glass Sub Ink Cartridge (Dual-Valve Type) |
| Material | Tempered Glass + Aluminum Alloy |

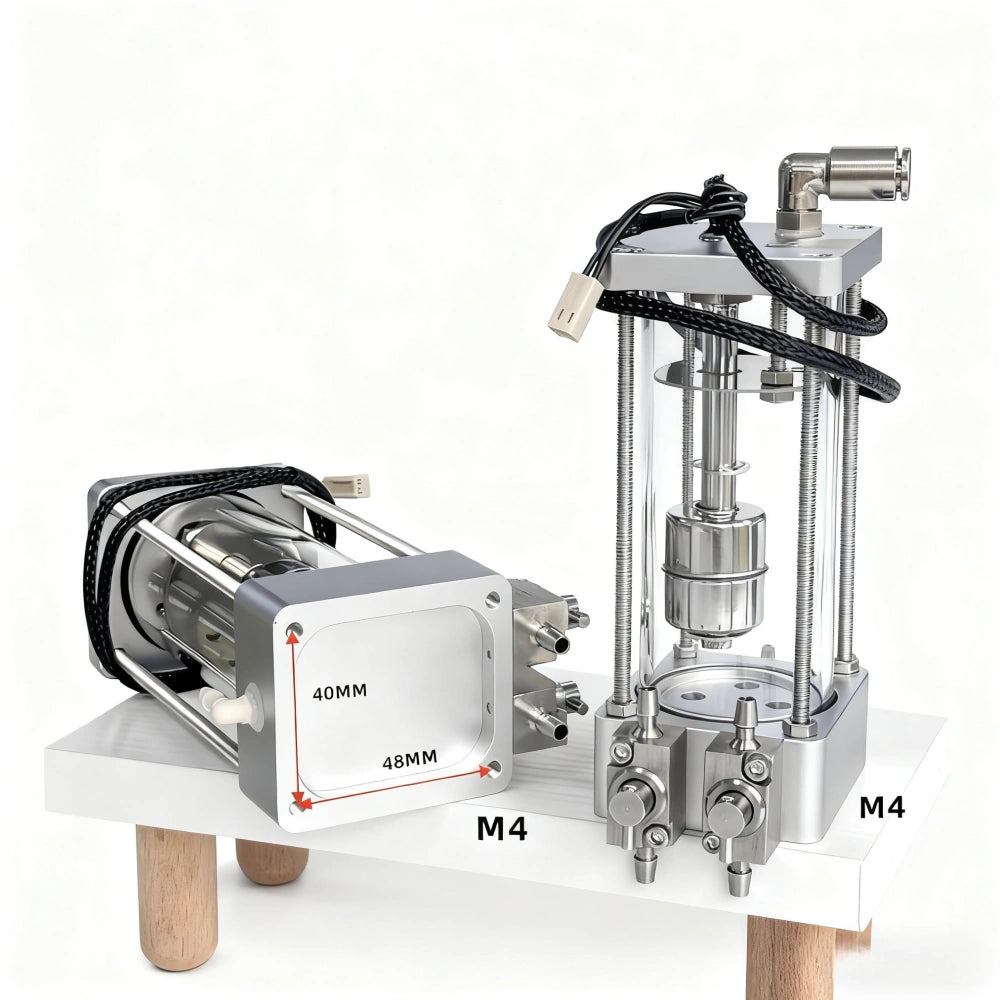

| Dimensions | 58 × 52 × 126 mm |
| Capacity | 80 ml ±10% |
| Ink Type Compatibility | UV Ink / Solvent Ink / Eco-Solvent Ink |
| Pressure Type | Negative Pressure Ink Supply |
| Valve Options | Two-Way / Three-Way |
| Compatible Printers | Aowei / Gongda / Dongchuan / Konica Series |
| Special Features | Visible Liquid Level, Ball Sensor Support, Strong Sealing |
Product Advantages
- Clear glass body for visual ink monitoring.
- Dual-valve system offers stable ink flow and quick response.
- Resistant to UV-curable solvents and high-temperature environments.
- Sealed design minimizes air entry and ink evaporation.
- Ideal for industrial continuous printing applications.
Applications
- UV Flatbed Printers
- Solvent and Eco-Solvent Roll Printers
- Textile and Industrial Inkjet Equipment
Installation & Maintenance
- Install vertically to maintain accurate negative pressure control.
- Ensure inlet and outlet lines are correctly connected and sealed.
- Clean the ink path regularly to avoid blockages.
- Replace O-rings or seals periodically for optimal performance.
Note: The Dual-Valve Glass Sub Ink Cartridge offers exceptional transparency, durability, and negative pressure stability—perfect for high-precision UV and solvent printing systems.
