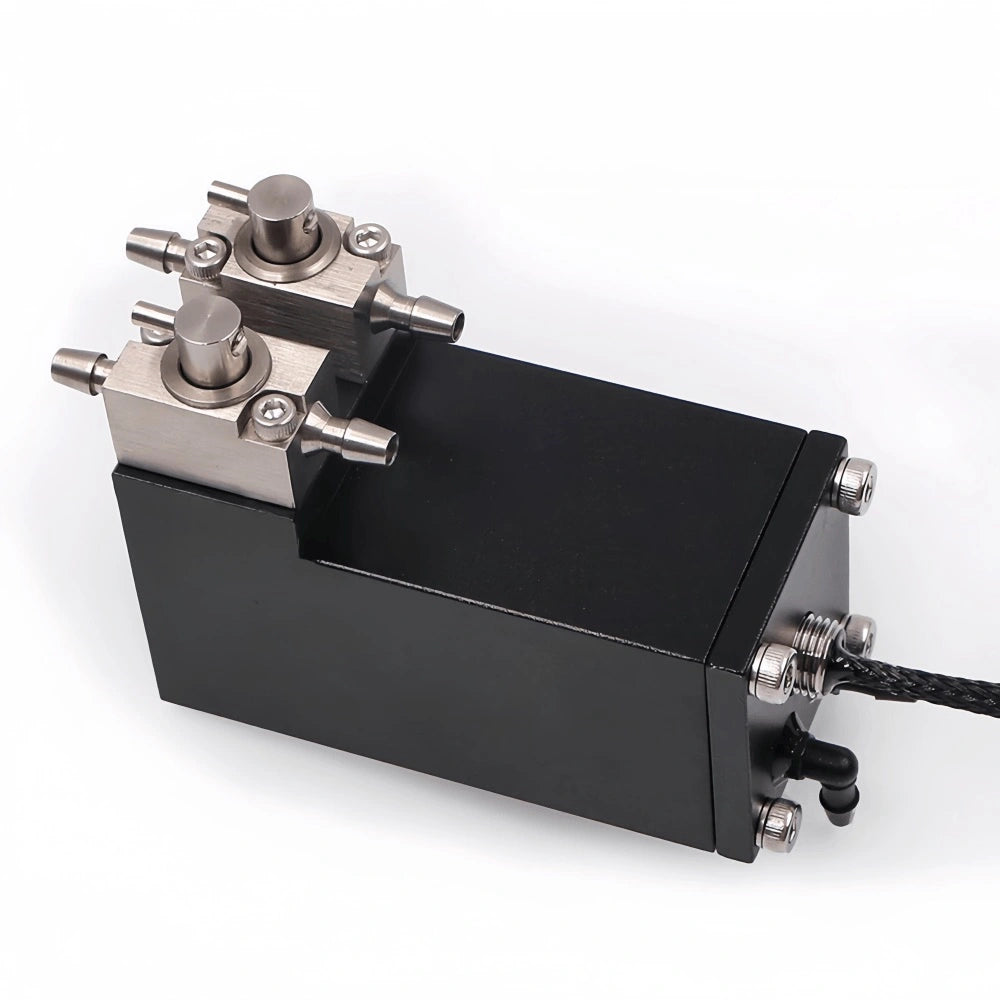

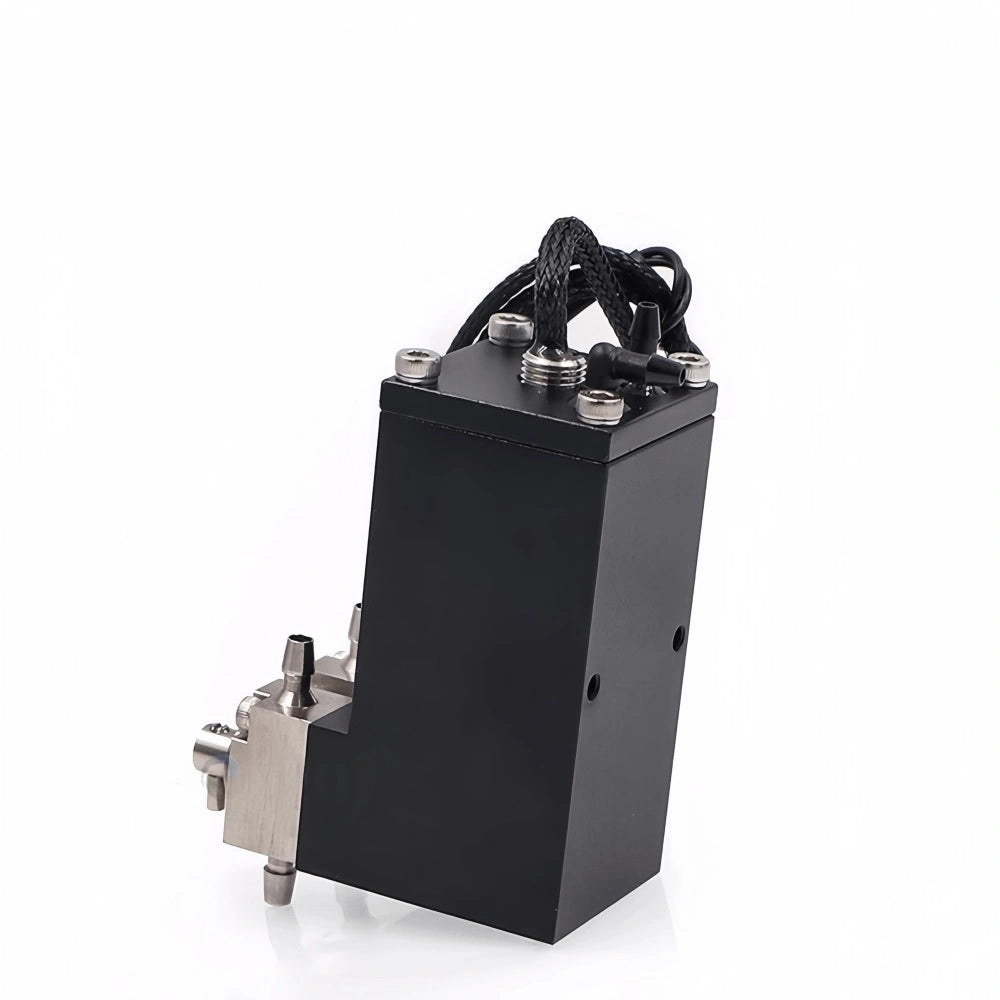

The Metal Sub Ink Cartridge for Ricoh GH2220 UV Flatbed Printer is a precision-built secondary ink supply system designed for continuous ink circulation. Made of corrosion-resistant aluminum alloy, it features a top air inlet design for smooth ink flow and consistent pressure during high-speed UV printing.

Key Features

  • Durable black aluminum alloy housing with excellent corrosion and heat resistance.
  • Available in single valve and double valve configurations to match different ink circulation systems.
  • Top air inlet structure ensures stable internal pressure and prevents ink backflow.

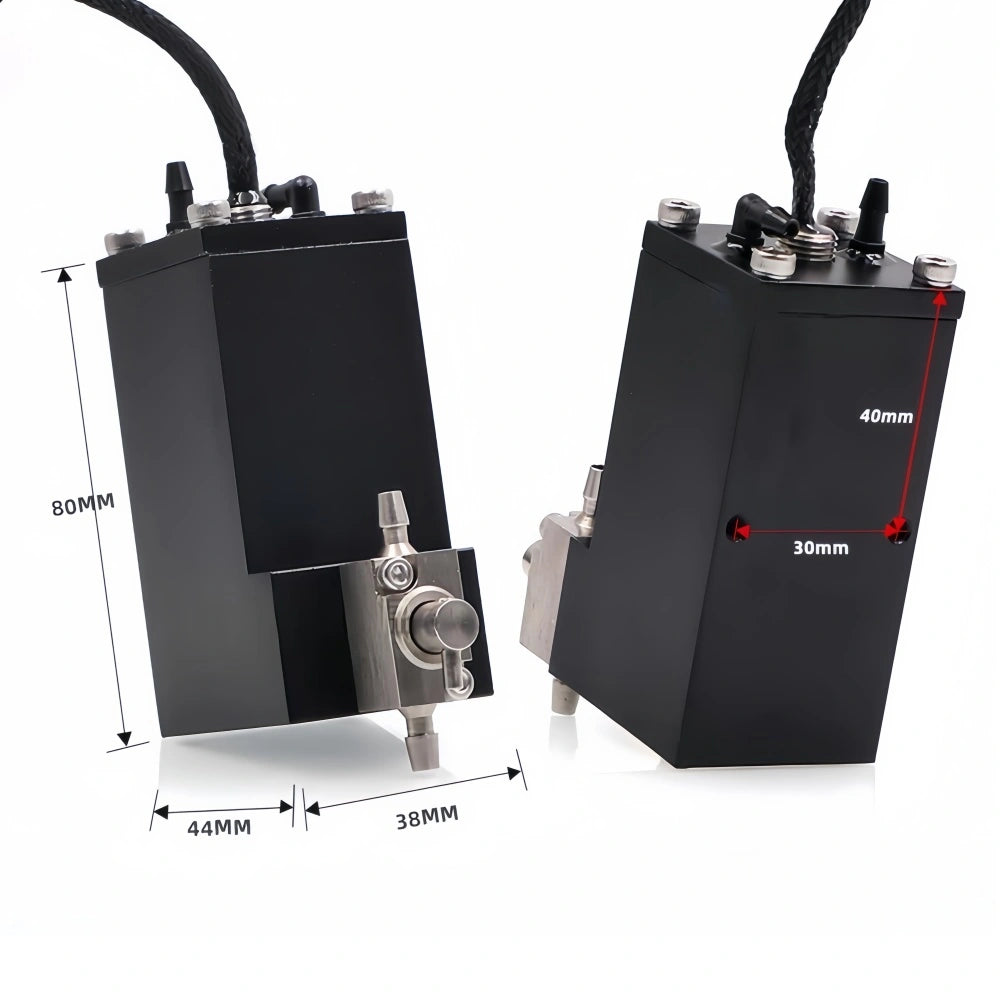

  • Compact size (38×44×80mm) for easy installation in flatbed printers.
  • Precision fittings with M5 mounting thread and 30mm rear screw distance for firm attachment.
  • Supports UV, Eco-Solvent, and Pigment inks for wide compatibility.

Technical Specifications

Model Metal Sub Ink Cartridge – GH2220 Series
Material Black Aluminum Alloy
Size 38 × 44 × 80 mm
Valve Type Single Valve / Double Valve
Air Inlet Top Air Inlet Design
Mounting Hole Distance Rear: 30mm / Bottom Thread: M5
Ink Compatibility UV, Eco-Solvent, Pigment Ink
Applicable Printers Ricoh GH2220 UV Flatbed Printers and Similar Models

Model Comparison

Model Description Recommended Use
Single Valve Top Air Inlet Ink Tank Features a single ink valve and top-mounted air inlet for stable one-way ink flow. Ideal for standard UV printers with single ink circulation systems.
Black Double Valve 38×44×80mm Top Air Inlet Ink Tank Equipped with dual valves for faster ink refilling and balanced dual-channel output. Recommended for high-speed or dual-head UV flatbed printers.

Installation and Maintenance

  1. Mount the ink cartridge vertically to ensure smooth air balance and ink flow.
  2. Connect ink tubes and air lines firmly to avoid leakage or air intake.
  3. Check valve function regularly to maintain consistent ink pressure.
  4. Clean or flush with cleaning solution when changing ink types or after long storage.

Note: This metal sub ink cartridge offers excellent sealing and pressure stability, ensuring reliable ink supply for Ricoh GH2220 and similar UV printers.
