xProduct Overview

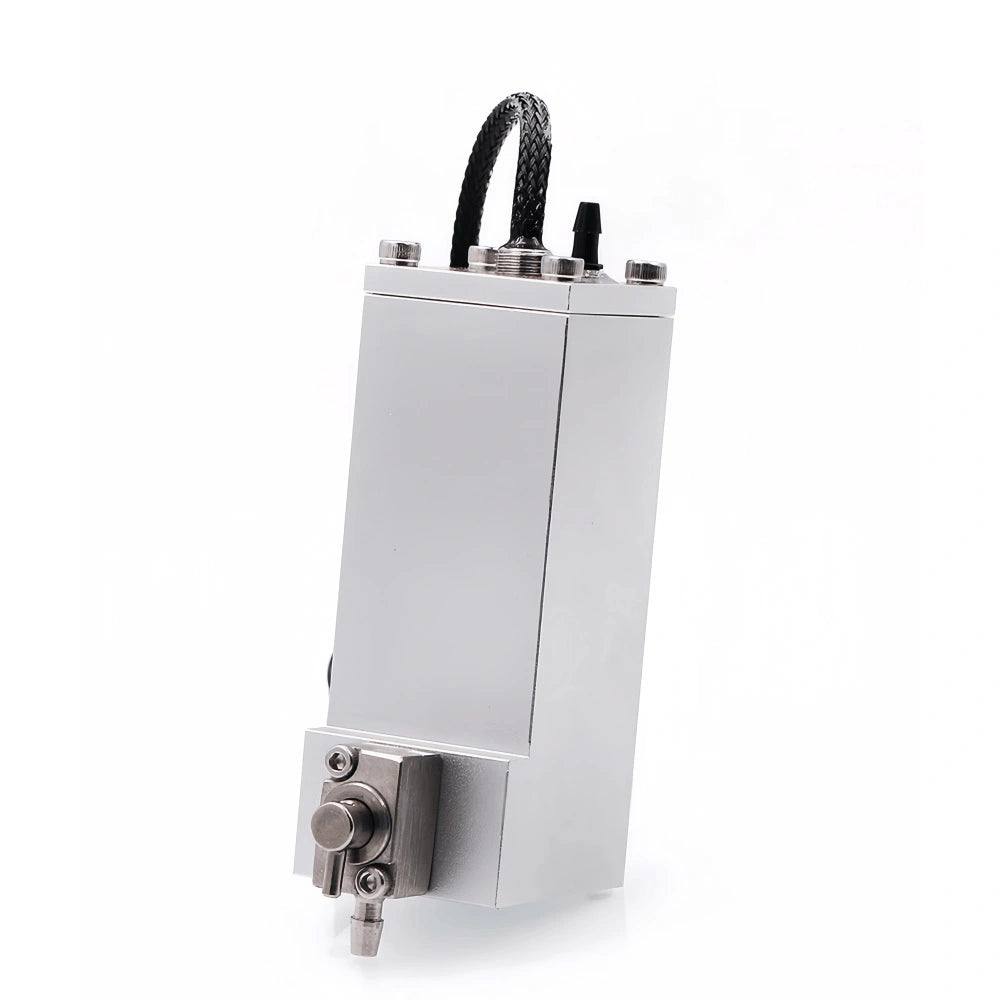

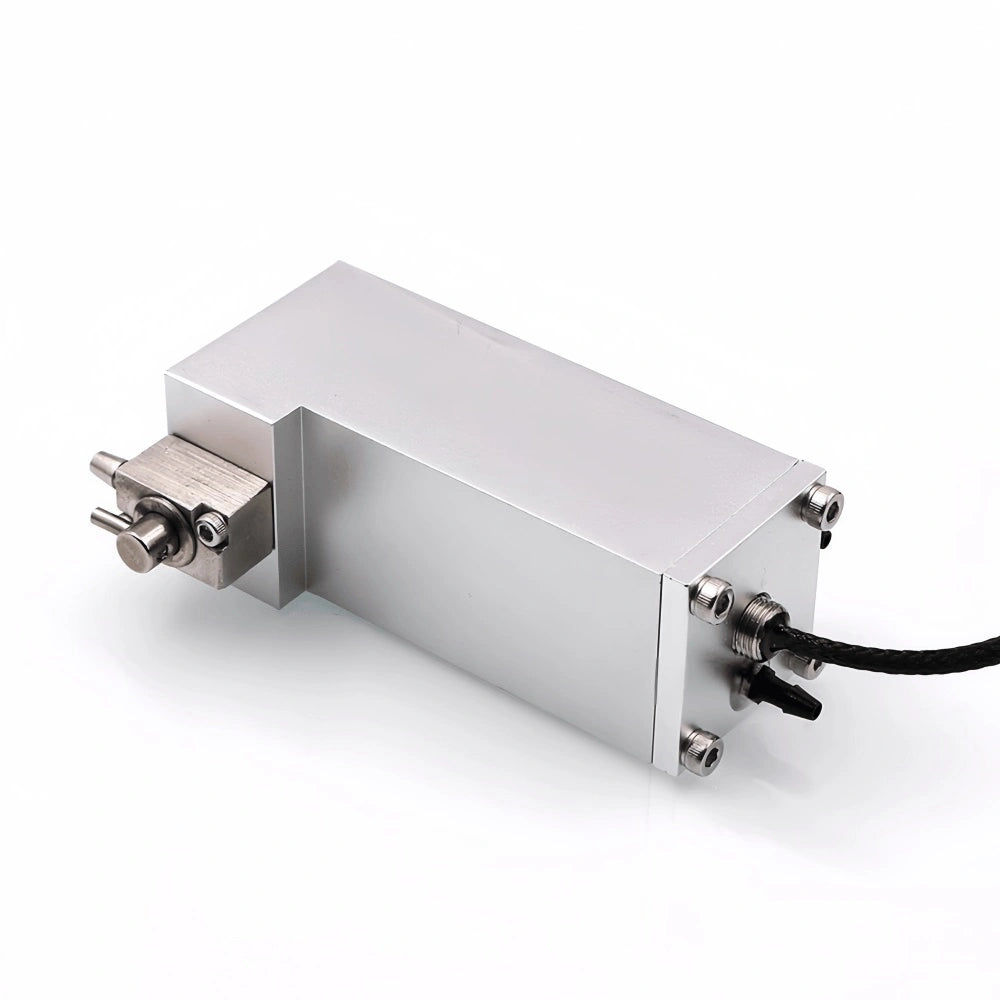

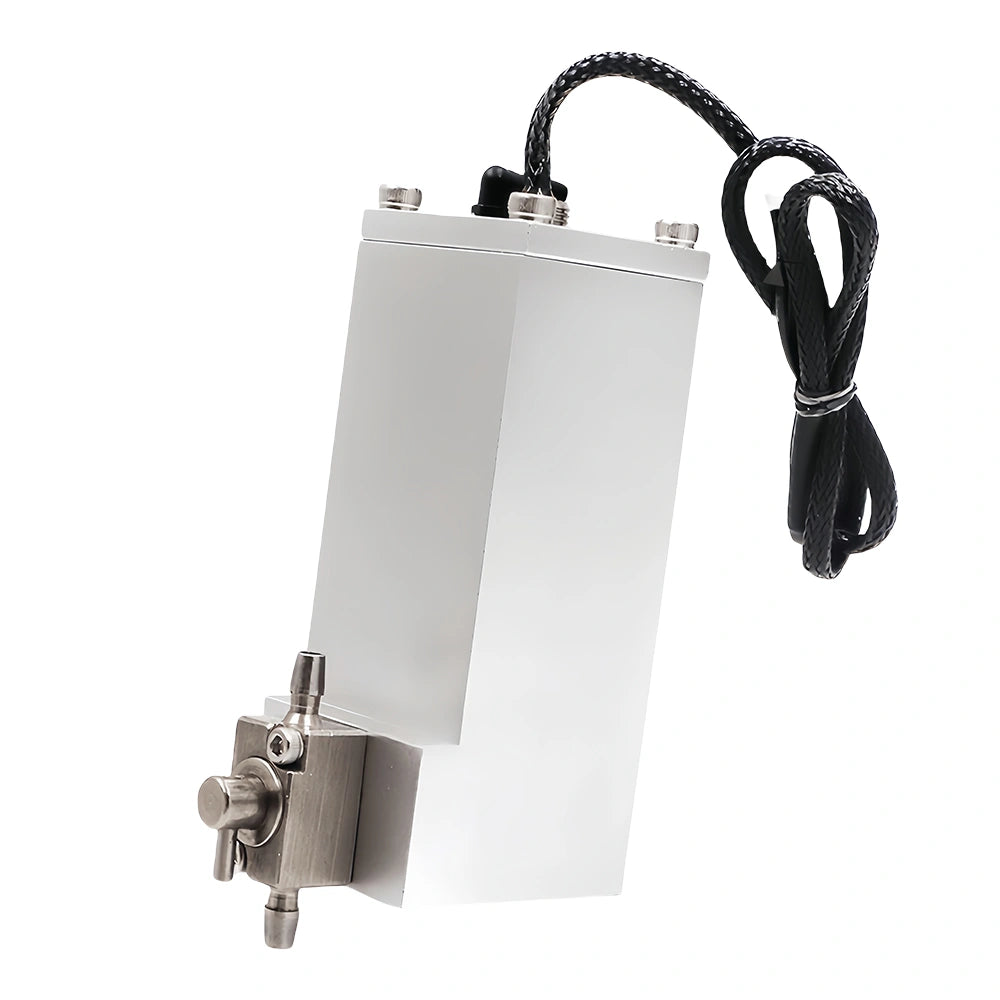

The UV Flatbed Metal Sub Ink Cartridge is a precision-engineered secondary ink tank designed for UV flatbed and roll-to-roll printers. It adopts a compact rectangular aluminum body with excellent corrosion resistance and high sealing performance, ensuring consistent negative pressure and smooth ink delivery during long printing sessions.
Available in single-valve and double-valve configurations, this cartridge supports both two-way and three-way ink circulation systems, making it adaptable for a wide range of printer models and ink supply setups.
Key Features
- High-strength aluminum housing for superior durability and corrosion resistance.
- Supports two-way and three-way ink systems with excellent pressure control.
- Single or double valve structure for flexible installation and stable ink flow management.

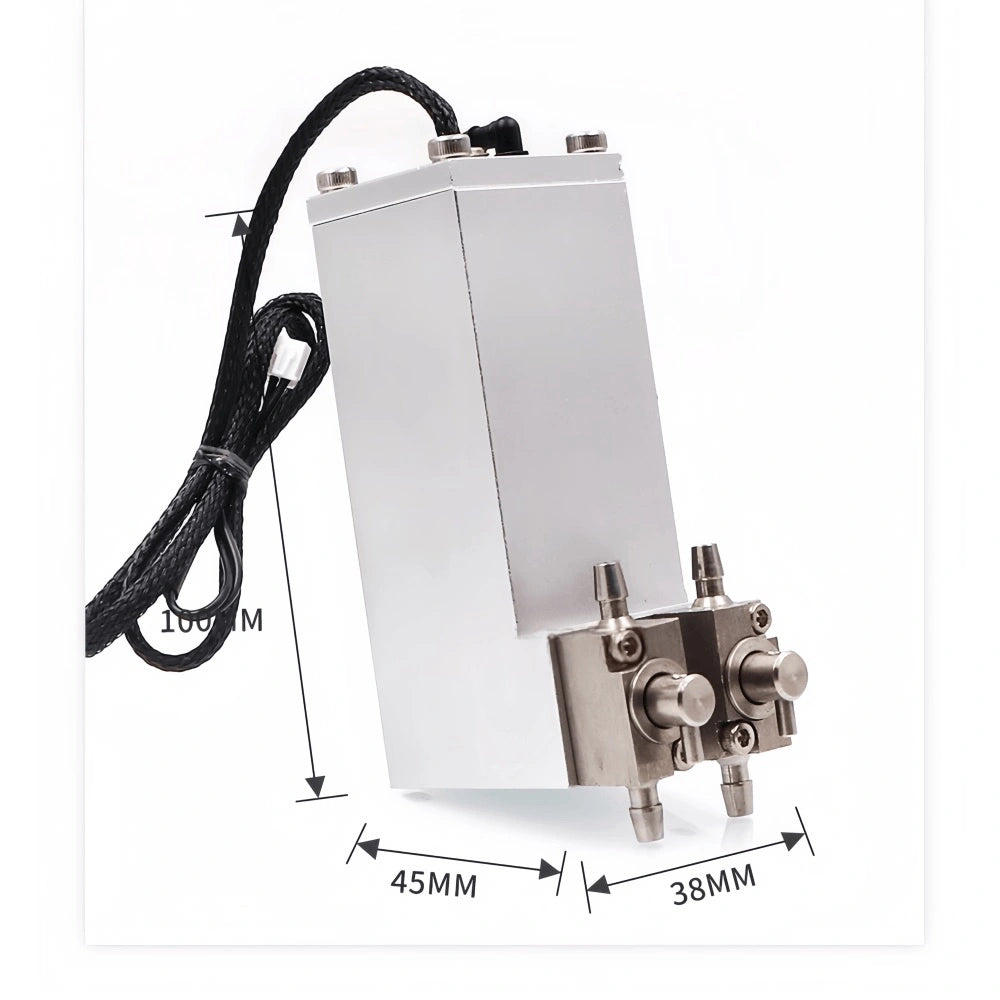

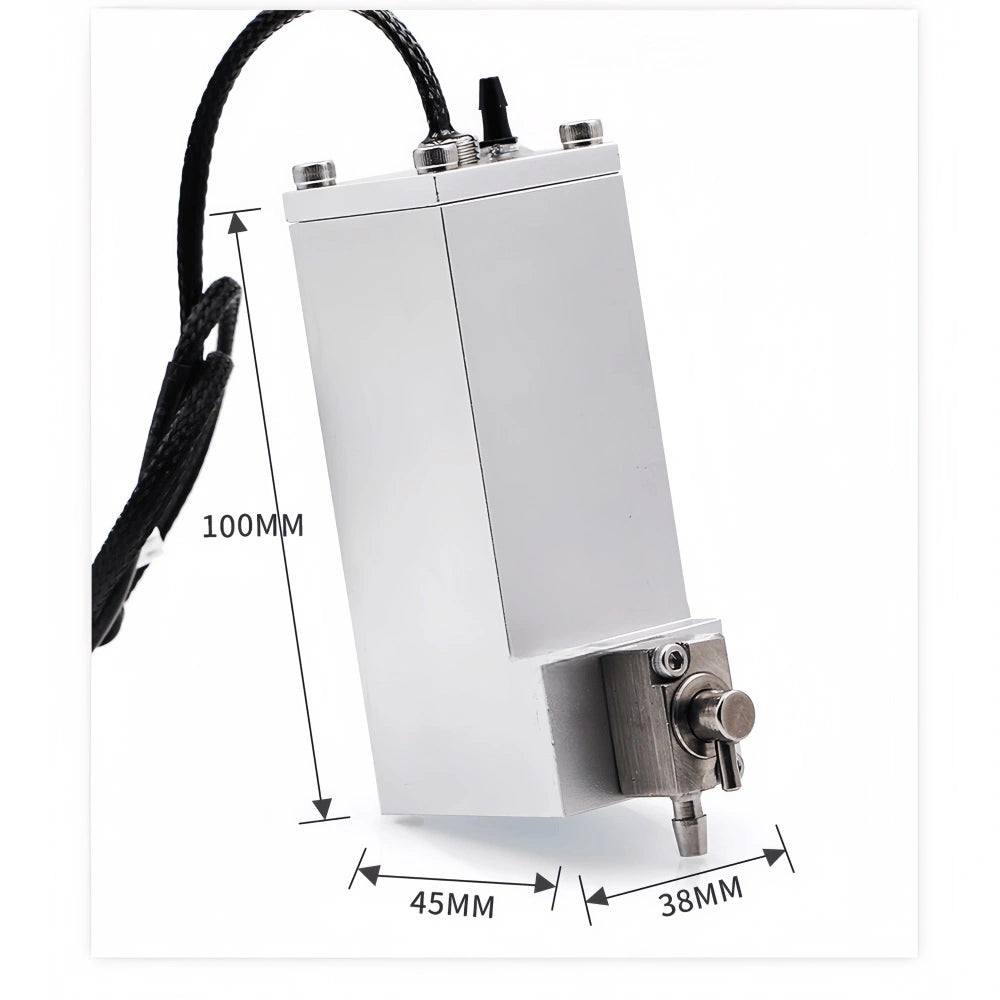

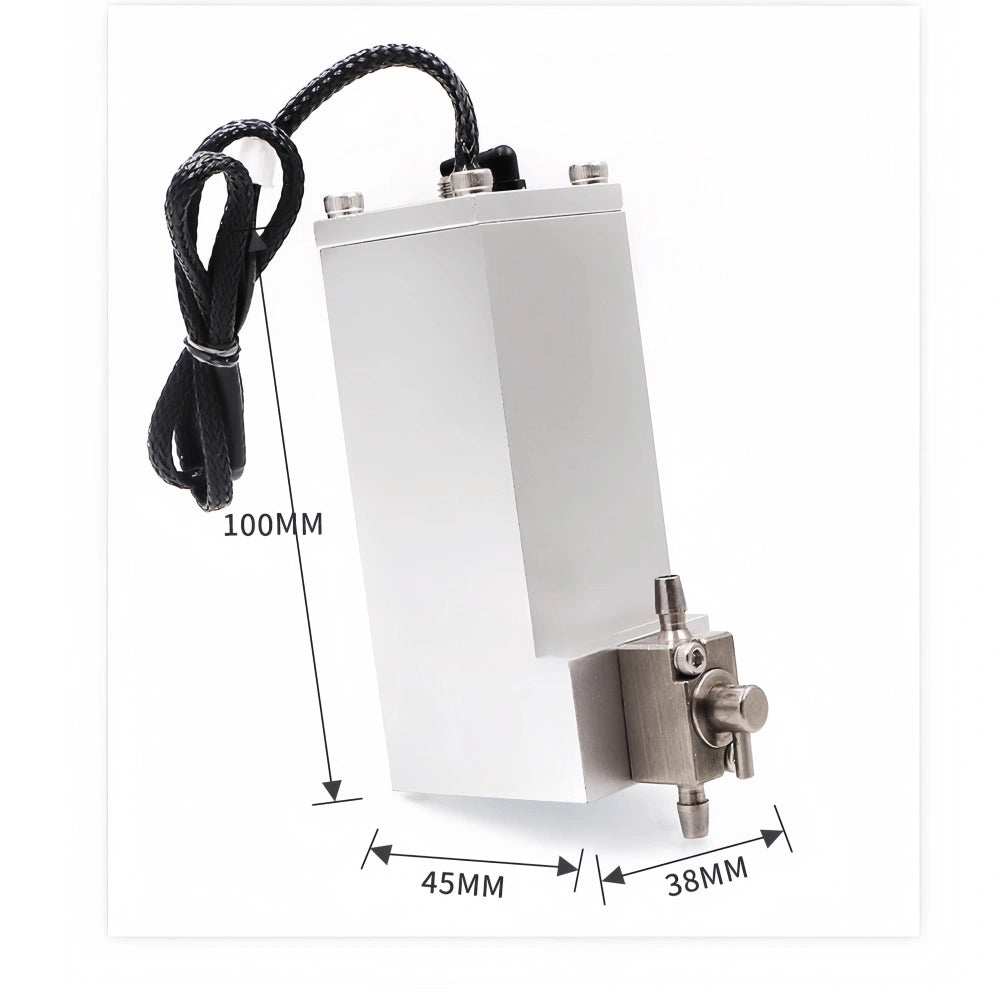

- Compact 38×45×100mm design fits easily into flatbed and hybrid printers.
- Precision sealing to prevent ink leakage and air bubbles.
- Ideal for UV printers, hybrid machines, and ink circulation systems.
Available Models
| Model | Description |
|---|---|
| Single Valve Two-Way | Compact single-valve design for basic ink supply and return flow. Suitable for standard negative pressure systems. |
| Single Valve Three-Way | Adds an air exhaust or pressure balance port for improved circulation in medium-format printers. |
| Double Valve Two-Way | Dual-valve configuration for stable dual-channel ink regulation in large-format systems. |
| Double Valve Three-Way | Advanced dual-valve system with air relief port for high-speed printing and complex circulation loops. |
Technical Specifications
| Product Type | UV Flatbed Metal Sub Ink Cartridge |
| Material | Aluminum Alloy (Anti-Corrosion Type) |
| Valve Type | Single or Double Valve (Two-Way / Three-Way) |
| Size | 38 × 45 × 100 mm |
| Ink Inlet | 1 Ink Inlet Port |
| Ink Outlet | 2 or 3 Ink Outlets (Depending on Model) |
| Mounting Hole Type | M4 Screw Holes |
| Ink Type Compatibility | UV Ink |
| Compatible Printers | UV Flatbed / Roll-to-Roll / Hybrid Printers |
Product Advantages
- High sealing structure prevents leaks and air intrusion.
- Durable aluminum alloy for corrosion resistance and long service life.
- Supports multiple circulation modes for versatile printer configurations.
- Easy maintenance and quick installation.
- Suitable for high-precision UV ink systems requiring stable pressure control.
Applications
- UV Flatbed Printers
- Roll-to-Roll Printers
- Hybrid UV Printing Systems
- Industrial Ink Circulation Units
Installation Tips
- Install vertically with the ink outlets facing downward.
- Ensure tubing connections are tightly sealed to prevent leaks.
- For three-way models, connect the air port to the circulation system for balanced pressure.
- Clean the interface regularly to maintain optimal ink flow.
Note: Choose the appropriate model (Single/Double Valve, Two-Way/Three-Way) based on your printer’s ink circulation design and system configuration.
