Product Overview

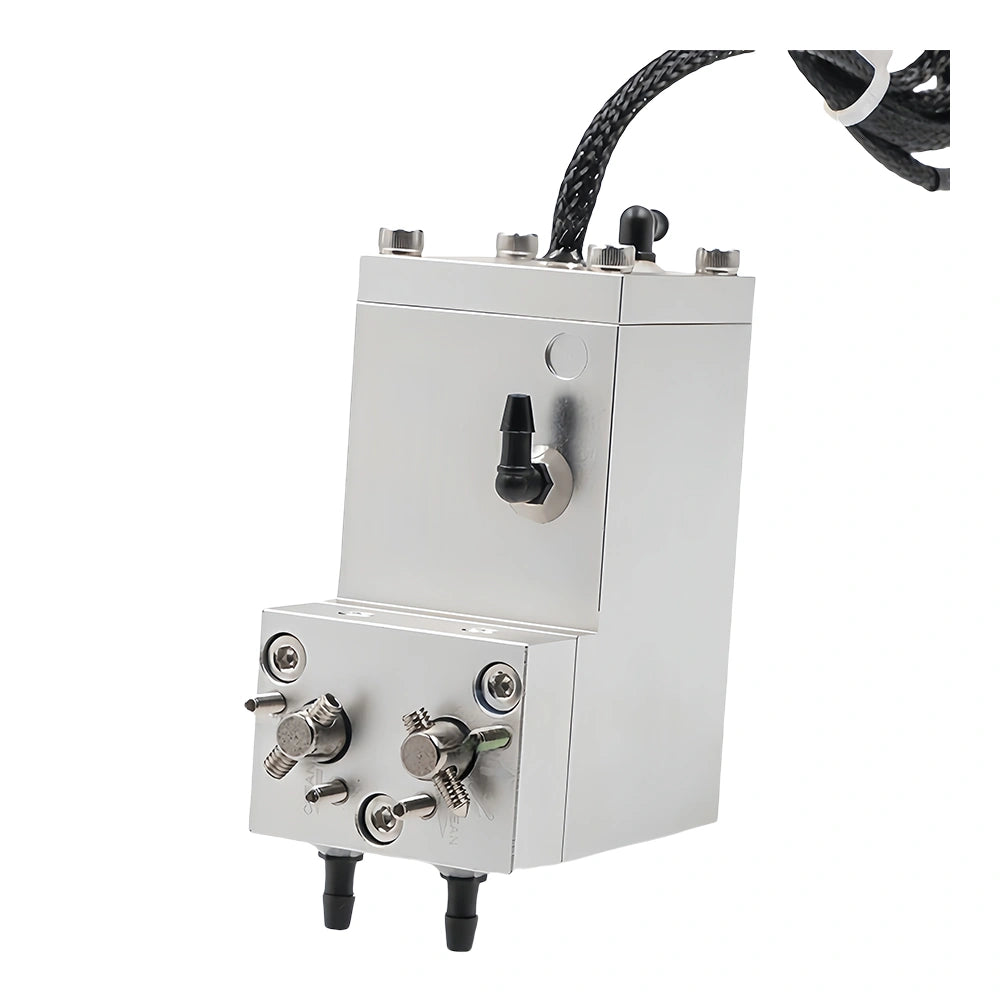

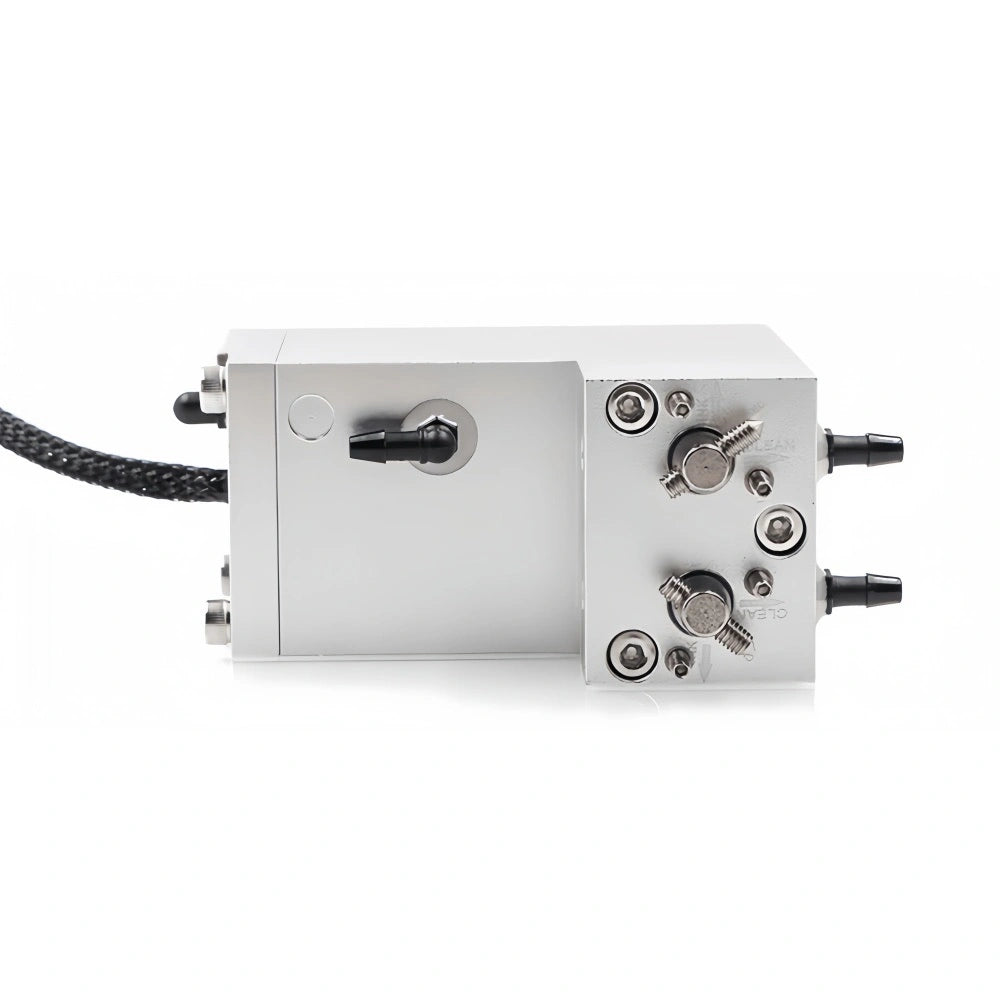

The UV Flatbed Square Metal Sub Ink Cartridge is a precision-engineered secondary ink tank built for professional UV flatbed and roll-to-roll printers. Featuring a compact square aluminum body with high sealing performance and corrosion resistance, it ensures stable ink flow and negative pressure balance for long-term, high-speed printing.

This integrated dual-valve system provides reliable ink output and return flow control. The cartridge is available in two versions, A Type (2.54–2P small connector) and B Type (2510–2P large connector), to match different printer connection standards.

Key Features

  • Square aluminum housing with high mechanical strength and excellent anti-corrosion performance.
  • Dual-valve design provides precise negative pressure and ink flow control.
  • Compact size (43×64×82mm) fits various UV printer layouts.
  • Supports standard 6×4mm ink tubing for smooth and consistent ink delivery.
  • Available with small or large connector options for versatile installation.
  • Designed for UV flatbed, hybrid, and roll-to-roll printers.

Available Models

Model Description

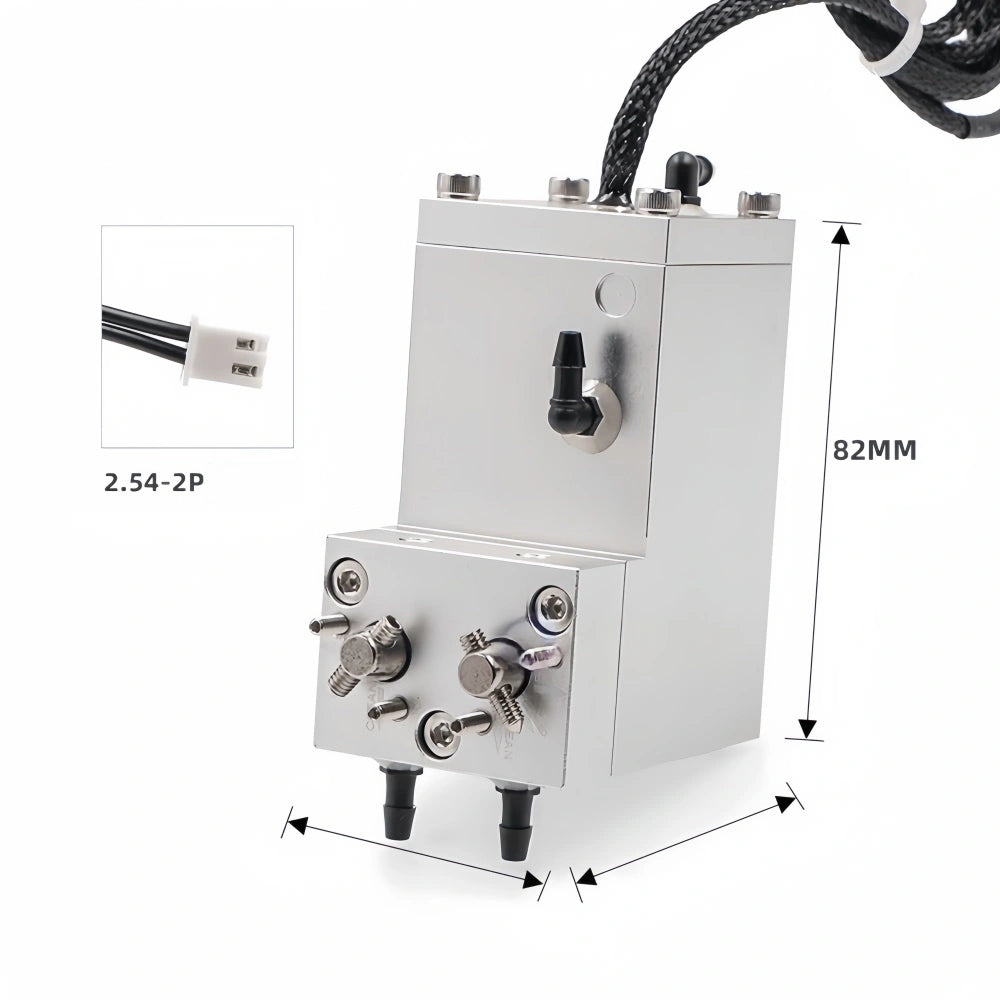

A Type with 2.54–2P Small Connector Equipped with a compact connector for printers using small signal terminals. Lightweight and easy to install.

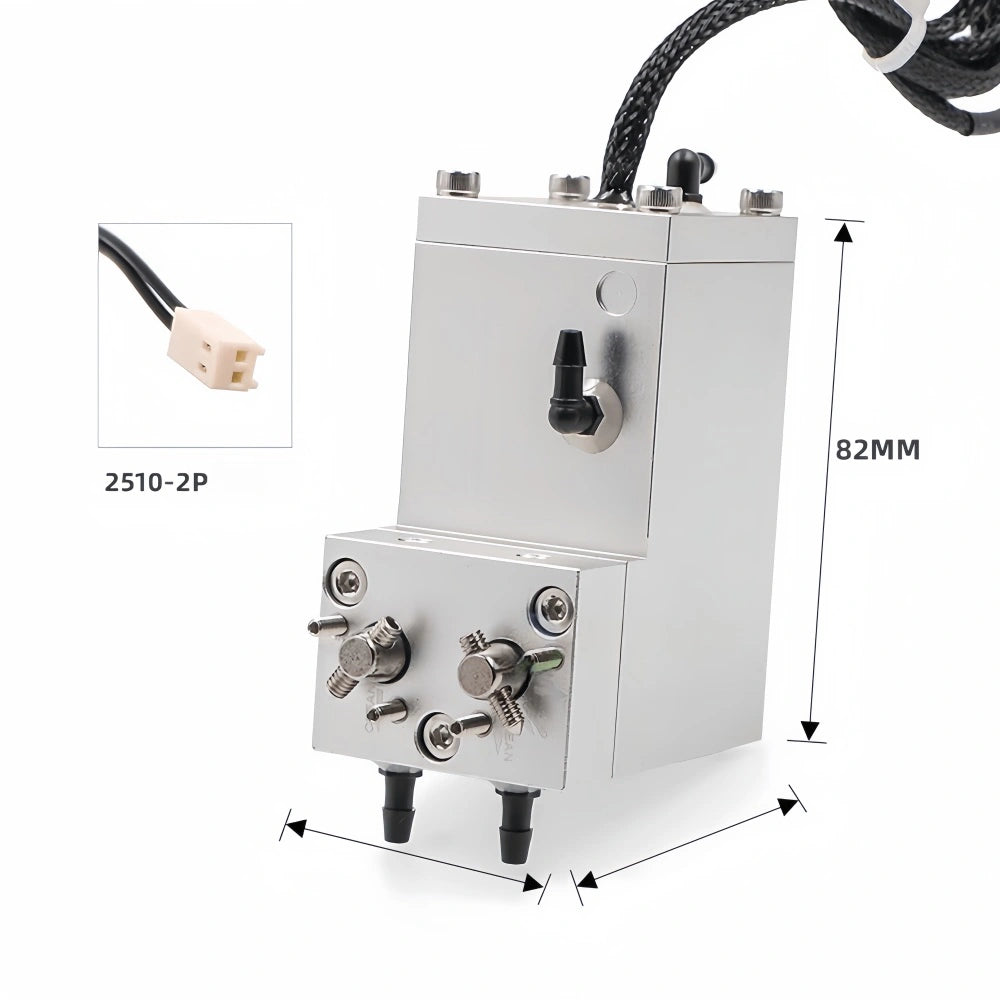

B Type with 2510–2P Large Connector Uses a standard 2510 large connector, providing enhanced connection stability for industrial UV printers.

Technical Specifications

Product Type UV Flatbed Square Metal Sub Ink Cartridge
Material Aluminum Alloy (Anti-Corrosion Type)
Valve Type Dual-Valve Integrated System
Size 43 × 64 × 82 mm

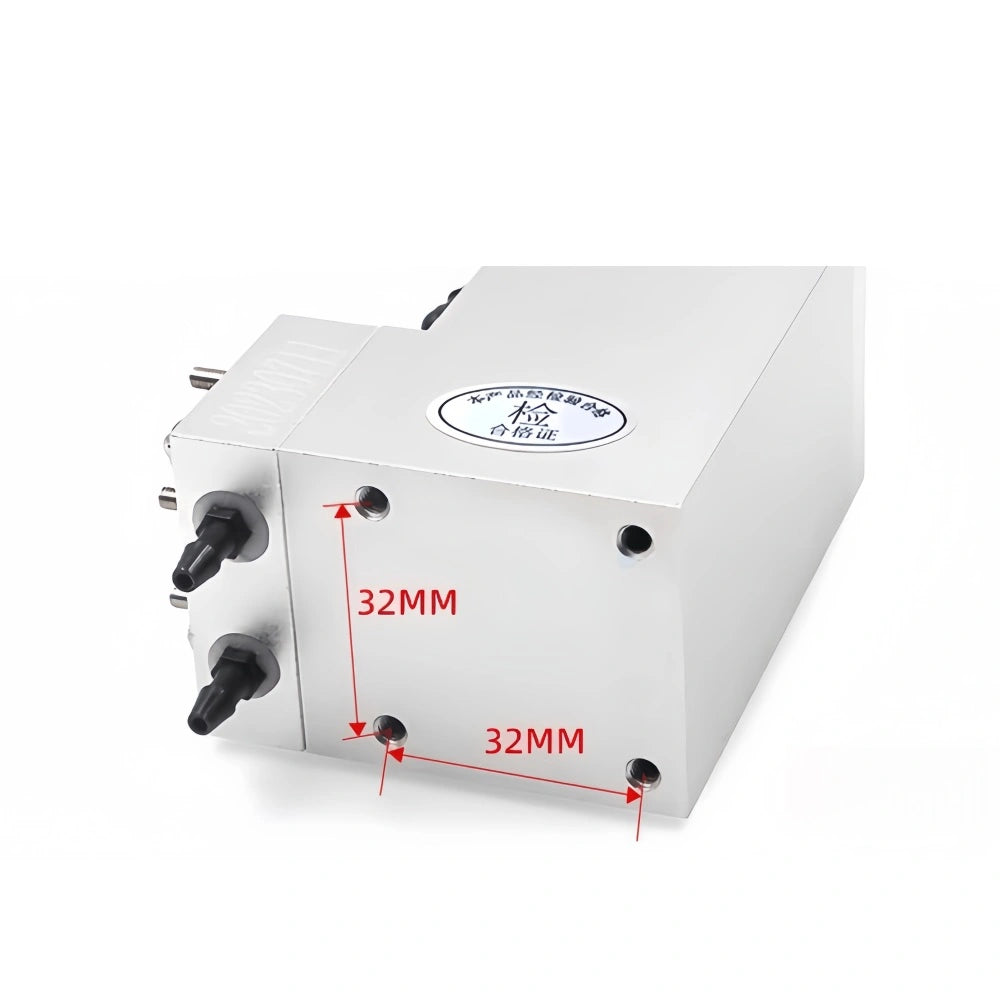

Base Hole Distance 32 × 32 mm
Ink Ports 1 Inlet / 2 Outlet
Connector Options A Type (2.54–2P) / B Type (2510–2P)
Ink Tube Compatibility 6×4 mm UV Ink Tube
Ink Type Compatibility UV Ink
Compatible Printers UV Flatbed / Roll-to-Roll / Hybrid Printers

Product Advantages

  • High sealing precision to prevent air entry and ink leakage.
  • Strong aluminum body with durable anti-corrosion finish.
  • Compact square structure fits tight installation spaces.
  • Dual-valve configuration ensures stable negative pressure balance.
  • Supports quick connector replacement for various printer models.

Applications

  • UV Flatbed Printers
  • Roll-to-Roll Printers
  • Hybrid UV Printers
  • Industrial Ink Circulation Systems

Installation Notes

  1. Install vertically with ink outlets facing downward for smooth flow.
  2. Connect power and valve cables according to connector type (A or B).
  3. Ensure tubing is firmly fixed to avoid leakage or pressure loss.
  4. Keep ports clean and check negative pressure before initial use.

Note: A Type (2.54–2P) is suited for compact printers, while B Type (2510–2P) is ideal for larger or industrial UV printers requiring stronger connectors.
