Description
xProduct Overview

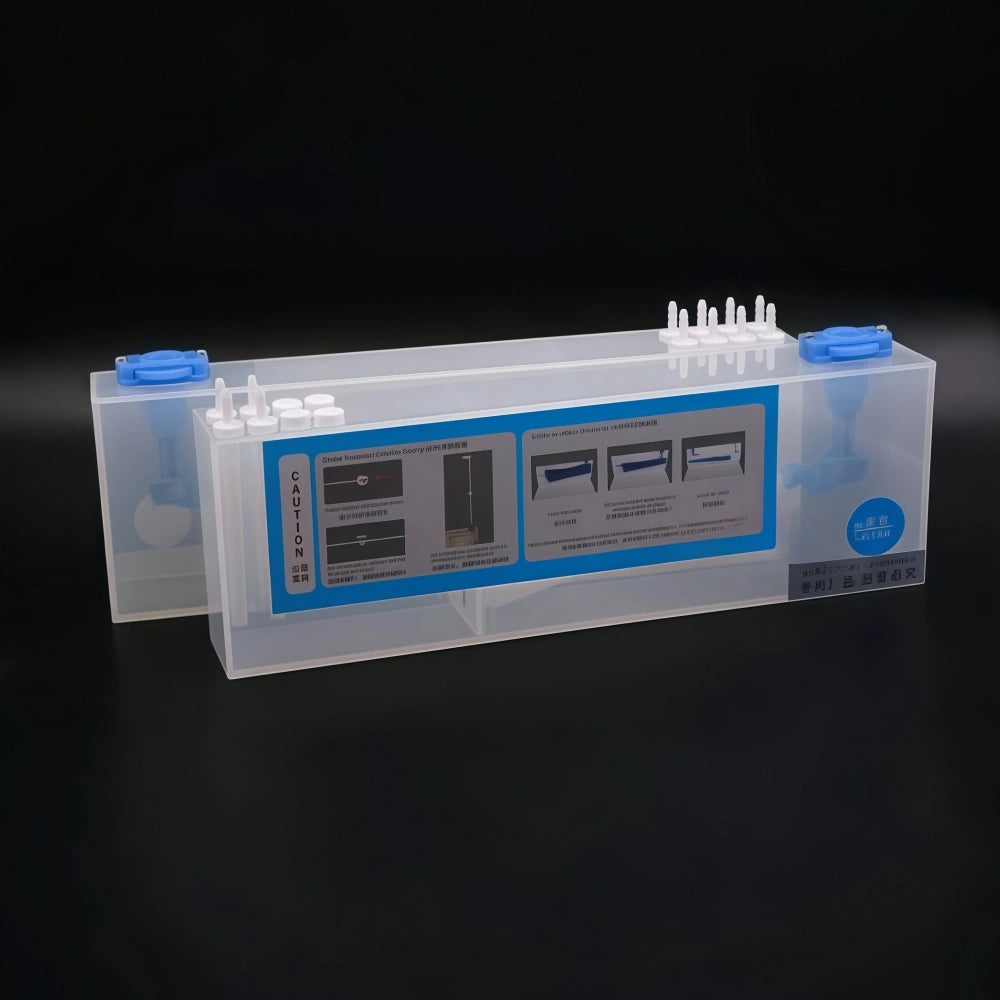

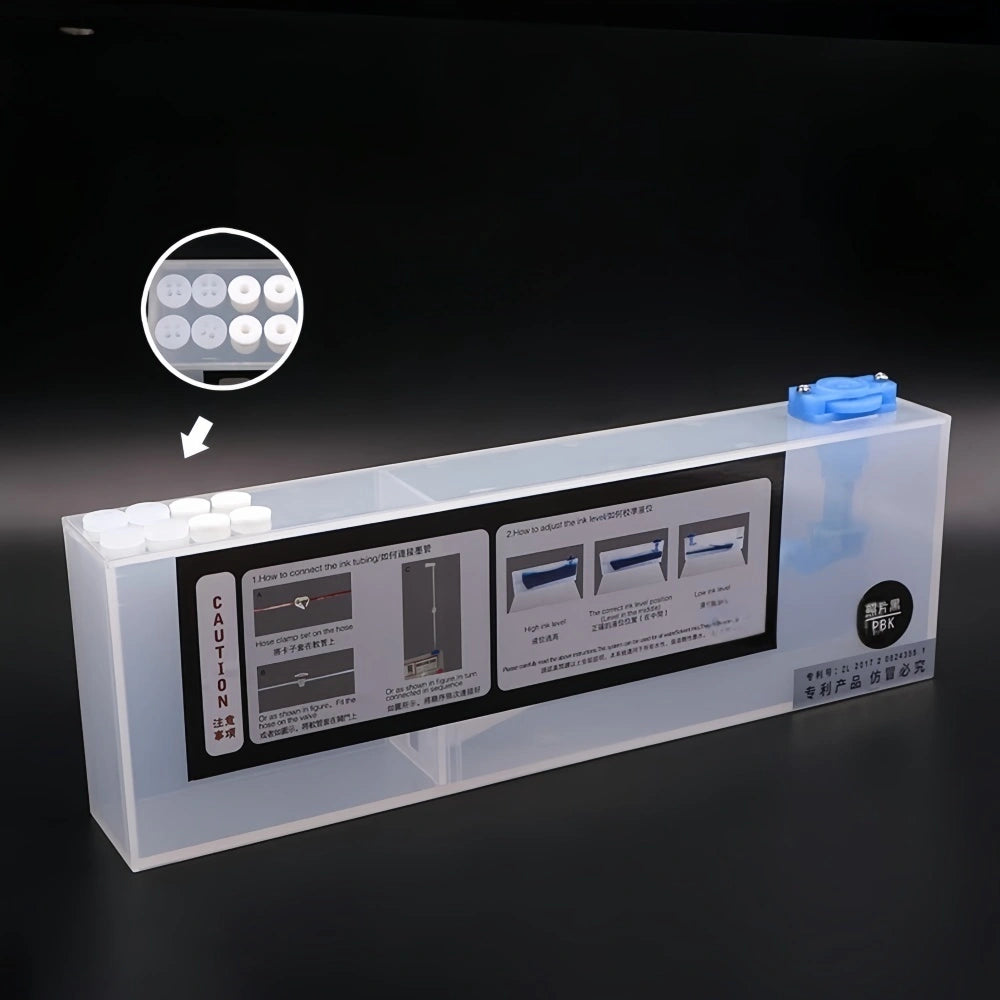

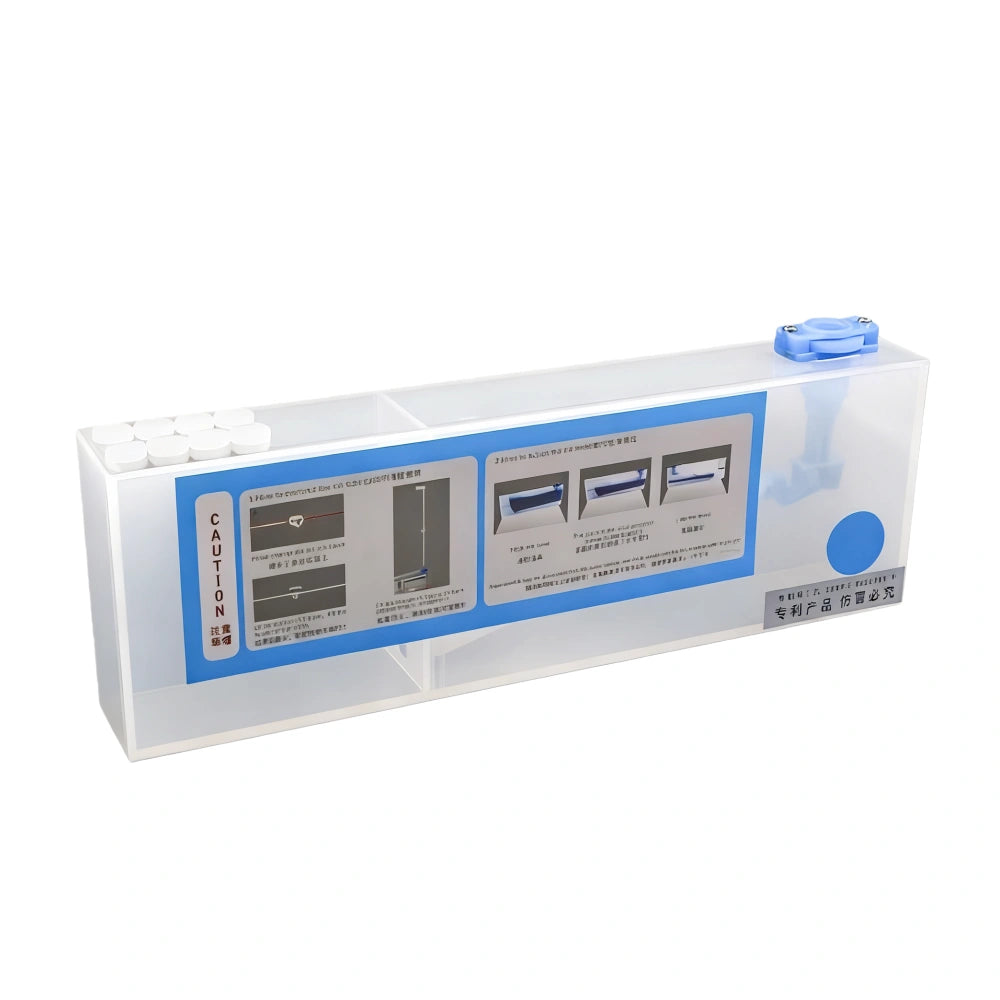

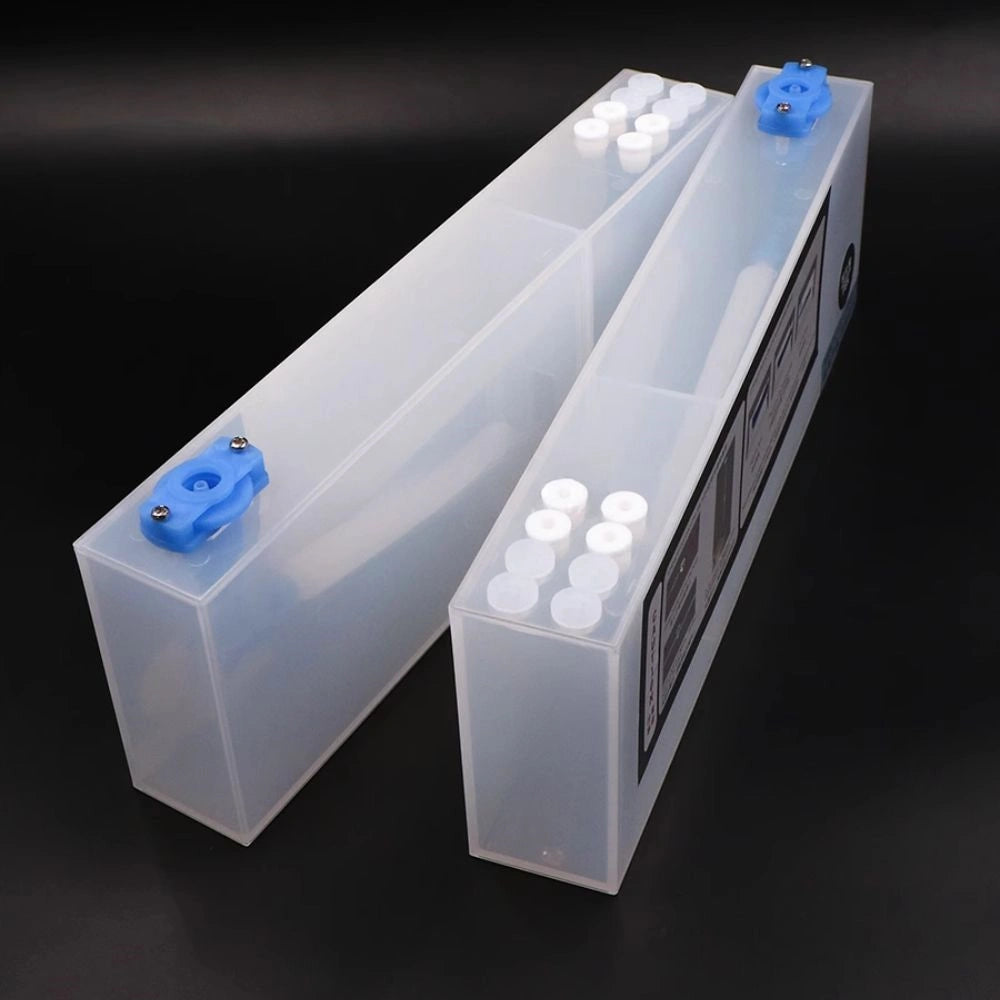

The 660ml Float Sub Ink Cartridge is designed for textile, sublimation, and eco-solvent printing machines. It features a high-capacity float structure that automatically regulates internal ink pressure to ensure continuous and stable ink output during long printing operations.
Key Features
- Large 660ml capacity for extended ink supply and reduced refill frequency.

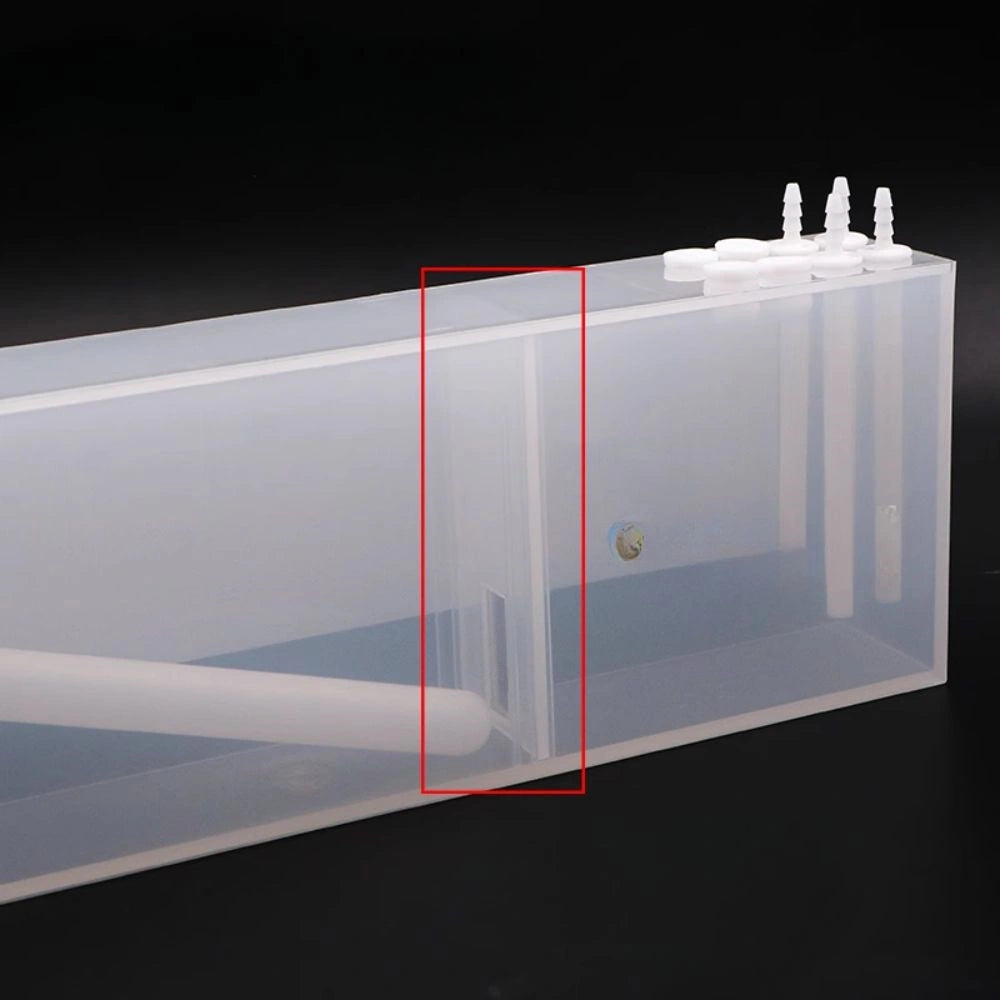

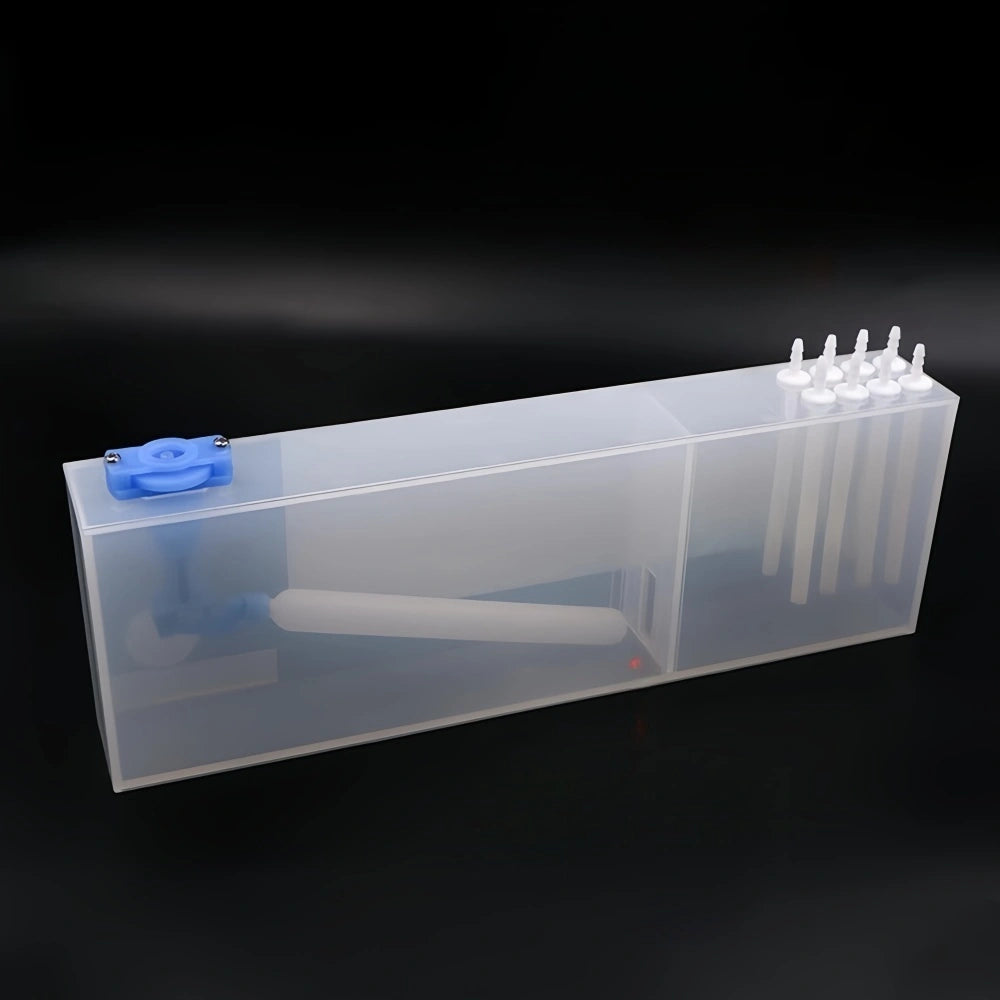

- Built-in float mechanism maintains stable ink pressure, preventing air intake or ink overflow.
- Supports both 4-outlet and 8-outlet configurations for flexible installation.
- Compatible with textile, sublimation, and eco-solvent ink systems.
- Transparent ABS shell allows easy monitoring of ink level and condition.
Technical Specifications
| Model | 660ml Float Sub Ink Cartridge |
| Capacity | 660ml |
| Dimensions | 29.8 × 4.5 × 9.8 cm |
| Material | High-strength transparent ABS plastic |
| Ink Type Compatibility | Textile, Eco-Solvent, Sublimation, Pigment Inks |
| Connection Options | 4 Ink Outlets / 8 Ink Outlets / 4 Ink Tubes / 8 Ink Tubes |
Model Comparison
| Model | Description | Recommended Use |
|---|---|---|
| No.1 – 4 Ink Outlets | Standard version with 4 ink outlets for balanced and stable ink supply. | Suitable for standard textile or eco-solvent printers. |
| No.2 – 8 Top Ink Outlets | Eight top outlets provide high ink flow for multi-channel or high-speed printing. | Ideal for printers with dual printheads or large-format systems. |
| No.3 – No.4 Ink Tubes | 4 ink tube configuration for stable ink transfer and minimal pressure fluctuation. | Recommended for continuous textile production lines. |
| No.4 – 8 Ink Tubes | 8 independent ink tubes ensure optimal ink balance and reduced clogging risk. | Best choice for industrial multi-color textile printers. |
Installation and Maintenance
- Place the cartridge horizontally to maintain consistent ink pressure.
- Check the float movement before use to ensure smooth operation.
- Securely connect all ink tubes and verify no air bubbles remain inside.
- Clean the ink outlet ports regularly to maintain smooth ink flow.
Note: The 660ml sub ink cartridge with float system provides professional-grade ink control and stability for textile printing and eco-solvent applications.
